I figure the title might seem a bit misleading, but that is what this thing is. The pics explain most of it...
Fit a normal 1 litre or 2 litre bottle over the nozzle with the two o-rings (lubricated) and slide the keeper over the flare. Pressurize, pull on rope to let 'er fly. Height of projectile corresponded fairly closely to psi: 40 psi = 40 feet. This was almost always shot straight up.
Pressure ranges: 10 - 100 psi
The higher the pressure, the higher the chamber went. Not a single bottle burst on us, although 3 got stuck on the roof and one in the top of a very tall tree.
I taught my 4 and 6 year old how to operate it and then I went back to rototilling the garden, this way I could supervise their "playing".
While they were busy blasting away, my friend's 16 year-old boy drove by and stopped to see what crazy things we were doing now. **Proud papa moment** My older son explained to him exactly what they were doing and exactly how and why it worked so well. He used (properly) some terms: compressor, compressed air, trigger, releases, air hose, pressure, etc. to explain it to a kid 10 years his senior! They talked about it for a few minutes like they were buds in shop or ag class together. It was pretty dang funny to watch. He helps when I tinker in the shop, but I didn't know he was absorbing so much.
Aluminum base, chamber shooter
-
willarddaniels
- Specialist 2
- Posts: 286
- Joined: Wed Jan 31, 2007 2:34 pm
- Location: Idaho
- Attachments
-
- Bottle/Chamber in place and ready to fire
- shooter 1.jpg (20.92 KiB) Viewed 1797 times
-

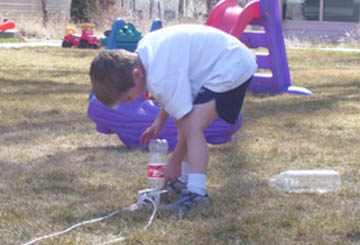

- Full shot, filler hose and rope lead off 30+ feet
- shooter 2.jpg (28.11 KiB) Viewed 1797 times
-

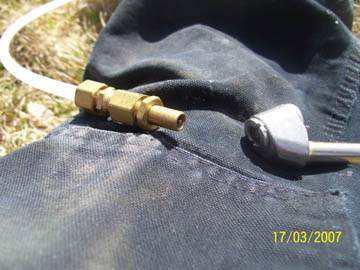

- Nozzle w/2 o-rings and keeper/slider
- Shooter 3.jpg (15.52 KiB) Viewed 1797 times
-

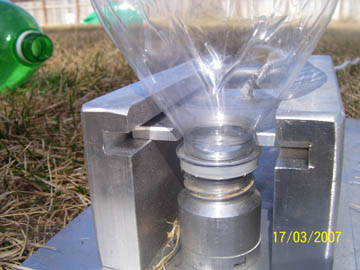

- Ready to pull the rope/trigger
- Dan Jarom, shooter.jpg (25.23 KiB) Viewed 1797 times
-

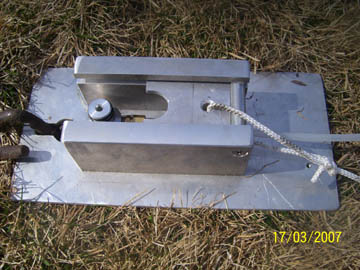

- Setting the chamber
- Dan, shooter.jpg (18.61 KiB) Viewed 1797 times
-

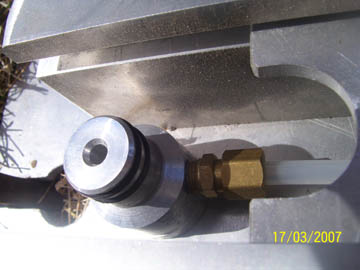

- Filling station
- valve, shooter.jpg (22.08 KiB) Viewed 1797 times
