Sure it's a destructive adjective, but I dont think it's too similar??jackssmirkingrevenge wrote:"destroyer" is too much along the lines of "mauler" too...
Destroyer Valve MKII [POWER TESTS 9/6/09]
Judging from the fact that you mentioned price in £, are you from the UK or EU? If so, then there is a big gap in the market for pre-assembled spudgun parts. Even if you are outdone in the USA, you may very well end up with a good market in the UK each summer.
Last edited by Biopyro on Mon May 04, 2009 5:52 am, edited 1 time in total.
Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. -Benjamin Franklin
-
inonickname
- First Sergeant 4
- Posts: 2606
- Joined: Sun Dec 07, 2008 3:27 am
Any images of the internals? If so, some members could comment on things such as pilot volume, machining quality, overall finish, bumper etc.
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
-
Willdebeers
- Specialist 2
- Posts: 214
- Joined: Tue Feb 03, 2009 1:18 pm
yes, im from uk.
i'll take some internal photos soon.
i'll take some internal photos soon.
-
unisonmind
- Specialist
- Posts: 118
- Joined: Wed Jan 24, 2007 9:25 pm
will your back plug only have the tape to make a seal or will you add a o-ring???---- and i think if you want to sell the valve you need a lot of clean up on your construction-- as of now it looks very noooob
THE DIFFERENCE BETWEEN A FLOWER AND A WEED IS A JUDGEMENT
There you go then, you needn't compete with an established retailer, but can get yourself started here. It's not difficult to compete with the overpriced, "I don't have time for customers" attitude of the UKSGC shop.
I do think you could make it a bit safer. I believe they are rated fittings, but the plastic looks thin and DWV like. They should have PN8 written on them somewhere, which is the UK indicator for pressure rated (8 bars).
I highly reccomend http://www.hendersons.co.uk and http://www.trssupplies.co.uk/
The piston is either too long - and therefore heavy, or the pilot volume is too large. You need to shorten that back bit.
I do think you could make it a bit safer. I believe they are rated fittings, but the plastic looks thin and DWV like. They should have PN8 written on them somewhere, which is the UK indicator for pressure rated (8 bars).
I highly reccomend http://www.hendersons.co.uk and http://www.trssupplies.co.uk/
The piston is either too long - and therefore heavy, or the pilot volume is too large. You need to shorten that back bit.
Last edited by Biopyro on Mon May 04, 2009 8:32 am, edited 1 time in total.
Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. -Benjamin Franklin
-
jackssmirkingrevenge
- Five Star General
- Posts: 26183
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 547 times
- Been thanked: 326 times
Actually it implies superiority to the Mauler as something mauled is not necessarily destroyedBiopyro wrote:Sure it's a destructive adjective, but I dont think it's too similar??
-
Willdebeers
- Specialist 2
- Posts: 214
- Joined: Tue Feb 03, 2009 1:18 pm
Well there you go then.jackssmirkingrevenge wrote:Actually it implies superiority to the Mauler as something mauled is not necessarily destroyedBiopyro wrote:Sure it's a destructive adjective, but I dont think it's too similar??
It says PN8 on it.
The tube at the back is as it is because of the way the piston housing is designed, and it is lightweight.
Compared to other materials, nylon is not especially light. You would be better off using HDPE. It machines well as far as I know, has an extremely low friction coefficient, and floats in water (about 80% density of nylon). It is also extremely tough and strong.
HDPE is also less expensive.
HDPE is also less expensive.
Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. -Benjamin Franklin
-
Willdebeers
- Specialist 2
- Posts: 214
- Joined: Tue Feb 03, 2009 1:18 pm
Thanks biopyro, i'll look into that.
does anyone know where i could get an o-ring that would create a seal in a 50mm tee?
does anyone know where i could get an o-ring that would create a seal in a 50mm tee?
Your local hardware store might well carry one. Mine is a tiny place, but has a whole selection of O rings.
Try this ebay link - it's basically what my hardware store has. http://tinyurl.com/ceajox
Try this ebay link - it's basically what my hardware store has. http://tinyurl.com/ceajox
Those who would give up Essential Liberty to purchase a little Temporary Safety, deserve neither Liberty nor Safety. -Benjamin Franklin
-
Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
HDPE works well for me.Biopyro wrote:Compared to other materials, nylon is not especially light. You would be better off using HDPE. It machines well as far as I know, has an extremely low friction coefficient, and floats in water (about 80% density of nylon). It is also extremely tough and strong.
HDPE is also less expensive.
Edit
In smaller diameter valves, a close fit is low friction without o rings.
- Attachments
-

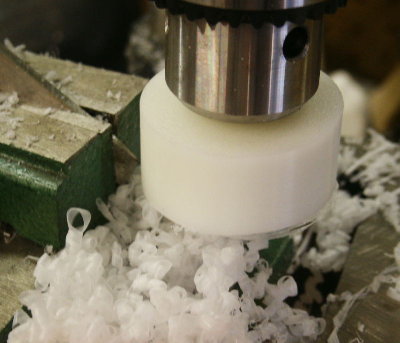

- Machining HDPE on a drill press.
Last edited by Technician1002 on Tue May 05, 2009 12:14 am, edited 1 time in total.
-
inonickname
- First Sergeant 4
- Posts: 2606
- Joined: Sun Dec 07, 2008 3:27 am
I can testify to that, I tried tech's HDPE method with the drill press and chisel and it works very well (remember to do everything up tight and have a firm grip, only take small cuts!)
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
I would honestly think twice about trying to sell these things. The craftsmanship is nowhere near professional looking. You can also go a lot more compact with the design. The "other" guys fit their valves entirely inside of a tee.
I dont doubt that this valve performs well, but I dont see much success unless things get cleaned up a lot. If this is a prototype, then keep these things in mind while doing the next version.
I dont doubt that this valve performs well, but I dont see much success unless things get cleaned up a lot. If this is a prototype, then keep these things in mind while doing the next version.
I like to play blackjack. I'm not addicted to gambling, I'm addicted to sitting in a semi-circle.
-
Gaderelguitarist
- Corporal
- Posts: 580
- Joined: Sat Aug 16, 2008 9:56 pm
- Location: Columbia, MD
- Contact:
It looks to my like you wasted your time with the screws in the back. If that is indeed a coupling holding the bushing in the back, you should consider a threaded adapter.
The only case where you would need to use screws to hold in a bushing is if you are building the entire valve into a tee.
As for marketing this...
Large flow piston valves are already being sold successfully. You'll find it difficult to enter the market unless you begin with a price lower than $30 USD, or your valve ends up having remarkable performance.
The only case where you would need to use screws to hold in a bushing is if you are building the entire valve into a tee.
As for marketing this...
Large flow piston valves are already being sold successfully. You'll find it difficult to enter the market unless you begin with a price lower than $30 USD, or your valve ends up having remarkable performance.
Will the valve 'destroy' me with the dwv tee?
Try looking in the hardware store for water filter replacement orings. They are 1/8" thick, and range from 2-3".Jogumpie wrote:Thanks biopyro, i'll look into that.
does anyone know where i could get an o-ring that would create a seal in a 50mm tee?
