Paintball Scenario Cannons

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
Binder17
Specialist
Specialist
Posts: 105
Joined: Sat Dec 23, 2006 3:40 pm
Location: The Colony, TX
Contact:

Fri May 16, 2008 1:21 pm

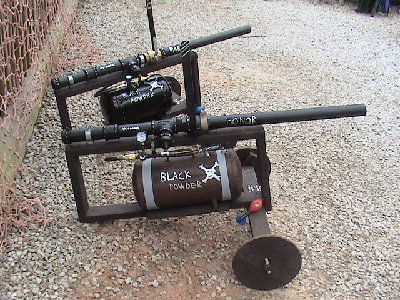

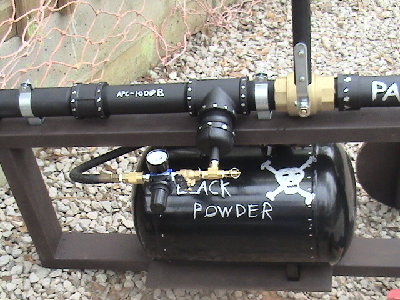

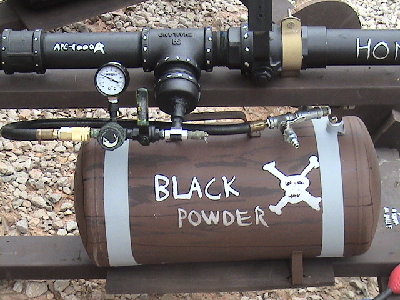

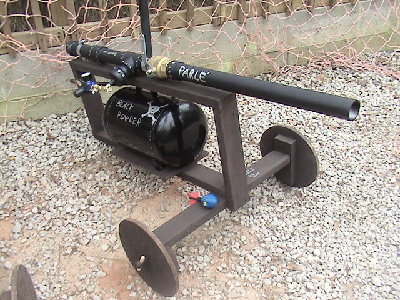

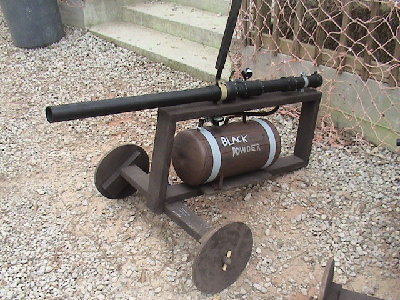

I work at Paintball Command in Covington, LA. There was a paintball scenario called Pirates: Brethren of the Coast. So of course it is based on pirates and there were row boats, invisible canals, and even pirate ships. My boss had scene my spudguns and wanted me to build some type of cannon that could shoot nerf rockets and was easy to operate. I also had to build two of them. Since it had to be simple and safe I immediately decided on a pneumatic that simply used a 2" ball valve. It has a 2" barrel and chamber with a carry tank beneath it. To fire, a player only had to open one valve to let air in the chamber then open the large valve to fire. I did my best to make it look like a black powder cannon. It really doesn't look like one but it puts the idea in one's head. I also only had three days to do this with school in the way. With some minor set backs they turned out great and everyone loved them. The scenario was a huge success. I made a profit of $200.00 dollars after the cannon cost $180.00 to build.

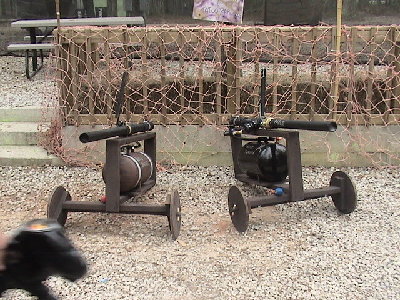

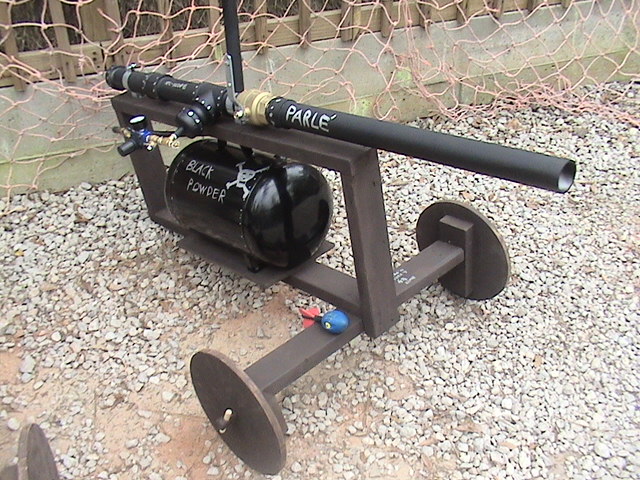

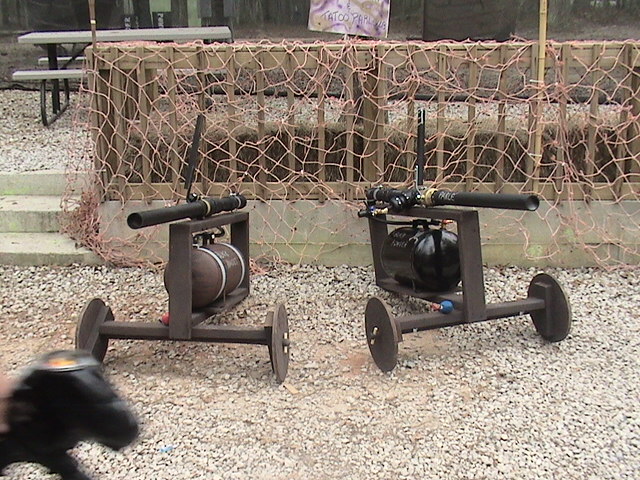

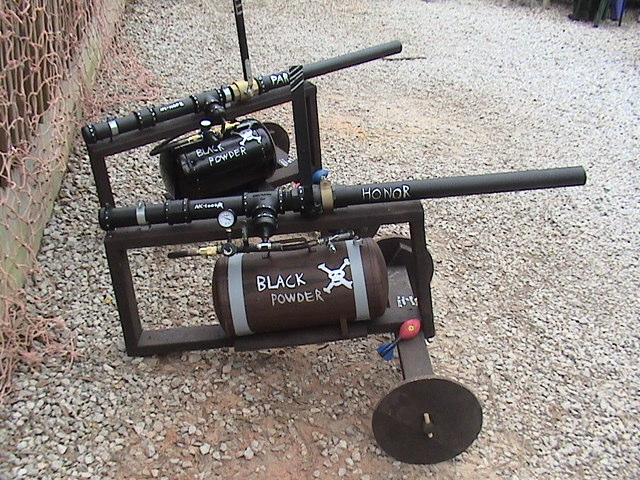

Below are the pictures of the cannons and the pirate ship props that were their targets.
Attachments

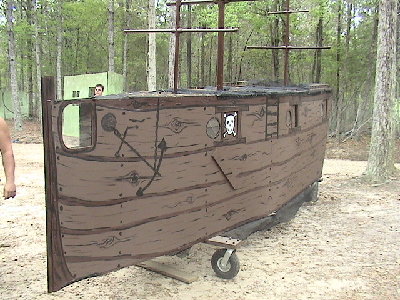

one of the ships

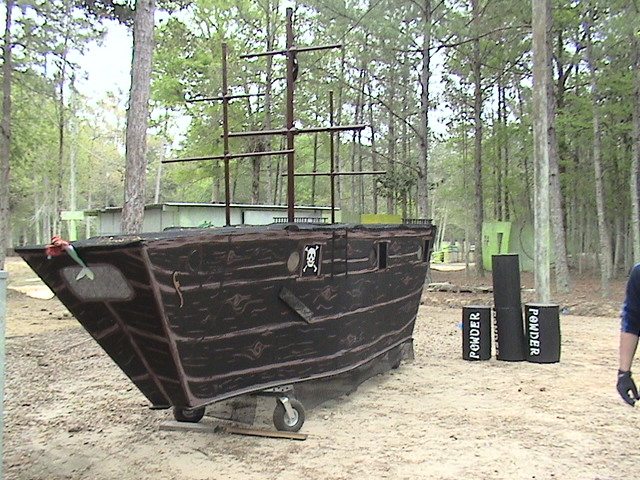

one of the ships
</script></font><p><font>&copy;2006 Google</font></p></center></body></html>
User avatar
pizlo
Corporal 3
Corporal 3
Posts: 783
Joined: Fri Dec 22, 2006 7:27 pm
Contact:

Fri May 16, 2008 1:34 pm

Haha, nice work mate. You should use that money for a nice rifle.
User avatar
n-strike
Specialist 2
Specialist 2
Posts: 219
Joined: Sat Apr 26, 2008 3:48 pm
Location: Richmond, BC, Canada

Fri May 16, 2008 2:17 pm

Whoa. That is awesome! I love the ships! If I had them I would so be a little kid again and put on a pirate costume and pretend I'm the captain of the ship. ARGH!
User avatar
King_TaTer
Specialist 2
Specialist 2
Posts: 265
Joined: Fri Nov 17, 2006 6:14 pm

Fri May 16, 2008 2:33 pm

good work man. i love the paint job on them haha, nice
User avatar
SpudFarm
First Sergeant 3
First Sergeant 3
Posts: 2571
Joined: Sat Nov 04, 2006 9:39 am
Location: Norway Trondheim area

Donating Members

Fri May 16, 2008 4:27 pm

those are really awesome! clean as hell!
"Made in France"
- A spud gun insurance.
User avatar
JDP12
Staff Sergeant 5
Staff Sergeant 5
Posts: 1943
Joined: Fri Mar 30, 2007 8:34 pm

Fri May 16, 2008 4:29 pm

nice clean guns, i wish i had that job. The boat looks extremely good as well by the way
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6536
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 17 times
Been thanked: 4 times
Contact:

Donating Members

Fri May 16, 2008 4:37 pm

I bet you guys had a lot of fun with all this! Lucky ducks!! Nice job, when word of this gets out to other parks they will all what 2 or more of these. I like the entire theme..... :wink:
User avatar
STHORNE
Sergeant 3
Sergeant 3
Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin

Donating Members

Fri May 16, 2008 4:45 pm

Yeah man, the theme is awesome and the cannons kick ass. With only 3 days, you have out-done yourself. :notworthy:

I don't have anything against your cannons and wouldn't change a thing about them, but I do have one important question..

If you wanted it to mimic a "pirate cannon" (appearance), why wouldn't you make a straight design instead of the over-under design? Like possibly a coaxal. Just curious...

Again, they turned out awesome! Nice work :wink:
Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
Binder17
Specialist
Specialist
Posts: 105
Joined: Sat Dec 23, 2006 3:40 pm
Location: The Colony, TX
Contact:

Mon May 19, 2008 12:52 pm

It is an in-line design, notice the large ball valve ahead of the chamber and behind the barrel. It just looks like an over-under design because of the carry tank. I wanted it to have straight look to it but the tank had to go somewhere and I did not have time to do anything fancy.
</script></font><p><font>&copy;2006 Google</font></p></center></body></html>
User avatar
STHORNE
Sergeant 3
Sergeant 3
Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin

Donating Members

Mon May 19, 2008 12:53 pm

oh yeah, i see...

still very nice job
Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
n-strike
Specialist 2
Specialist 2
Posts: 219
Joined: Sat Apr 26, 2008 3:48 pm
Location: Richmond, BC, Canada

Mon May 19, 2008 2:36 pm

Yea, I see it now too. Has any of your neighbours saw it yet? If they did, what did they say?
prospudder
Private
Private
Posts: 6
Joined: Mon May 19, 2008 9:35 pm

Tue May 20, 2008 11:25 am

were the nerf rockets used to take out ships or mast or were they more of an anti personnel weapon :twisted:
nice cannon btw :D
User avatar
Binder17
Specialist
Specialist
Posts: 105
Joined: Sat Dec 23, 2006 3:40 pm
Location: The Colony, TX
Contact:

Tue May 20, 2008 2:19 pm

The nerf rockets were for shooting only the ships. All they have to do is touch the ship.
