Please critique any problems you see, already had it told to me that I'm missing a ball valve before the quick connect.
Thanks!
Jabingo19
Critique: Changeable Barrel Coaxial 2" Piston Cannon
- Attachments
-

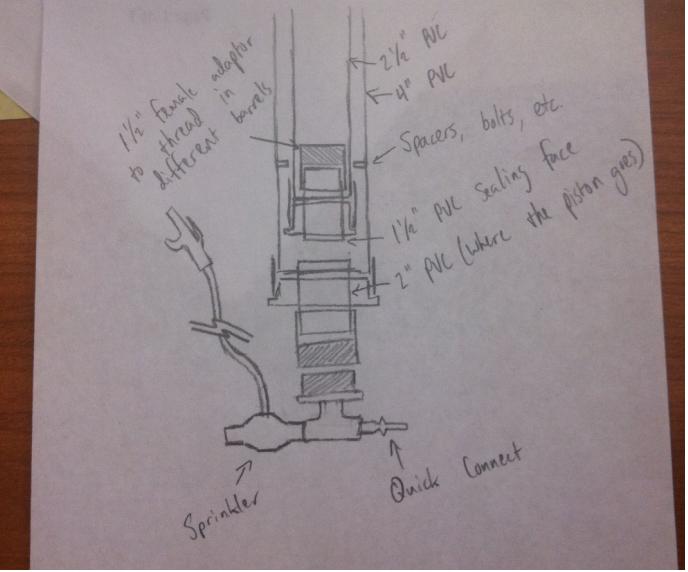

- Alright, so the idea from the changeable barrels comes from the fact that there is a 1.5" female adapter in the bottom of the standard 2.5 inch barrel, so anything 1.5" or smaller should fit in the 2.5 barrel just fine. Besides that, I only drew up the bottom half because the top is fairly straightforward, the 2.5" pipe flush with the 4" to 2.5" bushing. Also, it is fired with a 2" piston and... thats it I think. Thanks for any comments!
Jabingo19 - untitled.JPG (34.06 KiB) Viewed 905 times
-
Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
Umm why start a new thread when you already had it going on the other one? I like your design, it's a pretty compact way of doing it... You also have the pop effect going on because of the small difference in piston and seat diameter so that's good. I like it.
