Building a airsoft sniper rifle

[wyz2285]

Recently I got a lot of good stuff, hydraulic/pneumatic parts, etc.

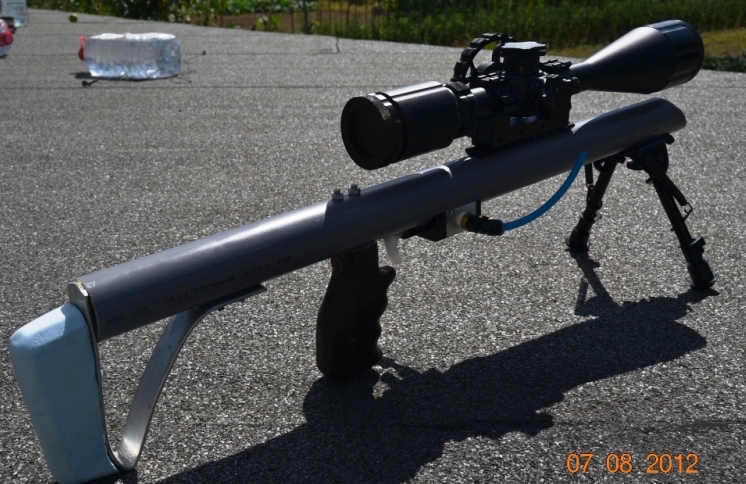

So, I decided to build a airsoft sniper rifle, my objective it´s to see how accurate a airsoft bb can be.
I used a 1/4 3-way valve to pilot a 1/4 QEV, the exhaust port of the 3-way is suppressed. But I´m not going to make it semi-auto, instead I will use bolt-action plus magazine for reloading.
The gun isn´t finished yet, I still haven´t decided the barrel/bolt configuration.
Video made at 5 bar, I tested 10 bar after the video, the QEV really rocks off the ground
[youtube][/youtube]

[Brian the brain]

Your stuff is getting better and better!!

Love the clean look so far!

I'm looking forward to seeing it completed.

[wyz2285]

Thank you sir
By my stuff getting better and better you meant the scope isn´t it actually it wasn´t expensive.
For the valves, I bought like 10 DCVs plus a couple of QEVs and other parts for less than 100 euro also now I have 6mm steel bbs

[dewey-1]

wyz;

That is a very appealing creation that you have done!
Excellent work and keep it up.

[wyz2285]

Thanks dewey-1, BTW I also got the circuit boards printed, 20 copies for just 30 euro
Hope I can finish this gun this month, but I have a girlfriend to take care now

[Goats spudz]

That looks really nice, you should make the barrel come out of the grey tube.

[dewey-1]

Thanks dewey-1, BTW I also got the circuit boards printed, 20 copies for just 30 euro
Hope I can finish this gun this month, but I have a girlfriend to take care now

Which version of the board?
Post a picture of the PCB.

Women will do that to you! Ask JSR!

[wyz2285]

Goats the barrel isn´t there yet
dewey-1 I got 10 copies of the semi/full auto(24v version)
and 10 copies of the semi one. I will post pictures when I find them I haven´t seem them since I arrived home (I printed them while I was in China, there is no such service here in portugal)
And, why should I ask JSR ?

[Labtecpower]

looks great! do you already have a barrel? I can get some quite good 6 mm hydraulics tube

And, why should I ask JSR ?

Well, the poor guy was once forced to bake a cake...
Not to mention he isn't allowed to buy a robotic baby.

[wyz2285]

Well, the poor guy was once forced to bake a cake...
Not to mention he isn't allowed to buy a robotic baby.

Well currently I´m not "forced" to do anything yet, but there are stuffs that I know I shouldn´t do now
I do have a barrel, one of the best I have right now but I need a new 6mm barrel source, any details?

[Labtecpower]

I can get 6 mm ID, 10 mm OD hydraulics pipe very cheaply, in reasonable lengths. (up to 2 meters)

They are made out of 316L stainless, I need to do a precision measurement on the ID tough.

[wyz2285]

Price? If the ID is less than 6.1 mm it´s ok, but it has to fit a bb of course.
And are they straight? Keep 2m of 6mm tube straight during shipping it´s difficult I guess.

[Gippeto]

Have to agree with everyone else...that IS looking good. :thumbup:

Kind of a Condor/tube gun thing going on that has major appeal.

[Labtecpower]

Price? If the ID is less than 6.1 mm it´s ok, but it has to fit a bb of course. And are they straight? Keep 2m of 6mm tube straight during shipping it´s difficult I guess.

Very very cheap, someytimes I can even get 60 cm lengths for free.
I believe it's under 6,1 mm, fits a bb very well, I already tried.
I'll test the straightness tomorrow.

[Zeus]

Nice work Wyz, looking forward to seeing it finished.

I hate to ask too, but you didn't pick her up fairly cheap in China did you?
