Hi guys...

I'm working on too many projects at once..and none are even near ready to be shown...

But this I had to share:

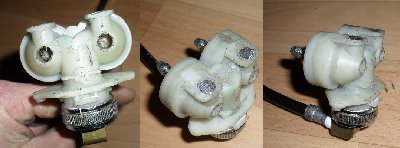

I modded a twin solenoid valve from a washing machine.. :D

I took off the solenoids, tapped the lids to 1/8 and made some hammervalves for it.

The piston's centrehole was melted shut with a soldering iron.
It's perfect for a double barrel ( with dual external hammers) launching airsoft bb's or in this case nerfdarts.

It's meant for my son and will be used at footpump pressures.( rated 10 bar)

At three bar it launches 2 foam plugs across the room in a straight line...really fast.
Did I mention it's only got stubs for barrels.
The two valves can be triggered independently.

Just for testing right now, so hold your critique untill you've seen the endresult...:
Attachments
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu Feb 28, 2013 2:08 pm

That's cool.
I found a solenoid in my old washing machine too, but my parents wanted the machine intact for recycling and Ii was not allowed to take it off :(
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Brian the brain
Moderator
Moderator
Posts: 3495
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Thu Feb 28, 2013 2:34 pm

It shouldn't be too hard to get hold of one if you really look for it.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu Feb 28, 2013 2:42 pm

Brian the brain wrote:It shouldn't be too hard to get hold of one if you really look for it.
Things are a little different here :lol: for parts like this it's not sold in stores, you have to contact the respective company how sell the washer machine with the model of the solenoid, I'll have to answer the model, brand etc to buy a one "to replace the one from the washer machine"
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Brian the brain
Moderator
Moderator
Posts: 3495
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Thu Feb 28, 2013 3:31 pm

No Ebay or different auction websites?
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu Feb 28, 2013 3:52 pm

ebay normally the shipping cost more than the product if it's not from China :lol: no second hand market here, people like me piratically doesn't here.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Fri Mar 01, 2013 10:20 am

Find appliance recyclers. Tell them you want some valves by the pound for a science fair or art project. If they smell money for an exact replacement part, they will milk it for all it is worth. Asking for scrap parts is dirt cheap. No guarantees or exchanges.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Fri Mar 01, 2013 1:23 pm

Cute :) will there eventually be hammers or is it to remain a poppet valve?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Brian the brain
Moderator
Moderator
Posts: 3495
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Fri Mar 01, 2013 5:13 pm

I feel like you don't know me at all...

:D
Hammer time! Offcourse!
can't touch this, remember...
Da-da-da-da...dada...dada...

What I've done today:

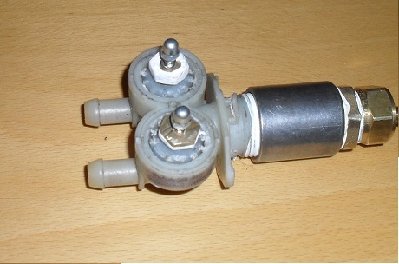

I cut down the 3/4" inlet to reduce the overall size ,fitted a teflon plug inside and compressed it in with a 3/4" ring I found--Originally used to hold a hosebarb.

Then I cut off the original outlets and plugged them with some m8 bolts and cut those down.

I then opened up the bottom of the valves to create new ports to the barrels, wich not only enables me to orientate the valve better for hammering the poppets...but the out-ports are now inline with the pistons aswell.

The inport is tapped to 1/8"and a small elbow will then direct the air into the valve from a butt-reservoir.

The barrels will be break action ( or basculating if you will) like a real doublebarreled shotgun.

And yes...the two hammers will fire independently.
I choose to use a single trigger and have the hammers release one after the other depending on how far the trigger pulled.
This gives me the option of firing both at the same time if I pull the trigger in one swift motion... :D

And just to sorta "claim"the idea...I plan on building a similar style launcher using a 12gram adapter and two 1/4" QEV's.
The trick is how to connect both valves to a single point..and have it withstand 900 psi..I think I know how to now.

I've had promissing results testing a hammered QEV directly to a 12 gram.The valves themselves hold sufficient volume at that pressure to launch say.. a 10 mm roundball at serious velocity.



Anyway, here the mods to the valve so far.
Attachments
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25836
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 157 times
Been thanked: 93 times

Donating Members

Sat Mar 02, 2013 12:57 am

Ah, now it's making sense... So Brian junior is getting a nerf coach gun?

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Brian the brain
Moderator
Moderator
Posts: 3495
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Sat Mar 02, 2013 6:43 am

You got me.

...with the percussion style external hammers.

Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
Zeus
Staff Sergeant
Staff Sergeant
Posts: 1505
Joined: Tue Oct 27, 2009 7:34 pm
Location: 'Straya, C*nt

Sat Mar 02, 2013 6:51 am

More like


Amirite?
/sarcasm, /hyperbole
User avatar
Brian the brain
Moderator
Moderator
Posts: 3495
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Sat Mar 02, 2013 4:57 pm

He's got that one and the Buzzbee Doubleshot.

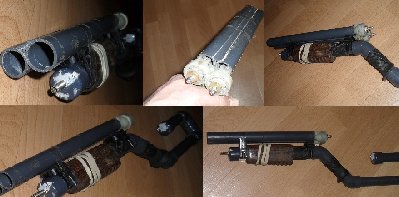

I stumbled apon some cheap rated PVC today so I figured I'd give it a go.
