my second 6mm. custom QEV sniper airgun updated

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
bladeul2006
Private 3
Private 3
Posts: 56
Joined: Wed Feb 13, 2013 12:08 pm

Wed Oct 02, 2013 11:42 am

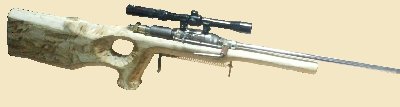

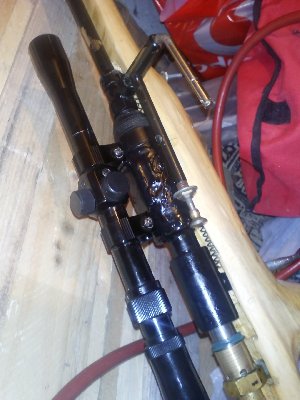

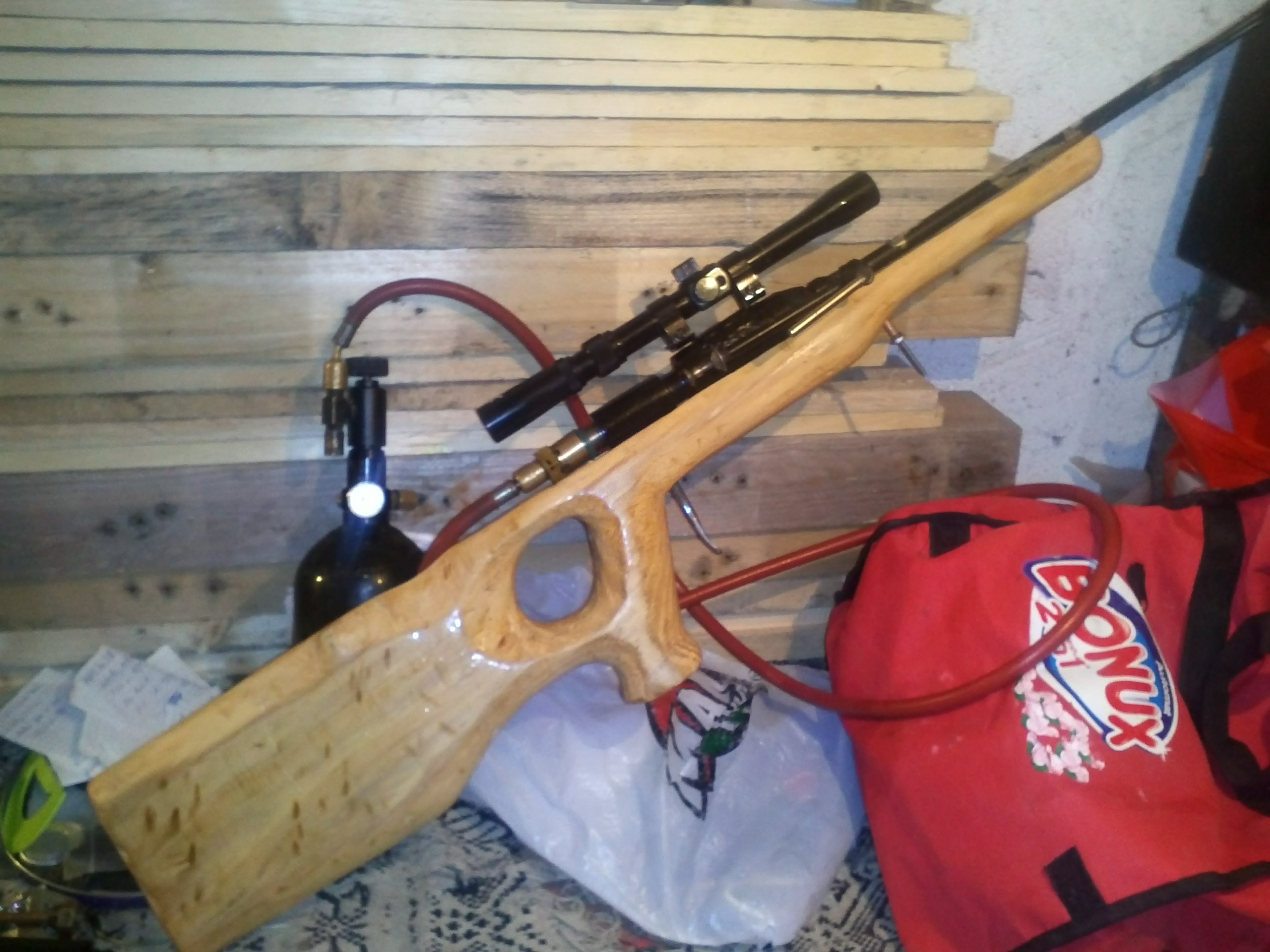

hope you like my new airgun, it runs 30 bar regulated CO2, and shuts 6 mm steel BB.
not yet finished, still needs grinding , sanding and polishing

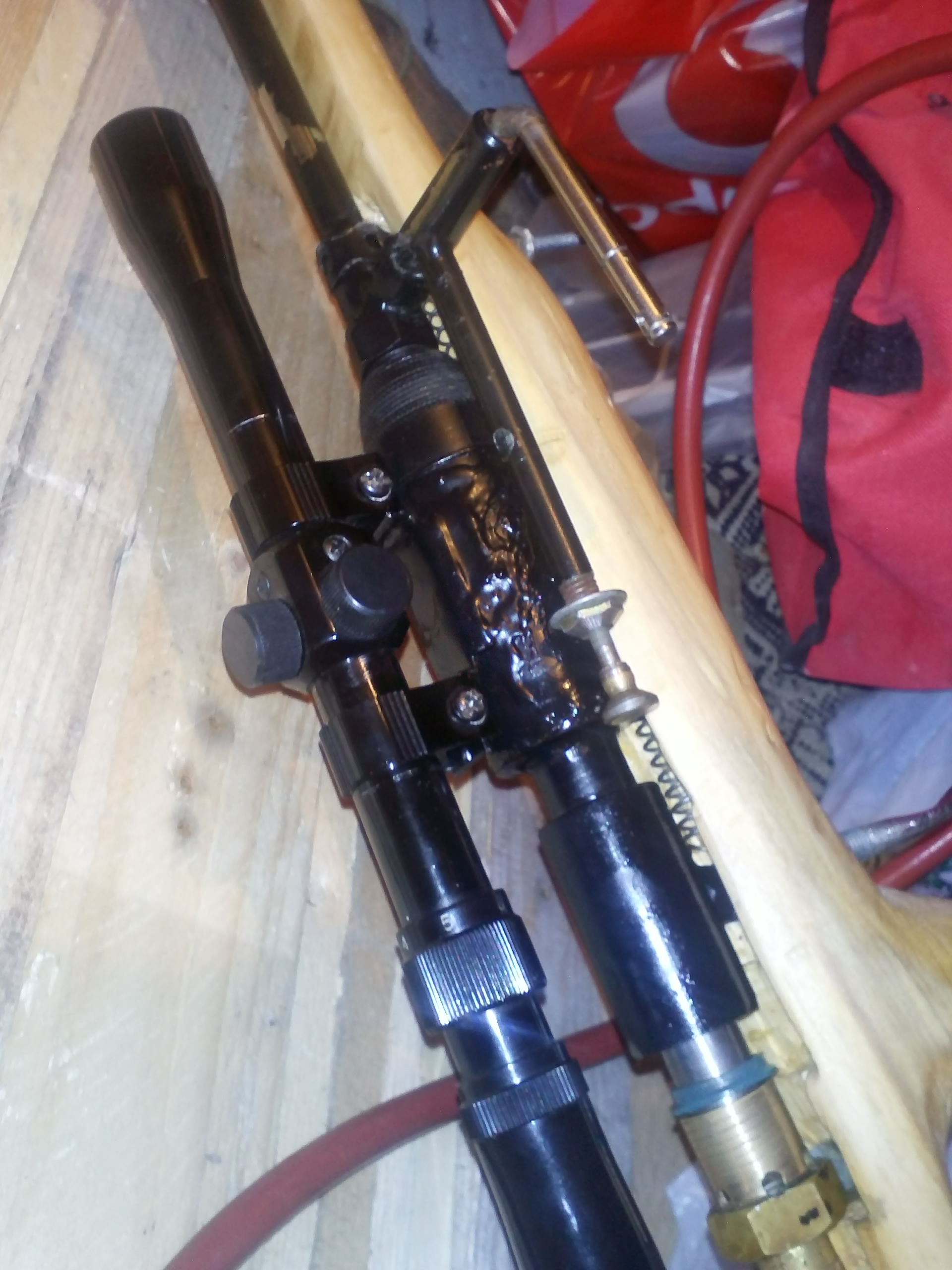

The CO2 comes through a high pressure hose to the back of the mechanism.
Better pics soon. THX
Attachments

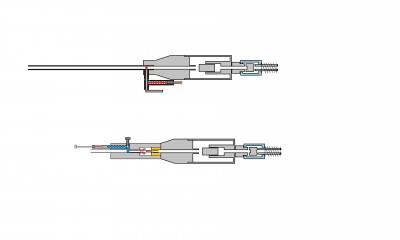

the basic principle
the basic principle
Last edited by bladeul2006 on Fri Jun 27, 2014 1:12 pm, edited 1 time in total.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25745
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 73 times
Been thanked: 48 times

Donating Members

Wed Oct 02, 2013 2:10 pm

Looks good, love the way you put the reloading mechanism together :) At 30 bar you must be getting very decent power, kudos.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 7 times

Wed Oct 02, 2013 4:00 pm

Very smart reloading and firing system, love it :)
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
dart guy
Specialist 3
Specialist 3
Posts: 394
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you

Wed Oct 02, 2013 5:43 pm

That system seems pretty nice but do you have orings on your reload piston. Also do you think that a rubber washer and sping return would make your reload system better or semi auto :wink: so you must not like videos?
when life gives you lemons... make root beer and leave the world wondering how you did that :D
User avatar
bladeul2006
Private 3
Private 3
Posts: 56
Joined: Wed Feb 13, 2013 12:08 pm

Thu Oct 03, 2013 6:18 am

I have tried the push forward loading mechanism, that was the initial design, but it turnet out to be too much power and it splits out the bb cought in between.
No o-ring seal, it's a tight fit , so very little gas escapes.
It's definetly not the final version of loading mech., but it's the current one :P



P.S.
no vids because I didn't had the time
User avatar
Brian the brain
Moderator
Moderator
Posts: 3494
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Thu Oct 03, 2013 11:17 am

I can't make out if the pilot is a pop-off or a hammervalve..or even a slidevalve..

But I like your style..
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
bladeul2006
Private 3
Private 3
Posts: 56
Joined: Wed Feb 13, 2013 12:08 pm

Thu Oct 03, 2013 1:04 pm

the pilot is a slide valve with a rod attached to it as the trigger
Attachments

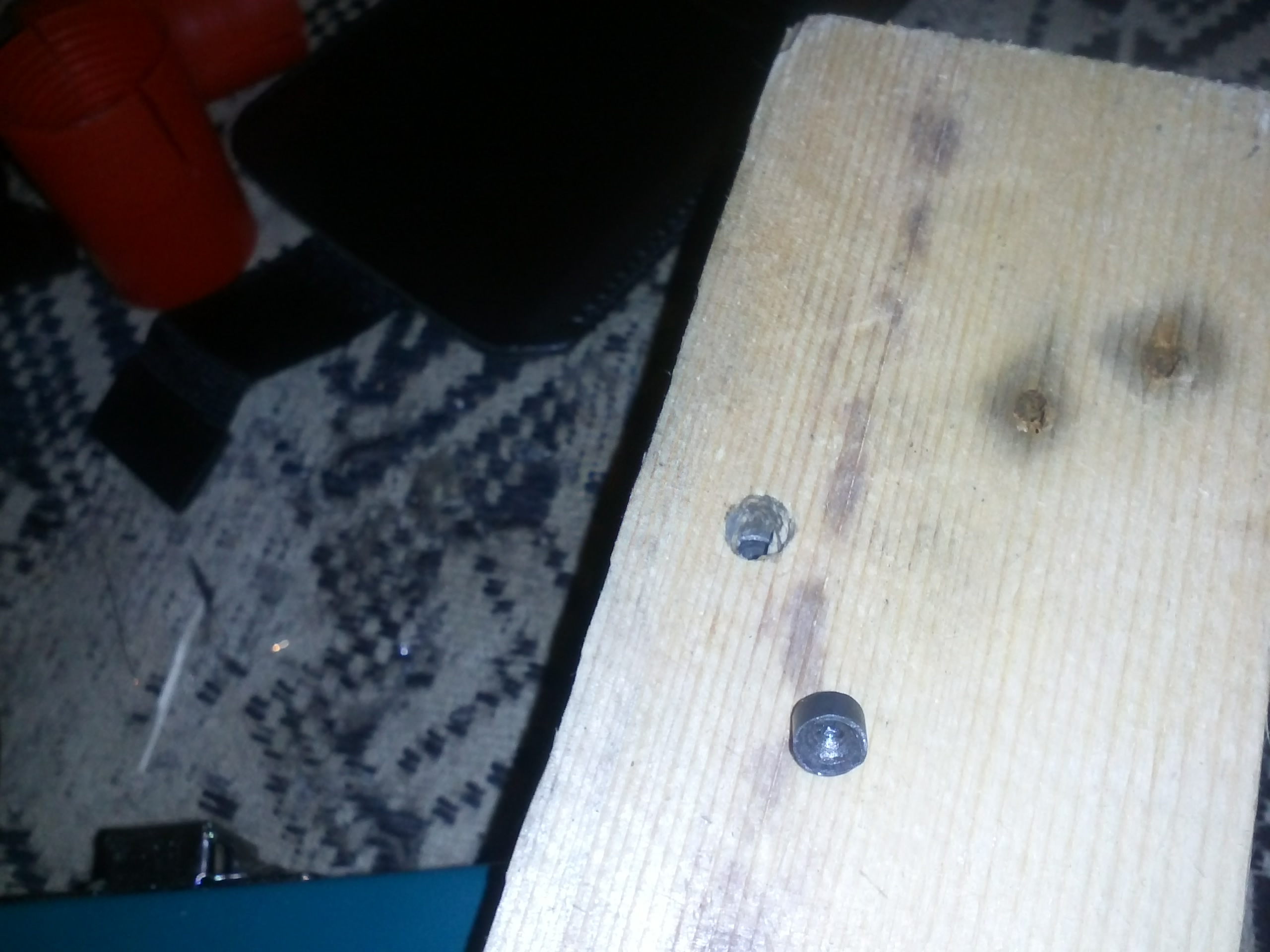

custom made 6 mm lead pellet
custom made 6 mm lead pellet

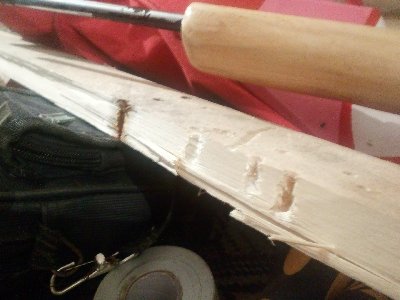

6 mm steel BB holes
6 mm steel BB holes
Last edited by bladeul2006 on Sun Feb 23, 2014 2:21 am, edited 2 times in total.
1nxtmonster
Private 4
Private 4
Posts: 91
Joined: Wed Oct 02, 2013 3:36 pm

Thu Oct 03, 2013 2:24 pm

Looks nice
Last edited by 1nxtmonster on Fri Feb 07, 2014 8:26 pm, edited 1 time in total.
User avatar
Talk
Specialist
Specialist
Posts: 109
Joined: Tue Sep 24, 2013 2:47 pm

Thu Oct 03, 2013 2:36 pm

That L115a3 look and power around 400 psi makes it a likeable one ,good job :)
User avatar
dart guy
Specialist 3
Specialist 3
Posts: 394
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you

Thu Oct 03, 2013 2:36 pm

you are being dumb. i said look for my post and he didn't get it to semi i just gave an idea on how to. sorry im ticked today
when life gives you lemons... make root beer and leave the world wondering how you did that :D
django
Specialist 4
Specialist 4
Posts: 413
Joined: Sat Feb 12, 2005 11:33 pm
Location: Australia

Fri Oct 04, 2013 6:07 am

Awesome!!!! I love it and the Loading Mechanism!.

Ive been looking for an idea on a New Loading Mechanism for a new project im starting and if I can I'll do something similar to this 8)
User avatar
Brian the brain
Moderator
Moderator
Posts: 3494
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland

Fri Oct 04, 2013 6:40 am

Awesome!!!! I love it and the Loading Mechanism!.
Same loading mech as this one:

http://www.spudfiles.com/forums/50-cali ... 23715.html
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25745
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 73 times
Been thanked: 48 times

Donating Members

Fri Oct 04, 2013 7:20 am

Brian the brain wrote:Same loading mech asthis one
So much so that I can repeat myself :)
jackssmirkingrevenge wrote:very nice, what Girandoni would have done if he had a home depot around the corner :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
bladeul2006
Private 3
Private 3
Posts: 56
Joined: Wed Feb 13, 2013 12:08 pm

Sun Nov 03, 2013 2:17 am

I tried my second atempt of a push-forward loading mech, the result was prety decend, considering the loading works , the bb's don't rush all at once to the barell, they don't get crushed in between, BUT the fps went from hero tfo zero :P, can't even pierce through a can from 2 feet away
Attachments

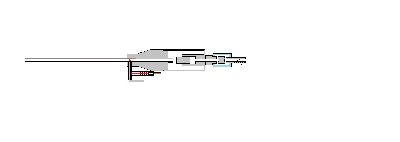

bld-2 project.jpg
User avatar
Talk
Specialist
Specialist
Posts: 109
Joined: Tue Sep 24, 2013 2:47 pm

Sun Nov 03, 2013 5:54 am

Maybe you can change to this and see if the fps is effective again :)
Attachments

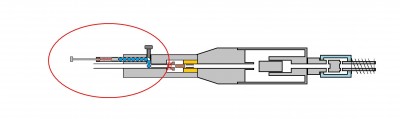

maybe you can use some modification here
maybe you can use some modification here

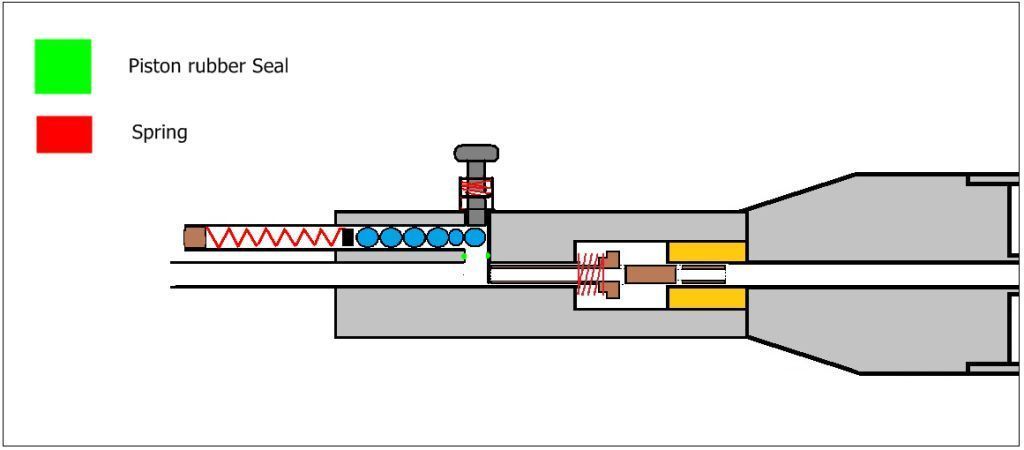

Add a piston rubber seal so the air doesn't leak through the loading chamber and use another spring to push the BBs forward and in the barrel
Add a piston rubber seal so the air doesn't leak through the loading chamber and use another spring to push the BBs forward and in the barrel
it will work something like this
it will work something like this
spring mechanism.jpg (35.8 KiB) Viewed 4092 times
