Golf ball launcher

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Sohail_L
Recruit
Recruit
Posts: 1
Joined: Mon Jun 04, 2018 10:53 am

Mon Jun 04, 2018 10:57 am

I’m building an air powered golf ball launcher. My barrel is 2inches and it’s too big so the air escapes around the golf ball. I can’t find the right size pipe. Is there any way I can work with what I have? I was thinking about glueing Bristol board around the inside of the barrel.
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 983
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Tue Jun 05, 2018 3:56 pm

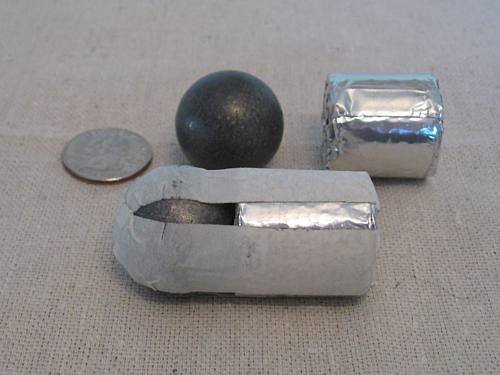

Sabot's ?
Trauts
Private 2
Private 2
Posts: 24
Joined: Wed Oct 30, 2013 2:56 pm

Sun Jun 10, 2018 8:21 pm

Sdr21 pvc pipe has an ID that's perfect for golf balls. I had to call around a few hardware stores to find one that carries it however (Canada). As mentioned, sabots are good but take time to make. I usually use Styrofoam cut with a hole saw that matches my barrel ID or simply rags stuffed around the projectile
User avatar
Cthulhu
Specialist
Specialist
Posts: 194
Joined: Wed Apr 12, 2017 7:07 pm
Location: South Texas
Been thanked: 1 time

Sun Jun 10, 2018 11:08 pm

1.5" EMT Electrical Conduit Pipe usually fits a golf ball pretty well. You'll need to make an adapter of some form for it to work though.
This weapon serves to silence the noisy speakers of the stupid of the other street! (joke) -Hectmarr
jsefcik
Sergeant 2
Sergeant 2
Posts: 1138
Joined: Tue Jun 07, 2011 10:11 am

Mon Jun 11, 2018 7:56 pm

I can get sdr 21 1.5 inch pretty easy, i can call my local supplier and try to help you out , pm me bud but i cant gaurntee he has it , i just buy the broken pieces and cut the bad end off:)
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

Tue Jun 12, 2018 10:03 am

European 50mm PN16 PVC pipe has an inner diameter of 42.6mm while a golfball has a diameter of 42.67mm. A nice snug fit
Est Sularus Oth Mithas
200BAR
Private
Private
Posts: 12
Joined: Mon Nov 02, 2015 7:54 am

Wed Jun 20, 2018 6:04 am

I fold a double layer of T-shirt material over the front of the golf balls. Works well with the 44mm internal diameter of my barrel. :lol:

[url=https://flic.kr/p/XdYNRW][img]http ... .jpg[/img]P1070480 by Terry Griffiths, on Flickr[/url]
User avatar
Cthulhu
Specialist
Specialist
Posts: 194
Joined: Wed Apr 12, 2017 7:07 pm
Location: South Texas
Been thanked: 1 time

Wed Jun 20, 2018 10:06 am

That's pretty nice damage!
Could you share the design of your launcher?
This weapon serves to silence the noisy speakers of the stupid of the other street! (joke) -Hectmarr
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25771
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 96 times
Been thanked: 55 times

Donating Members

Wed Jun 20, 2018 4:54 pm

Cthulhu wrote:Could you share the design of your launcher?
I presume it's this one:http://www.spudfiles.com/combustion-can ... ml#p383285
Last edited by jrrdw on Fri Jun 22, 2018 5:53 am, edited 2 times in total.
Reason: Fixed / added url tag.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
D_Hall
Staff Sergeant 4
Staff Sergeant 4
Posts: 1882
Joined: Thu Feb 07, 2008 7:37 pm
Location: SoCal
Has thanked: 1 time
Been thanked: 15 times
Contact:

Donating Members

Thu Jun 21, 2018 10:12 pm

Another good barrel is 1.5" sch 10 pipe. ID = 1.682"

It's pricey, but it's absolutely perfect.

https://www.mcmaster.com/#4561t513/=1de0arq
Simulation geek (GGDT / HGDT) and designer of Vera.
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6531
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 10 times
Been thanked: 3 times
Contact:

Donating Members

Fri Jun 22, 2018 5:50 am

D_Hall wrote:Another good barrel is 1.5" sch 10 pipe. ID = 1.682"

It's pricey, but it's absolutely perfect.

https://www.mcmaster.com/#4561t513/=1de0arq
That would make a good barrel, lite weight for easy aiming.
Look if you must.
wdr0
Specialist
Specialist
Posts: 104
Joined: Wed Jul 30, 2014 12:46 am

Fri Jun 22, 2018 6:57 pm

Related to tubing for barrels, when looking into this myself I found these which would be great for those that don’t have access to welding. I had contacted them And was told the pressure rating is 1500 psi so would be suitable for even higher mix hybrids.

https://www.discounthydraulichose.com/p ... -24-24.htm
voi9viper
Private
Private
Posts: 11
Joined: Mon Mar 23, 2015 4:09 am

Sat Jun 23, 2018 7:02 pm

that link took me to a 1/4: " flare...

I made a barrel by sleeving 2-1/2 with 2" I cut a piece out of. It worked great but I do not encourage anyone to ever build one. It was way to much work. I probably meesed up the pressure rating of the sleeve too.
wdr0
Specialist
Specialist
Posts: 104
Joined: Wed Jul 30, 2014 12:46 am

Sun Jun 24, 2018 7:46 am

Huh, link works for me. Picture looks kinda like a general one of a smaller fitting but they have them in both 1-1/2” and 2” sizes as well as the typical smaller sizes. They’re compression type fittings.
