Issues with the GGDT software

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Luke31
Private
Private
United States of America
Posts: 17
Joined: Thu Jul 18, 2019 12:00 am
Has thanked: 2 times
Been thanked: 2 times

Wed Mar 17, 2021 11:41 am

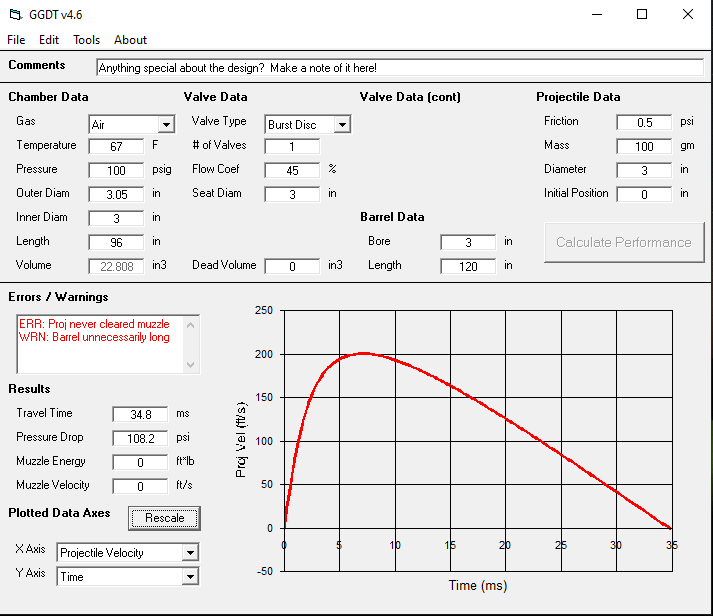

I am trying to use the GGDT software but im having issues. I keep getting an error stating that the projectile never cleared the barrel, but I believe I put in reasonable numbers.

The odd thing is if I increase the chamber inner diameter, it decreases the volume. If I increase the outer diameter, it increases the volume. I don't know why the outer diameter is even relevant to the experiment since its just the wall thickness.

User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25919
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 258 times
Been thanked: 159 times

Donating Members

Wed Mar 17, 2021 12:12 pm

"Outer Diam" is the inner diameter of your chamber tube.

"Inner Diam" is the outer diameter of your barrel for a coaxial cannon.

If your design is not a coaxial, the "Inner Diam" should be zero.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Luke31
Private
Private
United States of America
Posts: 17
Joined: Thu Jul 18, 2019 12:00 am
Has thanked: 2 times
Been thanked: 2 times

Wed Mar 17, 2021 2:18 pm

jackssmirkingrevenge wrote:
Wed Mar 17, 2021 12:12 pm
"Outer Diam" is the inner diameter of your chamber tube.

"Inner Diam" is the outer diameter of your barrel for a coaxial cannon.

If your design is not a coaxial, the "Inner Diam" should be zero.
Man how were we supposed to know that. Anyway I'm starting to get realistic numbers now. Thanks!
