This is my first large(well large for me)Piston valve i named it slurpy because i was drinking one when i was getting the part from the store its not yet complete but it will be soon all i need i 40mm pipe for the barrel and om done.
The valve is made from 50mm PN18 pipe and is in a T is exhausted by a modded sprinkler valve called the samuel MKII.Enjoy.
Any thing i should do to help this valve when its complete?I do have one problem,which is the filling of the cannon were should i place the valve?
Slurpy piston valve.
-
rna_duelers
- Staff Sergeant 3
- Posts: 1739
- Joined: Mon Sep 26, 2005 7:07 am
- Location: G-land Australia
- Attachments
-

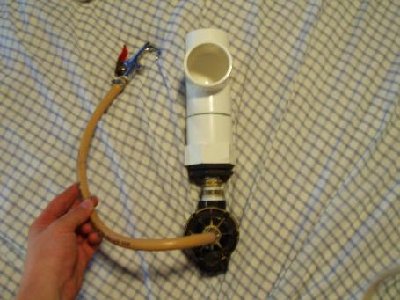

- Top view with all the goods.
-

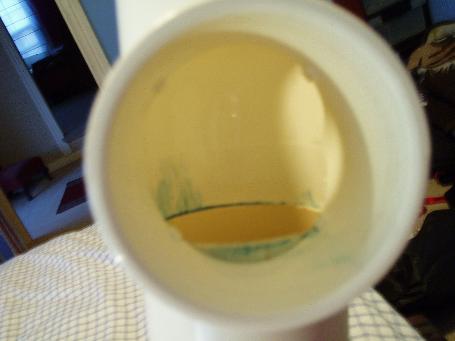

- This is were the piston and barrel will meet in the T.
- slurp1.JPG (15.49 KiB) Viewed 1669 times
-

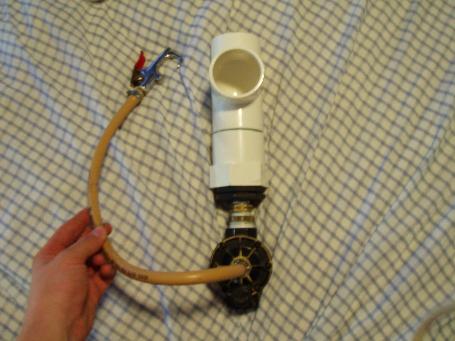

- This is the valve i am working on..Her name is Slurpy.
Last edited by rna_duelers on Tue Dec 11, 2007 4:28 pm, edited 1 time in total.
-
mark.f
- Sergeant Major 4
- Posts: 3638
- Joined: Sat May 06, 2006 11:18 am
- Location: The Big Steezy
- Has thanked: 58 times
- Been thanked: 61 times
- Contact:
It's easiest to fill the gun from behind the piston, so that you don't need a return spring on it.
What are you using for a piston? How are you going to attach the sealing face to the piston you plan on using?
What are you using for a piston? How are you going to attach the sealing face to the piston you plan on using?
-
rna_duelers
- Staff Sergeant 3
- Posts: 1739
- Joined: Mon Sep 26, 2005 7:07 am
- Location: G-land Australia
The port which is 40mm PVC will be comming about 1/4 of the way into the T and sealing against it.And i wasnt going to use a return spring i got an idea for the filling of it another T before the sprinkler with a male compressor addapter and a 1/4 ball valve.
