I used an old cerca 1970 laser. Removed the laser tube, stuck in a barrel and chamber and had fun! In a certian conext I made a laser cannon! Video will follow shortly.
[youtube][/youtube]
Mini Spud made from a laser!
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
- Attachments
-

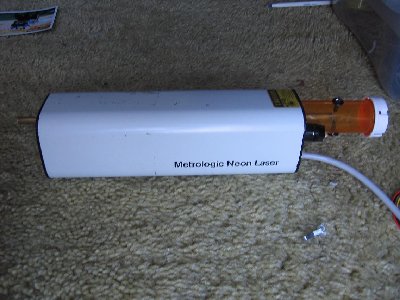

- The only current picture I have
Last edited by rcman50166 on Sat Jan 26, 2008 10:10 am, edited 1 time in total.
looks kewl, but im still puzzled by how it works. could you please explain a little more?
EDIT: thanks for postin the vid, i understand now.....
thanks -- sthorne
EDIT: thanks for postin the vid, i understand now.....
thanks -- sthorne
Last edited by STHORNE on Mon Jan 28, 2008 8:43 pm, edited 1 time in total.
-
Novacastrian
- Staff Sergeant 2
- Posts: 1603
- Joined: Sat Aug 11, 2007 6:59 pm
- Been thanked: 1 time
How shortly, i wanna see those vids!
America, the greatest gangster of all time. With 200 million odd foot soldiers at it's whim and call.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
When you fill your car with refined oil remember that it has been paid for with blood and guts, some from your own countrymen, most not.
But but but but.... it was a LASER!!!
Sacrelige!
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
it was a one milliwatt laser. The same power as a hand held laser pointer.Hotwired wrote:
But but but but.... it was a LASER!!!
Sacrelige!
Iv'e made a 1000 watt laser system. The only thing I haven't actually made was the laser tube for it.
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
Ok the video is up. Bookmarking the upload in the forum
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
lol it's off topic, but I'll show it anyway (It's my pride and joyCarlman wrote:it may be a bit offtopic but could you show this 1000w laser lol
)But lets not get carried away on this and keep on topic
- Attachments
-

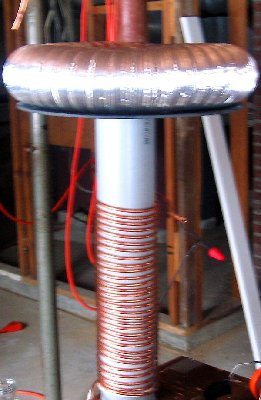

- A 300000 volt power supply, homemade too.
-

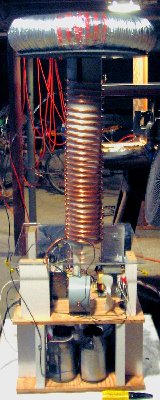

- This is a better picture of it.
-
Carlman
- Staff Sergeant 2
- Posts: 1618
- Joined: Sat Nov 24, 2007 1:18 am
- Location: Western Australia
- Been thanked: 2 times
i like it a lot after seeing the video!
I was going to get a neon transformer soon as ignition for a mini as per another thread. This looks like it works really well.
I was going to get a neon transformer soon as ignition for a mini as per another thread. This looks like it works really well.
Aussie spudders unite!!
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
An NST is a bit overkil for a gap for a mini. I would personally use an ignition coil from a car, $30, and attach to an AC circuit. If your interested i could post the ciruit here.
-
rcman50166
- Corporal 2
- Posts: 697
- Joined: Sat Jan 19, 2008 7:11 pm
- Location: Bethel, CT
- Contact:
There are two different ways to get an ignition coil to work. One way is through a 12v DC circuit and another is a 120v AC circuit. You're choice.
- Attachments
-

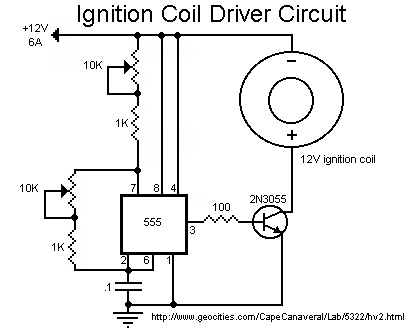

- This circuit is the more complicated one. You may have to order the parts for this. However all the parts are relatively cheap.
- ignitioncoildcdriver.gif (5.77 KiB) Viewed 6385 times
-

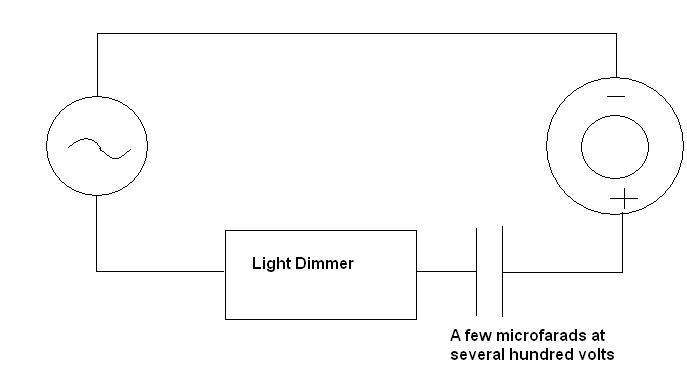

- This is a basic ignition coil driver circuit for an AC wall power supply. The circuit uses a capacitor partnered with a wall dimmer switch. The best place to find the capacitor recommended for free is in an old TV or microwave and the best place to find the switch is Home Depot.
- Ignitioncoildimmer.jpg (17.1 KiB) Viewed 6385 times
-
The_Crow681
- Private
- Posts: 16
- Joined: Thu Jan 31, 2008 6:28 am
- Location: Australia / Victoria / Melbourne
- Contact:
man that thing is absolutely wicked! i can't wait to make my first cannon
† FaLLeN † - Pyrotechnics are my true calling...
