Sat Nov 02, 2013 10:34 pm

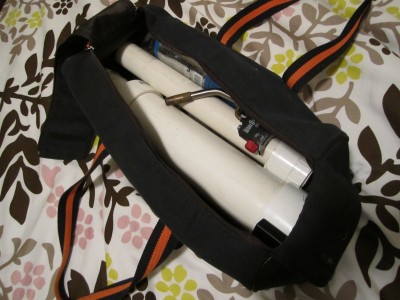

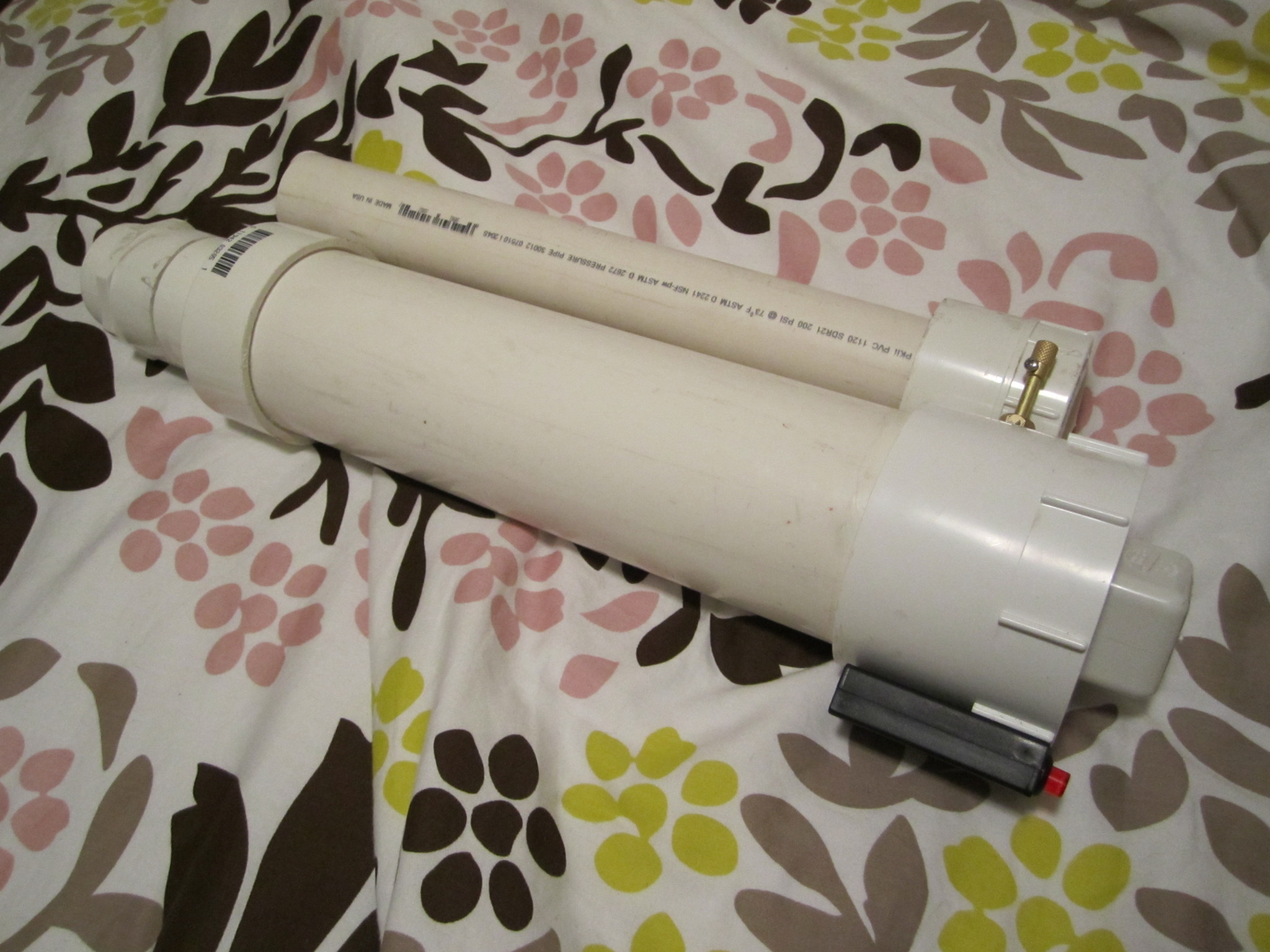

Duffel Bag Combustion

I've had this made for quite some time, it was just igniter and fan-less. Figured I'd fix it up real quick this weekend and get it shooting for tomorrow.

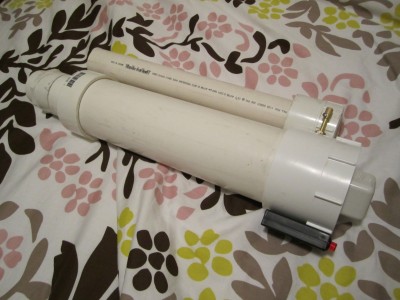

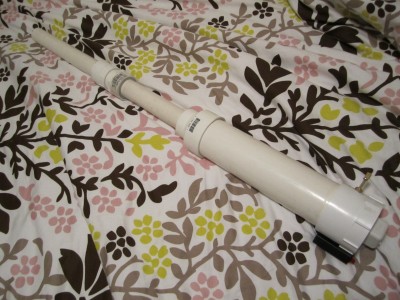

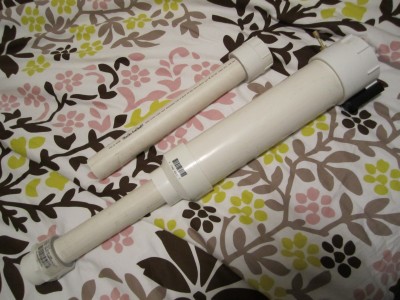

It's just your standard combustion that's been made collapsible. A lot of credit goes to Gort's travel combustion, I basically just added another thread-on barrel segment.

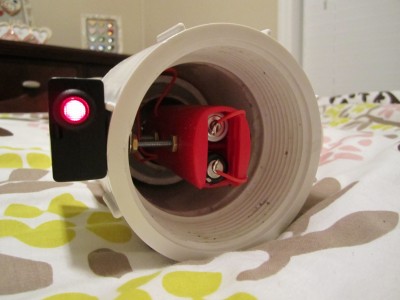

I also added a camping fan and lantern igniter. Fueling is done by cracking the cap and hosing in propane/air with a torch.

Specs
3x15" chamber
1.5 SDR-21x36" barrel
Fuel: propane/butane

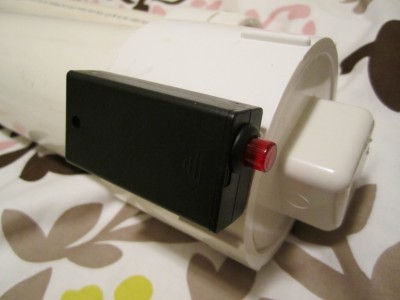

Right before I took these pictures one of the fan blades fell off. I designed it to where the fan would fold up and stick into the back of the barrel, but one of the blades likes to come off if it's done roughly. I also rigged the wire at the back up because the back cover is a little too tight and is scratching the insulation off the back of one of the batteries, and then pressing the negative side and the uncovered positive "terminal".

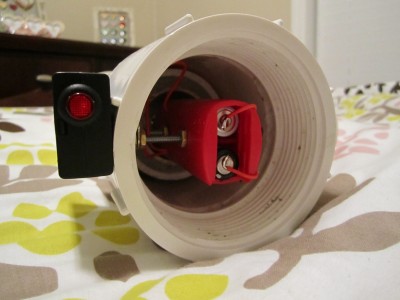

The blade(s) aren't moving in this picture because they're jammed into the back of the barrel.
That's it! Still working on my other project at the moment, just took a little time out to finish this one.
User avatar
CS
Moderator
Moderator
Posts: 1837
Joined: Fri Feb 18, 2005 5:32 pm
Location: Southern Utah

Donating Members

Sun Nov 03, 2013 4:11 am

Noice!

Just a good old fashioned combustion with a couple of twists, nicely done might I add. BTW a guitar bag makes a good non suspecting carrying case. A tear just ran down my face, reminds me of a build you would find on SpudTech. :p

Only in retrospect am I realizing that Gort was quite the clever guy. Like putting 3" fittings inside of 4" pipe.

+rep
User avatar
mark.f
Sergeant Major 3
Sergeant Major 3
Eritrea
Posts: 3567
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 13 times
Been thanked: 10 times
Contact:

Donating Members

Sun Nov 03, 2013 8:07 am

CS wrote:Just a good old fashioned combustion with a couple of twists, nicely done might I add.
Thanks! That's all I was attempting here.
CS wrote:BTW a guitar bag makes a good non suspecting carrying case.
:p
CS wrote:Only in retrospect am I realizing that Gort was quite the clever guy. Like putting 3" fittings inside of 4" pipe.
Gort was pretty clever when it came to putting things together in uncommon ways. He built a company that stayed in business for a good while with only a wood lathe. :wink:
CS wrote:+rep
Cheers!
User avatar
STHORNE
Sergeant 3
Sergeant 3
Posts: 1208
Joined: Wed Feb 14, 2007 7:50 pm
Location: Kewaunee, Wisconsin

Donating Members

Tue Nov 05, 2013 1:42 pm

I love the "compact concept". I hope you have a conceal and carry permit to go along with that ;)

I think this has some Real potential given the right mix of tender lovin's and sweat. Maybe a clean paint job and a meter?

Just my thoughts :) good job!
Forum Rules - follow them or else!
“Happiness is the meaning and the purpose of life, the whole aim and end of human existence”
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25745
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 73 times
Been thanked: 48 times

Donating Members

Tue Nov 05, 2013 2:24 pm

Another one out of the woodwork :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6530
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 10 times
Been thanked: 3 times
Contact:

Donating Members

Tue Nov 05, 2013 3:10 pm

jackssmirkingrevenge wrote:Another one out of the woodwork :)
Don't you check your email? hehehe
Look if you must.
User avatar
mark.f
Sergeant Major 3
Sergeant Major 3
Eritrea
Posts: 3567
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 13 times
Been thanked: 10 times
Contact:

Donating Members

Tue Nov 05, 2013 8:51 pm

STHORNE posting about one of my builds?
:D
