Marble BBMG

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 8:43 pm

Ok, before I send money and time on something that won't work...
Would it be possible to make a marble bbmg?

P.S. I know I literally just wrote a topic a few minutes ago but they go together, but shouldn't be in the same thread.
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Sat Jan 31, 2009 8:54 pm

Ok it will work iffffffff you have a valve connected to the chamber that has very high flow, high enough pressure, and a large I mean huge airsource. BTW you will spend a hell of alot on marbles I don't think you should do this, I also don't think I should be spoon FEEDING you.
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 9:00 pm

Actually, I went to the dollar store, and I found a thousand marbles for like 3 dollars...
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
jonnyboy
Corporal
Corporal
Posts: 591
Joined: Mon May 26, 2008 1:20 pm
Location: Williamston MI USA

Sat Jan 31, 2009 9:11 pm

SpudsMcGee wrote:Actually, I went to the dollar store, and I found a thousand marbles for like 3 dollars...
That's not a very big supply... but for three dollars it's not bad. You'll need a huge air source, I would try for at least 40 gallons.

It's not worth it you'll be spending so much for a few seconds of operation.
mobile chernobyl wrote:I can shoot a Canuter Valve off my '82 Chevy Ram F150 AT LEAST 3/4 Mile with 'ma cannon made of soup cans duct taped together, then I just squirt some bacardi 151 in the chamber and hold up my cigarrete lighta and WHOOSH! That thing flies at least 3/4 mile
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Sat Jan 31, 2009 9:12 pm

Beats the perpose of nameing it a dollar store ehh... But even then it will be around I think 30rps so if you use it enough it might add up to some money. Just think 3 second burst and you fired about 100 marbles.
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 9:15 pm

I really wasn't planning on having a long uh... operational time.
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
jonnyboy
Corporal
Corporal
Posts: 591
Joined: Mon May 26, 2008 1:20 pm
Location: Williamston MI USA

Sat Jan 31, 2009 9:22 pm

SpudsMcGee wrote:I really wasn't planning on having a long uh... operational time.
Your air consumption will still be so great becuase of the mass and pressure required.
mobile chernobyl wrote:I can shoot a Canuter Valve off my '82 Chevy Ram F150 AT LEAST 3/4 Mile with 'ma cannon made of soup cans duct taped together, then I just squirt some bacardi 151 in the chamber and hold up my cigarrete lighta and WHOOSH! That thing flies at least 3/4 mile
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 9:26 pm

I have a fifteen gallon compressor, do you think that will be enuff for a 3 second burst?
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
sputnick
Specialist 4
Specialist 4
Posts: 498
Joined: Sun Dec 14, 2008 3:53 pm
Location: Ontario Canada

Sat Jan 31, 2009 9:35 pm

I would say yes it is possible, but do not take the vortex block route, If you really just want automatic marble gun, I would use the popoff piloted QEV method, it does not require such a massive air supply, is much more efficient.

I would give you a link, but I have no idea where it is.


Add me on MSN to chat about whatever!
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 9:38 pm

Well, then can someone explain it... Because I'll be honest I'm a nub!
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
sputnick
Specialist 4
Specialist 4
Posts: 498
Joined: Sun Dec 14, 2008 3:53 pm
Location: Ontario Canada

Sat Jan 31, 2009 9:41 pm

Ok, well it is essentially just a normal marble gun, think just air tank, QEV, and barrel,

Now, instead of a blowgun on the QEV, theres a popoff valve, so when it reaches a certain pressure, a blast of air, so as long as it is on contsant air, it will fire automatically.

Then, on the barrel, just add a T with a magasine on it, and in the T, just a little paddle behind the marbles that when the gun is fired, it flips up and blocks more marbles from firing.

Pretty simple, but effective, all you have to do is be sure you have the popoff moded to just below whatever your operating pressure is.


Add me on MSN to chat about whatever!
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 9:55 pm

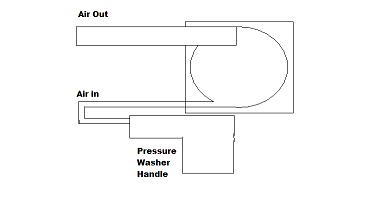

My vortex design:

Edit: I know its not good, and I could do what you said but my dad said we might be getting a new compressor (35 Gallon).
Attachments
Vortex Marble.jpg
Vortex Marble.jpg (6.38 KiB) Viewed 4120 times
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
User avatar
sputnick
Specialist 4
Specialist 4
Posts: 498
Joined: Sun Dec 14, 2008 3:53 pm
Location: Ontario Canada

Sat Jan 31, 2009 9:57 pm

yea no.

I'm telling you, you will be dissapointed, unless you have a MASSIVE air supply, you will not be happy with the results, I can almost guarantee it.


Add me on MSN to chat about whatever!
User avatar
SpudsMcGee
Specialist
Specialist
Posts: 160
Joined: Mon Nov 10, 2008 10:03 pm

Sat Jan 31, 2009 10:00 pm

Where would I get a qev?
(\_/)
(o.o)
(><)

Current Project: Slasher Valve
Big Boom
Private 2
Private 2
Posts: 38
Joined: Mon Jun 09, 2008 6:21 pm

Sat Jan 31, 2009 10:06 pm

On the internet.
