some semi auto.

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
s0ka
Private 2
Private 2
Posts: 24
Joined: Sat Jul 02, 2011 8:12 am

Sat Sep 17, 2011 6:40 am

Hello, if you remember me, i had made some semi auto design, i have already few projects wich works good but this time it seem better (due to the little pilote volume).
But it still crapy and there is malfunctions to.
I am always thinking of what is the better loading mechanism. I know a few and i, but know, i look often this website (http://www.zdspb.com/) to inspire me, so i am gone try new systems . Sorry to dont post often, i love this site in fact but my job is on http://patator.frbb.net/ .

My crapy gun:



See you soon! :o
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25766
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 89 times
Been thanked: 52 times

Donating Members

Sat Sep 17, 2011 11:40 am

Looks good! Details of the pilot valve and the reloading mechanism?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 7 times

Sat Sep 17, 2011 2:25 pm

Cool! Little ghetto looking as always lol but can't argue with the results.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
nathanhd123
Private 4
Private 4
Posts: 95
Joined: Sat Jan 15, 2011 12:36 pm
Location: United Kingdom

Sat Sep 17, 2011 3:00 pm

Nice little gun you've got there. Like Gun Freak said a little ghetto but hey, who cares?
<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/vipersig.jpg" border="0"></a><p><div>Sign by Danasoft - <a href="http://www.danasoft.com">Get Your Sign</a></p></div>
User avatar
s0ka
Private 2
Private 2
Posts: 24
Joined: Sat Jul 02, 2011 8:12 am

Sun Sep 18, 2011 5:08 am

Hey, thanks. Yes it works quite good, and i made little crapy to make launchers quickly!!

The gun works with a 3/8 qev and a small hamer valve to fire it. The hamer valve is made with a 4.5 mm steel ball , its an amunition , its need litle power to fire and a very small mouvement. .

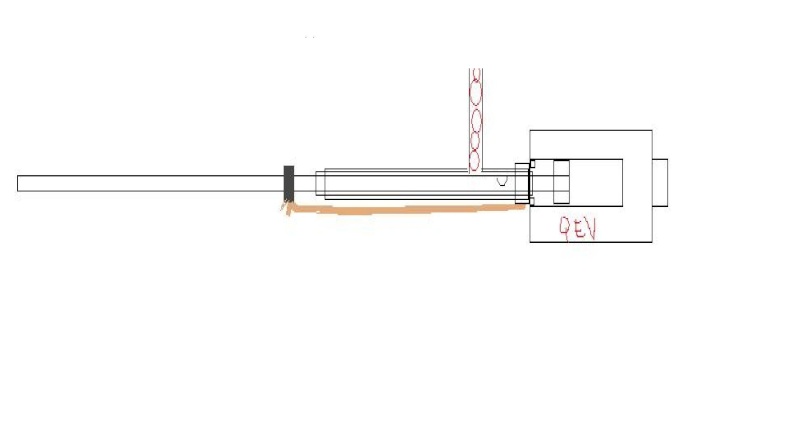

The reloading mechanism:

Ask me if you dont understand!!
CooperJS
Private 4
Private 4
Posts: 81
Joined: Sun Sep 18, 2011 4:20 am

Sun Sep 18, 2011 5:39 am

WOW, great work and the design is so simple and easy :D
User avatar
pneumaticcannons
Specialist 3
Specialist 3
Posts: 392
Joined: Sat Oct 30, 2010 9:45 am
Location: shite country in asia
Contact:

Sun Sep 18, 2011 7:32 am

nice gun, who cares about ghetto when the video shows how great it worked!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Sun Sep 18, 2011 9:24 am

After watching the video, I´m AMAZED, great job! never saw a semi auto reloading system that worked as good as this!
didn´t understand well your pilot, for me it looks like a push button valve, not a hammer valve :roll: diagram plz?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
s0ka
Private 2
Private 2
Posts: 24
Joined: Sat Jul 02, 2011 8:12 am

Sun Sep 18, 2011 10:05 am

The valve is like that:

And thanks for your comments , :o
evanmcorleytv
Specialist 3
Specialist 3
Posts: 350
Joined: Sat Jun 19, 2010 3:44 pm
Location: Tuscaloosa, AL

Wed Oct 12, 2011 4:52 pm

LOVE IT!! I am working on semi auto also..
User avatar
Mr.Tallahassee
Specialist 3
Specialist 3
Posts: 364
Joined: Sun Jul 10, 2011 2:35 am

Wed Oct 12, 2011 9:35 pm

It's not a hammer valve, it is a regular push button valve but only homemade instead of store bought. Great gun though!
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
Posts: 1561
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA

Wed Oct 12, 2011 9:39 pm

Very well done, but can we see a picture of the whole gun?
I love lamp
evanmcorleytv
Specialist 3
Specialist 3
Posts: 350
Joined: Sat Jun 19, 2010 3:44 pm
Location: Tuscaloosa, AL

Thu Oct 13, 2011 6:56 pm

NICE!! I really like this!!
User avatar
s0ka
Private 2
Private 2
Posts: 24
Joined: Sat Jul 02, 2011 8:12 am

Mon Oct 17, 2011 11:32 am

Hello, i will check if i have picture of the gun , in fact all my prototype are quickly dismounted :x .
And youre right, its not a hammer but a push button i make mistakes in english. I am working on a real hammer in this moment, look

:lol:



User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Mon Oct 17, 2011 2:53 pm

congratulation! you have achieved full auto with a hammer valve :o I tried to make the hammer self recock but just can´t do it right :evil:
