Finished .177 air rifle

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Sun Sep 18, 2011 8:35 am

After slaving away over the weekend i managed to finally finish my multishot .177 cal air rifle.

SPECS:

Tank: 29.5mm OD, 15MM ID X 480mm long. HQ stainless tubing. pumped to 260psi

Barrel: 4.5mm ID x 600mm long. (.177 cal) steel tubing

Valve: 1/4 QEV for like $12 free postage off ebay. (modified to allow barrel filling thanks to a post i saw by JSR)

pilot: 1/4" blowgun valve.


It pumps to 260psi (limited to this due to only a bike pump) through the quick connect in the bottom. and gets 4-6 strong shots per filling. I shoot .177cal air rifle pellets. THere is a 1/2" ball valve between the tank and firing chamber allowing the air to be divide, but after filling i open it slightly to allow semi-auto (still have to reload with bolt-action breech)
I am very impressed with the results and it is SOOO much better than my old gun.

thanks again to everyone here at spudfiles for answering my questions about valves and general pneumatics. special thanks to JSR for helping with the mod to the QEV allowing chamber filling :D although i didnt ask you directly.
ill be happy to upload component photos if people want them :)

cheers.
Attachments
The old single-shot 6.5mm QEV gun and the new 5 shot .177 QEV air rifle
The old single-shot 6.5mm QEV gun and the new 5 shot .177 QEV air rifle
177 rear view.jpg

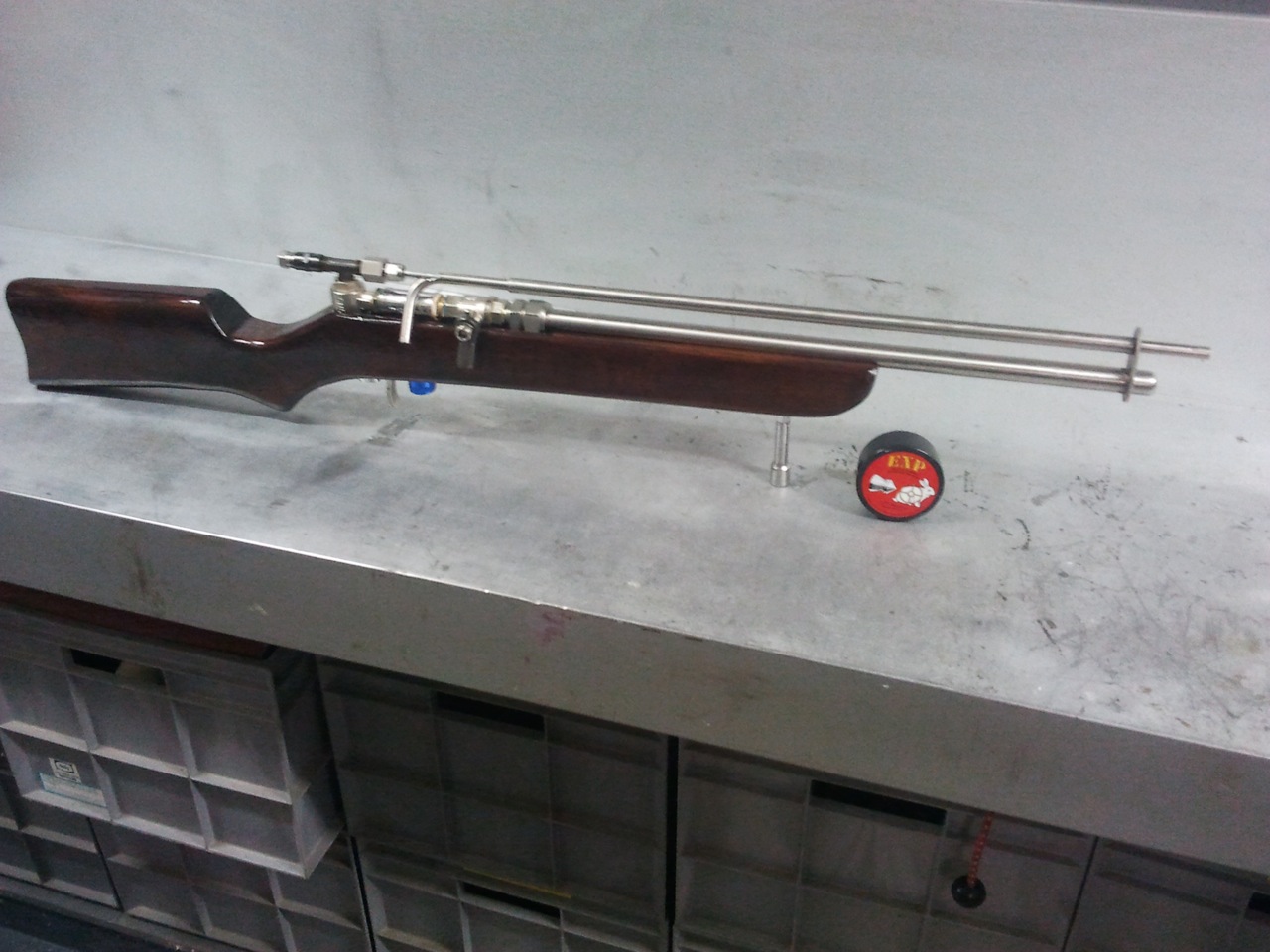

The Gun.
The Gun.
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 3 times

Sun Sep 18, 2011 8:56 am

Beautiful!
Even better than the first!

Can you give us a vid of it in action??
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Sun Sep 18, 2011 9:11 am

looks good, if you can get it to higher pressure, you will get more shot per fill with better power, 260 psi is a little low for lead pellets in my opinion. Good job!
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
nathanhd123
Private 4
Private 4
Posts: 95
Joined: Sat Jan 15, 2011 12:36 pm
Location: United Kingdom

Sun Sep 18, 2011 9:21 am

Nice job. Much better than first and like Brian said, can we have a video of it.
<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/vipersig.jpg" border="0"></a><p><div>Sign by Danasoft - <a href="http://www.danasoft.com">Get Your Sign</a></p></div>
CooperJS
Private 4
Private 4
Posts: 81
Joined: Sun Sep 18, 2011 4:20 am

Sun Sep 18, 2011 9:38 am

Thats such a nice gun and i also second that on the video :D
what type of wood do you use and is that a proper air rifle barrel?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 319 times

Donating Members

Sun Sep 18, 2011 9:55 am

Yes, videos please! Very nicely put together, kudos!
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
far_cry
Specialist 3
Specialist 3
Posts: 317
Joined: Wed Aug 20, 2008 3:59 pm

Donating Members

Tue Sep 20, 2011 3:59 am

what about accuracy ?

good job man, and start search for more pressure
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Tue Sep 20, 2011 5:46 am

far_cry wrote:what about accuracy ?
Yeah accuracy was one of my main points of interest when making this gun, and i mounted the gun today in a vice and shot some groups of 5 shots (1 filling of the tank) and got groups of around 7 cm. I am reasonably happy with this, and im assuming the inaccuracy is a result of the change in pressure of the shots. However the first and last shot (emptying the tank) were very accurate and hit about 0.5cm apart.
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Tue Sep 20, 2011 5:49 am

thanks for the comments everyone!
ill try get a video up in the next few days.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 319 times

Donating Members

Tue Sep 20, 2011 5:52 am

jmez1996 wrote:im assuming the inaccuracy is a result of the change in pressure of the shots.
If they were in a vertcal line, then yes. If they were spread randomly in a 7cm dia circle, then it's something else.

What distance were you shooting at?

Why not fit optical sights, some good mounting advice in this thread.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Tue Sep 20, 2011 6:00 am

yehh they were in a generally vertical line which was what led me to believe this.
oh sorry forgot to say, 10m measured to the cm ;)

i'd also think its because the barrel isnt rifled.
jazzman56
Private 3
Private 3
Posts: 53
Joined: Wed May 11, 2011 4:52 am

Tue Sep 20, 2011 6:12 am

Nice rifle, any chance of those component pictures, you have inspired me to build my own version (if i can source the parts).

Looking forward to the video.


What's that tingling

another case of spud fever :)
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 319 times

Donating Members

Tue Sep 20, 2011 6:21 am

jmez1996 wrote:i'd also think its because the barrel isnt rifled.
Medium weight airgun pellets generally fly pretty straight even from a smoothbore barrel due to their shape and weight distribution. The critical portion is the muzzle, because this is the last contact which the projectile has with the barrel.

A good DIY guide to adding a crown to your barrel: http://www272.pair.com/stevewag/muzzle/mz.html
Attachments
Beeman/Feinwerkbau Model 2 CO2 pistol with the barrel making a complete twist around the gas cylinder! The gun actually shoots quite well! Note that the all-important final inch(25 mm) or so is straight - that and the crown are the only really important parts of the barrel as far as accuracy is concerned.
Beeman/Feinwerkbau Model 2 CO2 pistol with the barrel making a complete twist around the gas cylinder! The gun actually shoots quite well! Note that the all-important final inch(25 mm) or so is straight - that and the crown are the only really important parts of the barrel as far as accuracy is concerned.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
inonickname
First Sergeant 4
First Sergeant 4
Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am

Tue Sep 20, 2011 6:21 am

jmez1996 wrote:
far_cry wrote:what about accuracy ?
Yeah accuracy was one of my main points of interest when making this gun, and i mounted the gun today in a vice and shot some groups of 5 shots (1 filling of the tank) and got groups of around 7 cm. I am reasonably happy with this, and im assuming the inaccuracy is a result of the change in pressure of the shots. However the first and last shot (emptying the tank) were very accurate and hit about 0.5cm apart.
Sorry but that's not great accuracy from a vice at 10 meters. It's a result of the smoothbore barrel and projectile.
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
jmez1996
Private 4
Private 4
Posts: 93
Joined: Tue Nov 30, 2010 7:27 am

Tue Sep 20, 2011 6:27 am

inonickname wrote:
jmez1996 wrote:
far_cry wrote:what about accuracy ?
Sorry but that's not great accuracy from a vice at 10 meters. It's a result of the smoothbore barrel and projectile.
yeah i know its not great but i can hit a softdrink can at 14m with my first shot with no form of sights so im happy enough :)
