Can someone good help me ? please

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Sat Mar 16, 2019 9:13 am

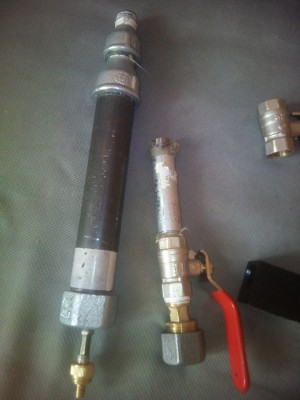

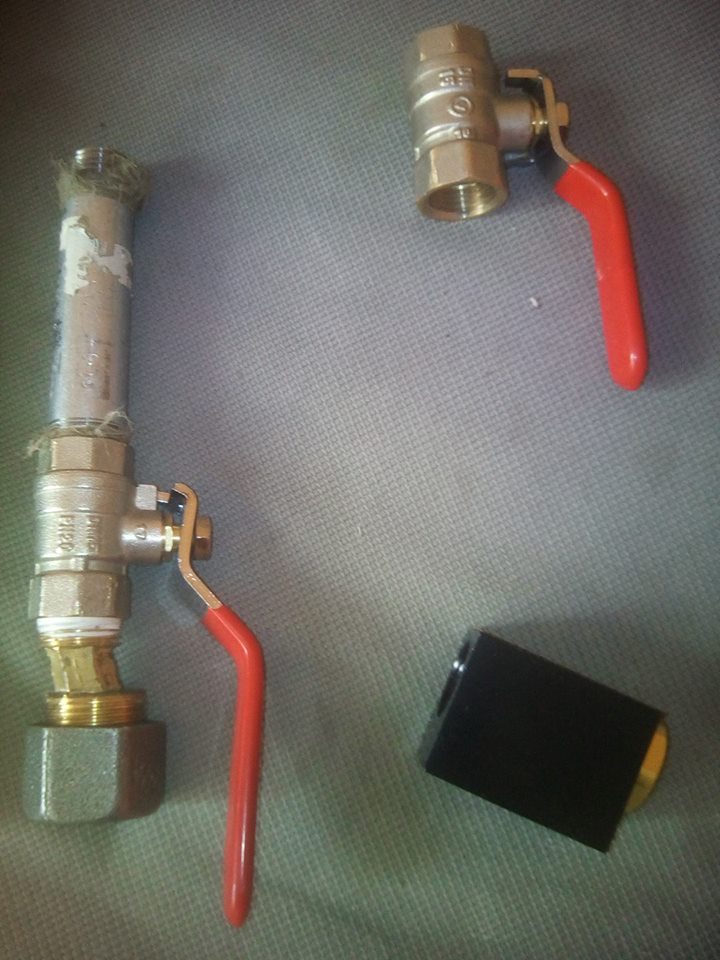

Hi! i Want to make airgun i have qev valve and some pipes and air chamber , can someone instruct me how to make airgun with this items>
Attachments
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6517
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 3 times
Been thanked: 3 times
Contact:

Donating Members

Sun Mar 17, 2019 6:07 am

Spudfiles is a very large data base of spud canon information. There is web page after web page here about this very type of cannon configuration. Do some research on this, it's fun...

Welcome to Spudfiles! :)
Look if you must.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Sun Mar 17, 2019 6:13 am

Welcome to spudfiles!

Here's the basics, however as jrrdw pointed out there is plenty of information already out there for you to seek out.

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sun Mar 17, 2019 10:02 am

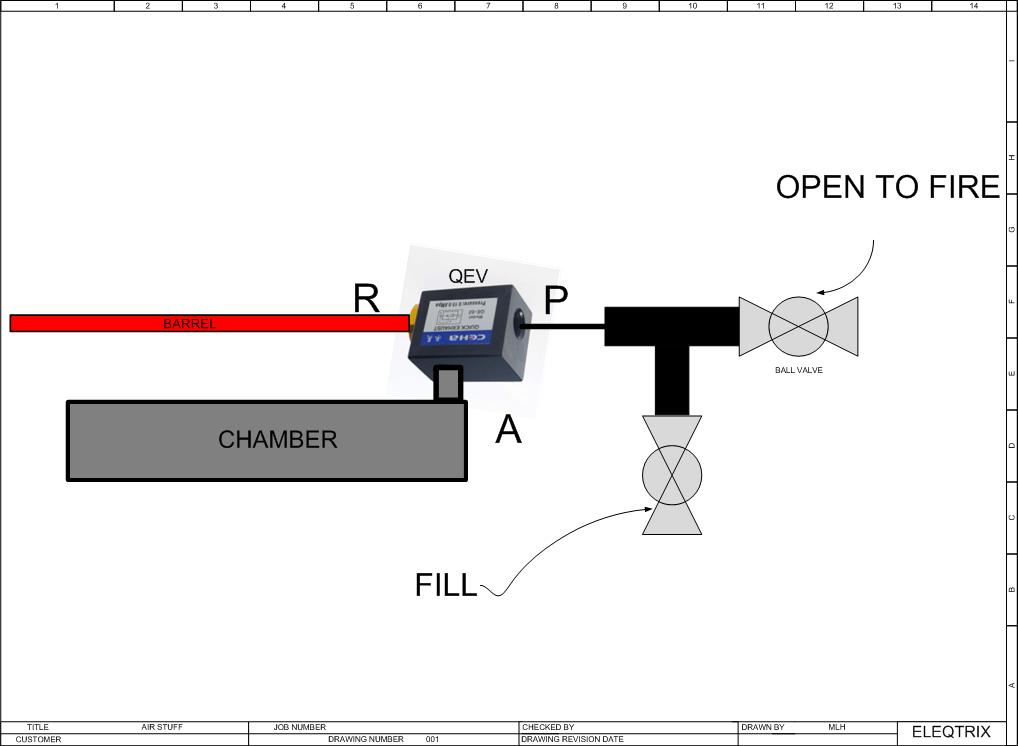

Or something like this :idea: What is the barrel and air source :?:
QEV 2.jpg
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Mon Mar 18, 2019 9:45 am

i will try that
Last edited by Haniball1337 on Thu Mar 21, 2019 9:52 am, edited 1 time in total.
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Wed Mar 20, 2019 1:27 pm

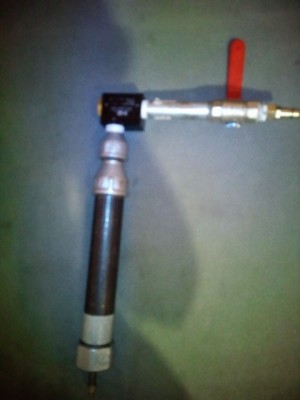

Hi , I made that , like he , but i dont add spring to QEV , and i dont know but its not working , i open ball valve and the air go from the valve where i pumps air , I need to add spring or what ? Plase help
Attachments
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Thu Mar 21, 2019 10:06 am

If you want to fill from the chamber side, then you have to modify the piston/diaphragm. An easy way to do this is to heat up a pin and poke a hole in the outer edge.

Did you try filling it up from the nipple on the ball valve?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Thu Mar 21, 2019 3:14 pm

Another good explanation

[youtube][/youtube]
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Fri Mar 22, 2019 7:31 am

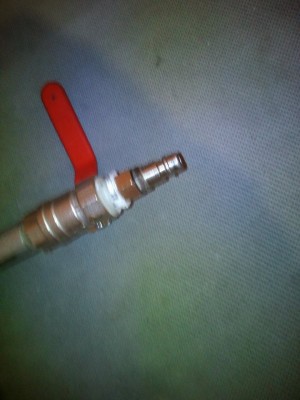

I fill air to that
Attachments
User avatar
Anatine Duo
Specialist
Specialist
Canada
Posts: 137
Joined: Sat Feb 01, 2014 11:16 am
Location: cottage country
Has thanked: 3 times
Been thanked: 2 times

Fri Mar 22, 2019 6:13 pm

looks right to me. Is the valve stuck perhaps? With no air pressure, can you push the piston back towards the pilot?
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Sat Mar 23, 2019 2:46 am

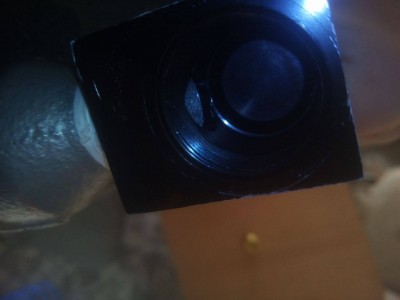

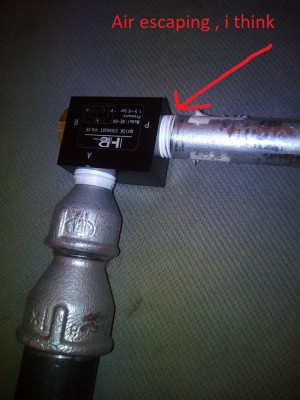

I cant, rubber thing is stuck, i cant pull it out and i hear the air escape
Attachments
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Sat Mar 23, 2019 6:22 am

Air leak not good, try some thread sealer like Pro dope :idea:
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Tue Mar 26, 2019 10:15 am

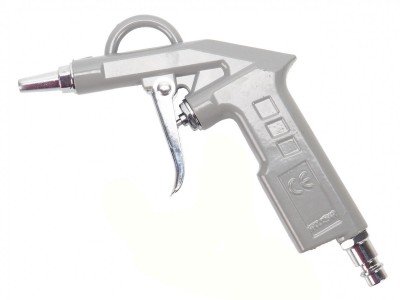

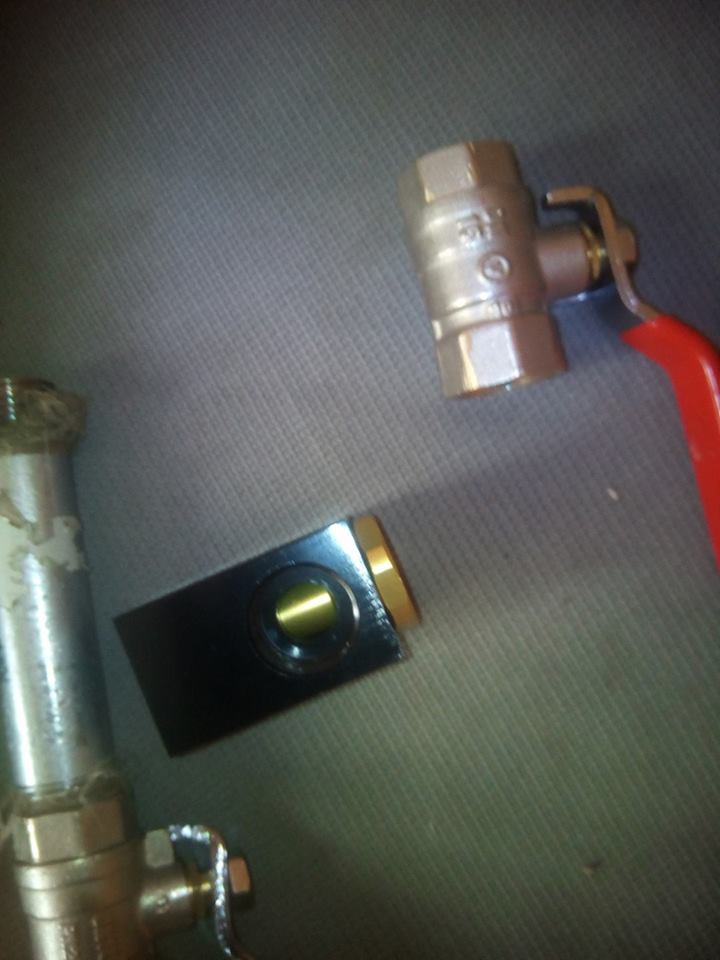

I think i resolve that problem. What is better for qev , Ball valve or air compressor gun? Which allows me to have more power?
Attachments
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Tue Mar 26, 2019 4:28 pm

Air gun will give you a ready made trigger :idea:
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Wed Mar 27, 2019 4:58 am

Regardless of the pilot valve you chose, the best way to increase performance is to remove the dead space between the pilot valve and the QEV:
