Wed May 15, 2019 10:52 am

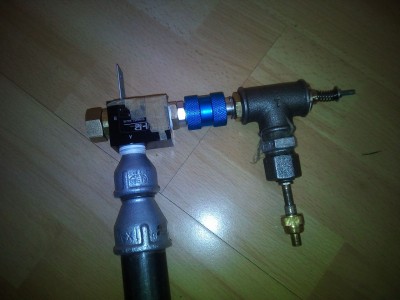

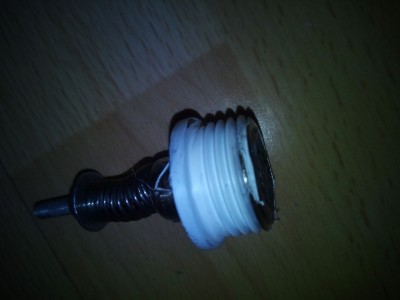

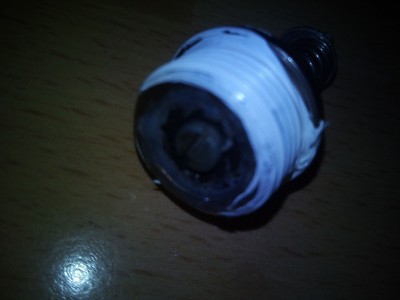

Ye its me noob, i am wanted to build the simple multishot airsoft gun with qev, And when i was searching youtube i found this and i make something similar to this and like always for me it dont work xD It shoot but it use all air in chamber . What can be the problem? (Slide valve is here beacuse i am lazy and i dont wanna to unscrew it )
Attachments
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 24 times

Wed May 15, 2019 4:57 pm

Swan Donovan has a good multi shot system.

[youtube][/youtube]
[youtube][/youtube]
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Wed May 15, 2019 5:57 pm

I made that system back when I was a teen :lol:
For it to work you need a piston that has spring in the back and allows to be filled from chamber side.
If your QEV is bought un modified, take a 1mm wire and poke a hole in the piston (not in the middle or you get leaks, poke it where the thick rubber meets with the rubber skirt), then add a weak spring behind it. Then it should work.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 24 times

Thu May 16, 2019 4:46 am

[youtube][/youtube]
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Thu May 16, 2019 9:25 am

Ok thanks a lot guys , i have one more question. Will that work with normal compressor blowgun ? but shrader valve will be on the end of blowgun
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu May 16, 2019 1:51 pm

I came up with a similar design too as my first "semi auto".
The idea is to limit the exhaust volume so the QEV would close. I made a check valve with tiny leaks instead of the shrader so I don't have to manually reset the shrader.
Basically one side of the blowgun connects to the QEV the other side has to have a valve, be it a shrader, ball valve or check valve. You can play with the exhaust volume too for different output power from the QEV
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Thu May 16, 2019 2:18 pm

So it will work? and i dont need any spring then?
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu May 16, 2019 2:30 pm

You still need it.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Thu May 16, 2019 2:36 pm

but no hole in piston?
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2381
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Contact:

Thu May 16, 2019 4:49 pm

You still need the hole too.
The QEV need modification in all cases, except when you're using a 3 way/slide valve setup.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Sun May 19, 2019 4:45 am

Another question, I want to make hole and add spring but i want too to shoot one shot with this? Will hole and spring deacrese power with one shot? With spring and hole can i fill the chamber from pilot port? or only from chamber port?
