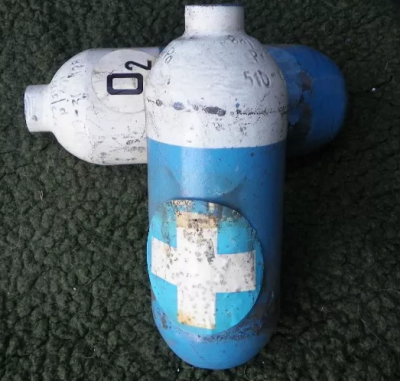

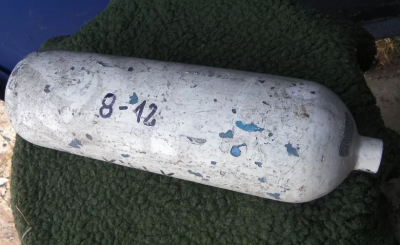

Hi guys, i want to build air tank for my air rifle and i found olx oxygen tanks. They are from 1980 i think, and they are all little rusted not much . I'd like to pump it something about 100 bar, it will be safe to put that pressure in this tanks?
Attachments
Screenshot_2019-06-16 Stara butla na tlen.png
Screenshot_2019-06-16 Stara butla na tlen(1).png
Screenshot_2019-06-16 Stara butla na tlen(2).png
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6517
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 3 times
Been thanked: 3 times
Contact:

Donating Members

Sun Jun 16, 2019 4:17 am

Depends on how badly they are rusted. I would fill the tank and a barrel with water and hydro test them. That's probably the safest way in the back yard.
Look if you must.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Mon Jun 17, 2019 5:28 am

Haniball1337 wrote:I'd like to pump it something about 100 bar
What are they rated for? If I'm not mistaken Oxygen is typically run at around 170 bar. As jrrdw suggested, a hydrotest using fluid would not be a bad idea, not just for the tanks but for the rest of the setup, don't forget that your system is only as strong as your weakest fitting.

Here's a dude doing a DIY hydrotest, you can find similar guides online:

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Mon Jun 17, 2019 5:43 am

They are medical oxygen tank
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25658
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 20 times
Been thanked: 8 times

Donating Members

Mon Jun 17, 2019 5:49 am

There should be a pressure rating written somewhere around the neck.

hectmarr wrote:You have to make many weapons, because this field is long and short life
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Wed Jun 26, 2019 10:13 am

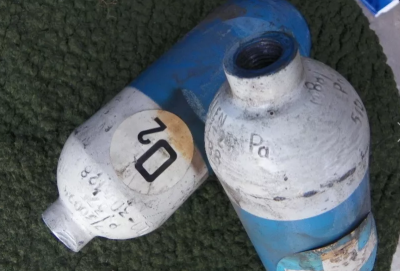

i think this is they rating and inside i dont see any rust its clear but another one have little rust. So can I fill one to about 200 bar or even this 250? they are really heavy
Attachments
User avatar
D_Hall
Staff Sergeant 4
Staff Sergeant 4
Posts: 1870
Joined: Thu Feb 07, 2008 7:37 pm
Location: SoCal
Been thanked: 3 times
Contact:

Donating Members

Thu Jun 27, 2019 12:55 am

Haniball1337 wrote:i think this is they rating and inside i dont see any rust its clear but another one have little rust. So can I fill one to about 200 bar or even this 250? they are really heavy
Looks like 250 is the rating but I'd be a bit leary if the rust is anything other than cosmetic. Do you know the history of the bottles?
Simulation geek (GGDT / HGDT) and designer of Vera.
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Thu Jun 27, 2019 2:17 am

I only know they are from 1980 and they was using in medical ambulance. 1 bottle i think is in very good condition
User avatar
D_Hall
Staff Sergeant 4
Staff Sergeant 4
Posts: 1870
Joined: Thu Feb 07, 2008 7:37 pm
Location: SoCal
Been thanked: 3 times
Contact:

Donating Members

Fri Jun 28, 2019 4:54 pm

Haniball1337 wrote:I only know they are from 1980 and they was using in medical ambulance. 1 bottle i think is in very good condition
1980 is no big deal. In the compressed gas world, that's practically new! The question is how they've been stored and such. Again, rust is a concern. If they've been stored in a cool, dry place and just happen to have some cosmetic (read: surface) rust? No big deal. If they were pulled up from the bottom of a Florida swamp, on the other hand....
Simulation geek (GGDT / HGDT) and designer of Vera.
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Mon Jul 01, 2019 7:10 am

I think 1 bottle was using in underground mining safety equipment. They was stored in a dry and warm room. Yeah, i have another problem. I can't find any thread that will be compatible. I tried 1/2 and 3/8 and 1/2 is little big for it , and 3/8 is screwing on but only at end of bottle thread, i think its tapered thread. How can I find out thread of this bottle? I was looking at bottle but there is many numbers.
Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Tue Jul 02, 2019 9:59 am

Will 3/8 tapered thread nipple be compatible with bottle? or something different? i tried 1/2 tapered thread pipe and it screw but only 2 (tooths?)
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 921
Joined: Sun Mar 31, 2013 12:37 pm

Tue Jul 02, 2019 6:29 pm

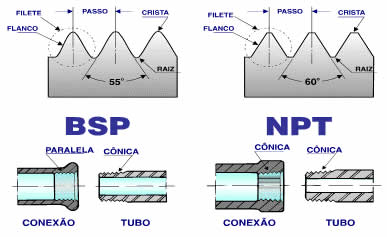

Might be NPT vs BSP :?: although 1/2" is pretty close, both 14 TPI

Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Wed Jul 03, 2019 10:11 am

So i need to buy NPT thread reduction or BSP Thread right?
I found NPT 3000 psi nipple it has NTP thread, and i found G1/2'' x 3/8 reduction nipple and it has GZ BSPT 1/2' x GZ BSPT 3/8'' thread. Both nipples are 3/8 threads. Or i need 1/2? .Will this do a job?
Attachments
NPT nipple
NPT nipple
NPT THREAD.jpg (20.32 KiB) Viewed 929 times

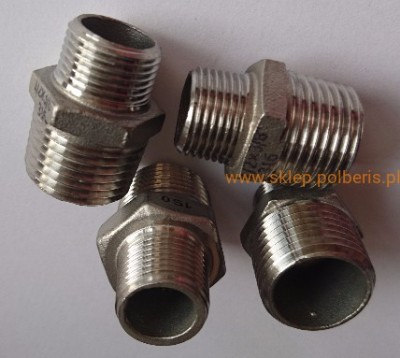

BSPT nipple
BSPT nipple
User avatar
mrfoo
Specialist
Specialist
Afghanistan
Posts: 147
Joined: Wed Apr 29, 2015 11:05 am
Has thanked: 3 times
Been thanked: 4 times

Wed Jul 03, 2019 2:56 pm

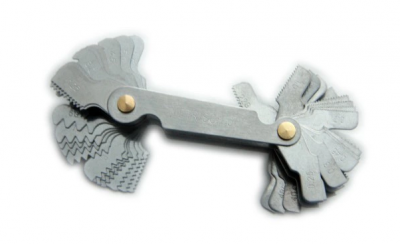

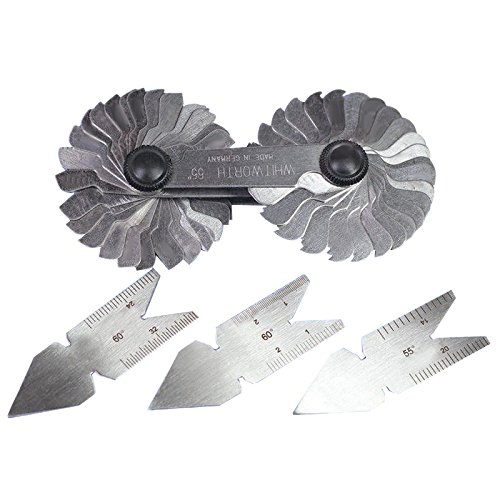

No, what you need is one of these

Haniball1337
Private 4
Private 4
Poland
Posts: 70
Joined: Thu Mar 07, 2019 12:38 pm

Wed Jul 03, 2019 4:01 pm

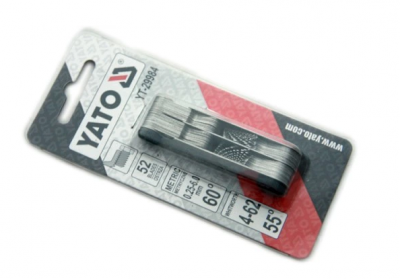

Will this be good?
Attachments
Screenshot_2019-07-03 Sprawdzian gwintów metrycznych WHITWORTHA 52e YATO.png
Screenshot_2019-07-03 Sprawdzian gwintów metrycznych WHITWORTHA 52e YATO(1).png
