Pull Trigger, loads, then releases chamber?

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Doc j
Private 3
Private 3
Posts: 41
Joined: Tue May 19, 2020 5:59 am
Has thanked: 9 times
Been thanked: 8 times

Mon Jun 15, 2020 6:43 pm

Came across pics of this a Classic
I like idea of its simplicity.
Would like to do something similar.
With one hose going in.
Unsure how it works.
Any ideas.
Is it just sorta a spool valve concept.
P. S. Had a pic with the trigger attached but couldn't upload it.
images (25).jpeg
images (25).jpeg (30.64 KiB) Viewed 790 times
images (24).jpeg
images (24).jpeg (20.14 KiB) Viewed 790 times
User avatar
Five Star General
Five Star General
Posts: 25891
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 223 times
Been thanked: 128 times

Donating Members

Fri Jun 19, 2020 6:30 pm

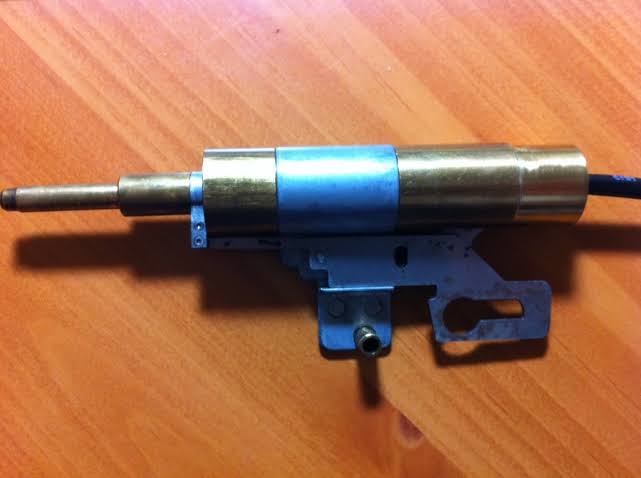

Here is one working:

Looks like it is basically the same concept as a NBB airsoft gun.

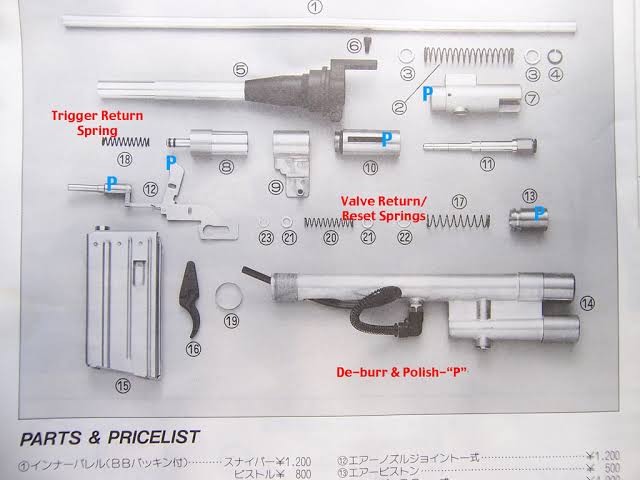

A double action trigger seals the chamber and then knocks open a valve poppet.
