Thanks, but what do you mean cap, is there a small brass cap in there, does the silicone tube help with sealing it?
That is all.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Wed Jul 21, 2010 10:37 pm

The silicon tube is slipped over the (brass) barrel and inserted into the (aluminum) chamber, of course the actual pressure bearing seal in the chamber comes from the epoxy.

The silicone allows me to put on an actual pen cap to cover the barrel without having it fall off due to the tight fit.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
clemsonguy1125
Sergeant 5
Sergeant 5
Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast

Wed Jul 21, 2010 10:50 pm

Thanks I get it know, do any of your pens have a lower barrel support of is it not nessacery on minis
That is all.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Wed Jul 21, 2010 10:53 pm

For relatively short minis, as long as the barrel is properly lined up it will not flex in use, even at high pressure, so no need for supports.
hectmarr wrote:You have to make many weapons, because this field is long and short life
lemming124
Private 3
Private 3
Posts: 51
Joined: Sun Oct 18, 2009 6:18 am

Fri Jul 23, 2010 9:31 am

nice job. I like the silicon tube at the end, looks better than a conventional cap.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Sat Jul 24, 2010 1:57 pm

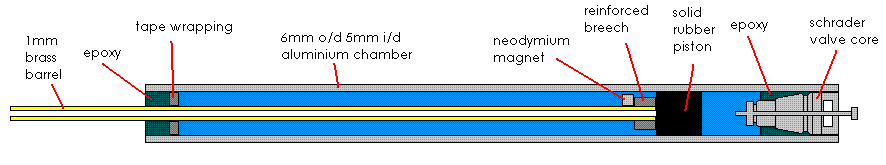

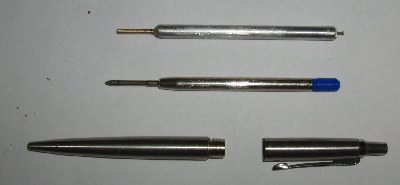

Here's my latest pengun, it's designed to fit into an existing pen without modifying the casing. In this regard external dimensions are very similar to the ballpoint refill it will replace.

As I was constrained to 6mm maximum external diameter, I couldn't use an ordinary schrader valve. Instead of making my own, I figured it would be easier to take a schrader core and epoxy it directly into the chamber. Fits nicely, but now the issue is how to fill it. I've made a ghetto fill station which is basically a sealed tube in which the whole firing unit fits, we'll see how well it works after curing.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jakethebeast
Corporal 5
Corporal 5
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

Sat Jul 24, 2010 3:53 pm

hah that looks cool! i hav an idea for filling, the end of the chamber where is the shrader core, put the gun into a drill ja file it a little bit, then tap same screws trhat schrader has and fill it with normall shock pump?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Sat Jul 24, 2010 4:30 pm

That won't work, to have threads that match a schrader it won't fit in the pen casing. If I did I just would have stuck a schrader in there as usual :P
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
Posts: 1561
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA

Sat Jul 24, 2010 4:58 pm

what about a compression fitting for filling?
I love lamp
User avatar
Mr.Sandman
Corporal 3
Corporal 3
Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Contact:

Donating Members

Sat Jul 24, 2010 6:33 pm

Why not thread the outside of the casing? If it is 6mm then it should fit pretty good into a schrader hose.
Yeah, it's that important.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Tue Jul 27, 2010 1:06 pm

Finished the cap as a firing mechanism on the original subject of this thread, works great :D

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Mr.Sandman
Corporal 3
Corporal 3
Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Contact:

Donating Members

Tue Jul 27, 2010 1:15 pm

So you never did tell us, how did you manage to fill it? That trigger looks like it works flawlessly because judging from the video, it looks like you barely had to push on the cap to make it fire.
Yeah, it's that important.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Tue Jul 27, 2010 1:18 pm

Mr.Sandman wrote:So you never did tell us, how did you manage to fill it?
This isn't the "parker" one, I've put that on hold for now.
That trigger looks like it works flawlessly because judging from the video, it looks like you barely had to push on the cap to make it fire.
Yep :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Mr.Sandman
Corporal 3
Corporal 3
Posts: 762
Joined: Fri Mar 28, 2008 9:10 am
Contact:

Donating Members

Tue Jul 27, 2010 1:26 pm

jackssmirkingrevenge wrote:
Mr.Sandman wrote:So you never did tell us, how did you manage to fill it?
This isn't the "parker" one, I've put that on hold for now.
That trigger looks like it works flawlessly because judging from the video, it looks like you barely had to push on the cap to make it fire.
Yep :)
Silly me, I do believe I have MPCS or Mass Pengun Confusion Syndrome. Just curious question if you dont mind me asking, how loud is this particular pengun? Even at low pressures of 450 psi, my pengun sounds like a firecracker and i'm thinking of making a detachable suppressor for it.
Yeah, it's that important.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25737
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 68 times
Been thanked: 46 times

Donating Members

Tue Jul 27, 2010 1:32 pm

It's quite loud, but not excessively so, my HW45 is much louder.
hectmarr wrote:You have to make many weapons, because this field is long and short life
