<div align="center">REGLESS CO2
Provided By - GalFisk
I haven't been able to get a good regulator for my CO2 setup yet (good = 300 psi out without costing $600), so I've devised a filling adapter that lets me charge the gun accurately, without subjecting anything to the full pressure of the CO2 tank. <br>

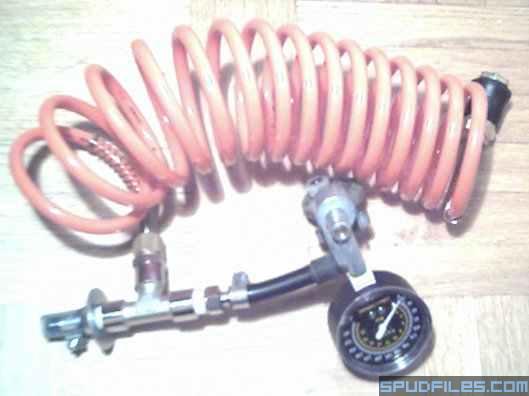

the adapter consists of a dumlop bicycle valve (one-way valve) inside a hose barb, a gauge from a busted 12V compressor and a compressor hose with a quick disconnect, all connected to a tee.
<img src="http://www.spudfiles.com/official_pics/adapter.jpg">

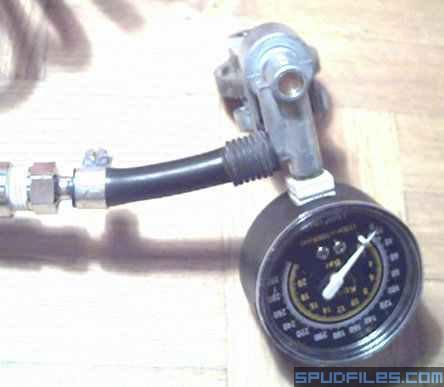

The gauge is still attached to the compressor block, since it's a bit complicated to remove.
<img src="http://www.spudfiles.com/official_pics/gauge.jpg">

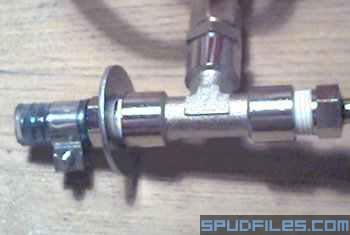

A piece of thick PVC hose is connected to the hose barb with the one-way valve.
<img src="http://www.spudfiles.com/official_pics/tee3.jpg">

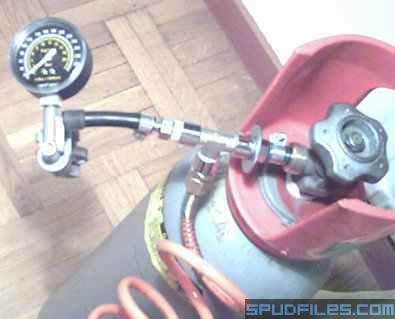

And it fits snugly inside the tank valve outlet.
<img src="http://www.spudfiles.com/official_pics/connect.jpg">

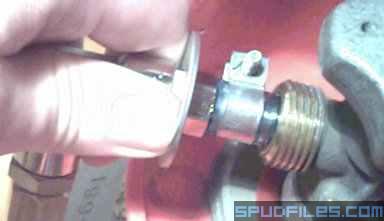

To fill the gun, the quick disconnect is connected to the inlet on the gun, and the adapter is pushed into the tank outlet. The adapter needs to be held back with greater force than the gas is exerting, the area of the outlet is 1.33 cm^2 so to fill the gun to full pressure, I need to push with a force of 27 kg (60 lbs). This ensures that I can't fill it to extreme pressures accidentally, and with the gauge I can fill it to within 10 psi of the desired pressure.
<img src="http://www.spudfiles.com/official_pics/push.jpg">
Provided By - GalFisk </div>
Regless CO2
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
small compressors don't get up to 300 psi do they??
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- saladtossser
- Sergeant 3
- Posts: 1234
- Joined: Sat Mar 26, 2005 10:40 am
- Location: Toronto
- Contact:
lol Brian, you love metal dont ya? pvc cant go that far yet.
"whoa... I thought pimpmann was black..."-pyromanic13
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 3 times
Quote:
I haven't been able to get a good regulator for my CO2 setup yet (good = 300 psi out without costing $600),
read guys...read
By the way this setup is used by galfisk on his copper marblegun.
It's made out of....COPPER..
metal...yes...and I love it hahaha
I haven't been able to get a good regulator for my CO2 setup yet (good = 300 psi out without costing $600),
read guys...read
By the way this setup is used by galfisk on his copper marblegun.
It's made out of....COPPER..
metal...yes...and I love it hahaha
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- Shrimphead
- Corporal
- Posts: 509
- Joined: Thu Nov 17, 2005 7:42 pm
Depends on the size of the gun, how much pressure you want, and how much pressure is left in the co2 tank. It shouldn't take long at all to fill it to the right pressure for average size guns though.
Controlled insanity = Genius
Life flies when you're being dumb.
Life flies when you're being dumb.
I was going to make a semi auto gun with a 20 oz Co2 tank and regulator with a small steel chamber, like 3 or 4 cubic inches. It would be useful because it would be semi auto but have really good acccuracy for paintballing.
wouldnt it be easyer to use a paintball gun regulator? such as a palmers stabalizer thats ment for co2.
i guess one problem with co2 is that once it is regulated it will start to climb in psi agian as it warms up. meaning a gun sat in the sun for like 10 mins good go boom
i have an extra regulator laying around ill see if i can create a setup
i guess one problem with co2 is that once it is regulated it will start to climb in psi agian as it warms up. meaning a gun sat in the sun for like 10 mins good go boom
i have an extra regulator laying around ill see if i can create a setup
- boilingleadbath
- Staff Sergeant 2
- Posts: 1635
- Joined: Sat Mar 12, 2005 10:35 pm
- Location: Pennsylvania, USA
Spudstuff, that's not the important aspect - in fact, this setup is basicaly a manual regulator.
The point, I believe, is that the pressure will increase as the chamber warms up. Basics of the ideal gas law, buddy.
However, this shouldn't be an issue as:
1) Our pipe is used at pressures many time lower than it's bursting pressure
2) Such pressure increases are miminal.
The point, I believe, is that the pressure will increase as the chamber warms up. Basics of the ideal gas law, buddy.
However, this shouldn't be an issue as:
1) Our pipe is used at pressures many time lower than it's bursting pressure
2) Such pressure increases are miminal.
