Our member warhead052 had asked me to do a tutorial about the valve I showed here, so I thought maybe it´s good to share this design, as it´s very simple to make, and can be used for many purpose such as pilot or firing valve even can be mod to a 3-way.
(actually I got the Idea from this topic)
I can´t fing the exact model of my push in fitting, but this one will work, for 6mm tubes
(sorry the images aren´t in order)
balanced push to open valve
-
wyz2285
- First Sergeant 2
- Posts: 2388
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 4 times
- Contact:
- Attachments
-
- I put a section of a ballon to protect the valve stem from dust.

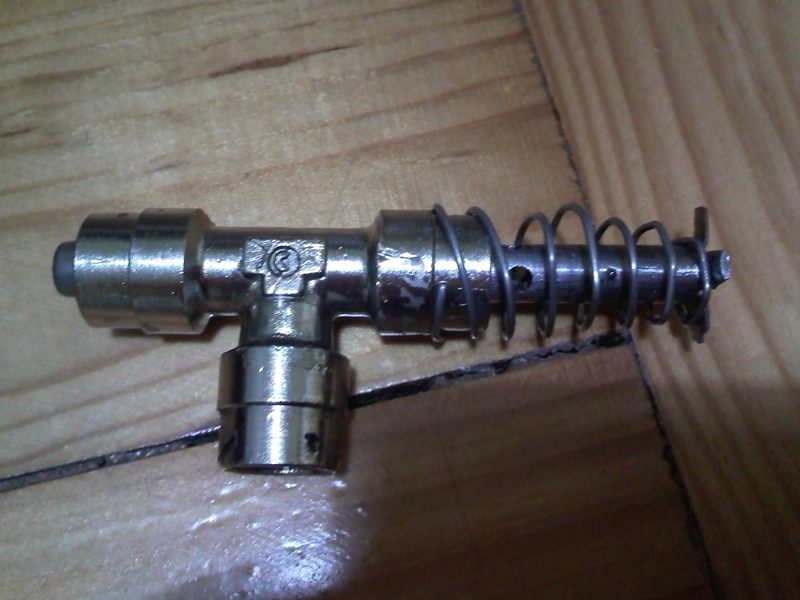

finished
-
- find/make a suitable spring and check for leaks
-

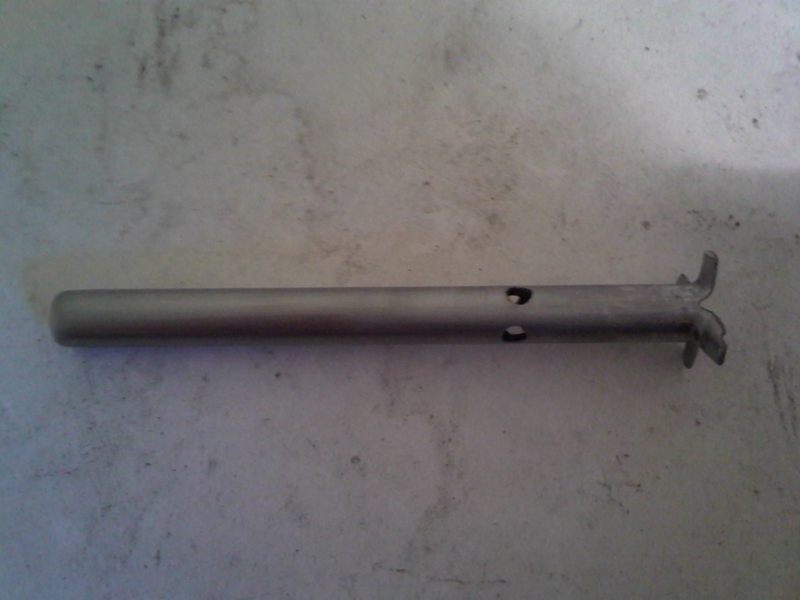

- finished valve stem
- IMG369.jpg (34.72 KiB) Viewed 2949 times
-
- tap one side of the valve stem with epoxy
- Sem Título.png (11.88 KiB) Viewed 2949 times
-
- open the gaps like in this foto
-
- find a 6mm OD tube, brass/aluminum/steel
polish it nicely and drill 4 exhaust ports, 3mm ID max and cut 4 gaps, about 4mm deep
-
- you should be able to see a o-ring inside it, perfect for 6mm tubes.
- IMG364.jpg (36.27 KiB) Viewed 2949 times
-
- first, cut out the tube locker
-
