Sketchup Model Library

A place for general potato gun questions and discussions.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Tue Mar 24, 2009 12:12 pm

Over the last year I have made a lot of CAD drawings for
Pneumatic Launchers.

I have imported several of them into Sketchup format.
Here is the link for Pneumatic Launcher Components:

http://sketchup.google.com/3dwarehouse/ ... revstart=0

Some of these drawings took over several days to make.

So I am hoping some of you can make use of these!

PM me if you have any particular components wanted.
This of course is limited by complexity of request and time frame of requirement.

Please post any suggestions or comments related to this library.

Thank you Dewey-1 for all your hard work and tireless effort contributing to the Spudfiles community. After seeing the interest in this and the filled request I hear by sticky the effort made by you for your contribution!
jrrdw
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6523
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 8 times
Been thanked: 3 times
Contact:

Donating Members

Tue Mar 24, 2009 12:33 pm

I like the breech loading barrel. Welcome back Dewey_1. <a href="http://plugin.smileycentral.com/http%25 ... /page.html" target="_blank"><img src="http://smileys.smileycentral.com/cat/3/3_8_14.gif" alt="SmileyCentral.com" border="0"><img border="0" src="http://plugin.smileycentral.com/http%25 ... e.gif"></a>
Look if you must.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25705
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 51 times
Been thanked: 23 times

Donating Members

Tue Mar 24, 2009 12:36 pm

He lives! Great stuff :D
User avatar
sniper hero
Specialist 3
Specialist 3
Posts: 332
Joined: Fri Mar 07, 2008 3:12 pm

Tue Mar 24, 2009 1:22 pm

wow I got a lot to learn :D
my google sketch up models are,....well it gives the idea what it something is goning to look like but that's all
Attachments

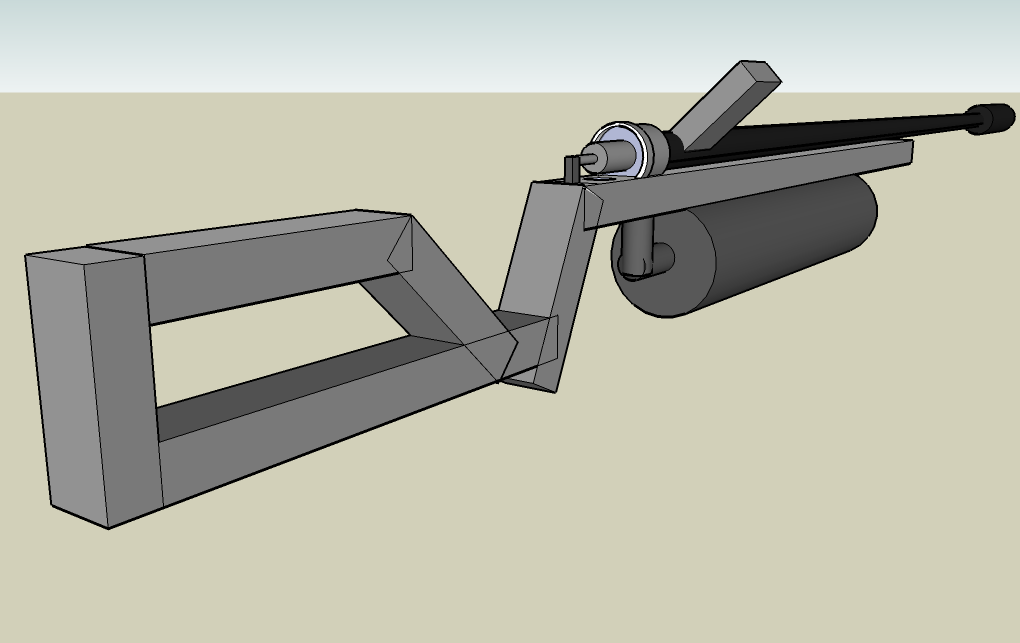

pellet gun model.png
pellet gun model.png (32.96 KiB) Viewed 13211 times
proud member of dutch spud clan
coming: semi auto pellet sniper:D
User avatar
john bunsenburner
Sergeant 5
Sergeant 5
Posts: 1446
Joined: Sun Oct 19, 2008 5:13 am

Tue Mar 24, 2009 1:28 pm

Hmm, how about some one makes a shork wiki page about possible ways of planning a gun, mentions CAD and sketchup and includes this link, my be helpful some day...
"Did you ever stop to think that out of the seven deadly sins envy is the only one which doesn't give the sinner even momentary pleasure"-George Will
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Tue Mar 24, 2009 2:48 pm

it would be a good idea to create spudfiles approved collection of models for PVC, copper and iron... if you haven't noticed yet some manufacturers put models of their valves and fittings...

good job dewey, I am still learnign how to use sketchup not to mention more advanced programms but I find it really useful in designing
Children are the future

unless we stop them now
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Wed Mar 25, 2009 12:05 pm

Thanks for the comments.

I just added a 5 pound fire extinguisher air chamber. ( about 185 cu in)

It currently has 1-1/2" fittings but I will be adding a 1" version.
it would be a good idea to create spudfiles approved collection of models for PVC, copper and iron... if you haven't noticed yet some manufacturers put models of their valves and fittings...
How do you propose a spudfiles approved collection?
Probably would have to create a posting on this to get some discussions generated.

I am quite aware of various 3D models out there. As a matter of fact I have had some of them for several years now.

McMaster has a lot of them available as well. I have used some of their parts already.

I am also curious if anybody has used them yet?
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6523
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 8 times
Been thanked: 3 times
Contact:

Donating Members

Wed Mar 25, 2009 2:04 pm

Looking for a 360 degree turning full tilt mount that air can pass through. Even a mechanical drawing would be a start.
Look if you must.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Wed Mar 25, 2009 2:33 pm

Looking for a 360 degree turning full tilt mount that air can pass through. Even a mechanical drawing would be a start.
What are the air pressure and air flow requirements?

Also how much load weight are you talking about on the mount?

jrrdw: I will do some pondering on that though.
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6523
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 8 times
Been thanked: 3 times
Contact:

Donating Members

Wed Mar 25, 2009 8:55 pm

50 lbs load weight, lets say 75lbs for extra protection. As for flow I use a schrader valve for filling at the moment, but could upgrade to a quick connect at any time. It's for The Basterd. I'll get some updated pics of the chassis and current mount within a week, so no big hurry. But I definitely need better then what I'm using now.
Look if you must.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Sat Mar 28, 2009 1:53 pm

Out of curiosity how many people would be interested in a 3/4" QEV done in Sketchup?

Also how many of you have tried any of the models I created?

Other models I plan on doing are copper breech loading barrels.

Please post any ideas for diameters and lengths.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Mon Mar 30, 2009 2:50 pm

Bump for UPDATE.

Seeing as there was no response from my previous post, I went and
updated my library of components anyway.

For you QEV and copper fans here are some QEV with adapter options.

http://sketchup.google.com/3dwarehouse/ ... revstart=0

I still would like to know if anyone has used the models yet?
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Mon Mar 30, 2009 5:23 pm

It's really nice of you that adapters can be deleted as some prefer threaded malleable iron fittings for convenience...

I wish I could contribute in some way but I am not that skilled yet... well I made a very basic QEV model but there is no comparison to these

is it possible to add models created by other users (for example valve manufaturers) to your library ? in order to make 'spudfiles' collection of models ??


keep it up... the idea to use google for designing spudguns is a good one... we only need to inform them about such possibility and let them spend some time playing with it
Children are the future

unless we stop them now
User avatar
Moonbogg
Staff Sergeant
Staff Sergeant
Posts: 1575
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 14 times
Been thanked: 9 times

Mon Mar 30, 2009 6:28 pm

This is great! Dewey, you did some sweet work on those parts in your library. Really detailed and nice. I wanted to contribute some fittings I did so I made an account and was all ready, then discovered how much of a near impossibility it is to convert Solidworks to Sketchup.
If you have sketchup pro or have the capability to convert something into a skletchup file, I will send you the files. They can be added to a combustion cannon collection perhaps.
I can save as .sat , .stl , parasolid and other generic formats. Let me know if you want these to add to your library. Maybe you have a way of converting them.
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Tue Mar 31, 2009 8:16 am

POLAND_SPUD wrote: is it possible to add models created by other users (for example valve manufaturers) to your library ? in order to make 'spudfiles' collection of models ??

keep it up... the idea to use google for designing spudguns is a good one... we only need to inform them about such possibility and let them spend some time playing with it
Yes it is. All depends on the file format that they have available for download and if I can import or open the files. Then it is a matter of conversion to Sketchup and uploading those files.
Let me know if you want these to add to your library. Maybe you have a way of converting them.
Yes I can give it a try. I will PM you on this subject.
