no-waste piston valve
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times

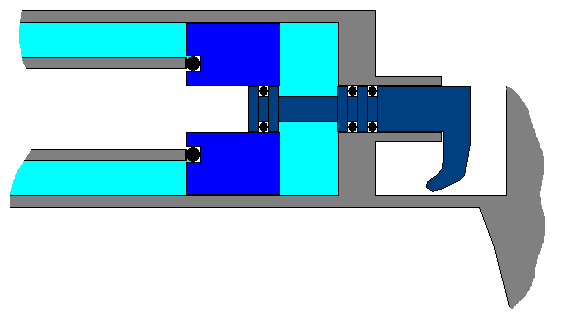

Nothing original, it's basically how a washing machine or dishwasher solenoid valve works, the pilot volume is dumped through the barrel. Just a piece of mental flatulence, I doubt it would have any real benefit over a simple QDV.
- Attachments
-
- nowastepistonvalve.png (2.66 KiB) Viewed 2524 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
Looks like it could be interesting, but it would probably require rather high tolerances to get the internal piston to re-seat inside the external when the external kicks back and opens.
I think you would see a minor performance increase but not enough to make any considerable difference.
I like your train of thought though.
-
POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
heh that's not bad at all
if you increase the diameter of the middle piston you might be able to build a full auto gun
if you increase the diameter of the middle piston you might be able to build a full auto gun
Children are the future
unless we stop them now
unless we stop them now
-
Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
Didnt BtB post another variation on this a while back?
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
See, not original:
[youtube][/youtube]
[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
Technician1002
- Captain
- Posts: 5189
- Joined: Sat Apr 04, 2009 11:10 am
This is the same stock configuration of many sprinkler valves. This is done to prevent water spills while the valve is operating. Pressure in the discharge will provide back pressure on the pilot valve and reduce opening speed. With the outlet blocked the valve simply won't open as there is no pressure differential on the piston or diaphragm.
Most spudders opt for speed of opening instead of trying to save the vented pilot by dumping it in the barrel. A smaller pilot and small EQ greatly reduce the amount of air vented out the pilot during the shot.
Most spudders opt for speed of opening instead of trying to save the vented pilot by dumping it in the barrel. A smaller pilot and small EQ greatly reduce the amount of air vented out the pilot during the shot.
You could just have a longer ported hollow section, so the small piston never stops being guided even when open.but it would probably require rather high tolerances to get the internal piston to re-seat inside the external when the external kicks back and opens.
