My new marker gun will be serviceable

Miniature guns are novelty custom, unique, and sometime downright crude! Common construction materials often include pill bottles or pens. Show us your work!
Post Reply
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Wed Jul 09, 2008 9:30 am

Well after so many repairs being made to pistons in my minis having to grind the gun open with a dremel
(kinda pissin me off) and marker guns generally not working I have decided I am going to make a seviceable marker gun.
Attachments

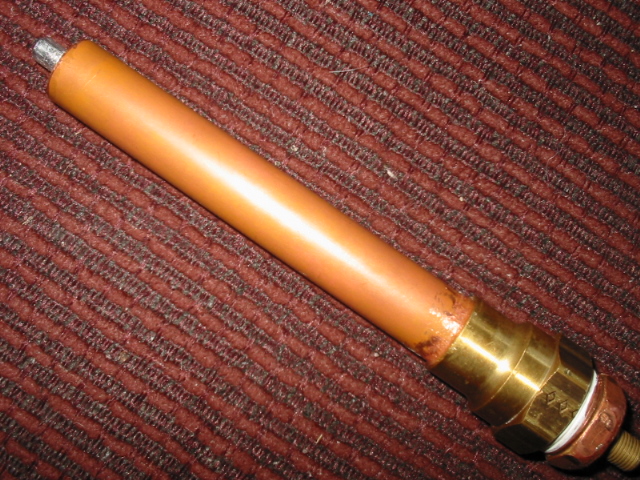

The threaded plug and body of marker gun still waiting to get the 1/2'' female adapter.
The threaded plug and body of marker gun still waiting to get the 1/2'' female adapter.
fill side of shrader on hex side of threaded adapter. The socket where you would normally insert the copper pipe I cut off to make the gun shorter.
fill side of shrader on hex side of threaded adapter. The socket where you would normally insert the copper pipe I cut off to make the gun shorter.
Shrader on threaded side of screw adapter.
Shrader on threaded side of screw adapter.
one of the best epoxt castings I have done is holding the barrel in it is really clear the cardboard I used that I made the epoxy plug with had smthing writen on it you can clearly read it through the epoxy.
one of the best epoxt castings I have done is holding the barrel in it is really clear the cardboard I used that I made the epoxy plug with had smthing writen on it you can clearly read it through the epoxy.
Looking inside of the marker gun 5mm barrel is nice and strait.
Looking inside of the marker gun 5mm barrel is nice and strait.
Piston is made out of a small plastic thread spool with the thread on it filled with epoxy wrapped with electrical tape to fit type m copper pipe the pipe used it the gun, and a sealing face super glued to the top of the piston.
Piston is made out of a small plastic thread spool with the thread on it filled with epoxy wrapped with electrical tape to fit type m copper pipe the pipe used it the gun, and a sealing face super glued to the top of the piston.
Edit forgot the pic of the barrel the widder part on the left of the barrel is 6mm aluminum this is used so the .5mm wall thickness of the 5mm aluminum won't slice into the sealling face
Edit forgot the pic of the barrel the widder part on the left of the barrel is 6mm aluminum this is used so the .5mm wall thickness of the 5mm aluminum won't slice into the sealling face
