Following this thread, I've done some more research and it seems pneumatic mortars were actually quite commonplace in the trenches of WWI. There are quite a few listed here, the description is in French but google translate gives a good idea of the workings.

50 mm Pneumatic mortar Dormoy-Chateau: the mechanism appears to be a cap over the muzzle which allows the barrel to be pressurised, and the device is then fired by disengaging the sear holding the cap in place.

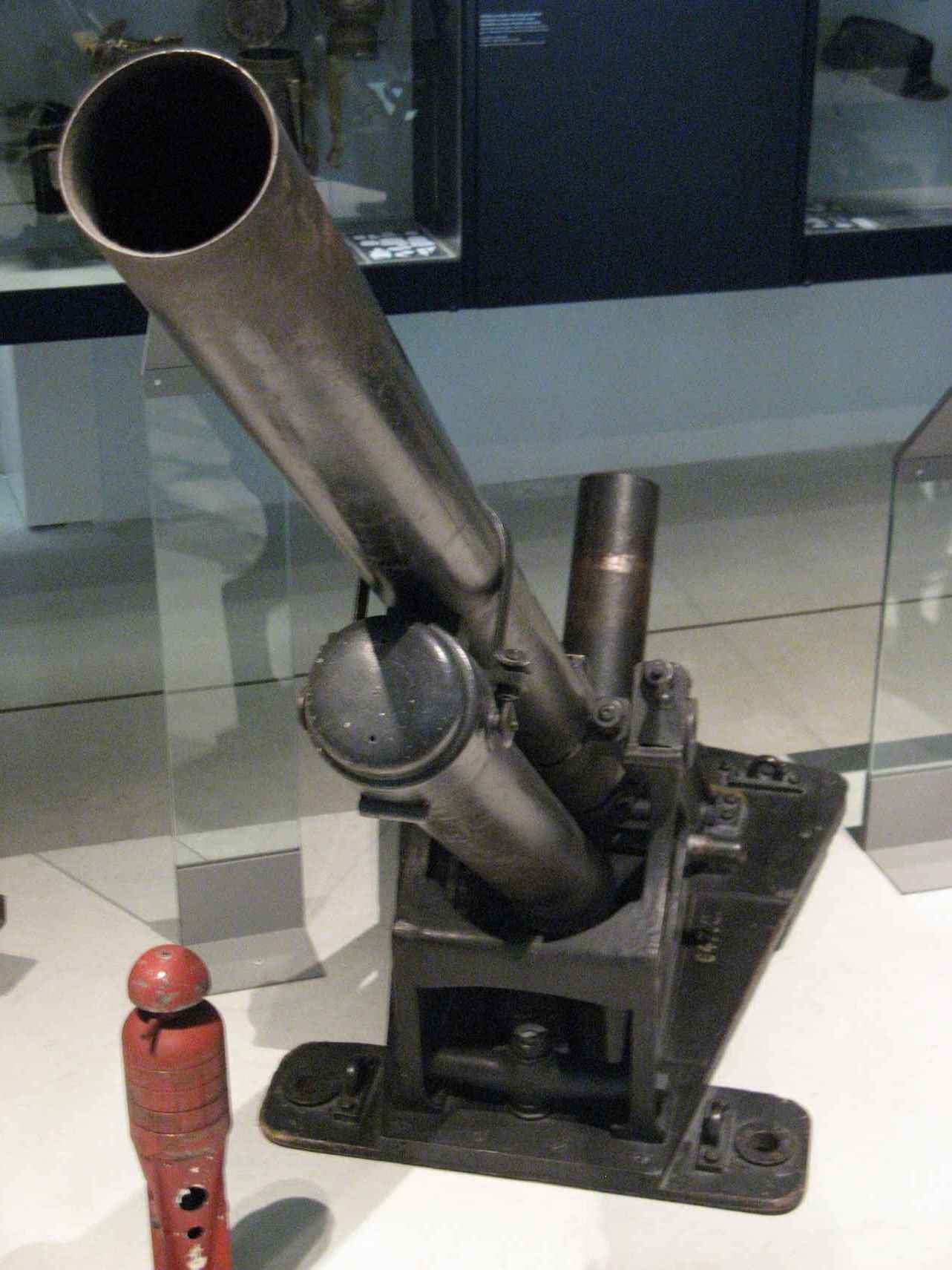

60 mm Pneumatic mortar Brandt: A coaxial pneumatic with an exaust valve that is actuated with a cam on a lever as opposed to a pneumatic pilot.

86 mm pneumatic mortar Boileau-Debladis: fired at a predetermined pressure using a pop-off valve to fire the projectile directly.

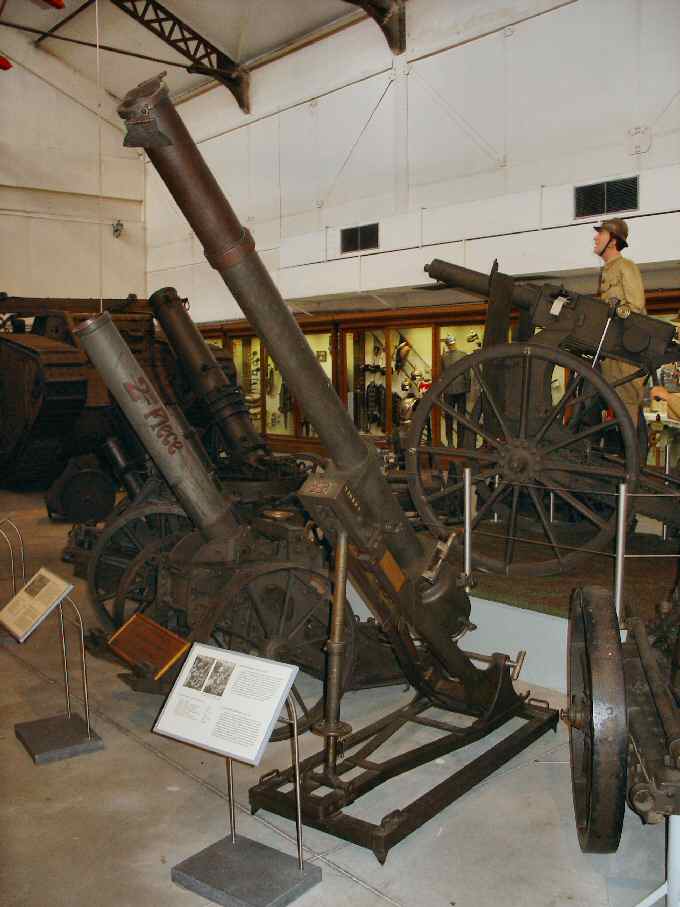

120 mm pneumatic mortar Brandt-Lhuillier: No indication of how this works but construction appears to be similar to the "valveless" luftminenwerfer designs.

These designs are new to me but I don't claim to have rediscovered them for the spudding community as it turns out they also appear on the French spudgun forum - with such a pedigree it's no surprise they come up with some great launchers :D
Attachments
120 mm pneumatic mortar Brandt-Lhuillier.jpg
86 mm pneumatic mortar Boileau-Debladis.jpg
60mm brandt mortar.jpg
60mm brandt mortar.jpg (21.25 KiB) Viewed 10795 times
50 mm Pneumatic mortar Dormoy-Chateau.jpg
50 mm Pneumatic mortar Dormoy-Chateau.jpg (32.75 KiB) Viewed 10795 times
Last edited by jackssmirkingrevenge on Fri Mar 25, 2011 3:27 am, edited 1 time in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
MrCrowley
Moderator
Moderator
Posts: 10077
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand

Fri Mar 25, 2011 3:12 am

60 mm Pneumatique mortar Brandt...


...looks the best IMO :P
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25687
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 36 times
Been thanked: 15 times

Donating Members

Fri Mar 25, 2011 3:39 am

It's certainly the one that looks most like a spudgun ;)

The 50mm one reminds me of this design.

I think it's fascinating that in an age when solid propellant artillery was well developed and desensitised explosives could be fired from conventional guns (removing the need for weapons like the Zalinski Dynamite Gun), these devices were still considered to be viable weapons.

The static nature of trench warfare must have made the relative bulk of a pneumatic setup less of an issue, and the shot is of course both flashless and smokeless, so it is less likely to betray the position of the mortar. Still, I don't suppose it was noiseless - over 500 psi from a "valveless" pneumatic with a 5 inch bore must have made an impressive bang!
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Fri Mar 25, 2011 7:28 am

Interesting :-) I missed the 1st tread also.

The link from the French forum claim that they were massively used during the trenches war.
But I am not sure they were so common on the field; I have a big French book from 1923 named "Les Canons de la Victoire" (The Victory Cannons) full of drawings and descriptions for common guns and mortars, both heavy and light, and after a quick look I couldn't find a single mortar listed that operate with air pressure.

Now I need to explore all those interesting links :lol:

BTW guys is you need some help for French translation, don't hesitate to ask me, I'll be glad to help.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25687
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 36 times
Been thanked: 15 times

Donating Members

Fri Mar 25, 2011 8:27 am

LeMaudit wrote:I have a big French book from 1923 named "Les Canons de la Victoire" (The Victory Cannons) full of drawings and descriptions for common guns and mortars, both heavy and light, and after a quick look I couldn't find a single mortar listed that operate with air pressure.
Sounds like an interesting item, is it original?
If you need some help for French translation, don't hesitate to ask me, I'll be glad to help.
Just one thing, is my interpretation of how the mortars work accurate?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Fri Mar 25, 2011 8:49 am

Yes it's an original book. Lots of detailed drawings in it :-D Love that!! 8)

I don't see any indication that the Brandt 60mm is a coaxial... it's a CO2 gun :-)

The web site is supposed to have English translation, but it doesn't seem to be available for those mortars.
Interesting subject, I'll grab what I can find here and there, and make an English translation from the various French description.
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Fri Mar 25, 2011 9:00 am

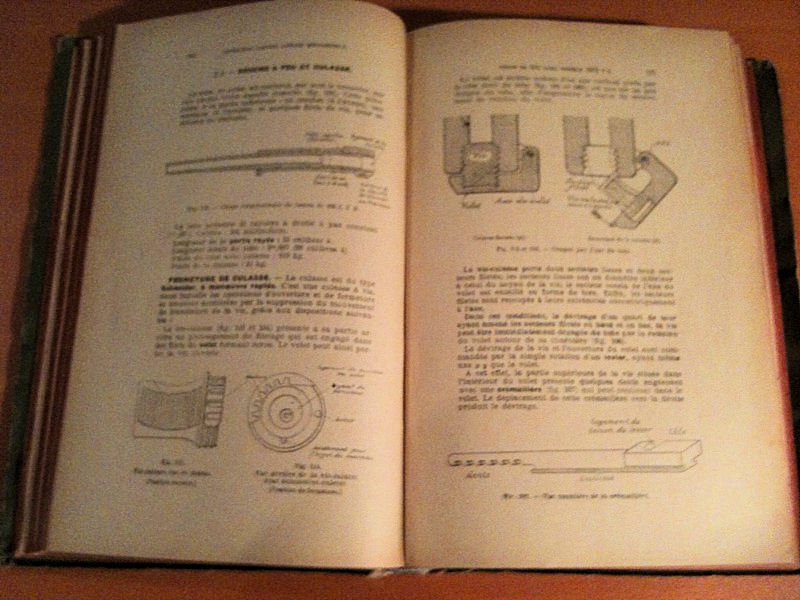

Quick & Dirty from the iPhone :-D
