New airsoft gun

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Post Reply
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Sun Dec 23, 2012 8:58 pm

Thank you to wyz2285 and his videos for the inspiration and information i have gained for this project. A lot of the system shown here is of his creation and I want to give credit where credit is due

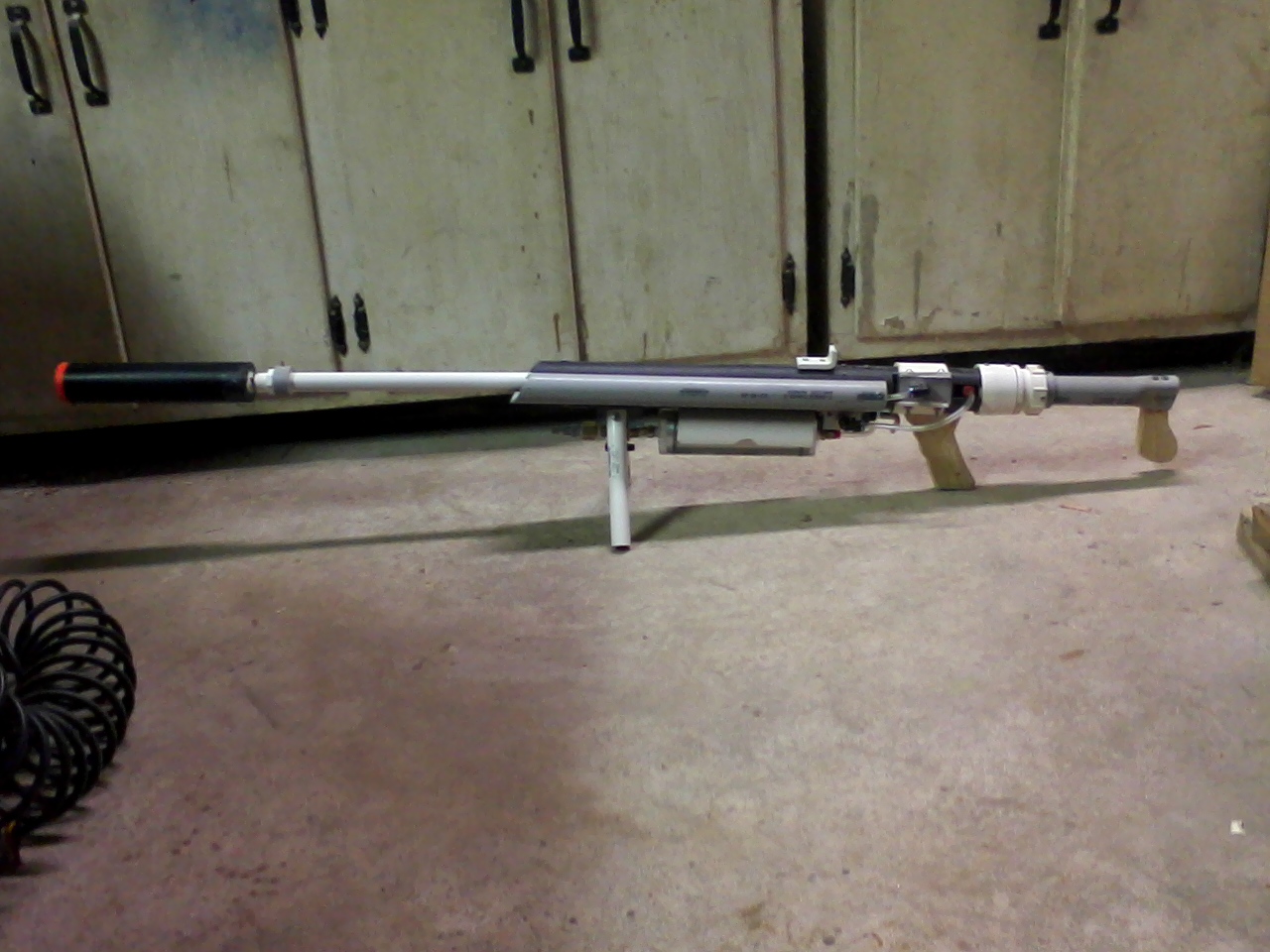

Here is what I have made as my latest.

A bolt action gun, fully portable, operating at 120psi. My clippard tank is the biggest limitation, rated for 250psi, so I do not see a need to go too much higher. I have a DCV and QEV operating the pneumatic system. I am estimating 300fps.

After some test shots at 20ft at an empty paint thinner can i caught ricochet and got a nasty welt, so this thing has some power. I attempted at sights and bi-pod for the first time and both are working somewhat.

What do you guys think, I have learned a lot form this project and I hope to learn more from the comments, so have at it :lol:

UPDATE:
Damage pics on a paint thinner can, ranging from 130psi to 120psi with 6mm air-soft pellets
Attachments
All the parts
All the parts
3ft, 6mm stainless steel tube used as barrel
3ft, 6mm stainless steel tube used as barrel
DCV, 3 way 2 position, pull
DCV, 3 way 2 position, pull
barrel shroud
barrel shroud
toy silencer, was originally meant for looks (doesn't improve sound, but actually improves range)
toy silencer, was originally meant for looks (doesn't improve sound, but actually improves range)
rear sight
rear sight
main tank mount
main tank mount
bipod
bipod
secondary tank
secondary tank
main tank
main tank
screw on stock
screw on stock

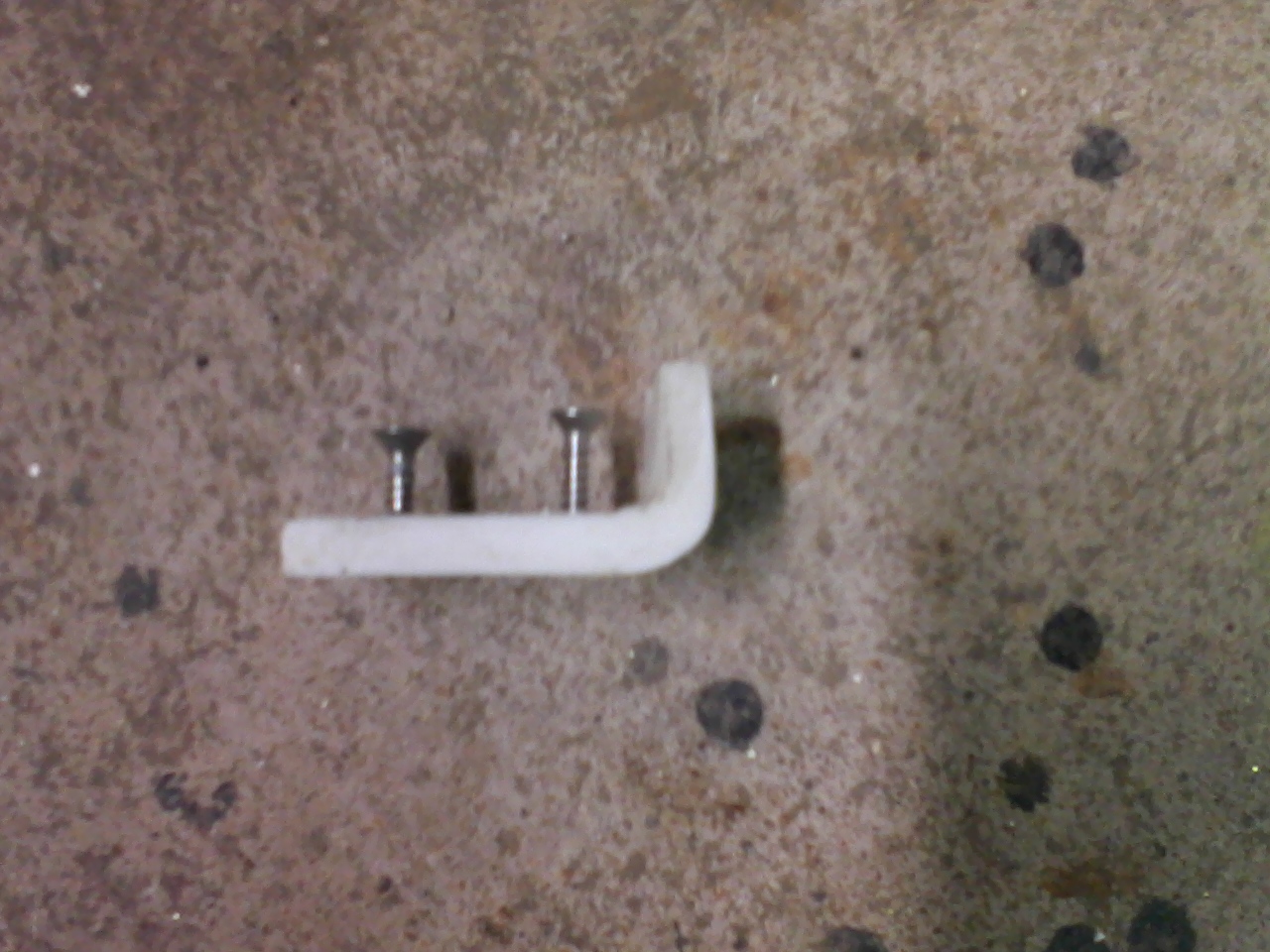

protective cover for the secondary tank, more for looks
protective cover for the secondary tank, more for looks
Last edited by YEAHADD16 on Tue Dec 25, 2012 3:03 pm, edited 1 time in total.
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Mon Dec 24, 2012 12:12 am

that tank can probably take a little bit more but if it xplodes don't quote me :-D


not bad at all


ohh and.... >>>
[youtube][/youtube]
Last edited by jrrdw on Sun Oct 20, 2013 6:02 pm, edited 1 time in total.
Reason: Fixed video.
Children are the future

unless we stop them now
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26216
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 576 times
Been thanked: 347 times

Donating Members

Mon Dec 24, 2012 6:21 am

Veeeery nice effort, lick of paint and a proper scope wount would top it off nicely :) videos?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Tue Dec 25, 2012 5:41 pm

[youtube][/youtube]

here is a link to the video, hope it works
Last edited by jrrdw on Sun Oct 20, 2013 5:58 pm, edited 1 time in total.
Reason: Fixed video.
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Tue Dec 25, 2012 6:44 pm

It looks very familiar to me :lol: damage are not bad for the pressure, I got the same result when using similar pressure. Nice main chamber, what is it?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
django
Specialist 4
Specialist 4
Australia
Posts: 413
Joined: Sat Feb 12, 2005 11:33 pm
Location: Australia

Tue Dec 25, 2012 9:26 pm

If I understood how this thing operated Id make one,I havent made an airgun in years!,after my failed Semi Auto attempt I gave up but now concidering making another gun.

Ive never managed to get a Bolt Action airgun to seal correctly and not lose air through the bolt system upon firing?!.
Top
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Tue Dec 25, 2012 11:56 pm

wyz2285 I'm using a clippard accumulator. We used them on our robots back in high school, this one is rated for 250psi. Thanks for the inspiration

django, i haven't got the sealing down just yet, getting close though. Take a look at wyz2285 videos, they are pretty dang helpful. Have you seen Django the movie yet, look pretty sweet :)
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26216
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 576 times
Been thanked: 347 times

Donating Members

Wed Dec 26, 2012 2:51 am

YEAHADD16 wrote:[youtube][/youtube]
Good stuff :D a simple magazine shouldn't be too hard to sort out, and a fridge compressor will turn those dents into holes ;)
Last edited by jrrdw on Sun Oct 20, 2013 5:53 pm, edited 1 time in total.
Reason: Fixed video.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
django
Specialist 4
Specialist 4
Australia
Posts: 413
Joined: Sat Feb 12, 2005 11:33 pm
Location: Australia

Wed Dec 26, 2012 6:00 am

YEAHADD16 wrote:wyz2285 I'm using a clippard accumulator. We used them on our robots back in high school, this one is rated for 250psi. Thanks for the inspiration

django, i haven't got the sealing down just yet, getting close though. Take a look at wyz2285 videos, they are pretty dang helpful. Have you seen Django the movie yet, look pretty sweet :)

Not Seen Django the Movie but am a Huge fan of the original Sergio Corrbuci 1966 DJANGO plus lots of other old 60's- 70-'s Spaghetti westerns hence my user name.I research Wyz2285's work further to figure out how you guys are getting these guns to operate but I want mine fully portable...
Top
Post Reply

Return to “BB, Airsoft, and Pellet Guns”
