New spring powered airsoft

[farcticox1]

Layout for my next spring powered air soft with a 4" stroke piston and 2 expansion springs, this time with rearward charging.

[farcticox1]

Layout something like this

WIP 1.jpg (31.23 KiB) Viewed 75613 times

[farcticox1]

Got the locking and trigger release mechanism working.

[farcticox1]

Getting the loading mechanism linked into the charging mechanism has been a headache but it is getting close.

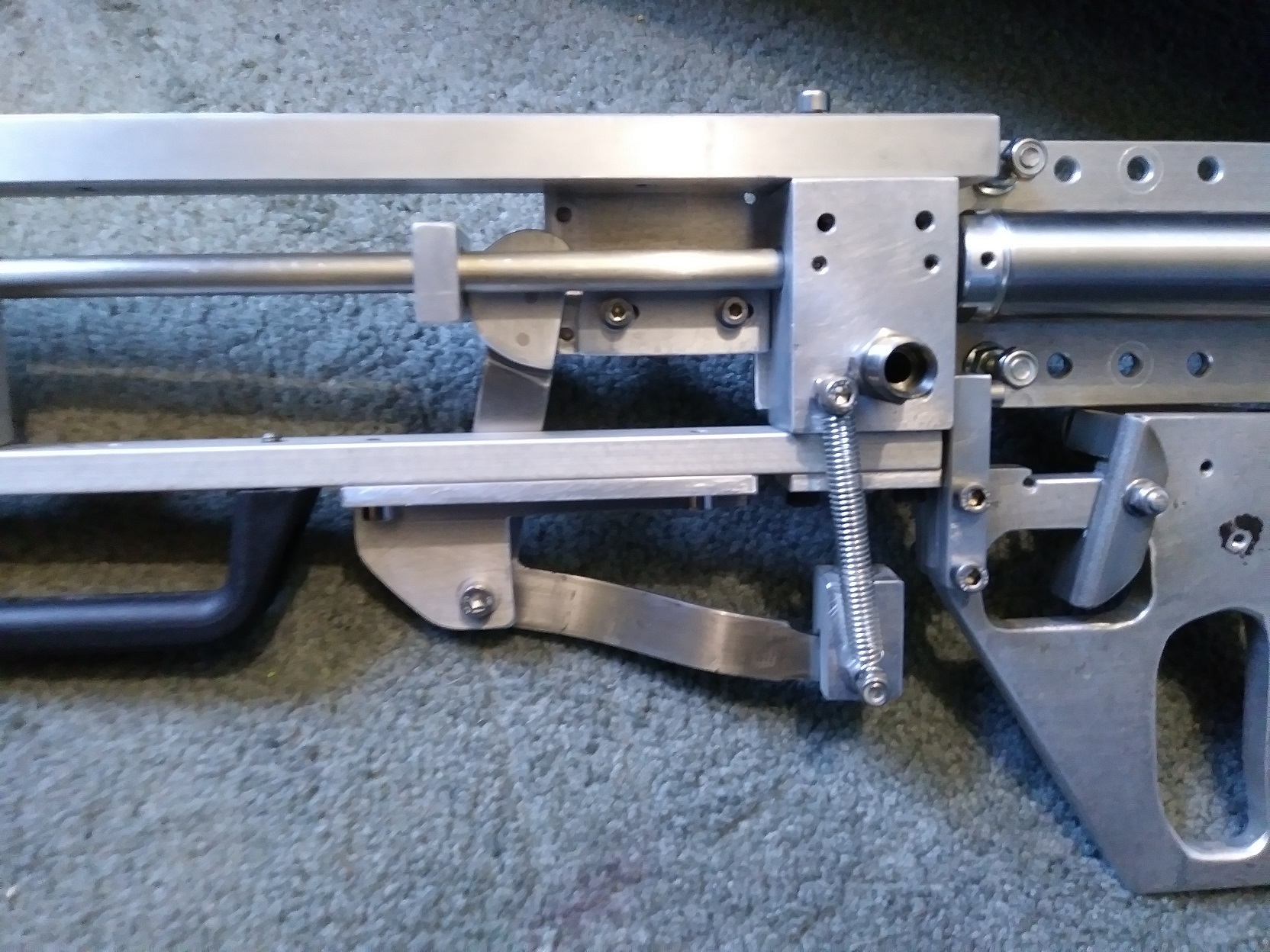

Charge/load position, block on the charge rod moves about 80mm then hits the rounded piece on the L arm as it only needs about 20mm movement to move the plunger to the load position.

[farcticox1]

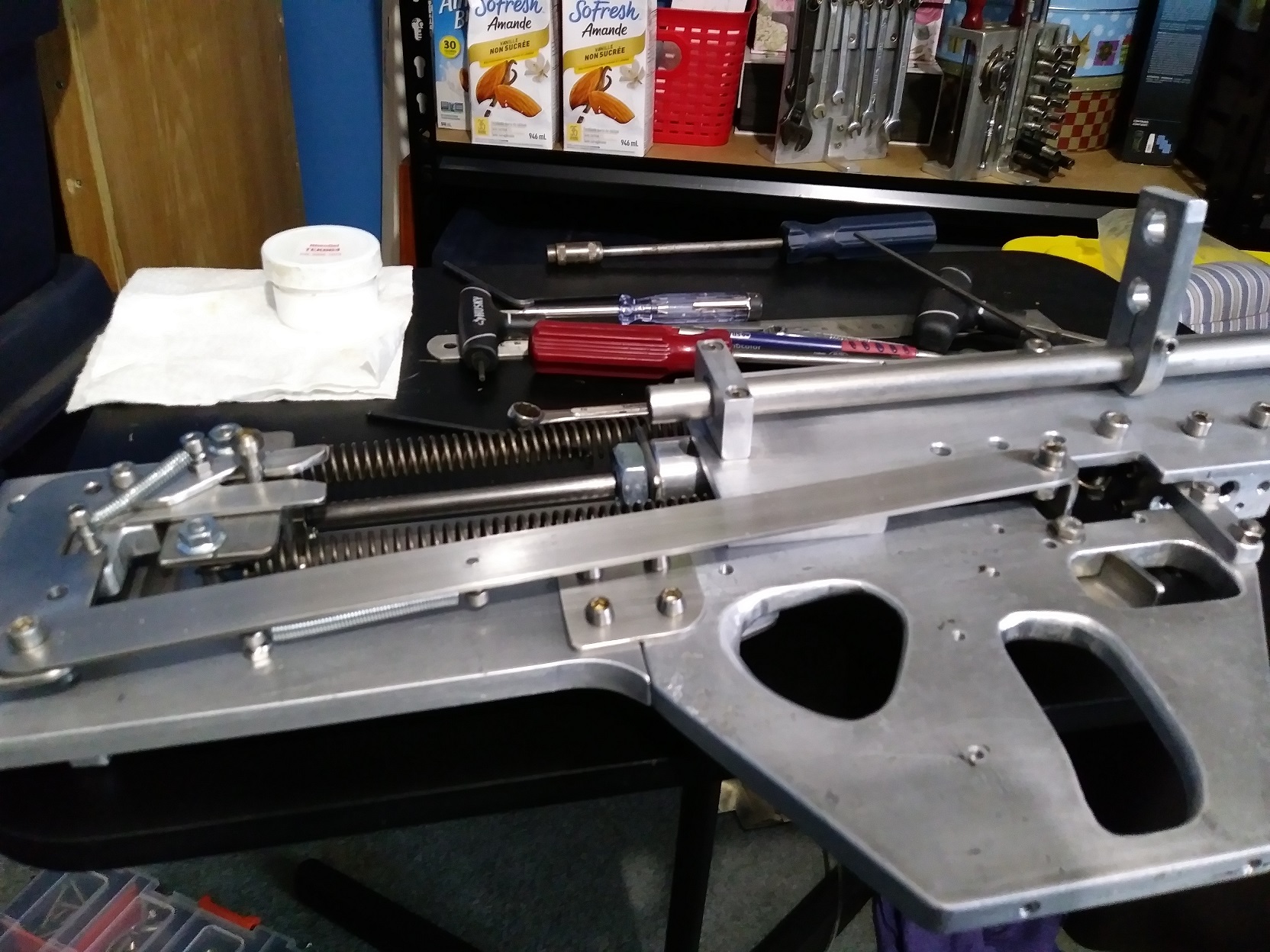

Mostly complete and had some test firing, loading works ok, just need the scope set up. Need to make butt plate and cover for the top spring.
