Regulator Turned 1/4" Piston Valve

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
iknowmy3tables
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1596
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland
Has thanked: 3 times
Been thanked: 9 times

hey guy's sorry I couldn't post this sooner but I'd like to share some pics of the valve I modified so you guys would have two examples of how you might modify a valve you have into a piston valve.

once again this is what the valve looked like before
Attachments

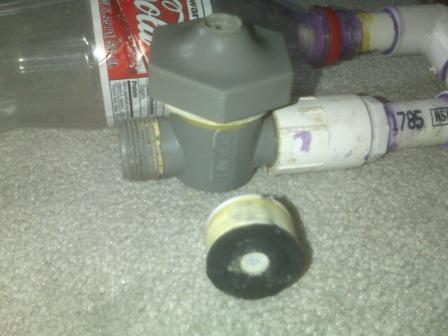

so the piston is just a standard soda bottle cap wrapped in some Teflon tape a rubber washer glued on the top, and filled with hot glue and a small end cap just for filler
so the piston is just a standard soda bottle cap wrapped in some Teflon tape a rubber washer glued on the top, and filled with hot glue and a small end cap just for filler

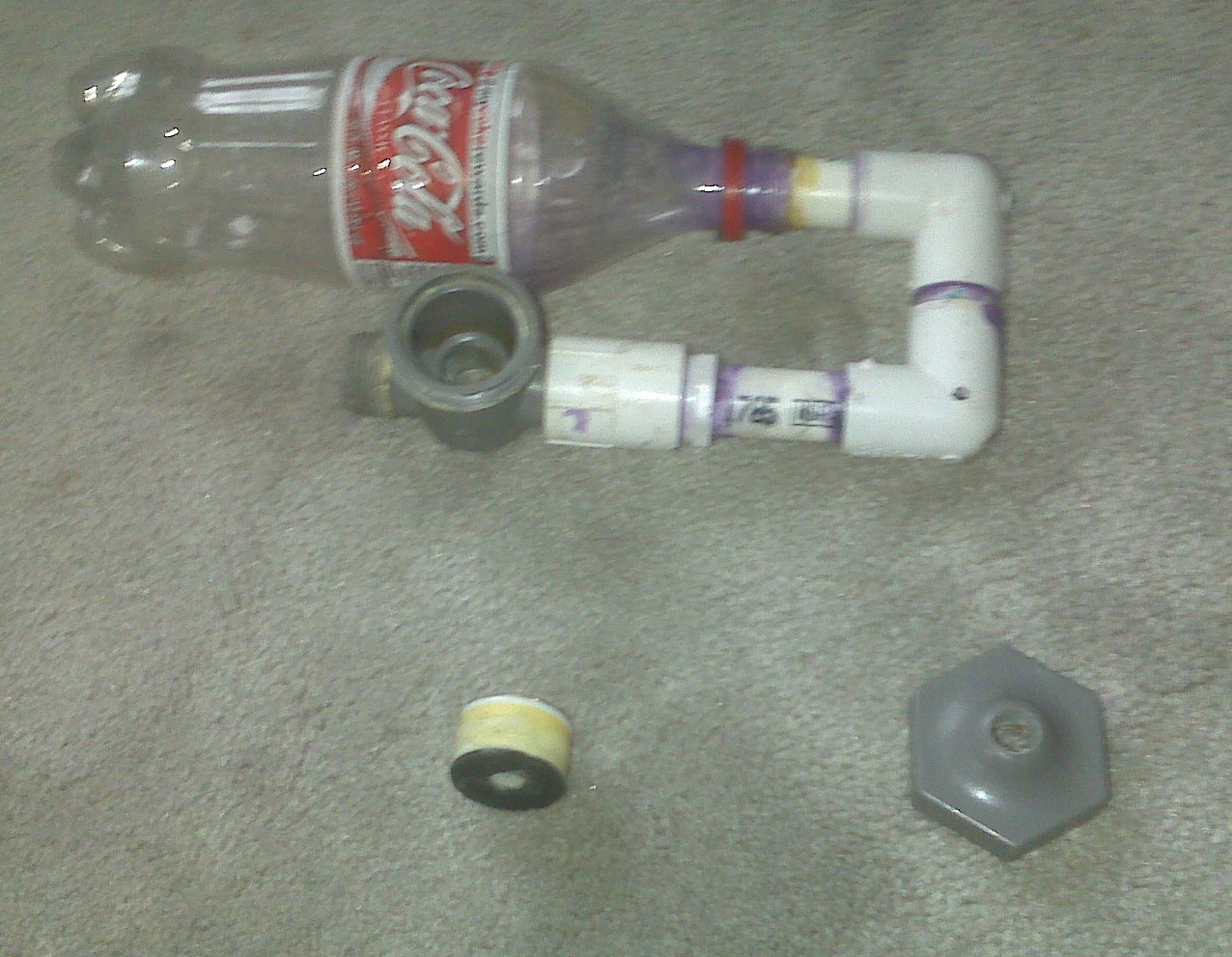

so I unscrewed the top removed the existing screw plunger assembly, tapped the hole for the handle stem to fit 1/4"NPT
so I unscrewed the top removed the existing screw plunger assembly, tapped the hole for the handle stem to fit 1/4"NPT
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

nice! great to see more and more people making their own parts, it would be a very stale hobby otherwise :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
