Check valve piston?

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

That's exactly right dude.
It let's air into the chamber but upon piloting it seals the pilot therefore all chamber air goes out the barrel and there is no wastage through the pilot valve.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
sharpshooter11000
Specialist 2
Specialist 2
Posts: 247
Joined: Sat Aug 06, 2011 1:34 pm
Location: UK

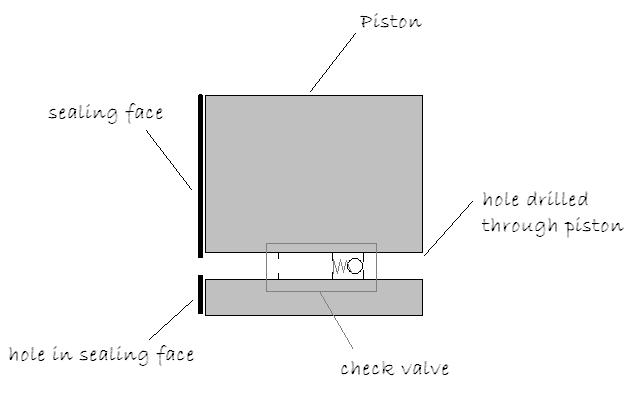

oh... my wording is letting me down again. its for a co-ax gun. Here's a visual explanation of my idea :oops:
Edit: oops I've just realised the arrow for the hole in the sealing face is pointing to the wrong place, it's the gap between the two black lines
Attachments
My idea
My idea
coax piston.JPG (15.98 KiB) Viewed 1716 times
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Take out the check valve and take out the hole in the sealing face. The sealing face is the check valve. It works the same in any piston doesn't matter if it's coax or tee or what.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
sharpshooter11000
Specialist 2
Specialist 2
Posts: 247
Joined: Sat Aug 06, 2011 1:34 pm
Location: UK

Oh yeah... I am so dumb :lol: thanks for your help (and patience :) )
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

No problem, good luck!
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
sharpshooter11000
Specialist 2
Specialist 2
Posts: 247
Joined: Sat Aug 06, 2011 1:34 pm
Location: UK

Thanks :D I'll post it on spudfiles once it's done
Top
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2504
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

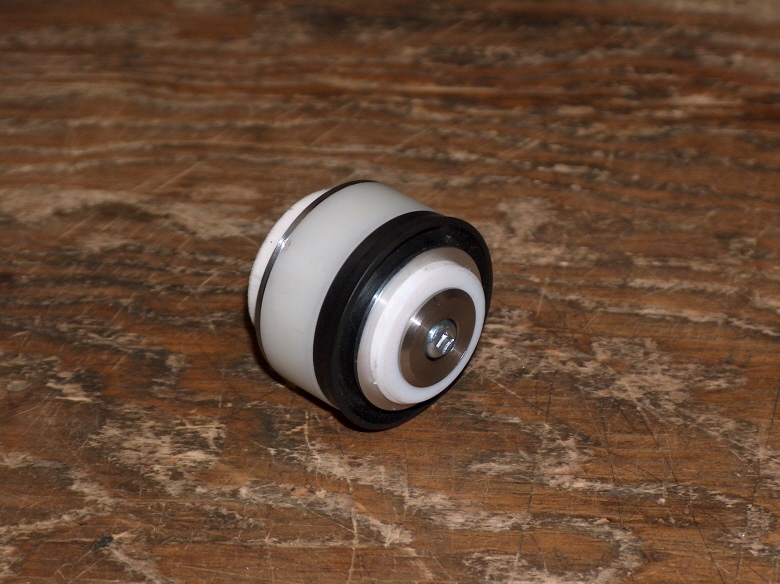

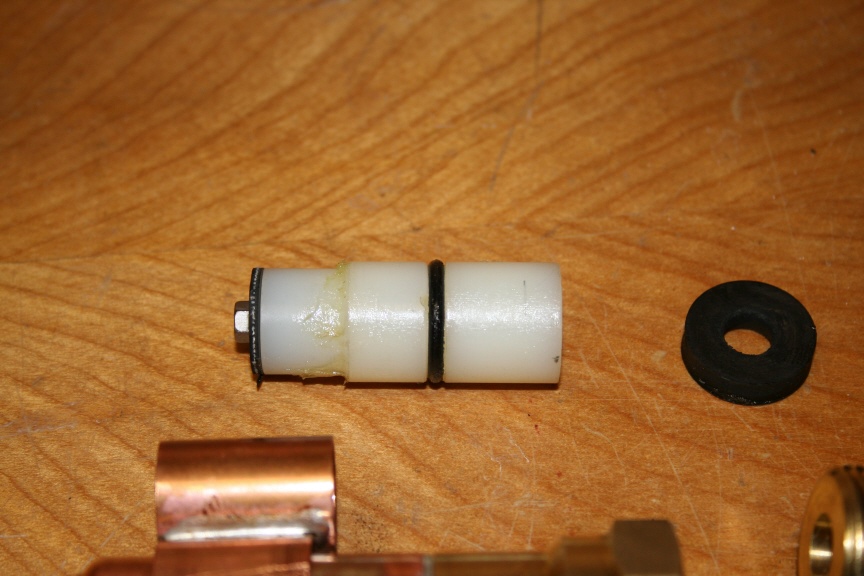

Too bloody complicated...(the "flap" idea not withstanding)..floating o-ring as a check is easy...as is using a u-cup seal.
