clide
Corporal 3
Corporal 3
Posts: 784
Joined: Sun Mar 06, 2005 3:06 am
Location: Oklahoma, USA
Been thanked: 1 time

Nice work, looks like something Spudinator would build (which is a good thing if you don't know who that is)

Now for the questions.
So is the piston just held down by spring pressure? Do you have a hole in the cap so air can escape as the piston moves back? Any reason you chose the chamber sealing configuration for the piston? Barrel sealing would allow you to use a weaker spring and IMO work better in the configuration you were going for.

I just wish you had a video :(
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

Here are the drawings.. sorry for the low quality, my scanner is broken so I had to use my camera and clean it up the best I could.

Somehow I dont think the piston is quite what everyone expected.
Attachments

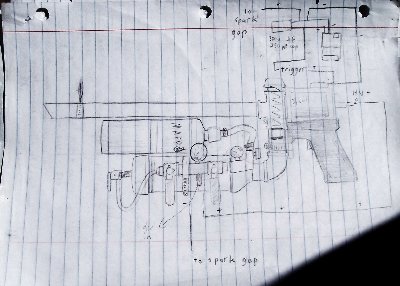

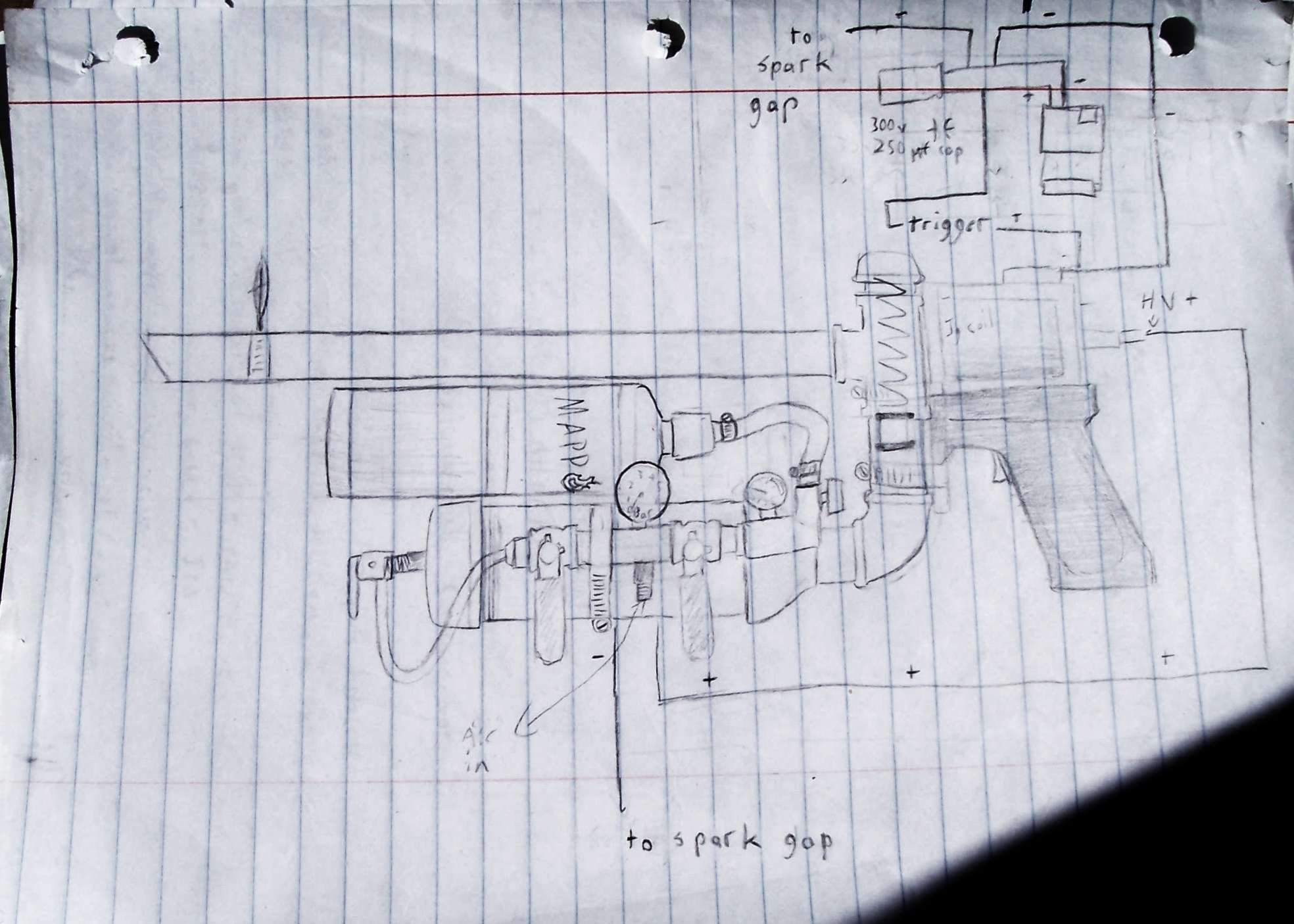

Here is the concept drawing. The wiring is a little messy because I knew roughly what I was doing and didnt feel like drawing it out properly.
Here is the concept drawing. The wiring is a little messy because I knew roughly what I was doing and didnt feel like drawing it out properly.
A side view and an exploded view of the piston itself. This isnt the one that broke, its the one that I am getting ready to install.<br />This isnt exactly scaled right compared to the real thing, btw.
A side view and an exploded view of the piston itself. This isnt the one that broke, its the one that I am getting ready to install.
This isnt exactly scaled right compared to the real thing, btw.
Top
clide
Corporal 3
Corporal 3
Posts: 784
Joined: Sun Mar 06, 2005 3:06 am
Location: Oklahoma, USA
Been thanked: 1 time

Ah, I see, not what was expected at all.

A piston built more like a traditional piston valve would open a a certain pressure and stay open well below the pressure that it opened at (how much below depends on the dimensions)

This one will open a a certain chamber pressure and only stay open enough to maintain that pressure and close again at about that same pressure. Not much of a problem if you are opening at low pressures, but if it is set to open a higher pressures the valve will be choking flow and closing early.
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

With such high pressures involved, at 4x the piston will practically become a projectile. kinetic energy will likely keep it open long enough for most of the gas to vent. I considered this a lot before I made it, and the dryfire yesterday convinced me that it will work.
Top
clide
Corporal 3
Corporal 3
Posts: 784
Joined: Sun Mar 06, 2005 3:06 am
Location: Oklahoma, USA
Been thanked: 1 time

Yes, I have no doubt that it will work great when the opening pressure is set well below the peak pressure, but you may run into performance issues if you ever decide to set the opening pressure near the peak pressure.

PS: nice sig :)
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

Eh.. I'll figure it out :)
Like I said, this gun is experimental, so if it doesnt work at higher pressures I'll just bang on it until it does.
Top
User avatar
SpudMonster
Specialist 2
Specialist 2
Posts: 250
Joined: Mon Aug 08, 2005 5:54 pm

I looked down the barrel of that cannon. I saw a frog. Then I saw Satan.
Top
User avatar
bboymatty
Specialist
Specialist
Posts: 108
Joined: Sun Feb 19, 2006 12:12 pm

that looks sooo ghetto, totally post apocalyptic style sh!t going on right there hahaha nice gun

bet its heavy!
Top
User avatar
chaos
Sergeant 3
Sergeant 3
Posts: 1205
Joined: Wed Jan 17, 2007 8:31 am

man that is "bangin".

but how are you getting a spark in the metal chamber i cant quite see from the pics.

great job you have inspired me to build a hybrid....stainless of course.

peace
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

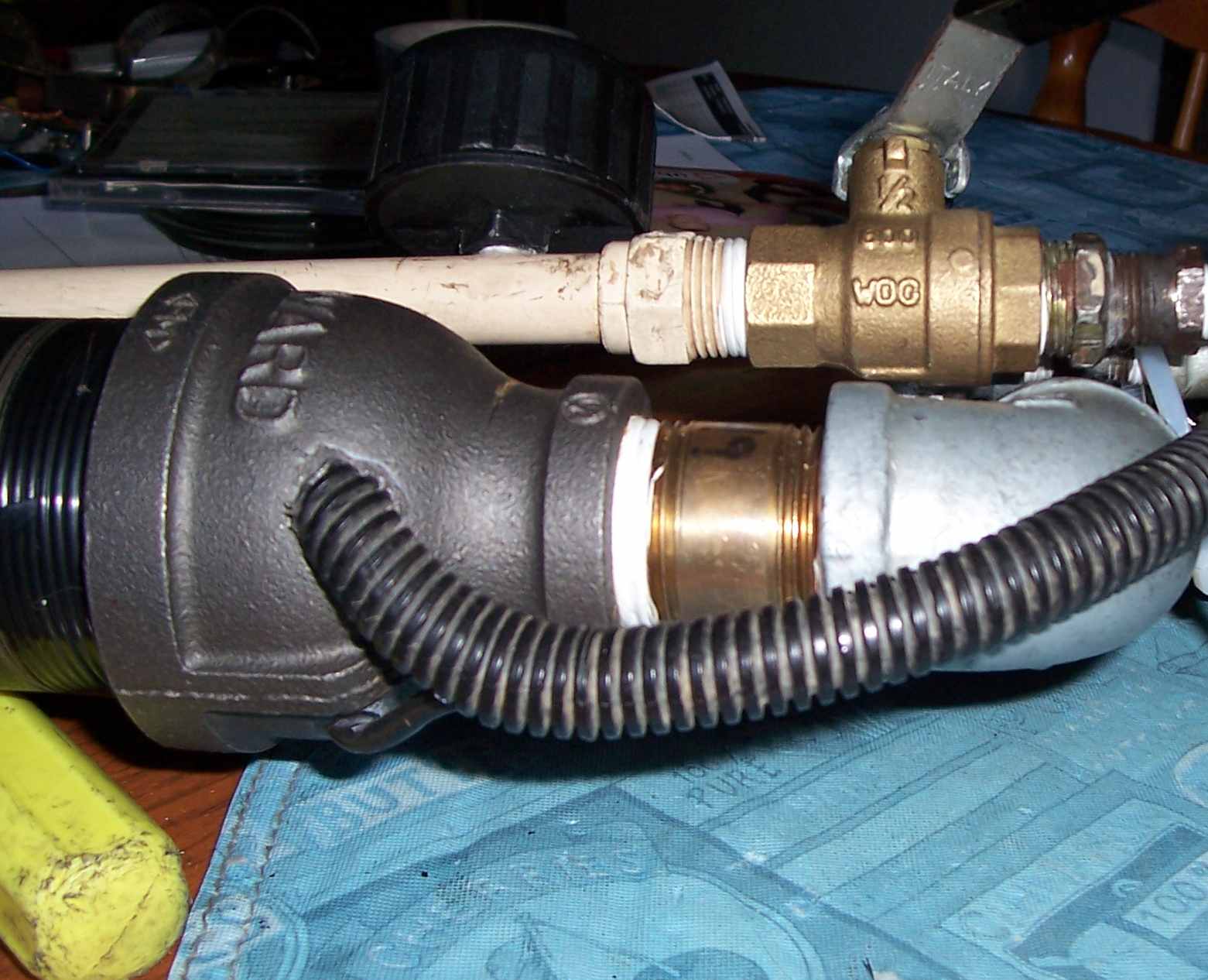

Chaos: I drilled two holes through the reducer then epoxied+super glued the wires into place.

Update: I thought something was fishy here. I shut my regulator all the way off and there was still gas getting through, so I took the thing apart. I discovered one of the o-rings had a large chunk missing from it. Whether it came that way or I somehow damaged it I dont know. I dont think harbor freight will take it back so I just hooked a flow restrictor up in its place. Everything worked out good with that and it let me compact the gun even more.

My dad is going to turn out a brass piston at work so hopefully Ill get to do some real testing soon. The heavier metal should also increase the piston's acceleration time and help correct preformance issues that clide pointed out could happen with higher mixes.
Attachments
Top
cash68
Specialist
Specialist
Posts: 179
Joined: Sun Apr 29, 2007 7:12 pm

Add some rusty nails/spikes and it would look perfect. Maybe a few stickers too. :)
Top
User avatar
jssizzle
Private 4
Private 4
Posts: 72
Joined: Tue Apr 03, 2007 7:27 am

Very cool. I'm probably wrong, but the pistol grip on a hybrid seems pretty original to me. Don't paint it. I think a bipod would be cool (on a hybrid? I must be crazy . . .)

I see the FSM!!!!!
http://www.venganza.org
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

heh.. glad to see there are a few of the enlightend on spudfiles.
The name "fnord" and "the spaghetti monster that lurks within the handle" are in fact refences to such in-jokes. my sig kinda is too :)
Top
User avatar
jssizzle
Private 4
Private 4
Posts: 72
Joined: Tue Apr 03, 2007 7:27 am

Hmmm . . . Fnord . . . everytime I read it I think of the fjords or norway. But I doubt thats it. As for your sig . . . I think its some dvd hacking code or something isn't it?

Back on topic!
Name it some small furry rodent.
Top
User avatar
FeLeX
Specialist 3
Specialist 3
Posts: 310
Joined: Sat Mar 10, 2007 10:45 pm

Man that thing looks AWESOME. Very original use of a piston. By any chance did you det the system from the propane powered paintball gun (cant remeber what it was called)? I love the fact that it is hand held unlike most of the other hybrids out there.
If there is going to be some kind of voting done then my vote is deffinatly going to you!
Good luck, FeLeX
