*VIDEO* Full auto revealed!

A place for general potato gun questions and discussion.
Post Reply

Who's your daddy?!?!?

I'm on my knees right now...
6
38%
JSR is and he will epoxy the hell out of you, BTB
10
63%

Total votes: 16
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Well....not today..I'm gonna torture you guys a bit first. ( and test some more!!)


Quadripple...!


DAMN!


***inhales deeply**

Quadroopydribbledippydoodledanglydiddlydoo!


That's it!
:wink:
Top
User avatar
Lentamentalisk
Sergeant 3
Sergeant 3
Posts: 1202
Joined: Tue Aug 07, 2007 5:27 pm
Location: Berkeley C.A.

ok, so quick questions on the current specs.

How big is your chamber? I is connected up directly to the hose inlet at the moment (isn't it) so I take it in your final, or at least next phase you will hook the chamber up to a reservoir via the trigger valve, pressure washer handle or what ever.

How big is your BB chamber, and what is it's current setup. I was trying to figure out if you still direct the flow through that tiny 1/4" hole, or do you just dump the pressure out of the QEV straight into the BB chamber, ant 1/2" or what ever your QEV is?

Finally, on your vortex elbow, what size elbow do you find works best? something that makes a perfect fit, or something that is a little big?



Awesome job!!
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Top
User avatar
FishBoy
Corporal
Corporal
Posts: 575
Joined: Tue May 27, 2008 5:51 am

I want pictures and videos!!! :D
"You polish a turd, it's still a turd"

Remember DYI!!!
Top
User avatar
Skywalker
Specialist
Specialist
United States of America
Posts: 194
Joined: Sun Aug 05, 2007 7:22 pm
Has thanked: 9 times
Been thanked: 9 times

Holy shi...ngles! That is a brilliant design! And even better, you are actually building it, and it seems to be working. Rock on! :twisted:
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

It sure seems to be..ZHere are some pictures of the Deathray Bullpup Assault Rifle..

deathray BAR...Because that;s what it is now.With it's full length rifled airgun barrel hidden in the stock..
Attachments
Hard to see but gas enters from the right, though a 90 degree adjustable valve, enters the QEV, wehre the snapvalve sets it off.Air travels up and enters the bb reservoir, located at the very back of the stock.Entry hole is 4 mm.
Hard to see but gas enters from the right, though a 90 degree adjustable valve, enters the QEV, wehre the snapvalve sets it off.Air travels up and enters the bb reservoir, located at the very back of the stock.Entry hole is 4 mm.
Can't get them out..one is stacked on another and the top one is flattened..
Can't get them out..one is stacked on another and the top one is flattened..
Damage to wood
Damage to wood
Hard to see but it removed a chunk of brick wall about 1 cm deep
Hard to see but it removed a chunk of brick wall about 1 cm deep

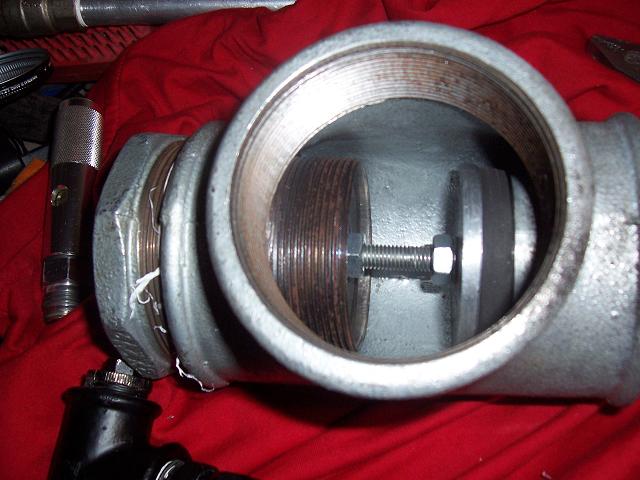

And the two inch porting metal piston valve that has been keeping me busy lately.
And the two inch porting metal piston valve that has been keeping me busy lately.

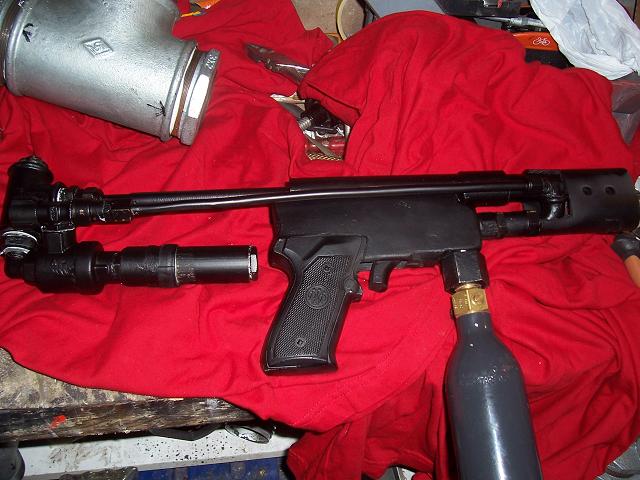

Basicly built around the barrel, the gun is as compact as it could be, without sacrificing barrel lenght.<br />The entire gun is about 1 inch longer than the barrel is.
Basicly built around the barrel, the gun is as compact as it could be, without sacrificing barrel lenght.
The entire gun is about 1 inch longer than the barrel is.
Last edited by Brian the brain on Thu Oct 16, 2008 3:14 pm, edited 4 times in total.
Top
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

i don't see the pics?
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

ALIHISGREAT wrote:i don't see the pics?
I know..I first post..then edit so it's easier to insert pics...how bout now??
Top
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

yeah... very cool indeed! but i there any chance of a full length pic?
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

That is a full length pic.
okay..you can;t see the edge of the T in the back, but I asure you that's all there is..
Top
User avatar
FordGtMan
Specialist 3
Specialist 3
Posts: 314
Joined: Thu Oct 25, 2007 9:15 pm
Location: southlake Tx

What pressures are you thinking of with using that 2 incher? Hopefully using that fridge compressor of yours? Or did yours break some time? I knew someones did.
People call me ThunderChunks...I dont even know why...
Got a Gamertag?, mines KillerHedgeHog3, add me :)
Top
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

I think that was frankredes mauler valve I think I think.
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
Top
User avatar
Lentamentalisk
Sergeant 3
Sergeant 3
Posts: 1202
Joined: Tue Aug 07, 2007 5:27 pm
Location: Berkeley C.A.

great job, that is just insane. I can't wait for the 35bar chamber addition. Just fill up all of the empty space around the gun with piping...
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Or did yours break some time? I knew someones did.
AFAIK his firdge compressor broke down but now he has a new one
Children are the future

unless we stop them now
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Sexy! in its own way :D

I particularly liked this damage shot, but you can't give us these teasers without a video!
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Skywalker
Specialist
Specialist
United States of America
Posts: 194
Joined: Sun Aug 05, 2007 7:22 pm
Has thanked: 9 times
Been thanked: 9 times

Al-right!!! that looks awesome. So, how many bbs per air burst from the QEV?
