:shock:

Nice!

I would be afraid to fap in the presence of that thing :roll:
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

^
It's always amusing when the thread starts a new page and I jump in and catch something like this completely out of context.




Edit; to make this post more useful, here's something relevant I made a while back.
(what, you didn't think I'd been doing nothing at all while I was away, did you?)

Total length ~ 16 inches
Attachments

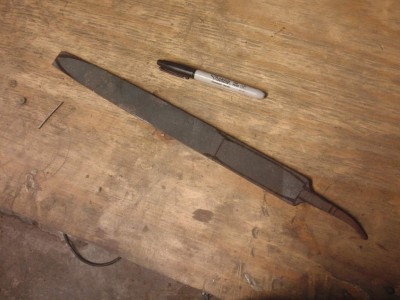

Rough edges were done with an angle grinder
Rough edges were done with an angle grinder

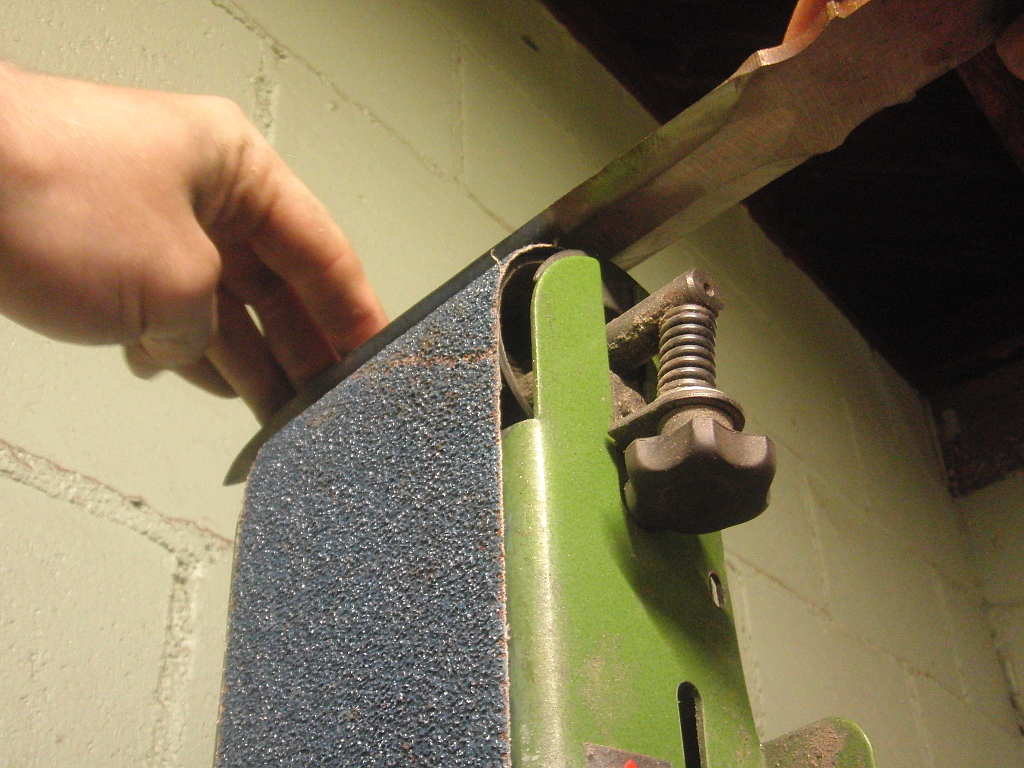

Grooves were made with the end of a belt sander (Obviously the sander wasn't running during this shot but you get the idea).
Grooves were made with the end of a belt sander (Obviously the sander wasn't running during this shot but you get the idea).

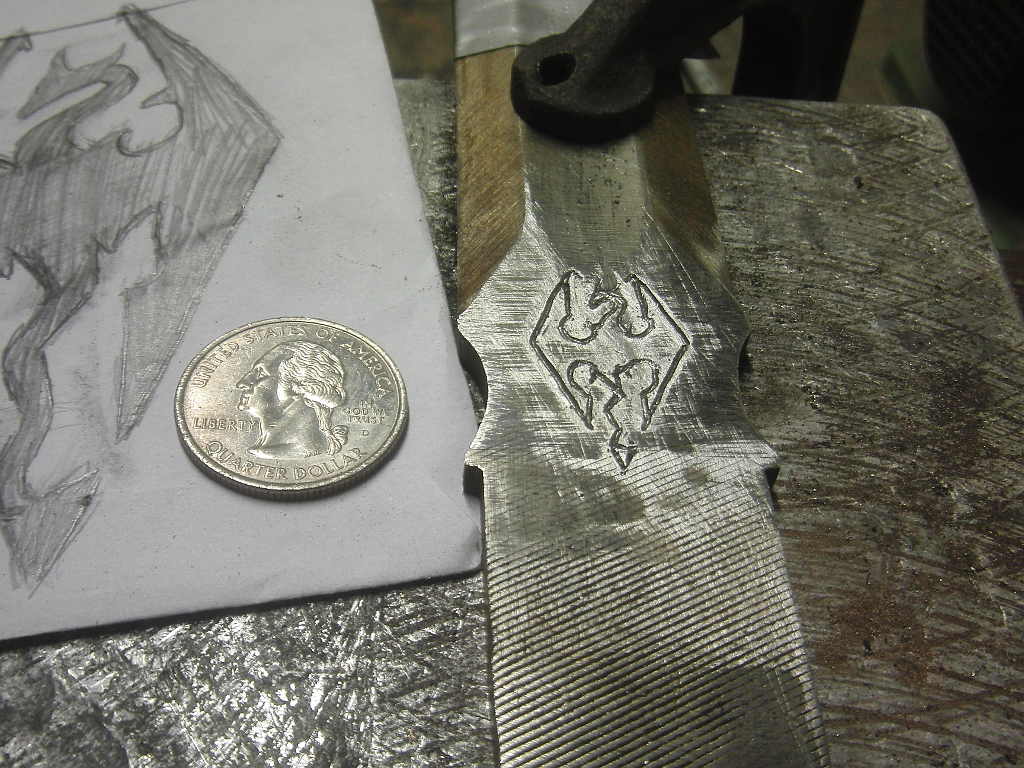

I stamped the imperial legion emblem on here because I am a giant dork.
I stamped the imperial legion emblem on here because I am a giant dork.

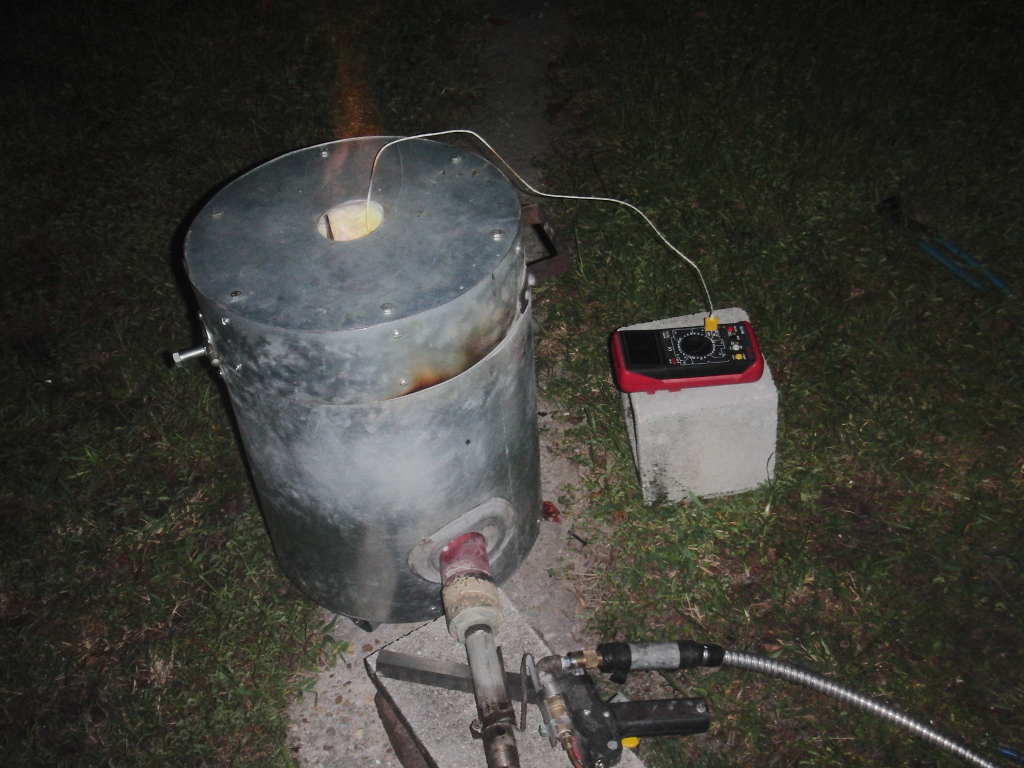

Used the new foundry to heat treat this one. Also tesed out those thermocouple multimeters that harbor freight sells.
Used the new foundry to heat treat this one. Also tesed out those thermocouple multimeters that harbor freight sells.

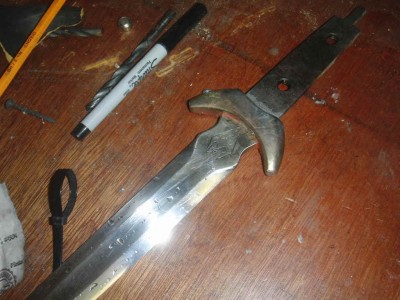

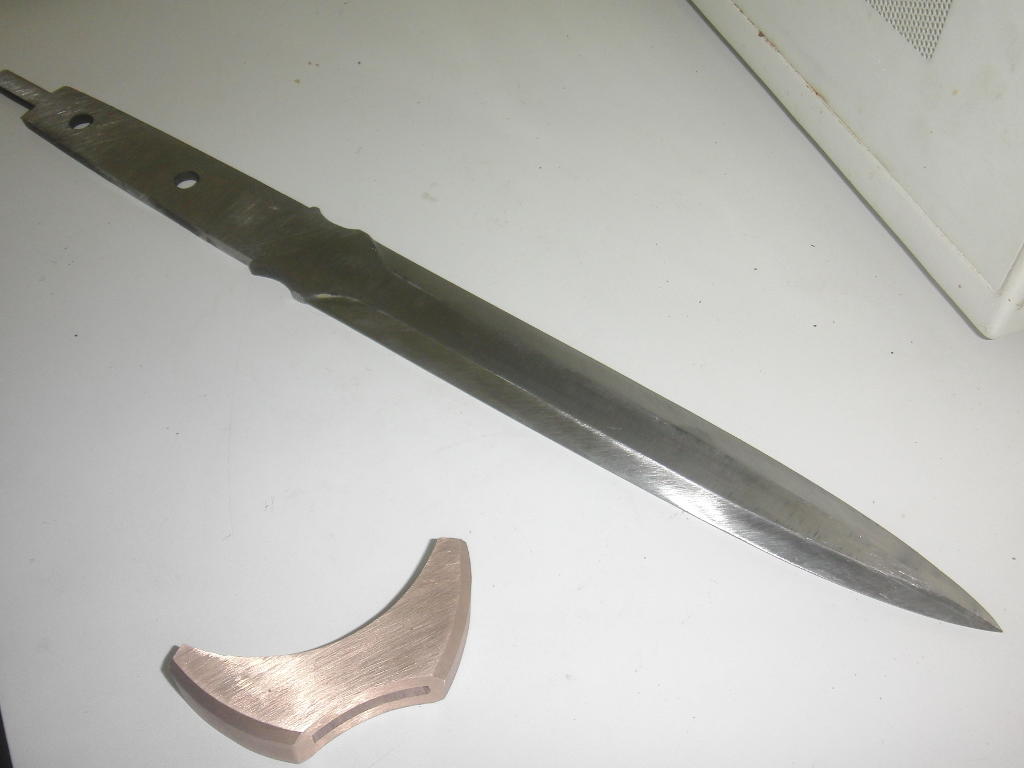

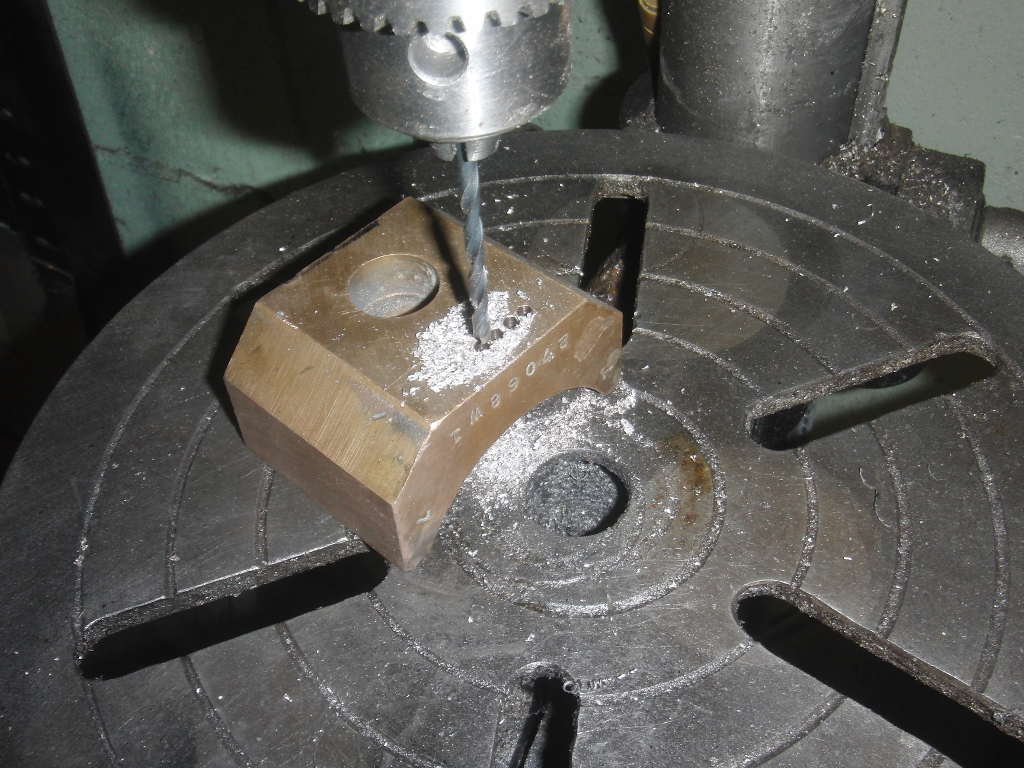

Made a crossgaurd out of a big crane bearing. This was the same one my hunting knoif was made from
Made a crossgaurd out of a big crane bearing. This was the same one my hunting knoif was made from
Shineh
Shineh

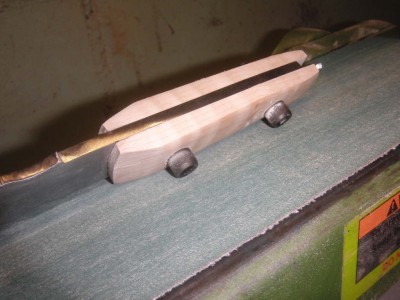

I just threaded some tiger maple blocks and bolted them onto the tang when sanding it into shape. The pins that were put through them later were also threaded.
I just threaded some tiger maple blocks and bolted them onto the tang when sanding it into shape. The pins that were put through them later were also threaded.
I smeared some red high-temp silicone on one side of the joint before soldering. This was to keep the solder from dripping out when it was clamped upright.
I smeared some red high-temp silicone on one side of the joint before soldering. This was to keep the solder from dripping out when it was clamped upright.
The rest was easy.<br />The pommel was fitted by blackening the underside and pressing it against the grip. Wood was removed where it left a 'print', until flush.
The rest was easy.
The pommel was fitted by blackening the underside and pressing it against the grip. Wood was removed where it left a 'print', until flush.

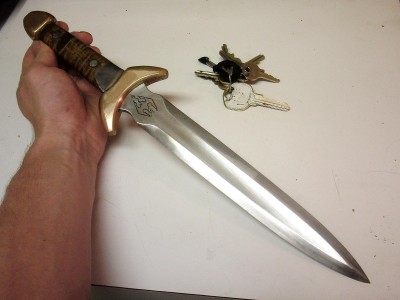

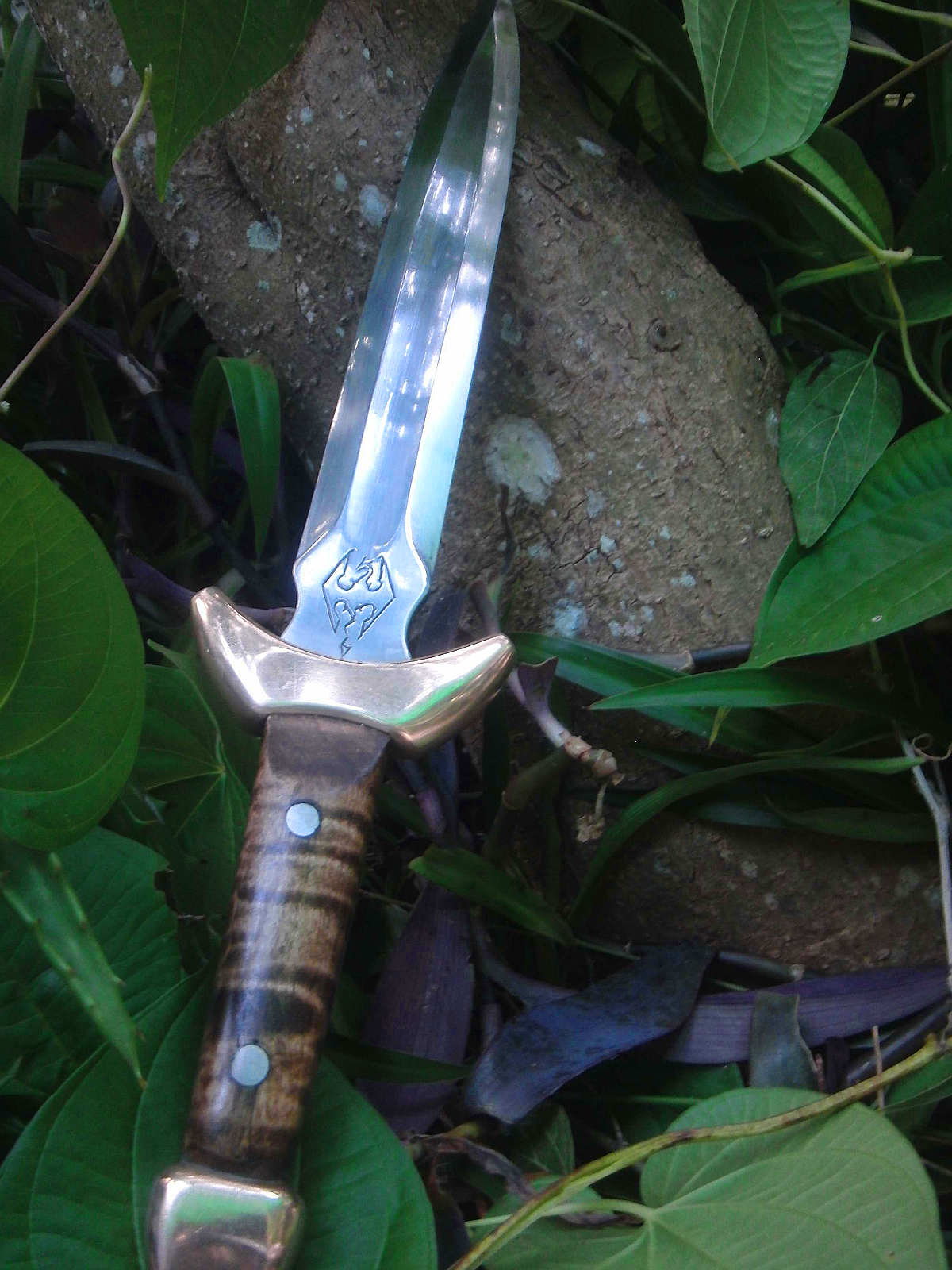

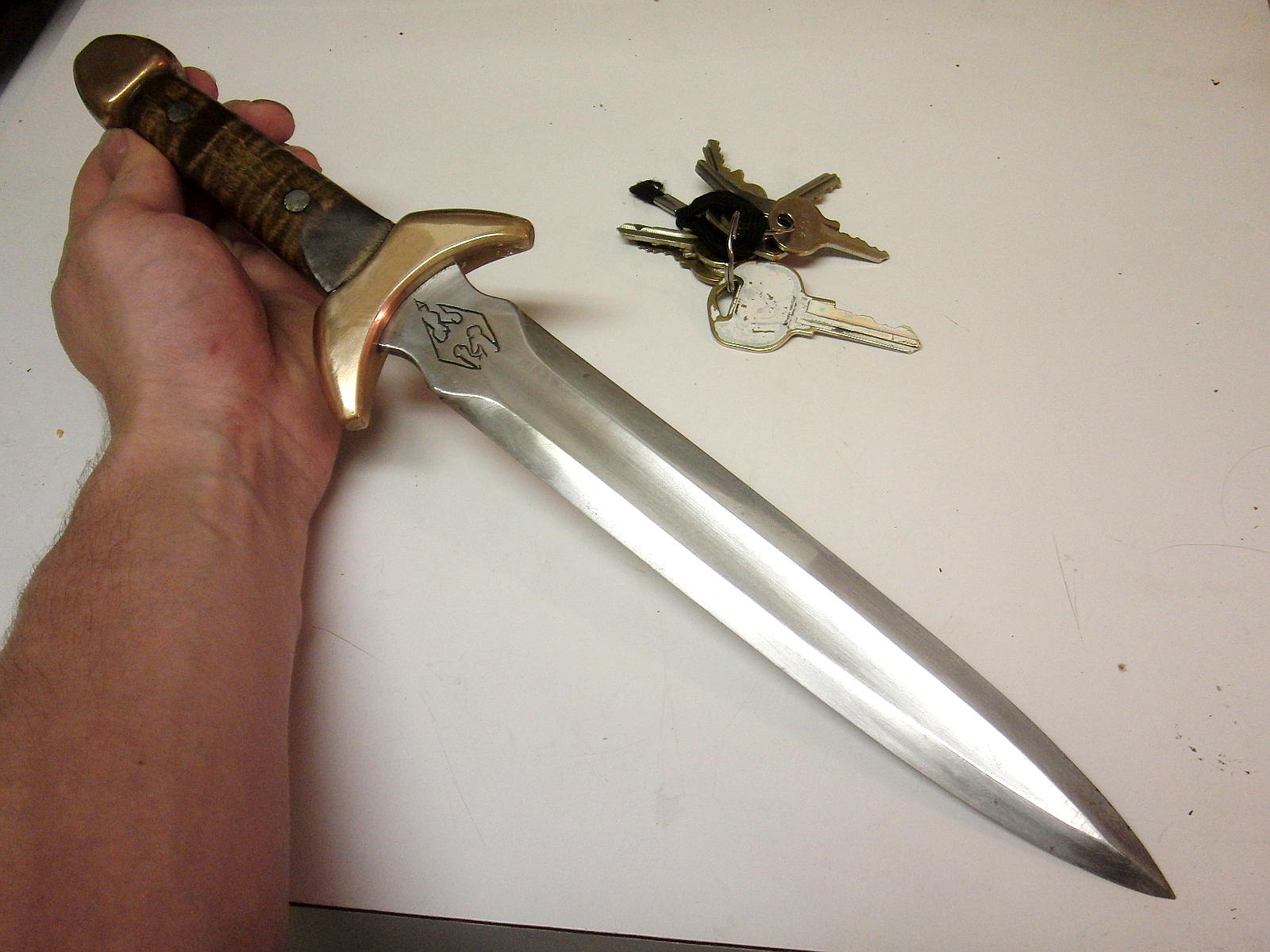

Final product. Still needs a sheath.
Final product. Still needs a sheath.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Fnord wrote:(what, you didn't think I'd been doing nothing at all while I was away, did you?)
:shock:

Well glaze my nipples and call me Rita!

Bloody impressive work, wish I had the time for this knifemaking lark.

The stamping, did you actually make a stamp with the emblem or hammer it in following a pattern with something slightly more sophisticated that a screwdriver?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

I just hammered it in. Broken allen wrenches make great punches for detailing work.
Not sure how to make stamps that are intended for steel; I'd think you'd either need a mill or a *very* steady hand.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Fnord wrote:Not sure how to make stamps that are intended for steel; I'd think you'd either need a mill or a *very* steady hand.
Acid etching would be a relatively painless way of doing it, following by heat treatment to harden the punch itself.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:
Contact sagthegreat

http://www.bladeforums.com/forums/showt ... ascus-MOAB

This knife is made from a damascus steel made of titanium, its so sexy
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Timascus lol.

Awesome!
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

Damn nice work on the dagger! Cant wait to get my shop done to make something nice...

In the mean time, my first 3D printed knife! Well, the handle is 3D printed and the blade just a storebought... But had to be able to test it! :D

Est Sularus Oth Mithas
Top
User avatar
dart guy
Specialist 3
Specialist 3
Posts: 394
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you

I'm waitin for 3d printed pocket knives. :)
when life gives you lemons... make root beer and leave the world wondering how you did that :D
Top
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

hehe printknife is pretty much done. Printed the shieth insert and wrapped it in 3mm pressed bullhide. As its for me, and i have my own preferences, check the belt "loop" :D

Est Sularus Oth Mithas
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

Noice!

Have you thought about using 3D printing as a "lost wax" method of casting from metal? Or making moulds and casting from urethanes or similar?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Heimo
Specialist 2
Specialist 2
South Africa
Posts: 243
Joined: Sun Oct 25, 2009 3:02 pm

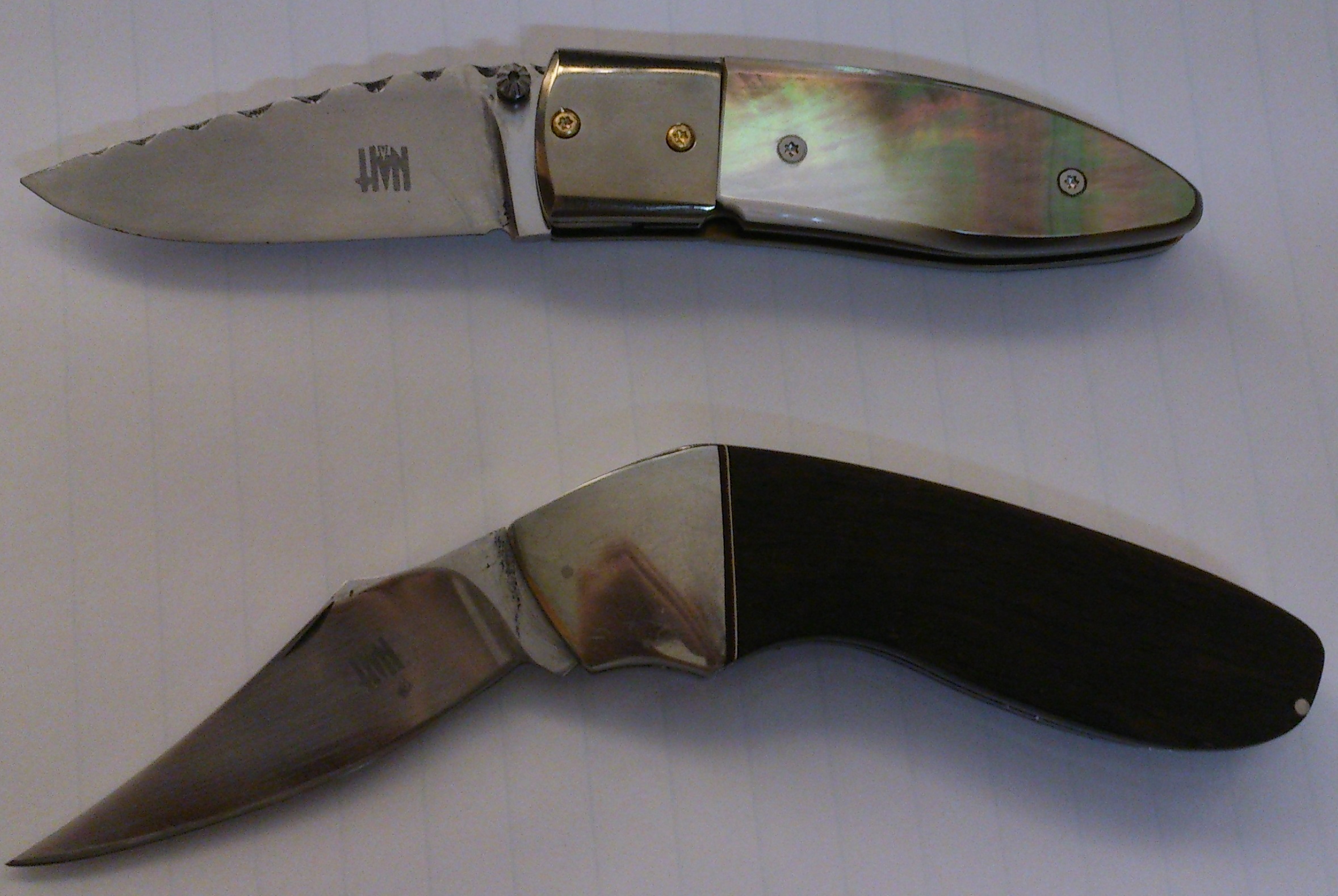

Here are 2 small pocket knives my dad is busy making that is not completely done yet....
Attachments
The voices in my head may not be real, but they have some good ideas!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 347 times

That's a pretty awesome Dad you got there :)

Those screws look like they were taken from a Nokia 3310...
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Heimo
Specialist 2
Specialist 2
South Africa
Posts: 243
Joined: Sun Oct 25, 2009 3:02 pm

jackssmirkingrevenge wrote:That's a pretty awesome Dad you got there :)

Those screws look like they were taken from a Nokia 3310...
hehe those silver coloured screws were recycled from old hard drives, one place to find that size screw, the other golden coloured screws are actually bought screws that is gold plated...
Edit:

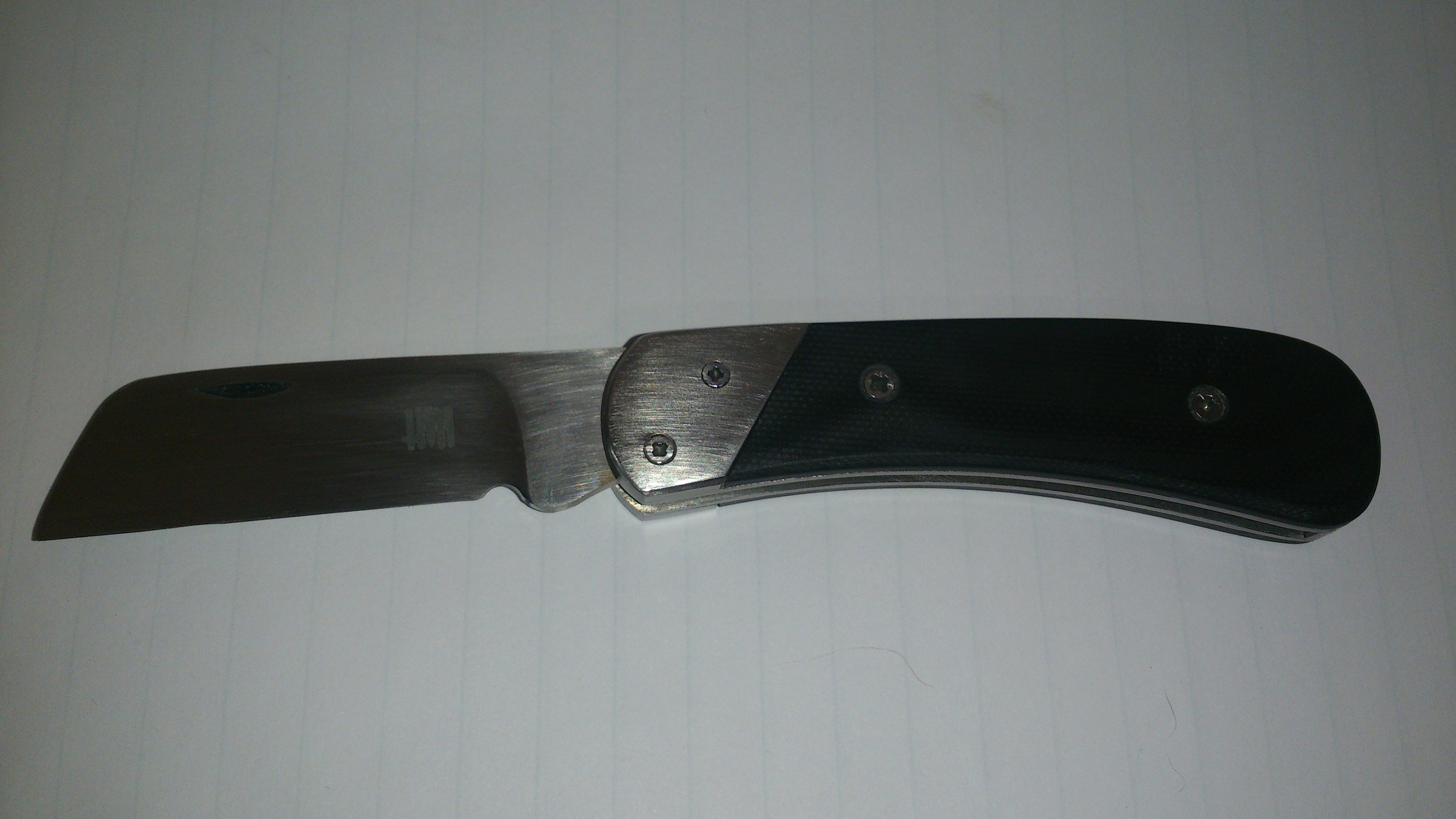

another WIP pic:
Attachments
The voices in my head may not be real, but they have some good ideas!
Top
User avatar
bahur47
Private 2
Private 2
Posts: 22
Joined: Sun Oct 10, 2010 8:42 am

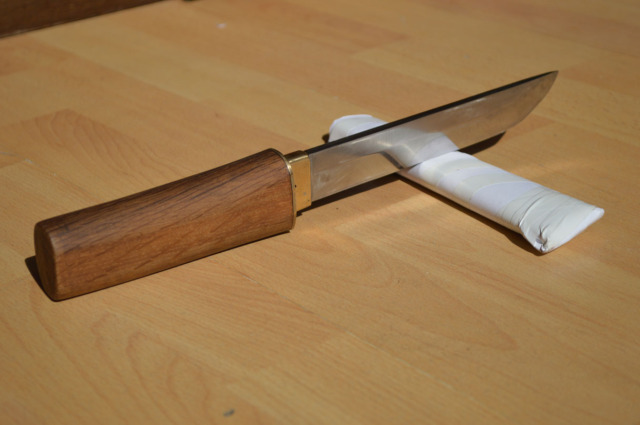

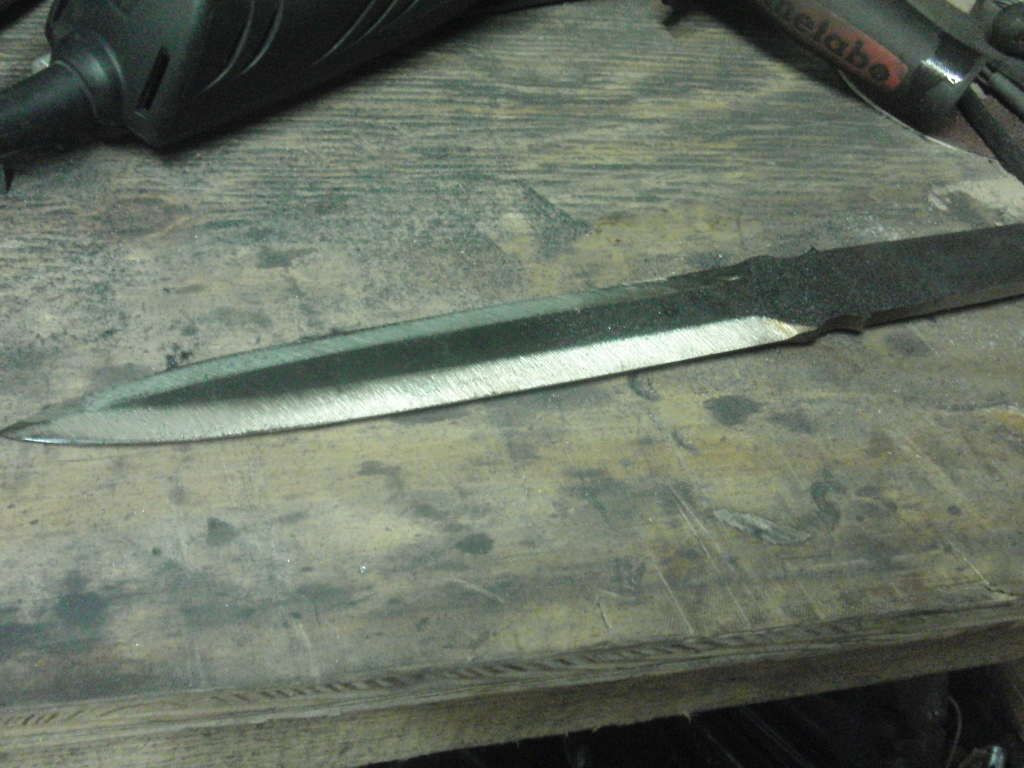

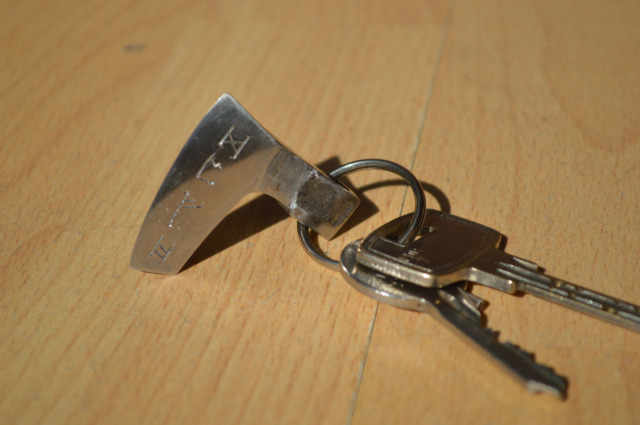

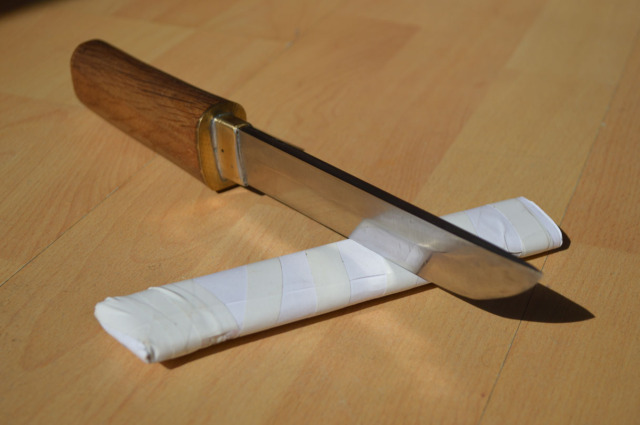

Here's my first try on knives. Its made out of an old file. Blade - 180 ,handle - 130 ,thickness - 7 mm . For now im too lazy to make saya :( . And a keyholder just for the lulz
Attachments
