"Crayola From Hell" mini with pics

Boom! The classic potato gun harnesses the combustion of flammable vapor.
Post Reply
cardinals08
Specialist 2
Specialist 2
Posts: 270
Joined: Thu Dec 22, 2005 5:07 pm

This is my newest mini, the "Crayola From Hell"

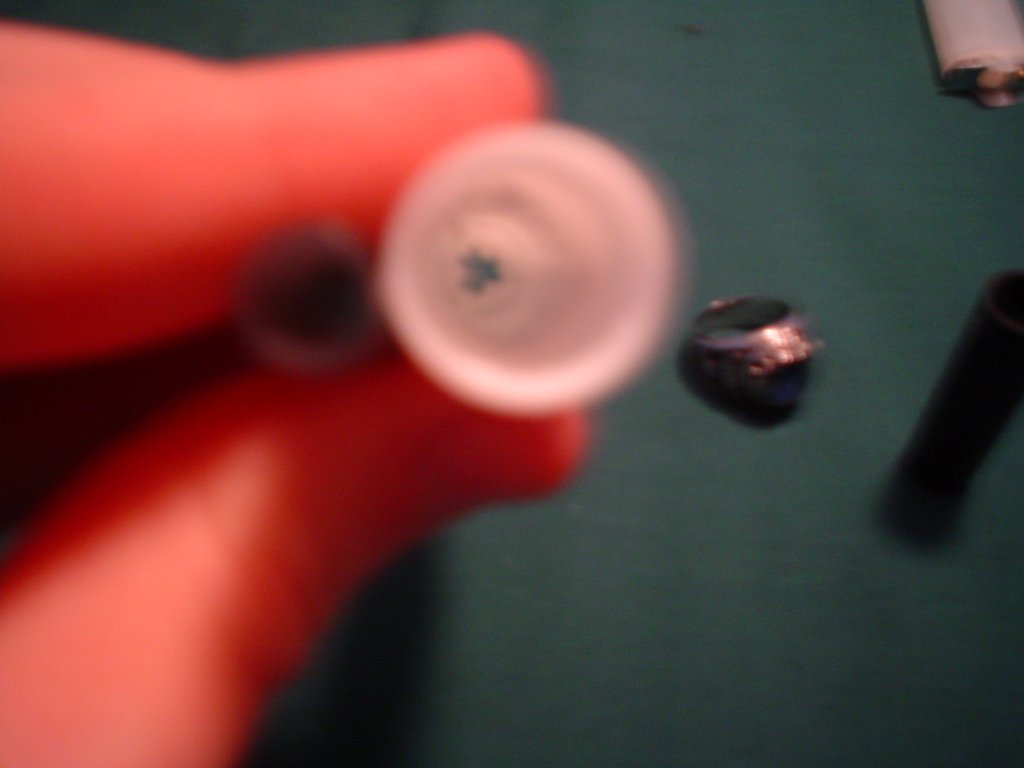

at the end you will want to put the endcap of the marker into the writing end cap and tape it because in the crayola markers there are holes in the cap, this will plug them

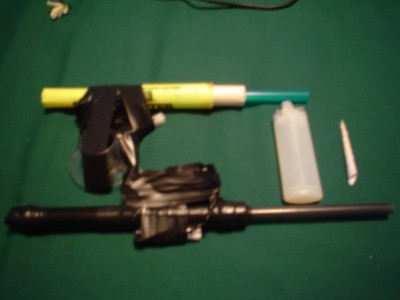

the last pic is this mini alongside its partner in crime "The Highlighter" with butane and ammo

tell me what you guys think
Attachments

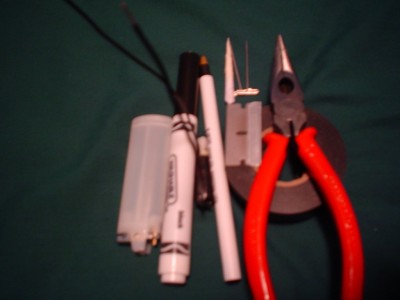

pic of materials/tools you will need<br />Crayola marker, pen, piezo, electrical tape, fuel, razor blade, t-pins, pliers, ammo
pic of materials/tools you will need
Crayola marker, pen, piezo, electrical tape, fuel, razor blade, t-pins, pliers, ammo
take the insides out of the pen and marker, keep the end cap and lid of the marker, you wont need anything from the pen but the tube
take the insides out of the pen and marker, keep the end cap and lid of the marker, you wont need anything from the pen but the tube

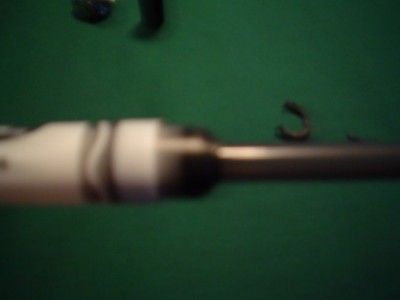

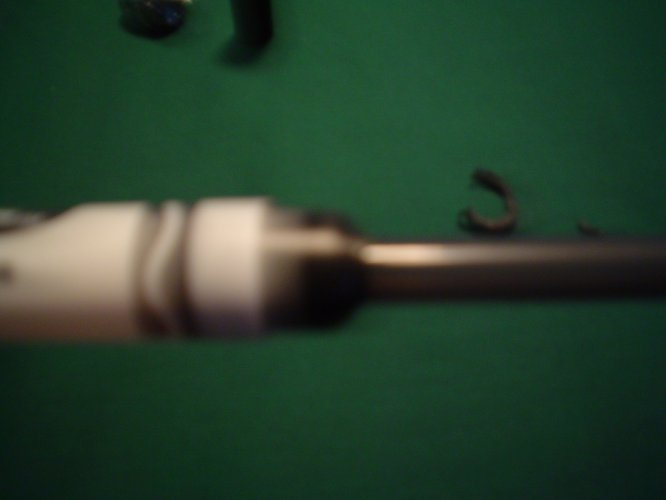

wrap tape around one end of the pen until there is a snug fit in the end of the marker (non writing side) stick in so half the tape is showing, and tape over that to hold in place
wrap tape around one end of the pen until there is a snug fit in the end of the marker (non writing side) stick in so half the tape is showing, and tape over that to hold in place

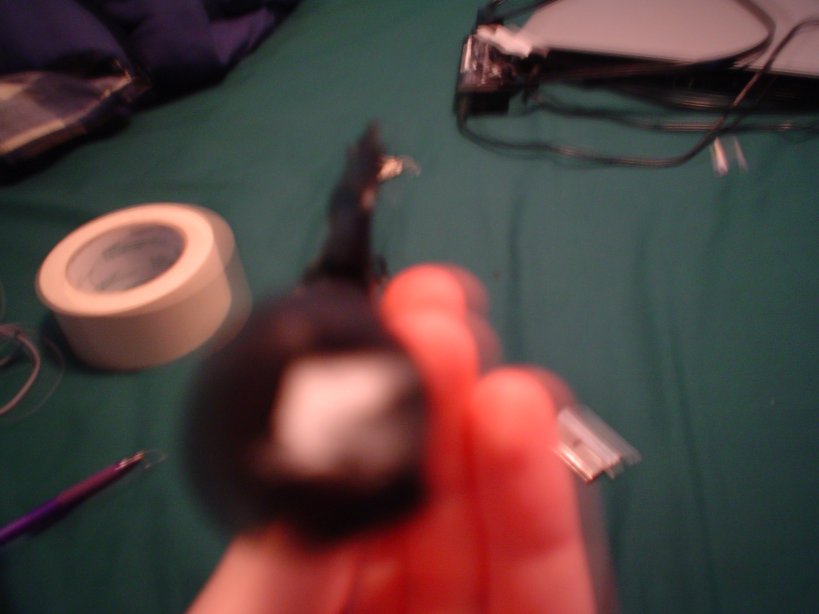

attach wires on piezo to t-pins, stick t-pins in marker so the gap is small enough to make a spark but large enough to ignite the fuel
attach wires on piezo to t-pins, stick t-pins in marker so the gap is small enough to make a spark but large enough to ignite the fuel

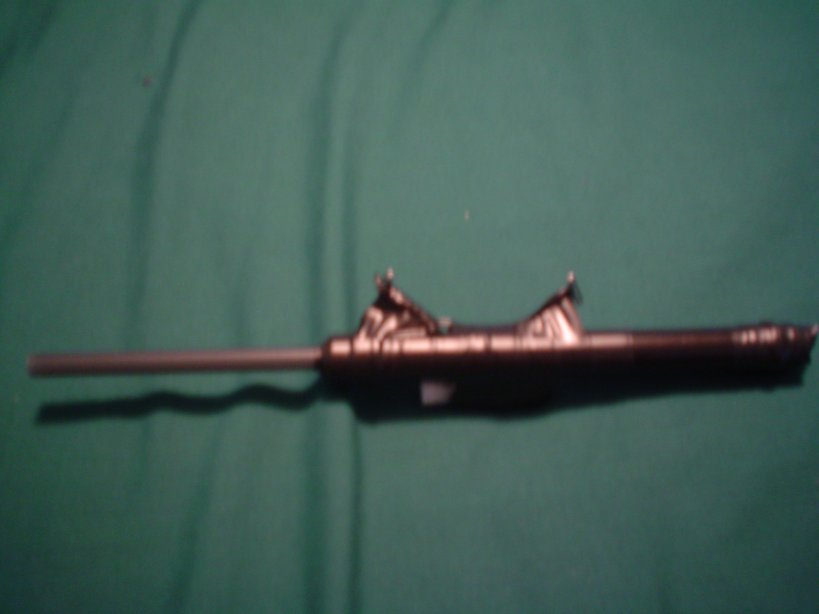

finished product looking down from the back<br />you could use the top as a sight
finished product looking down from the back
you could use the top as a sight
Top
User avatar
Technician
Private 3
Private 3
Posts: 57
Joined: Wed Dec 14, 2005 8:03 am
Location: USA, Ohio
Contact:
Contact Technician

That's what I call a marker with "ATTITUDE" Neat project.

Now if we can just get you to work on those close-up pictures a bit.....
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

good thinking, are you useing the butane for the fuel? great concept, fuel and eniter all in one, good job!
Top
cardinals08
Specialist 2
Specialist 2
Posts: 270
Joined: Thu Dec 22, 2005 5:07 pm

thank you, The butane is the fuel
I do need to work on close up pics more, I should have used my new camera. It has a macro setting for better close ups
