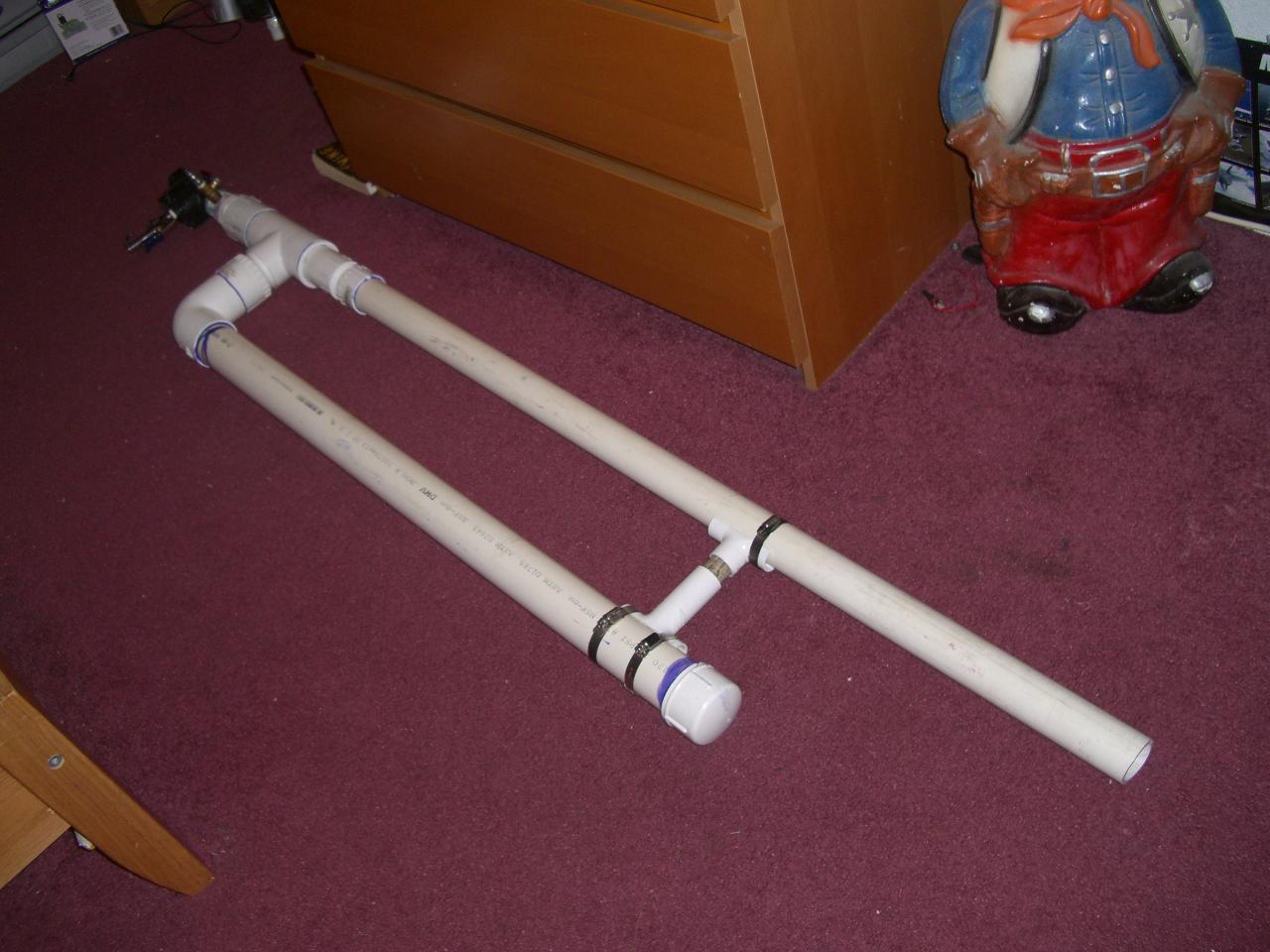

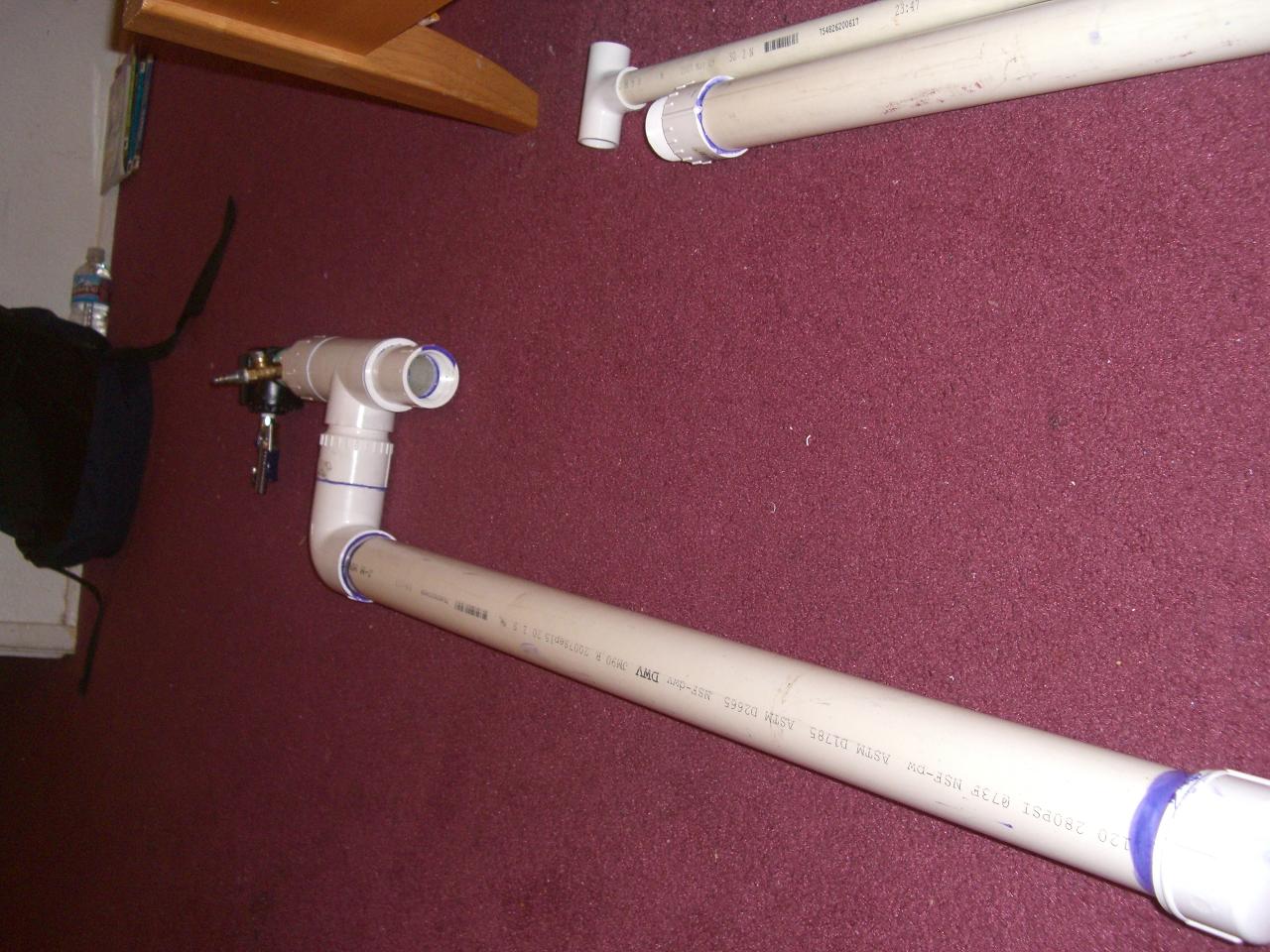

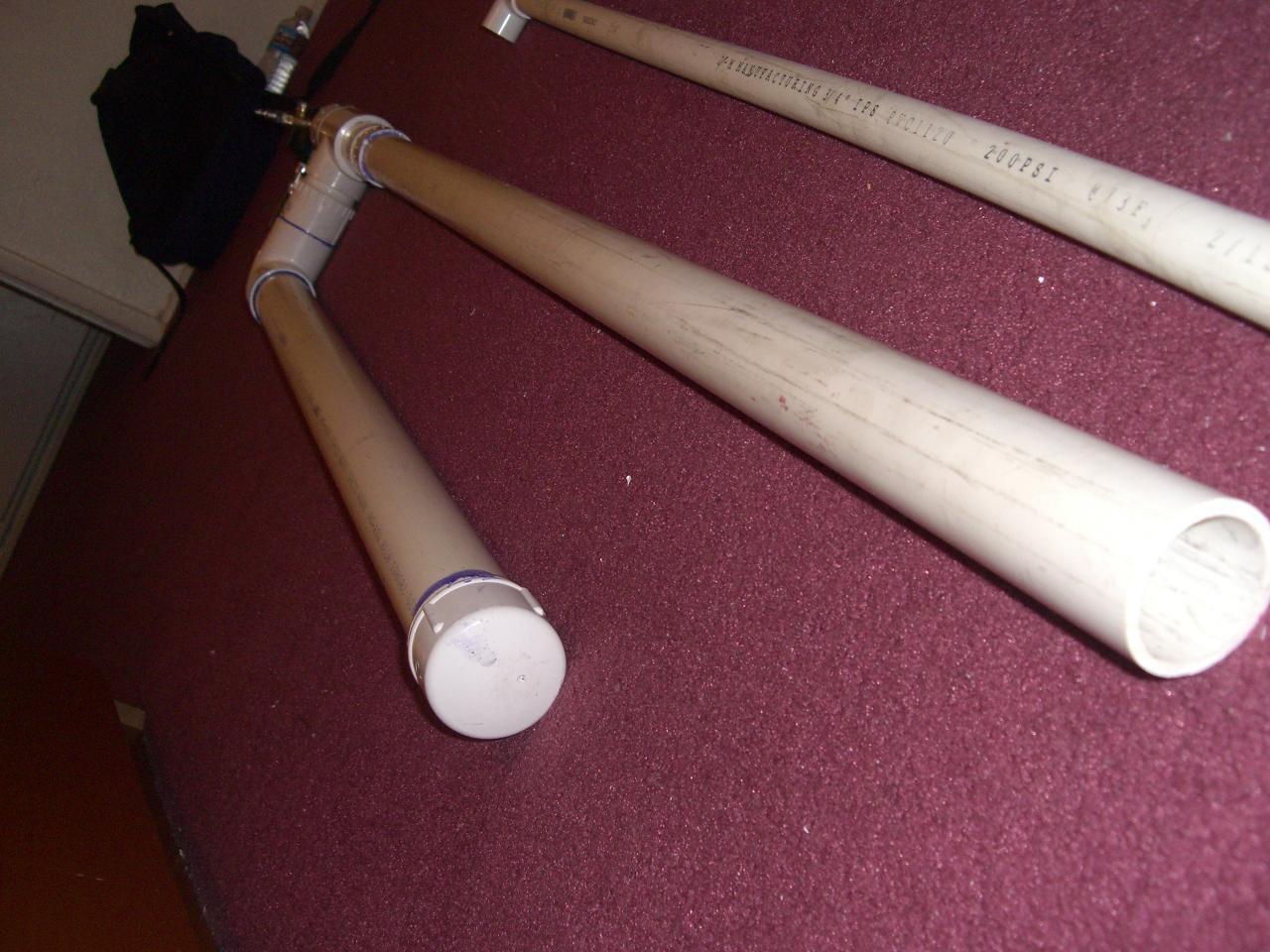

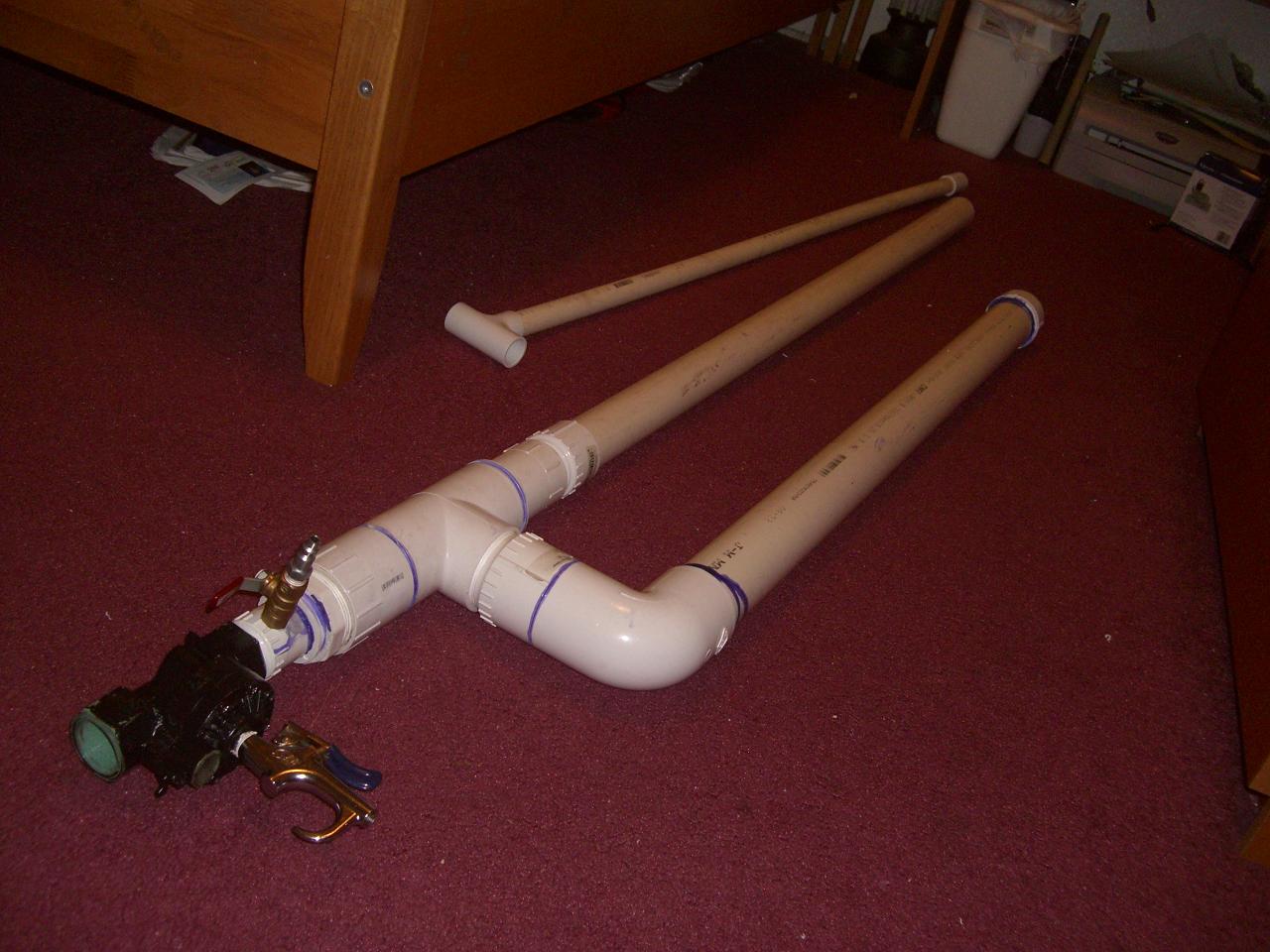

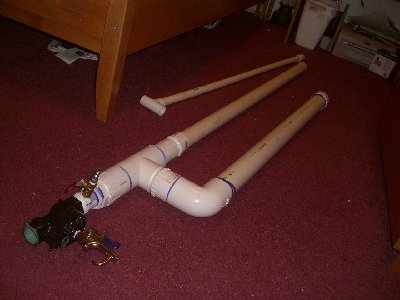

This is the Monster Muncher Cannon. It has housed in a 2'' piston and has a1.5'' porting, it is serviceable through the back threaded plug and accutated by a 1'' sprinkler valve. The barrel is 4.3 feet long and chamber is 34 inches long. This thing is crazy loud! and powerful hope you guys like , enjoy :D
Attachments

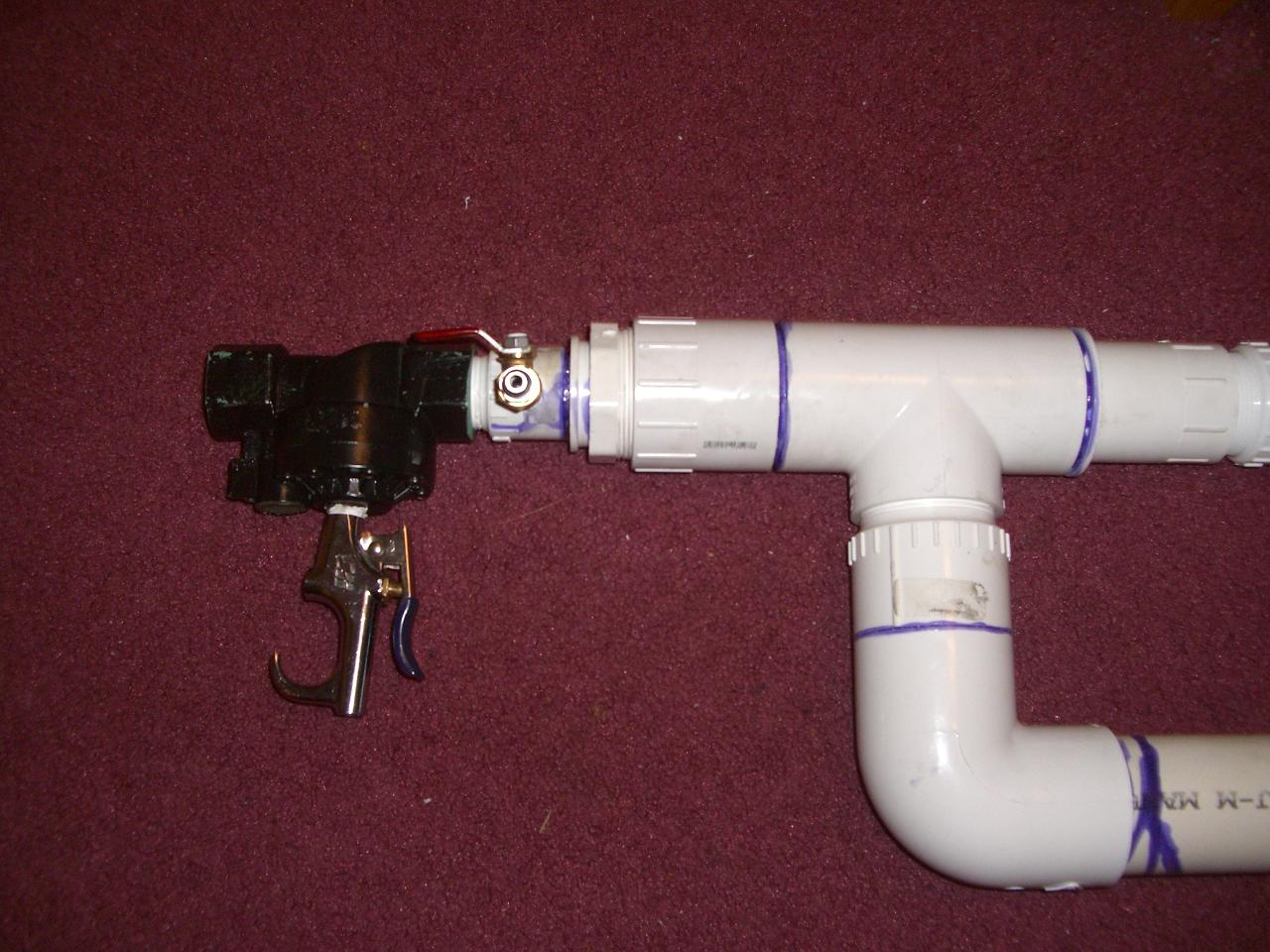

exhaust /fill
exhaust /fill

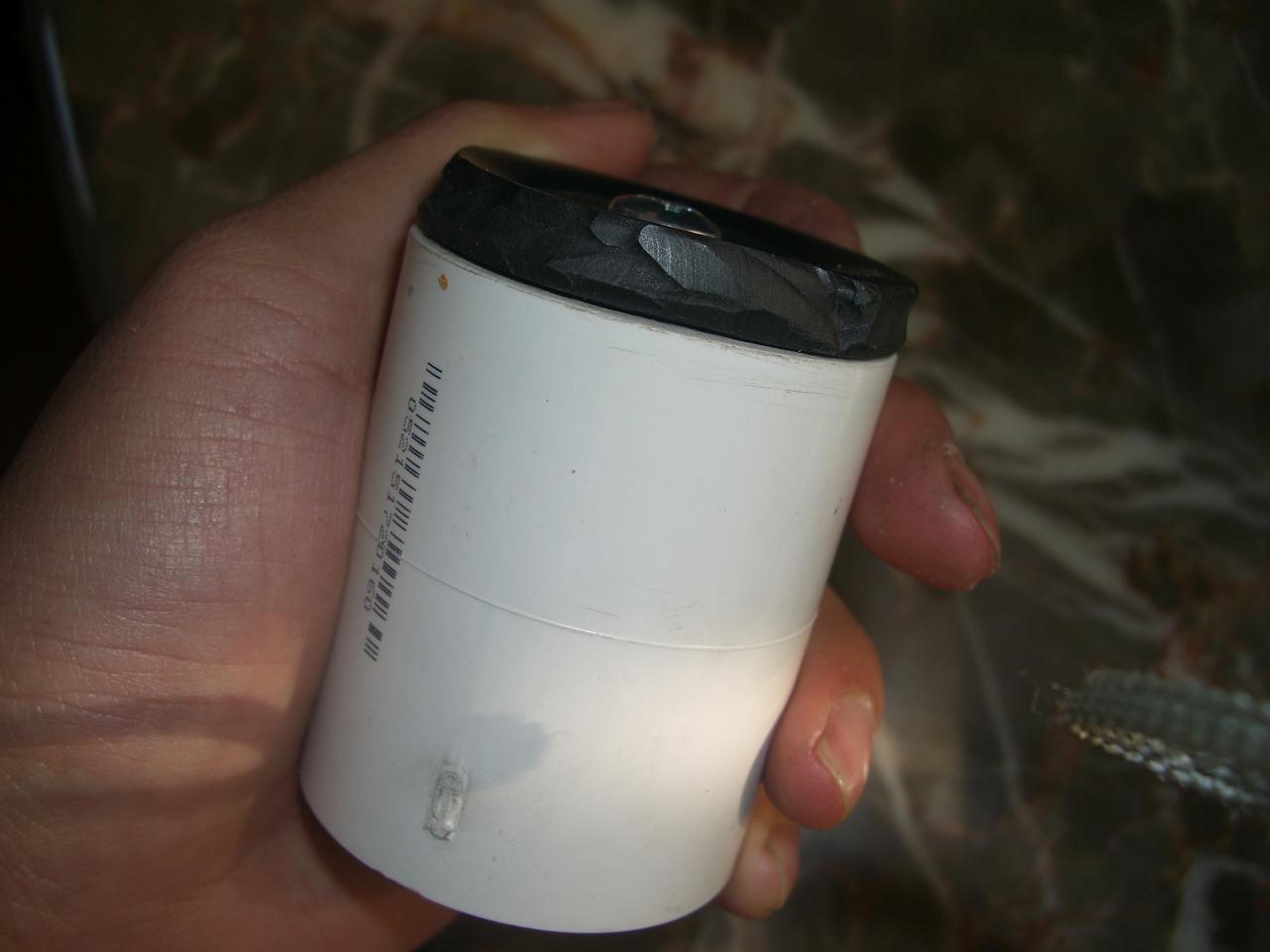

my piston, a 1 1/4 coupler
my piston, a 1 1/4 coupler

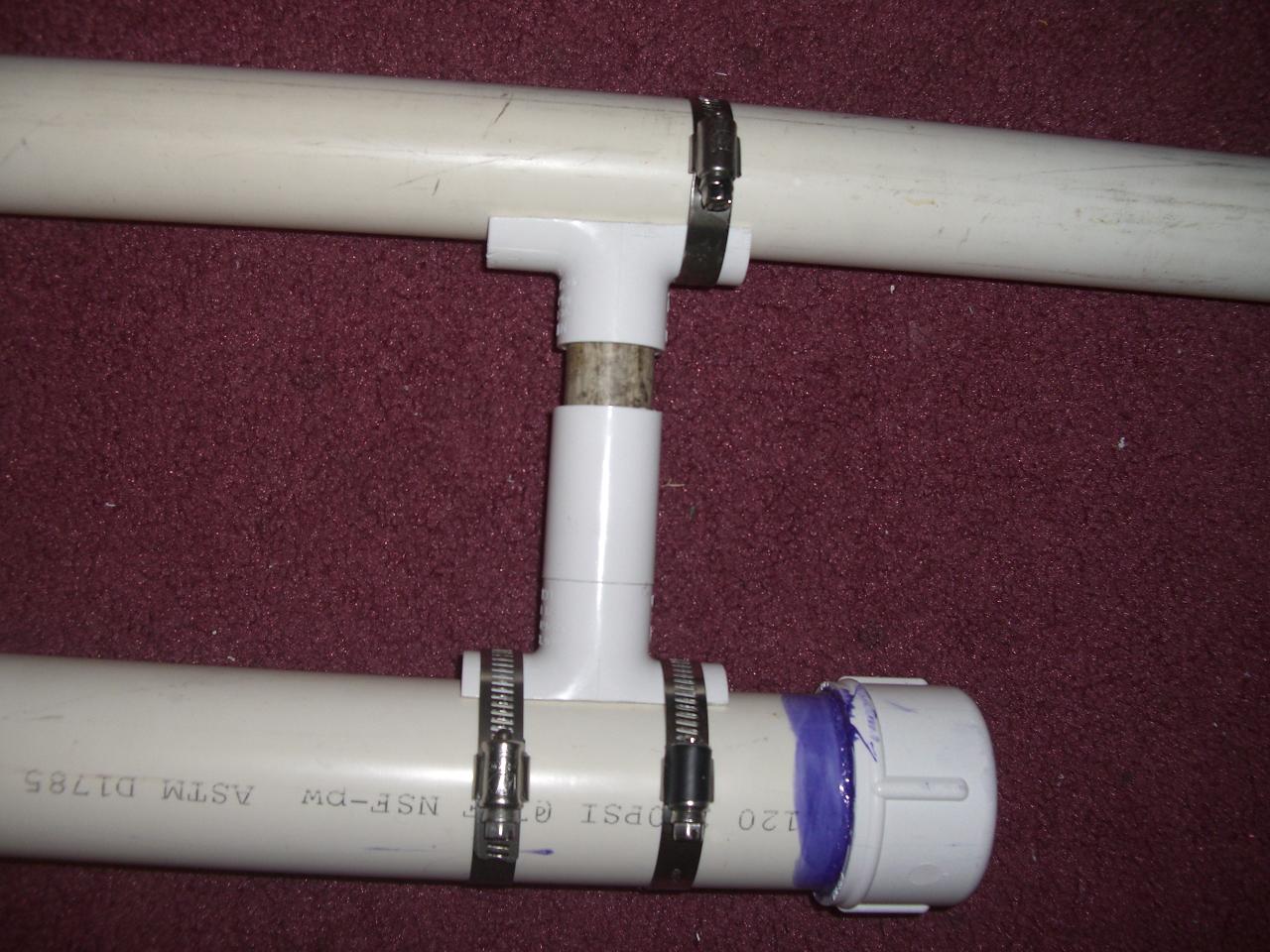

barrel/chamber support
barrel/chamber support

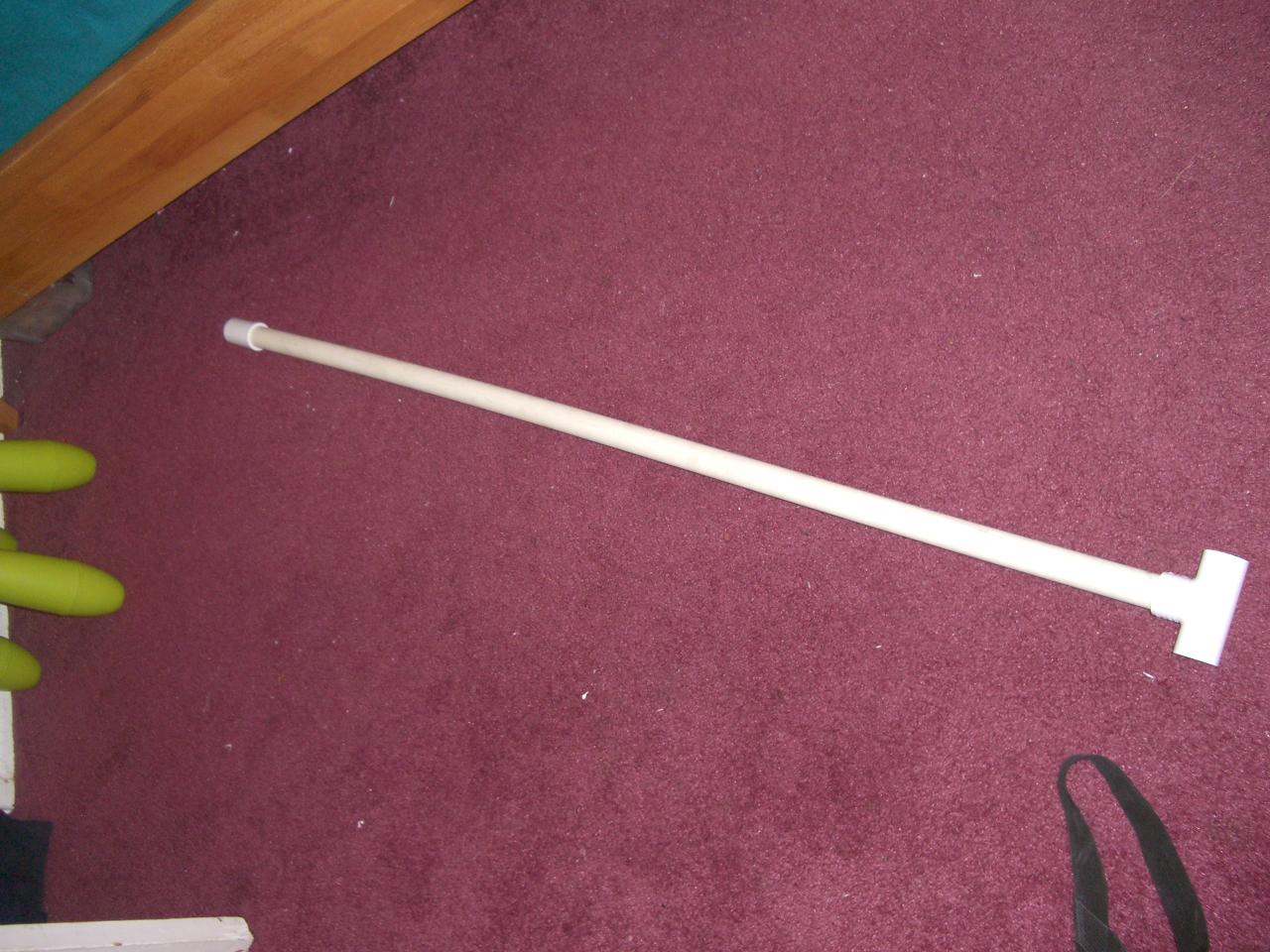

my ram rod 3/4 inch pvc with a tee and a coupler
my ram rod 3/4 inch pvc with a tee and a coupler
Last edited by elitesniper on Fri Jan 25, 2008 10:57 pm, edited 1 time in total.
Top
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

Lookin Great! Your cannon reminds me that I need to increase the chamber volume of my 1.5" porting 2" piston cannon when it comes springtime. Is your barrel 1.5" or 2"?
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

ah , my barrel is 1.5
Top
User avatar
bigbob12345
Staff Sergeant
Staff Sergeant
Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington

Thats extremely similar to my 2in piston 1.5 in porting cannon.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

lol?, its just a simple over-under, its very common
Top
User avatar
Cosmic Muffin
Specialist 2
Specialist 2
Posts: 275
Joined: Mon Jan 14, 2008 10:30 pm
Location: arse end of nowhere

nice :D ... i like this beast good work i rekon im gonna make one just like this
Top
User avatar
bigbob12345
Staff Sergeant
Staff Sergeant
Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington

elitesniper wrote:lol?, its just a simple over-under, its very common
yea but I mean everythings the same exact same chamber size, exhaust, Barrel size and length
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

isnt you exsuast a ball valve, you barrel is 5 feet
Top
User avatar
bigbob12345
Staff Sergeant
Staff Sergeant
Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington

No Im talking about a different one that I made a couple months ago i havent posted it yet I might do it this weekend.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

oh ok, oh Mr.C come out come out where ever you are, :o l :lol:
Top
User avatar
bigbob12345
Staff Sergeant
Staff Sergeant
Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington

crowley is usually all over these piston valve cannon posts.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

darn i need to find some sdr 21- gb barrel, did anyone every find a gb barrel at a local store before like homedepot? and anybody else like me gun? :lol:
Top
User avatar
Hailfire753
Specialist 3
Specialist 3
Posts: 348
Joined: Thu Jun 28, 2007 11:50 pm
Location: Near Philadelphia, PA

Nice over/under. What PSI do you take it to, and can we have some damage?
UPDATED MARCH '08
field-legal paintball semi
Top
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

I did find a Tennis ball barrel at Lowes. They are in the electrical section and they are 2.5" conduit piping (non-conductive gray pvc).
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
Top
User avatar
bigbob12345
Staff Sergeant
Staff Sergeant
Posts: 1516
Joined: Sat Dec 01, 2007 9:13 am
Location: Mercer Island,Washington

Electrical pipe is worse than
DWV it will explode I know from expereince
