Finally got around to making a pump

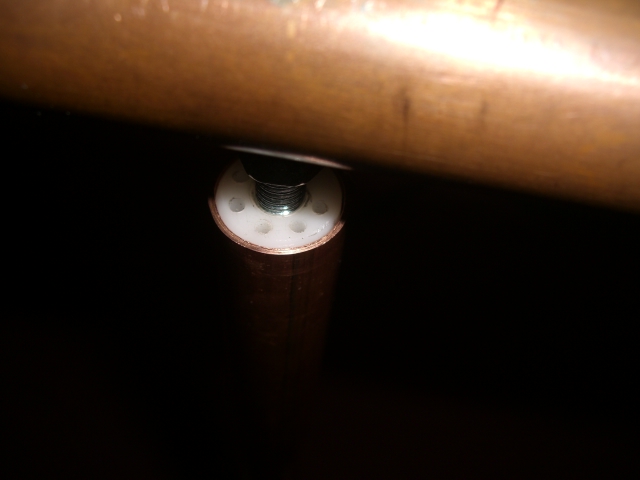

Machined the piston head and shaft stablizer from nylon

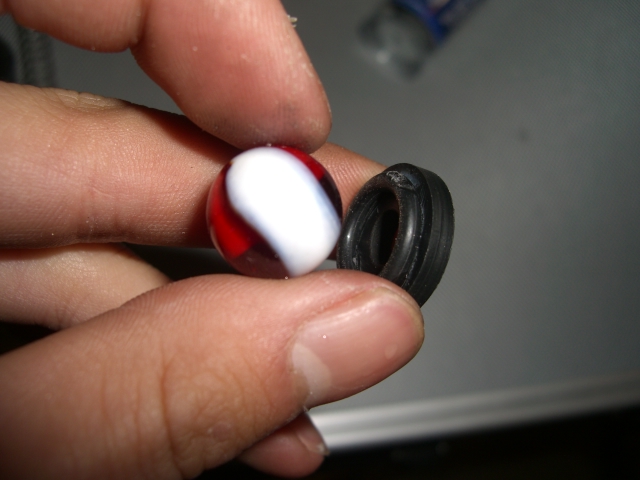

check valve is a marble sealing a against a washer/rubber washer and a spring
tube is 3/4 copper m

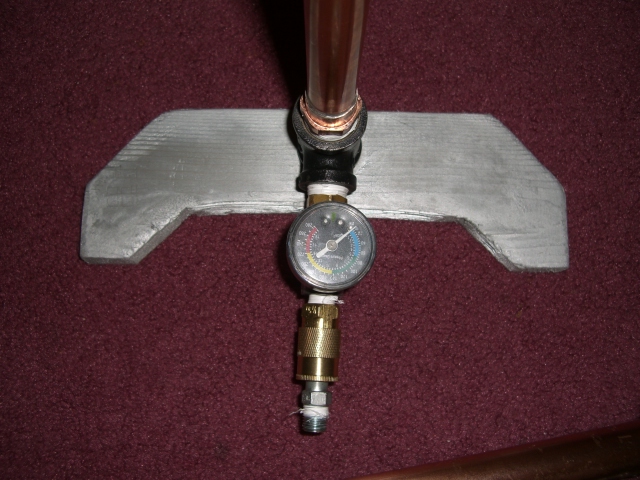

sand made from wood painted silver
handle 1'' copper
Attachments
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 582 times
Been thanked: 348 times

Nicely made, you failed to mention what pressures you're getting though ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Nice indeed. Does it work properly, does everything seal?
Beware of the checkvalve, if it leaks your pump will become a ram.

Now go exercise! :D
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2504
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

jackssmirkingrevenge wrote:Nicely made, you failed to mention what pressures you're getting though ;)
X2...inquiring minds you know. :)
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
Top
User avatar
far_cry
Specialist 3
Specialist 3
Posts: 317
Joined: Wed Aug 20, 2008 3:59 pm

Gippeto wrote:
jackssmirkingrevenge wrote:Nicely made, you failed to mention what pressures you're getting though ;)
X2...inquiring minds you know. :)
X3
me to

but you have a big dead volume between the O ring and the check valve so you will get to the point you compress the air in the cylinder and cant pass he cant pass the check valve

see mine
http://www.spudfiles.com/forums/my-seco ... 18650.html



and very nice job
Last edited by far_cry on Wed Jan 20, 2010 6:16 pm, edited 1 time in total.
Top
User avatar
clemsonguy1125
Sergeant 5
Sergeant 5
Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast

Nice job, what size washers did you use.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Ive gotten it up to 400 psi for now :) washers idk just foudn em hehe
Top
