mini pill bottle combustion

Miniature cannons are novelties made with materials such as bottles or pens.
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

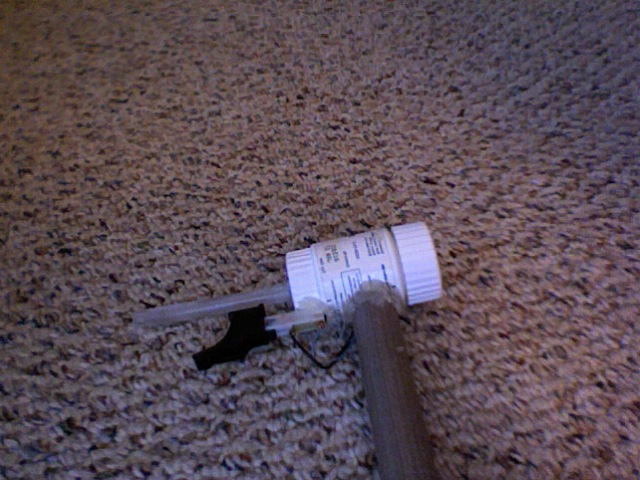

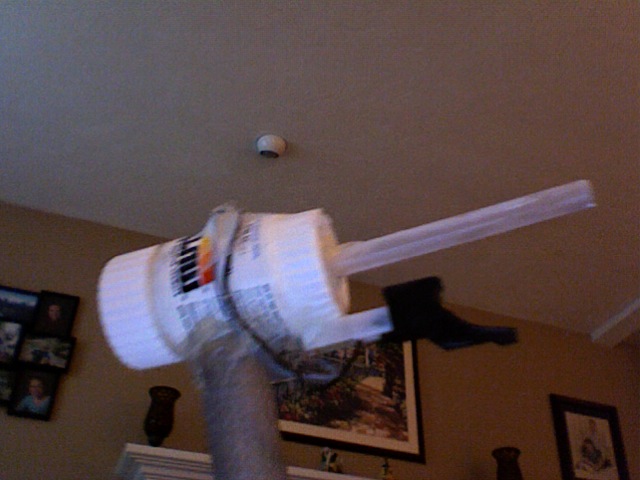

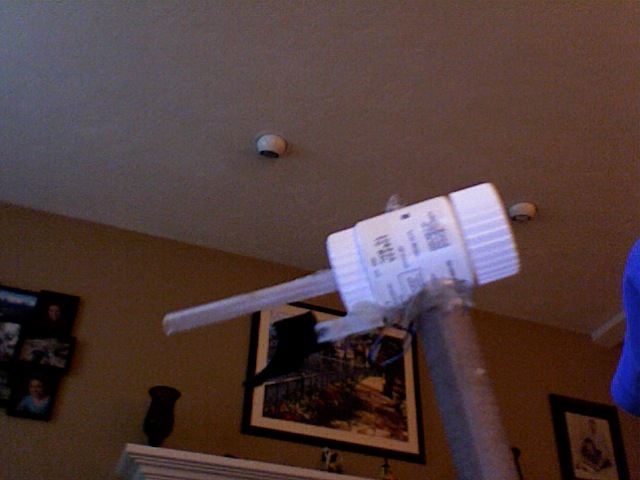

Hello this is my first mini (i have built 2 nerf guns) and I would really like feedback on it. I am hopefully going to make another version but I want my next version to be the best it can be. I used a small pill bottle for the chamber and a barrel that fits airsoft bbs extremely loosely.I took the igniter from a lighter and use ax in it. I was wondering if just having bare wires in the chamber for ignition is not the best, should I replace it with nails or screws? also does anyone know if there is a way that I can get a clip and possibly use it for airsoft battles if i had a hop up? I will probably get a tank and compress it with air so I just have to press a blowgun handle to prime it then pull the trigger. Here are some pics:

EDIT: any suggestions please share!!!!
Attachments
Photo 32.jpg
Photo 30.jpg
Photo 29.jpg
Photo 28.jpg

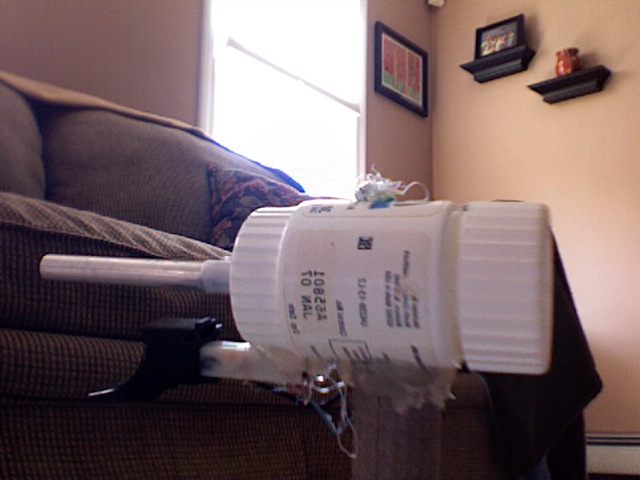

updated with airsoft pistol barrel
updated with airsoft pistol barrel
Last edited by skishoot on Fri Jun 18, 2010 2:29 pm, edited 1 time in total.
metalmeltr
Specialist 4
Specialist 4
Posts: 426
Joined: Thu Dec 18, 2008 3:42 pm
Location: united states

I would recomend using a piece of 3/4 pvc or copper to hold the compressed air and use 5/16 metal fuel line as the barrel a blowgun will work for the valve
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

what is 5/16 barrel good for?
thanks
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

5/16 line is a good fit for airsoft bb's.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

ok thanks and by the way does having screws for the ignition create a bigger spark? and where can I buy the 5/16 fuel line?
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

No I don't think using screws makes a difference but it just makes the spark stay in one place because the screws are stronger than a plain wire.
You can get the line, I think it's brake line... at auto stores.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

thanks, do you have any idea how much it will cost?
sorry i'm asking so many questions, I'm a newb.
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

No problem, it should only be a few bucks for a few feet, far too long for this gun but you can use it for multiple guns.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

ok thanks alot I'm planning on building a vortex cap soon too so that will work out.
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Cool, BBMG's are cool too and not that hard to make, just do a lot of research in the Wiki and in the showcase.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

I found brass 6.1mm ID at Mcmaster will that wok as barrel material?
User avatar
deathbyDWV
Corporal
Corporal
Posts: 576
Joined: Sat May 16, 2009 4:02 pm
Location: Owasso, OK

That'll work fine. Good job on the mini... :)
Life's too short to mark off the items on your wish list...
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

thanks, I replaced the barrel with an airsoft pistol barrel that is attached to it's hop up. I will add a pic at the top.
skishoot
Private 4
Private 4
Posts: 63
Joined: Thu Jun 10, 2010 2:35 pm

will 1/4 in copper pipe work as a barrel? sorry i heard somewhere it would but I am not sure. please help and suggest improvements on the cannon.
User avatar
theBOOM
Specialist 3
Specialist 3
Posts: 374
Joined: Wed Jun 03, 2009 10:49 pm
Location: San Antonio, TX

Metered fueling (syringe would be easiest), chamber fan if possible, longer barrel.
