blow forward pop-off valve

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Hi guys,

Here's some fun experiment I'm doing with JSR's help, who's explaining me *so patiently* pressure valves basics and pop-off physics :-D

This full-auto pop-off valve have variable ROF regulated by the air flow, and have the particularity of venting the pilot volume forward. The video shows it working at 90psi. It's much louder than the poor camera sound recording ;-)

We're not convinced venting the pilot volume inside the barrel is a good idea... I just wanted to try it :-P

The concern is of course that the venting will move the projectile prematurely before the valve open. The advantage I see in this design is 100% air consumption efficiency as both the air from the pilot and the valve are used to push the projectile. Could it be that it also help opening the valve, creating a pressure differential?

What are your thoughts about that?

[youtube][/youtube]

[youtube][/youtube]
I HAZ A BANG!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

What LeMaudit didn't mention is that the outer casing was originally the core of a small nuclear reactor ;)
LeMaudit wrote:The concern is of course that the venting will move the projectile prematurely before the valve open. The advantage I see in this design is 100% air consumption efficiency as both the air from the pilot and the valve are used to push the projectile. Could it be that it also help opening the valve, creating a pressure differential?
A light detent would be the obvious solution, but...

Also, for the pressure differential to work, you have to be sure that air doesn't go back into the pilot, reclosing the piston...
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Ah true... I forgot to mention that... :lol:
I HAZ A BANG!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

When I see that slowmo I would say there will be no premature movement of the ammo...

Great experiment!
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Damn, that's awesome :shock:

Looking forward to seeing this finished.
Top
User avatar
Zeus
Staff Sergeant
Staff Sergeant
Posts: 1505
Joined: Tue Oct 27, 2009 7:34 pm
Location: 'Straya, C*nt

It wouldn't surprise me if the case was an old fusor.

Excellent work, shiny and clever, I look forward to the implementation of it.
/sarcasm, /hyperbole
Top
iknowmy3tables
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1596
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland
Has thanked: 3 times
Been thanked: 9 times

Maybe if you paired this valve with certain blow-forward breech the pilot volume would just help move the breech rather than propelling the projectile prematurely

do you have any basic diagrams for the internals of this valve?
Top
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

thanks guys, glad you like it.

After a day playing ratatatatak with it, the little tip broke to my amazement... it's brass damnit! I guess I underestimated the force involved :D

The force involved by the pilot breach is very weak, you can hold it with you pinky. No way to move something significant with it.

I'm going to make another one, more compact. This one was really (shiny) bits and pieces assembled (3 aluminum plugs bolted together from my scrap box in fact), with lots of trials and experiments before I reach this working state.

And I'll put a barrel on the next one :wink:
I HAZ A BANG!
Top
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

interesting... any chance to see a diagram showing all the parts ??
Children are the future

unless we stop them now
Top
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

any chance to see a diagram showing all the parts ??
I'll work on it. This one is just like the 10th iteration of a mechanism that evolved step by step, some of the internals make absolutely no sense and should be optimized :lol:

But I would still like to know your opinion about the possible nasty or goody side effects for venting the pilot inside the barrel... as I'm rebuilding one...

Or maybe ideas to be able to exhibit the consequences (like air turbulences) about it?
I HAZ A BANG!
Top
warhead052
Staff Sergeant 3
Staff Sergeant 3
Posts: 1769
Joined: Mon Mar 21, 2011 5:41 pm

How small is the next one going to be? Nice job on this one though.
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

I'd also like an internal diagram :wink: MS paint is fine :D Nice work!
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
Top
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

How small... dunno yet... less nuclear I guess...

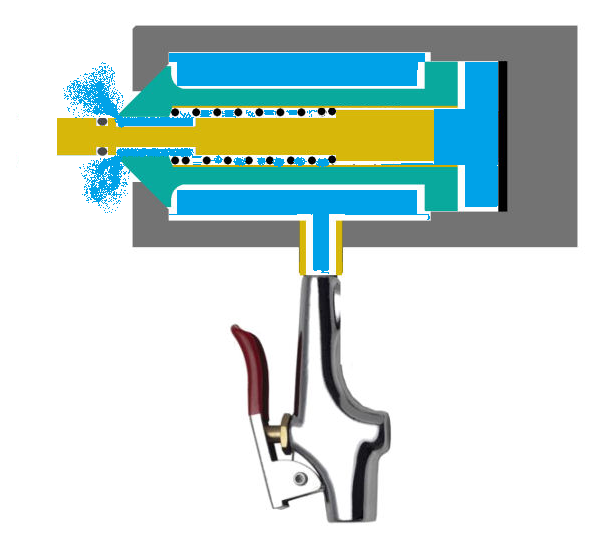

all right all right, here's a diagram. The conic piston head was part of a previous experiment, next piston will have a nice flat head, easier to build and seal.
Attachments
I HAZ A BANG!
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

I think the dimensions of the centerpiece are a bit off.
It won't work like this....
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Brian the brain wrote:I think the dimensions of the centerpiece are a bit off.
It won't work like this....
Yes it will. Pressurise, bolt moves forward, leaks pilot, piston fires.

It doesn't strictly "pop", which I don't like, but you can't argue it doesn't work ;)
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
