new mini

[urgle the danish cow]

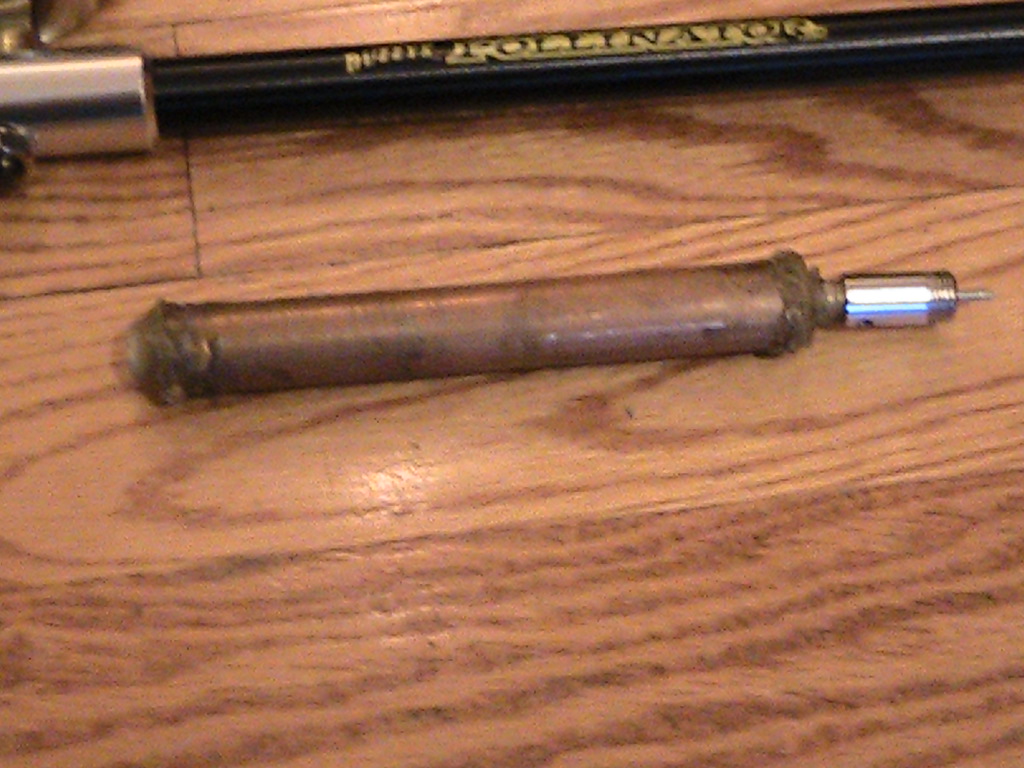

i havent made a mini in a very long time and i want to get into pen guns so i thought id start with a prototype.

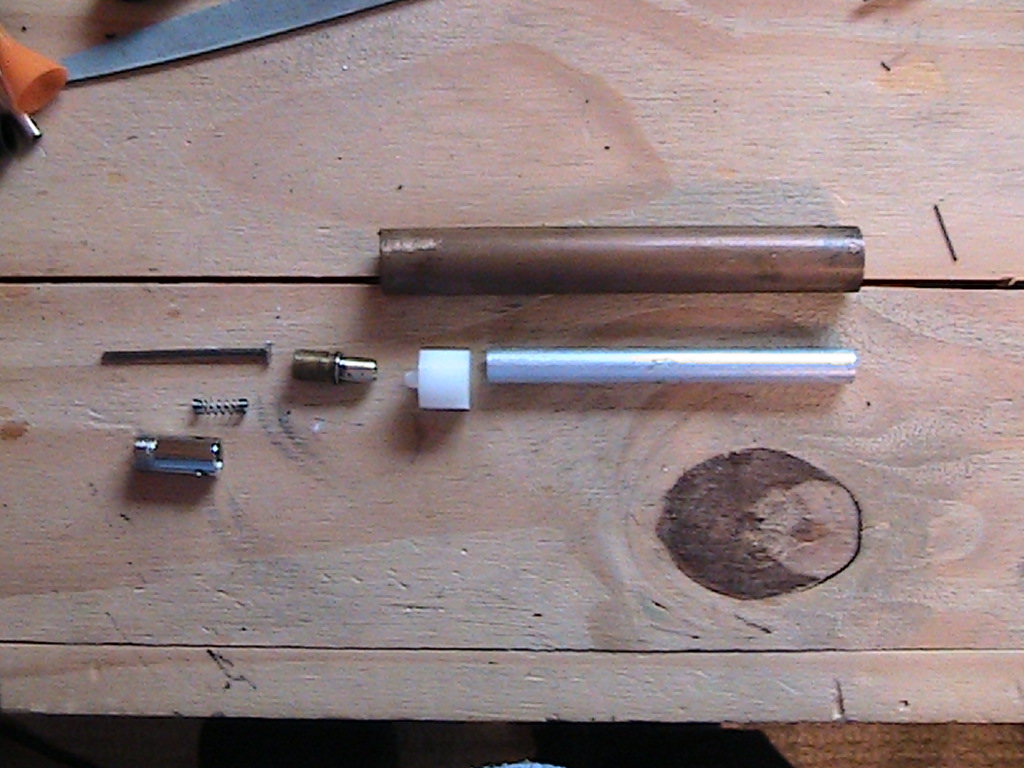

main tube 1/2 inch copper.
caliber 6mm

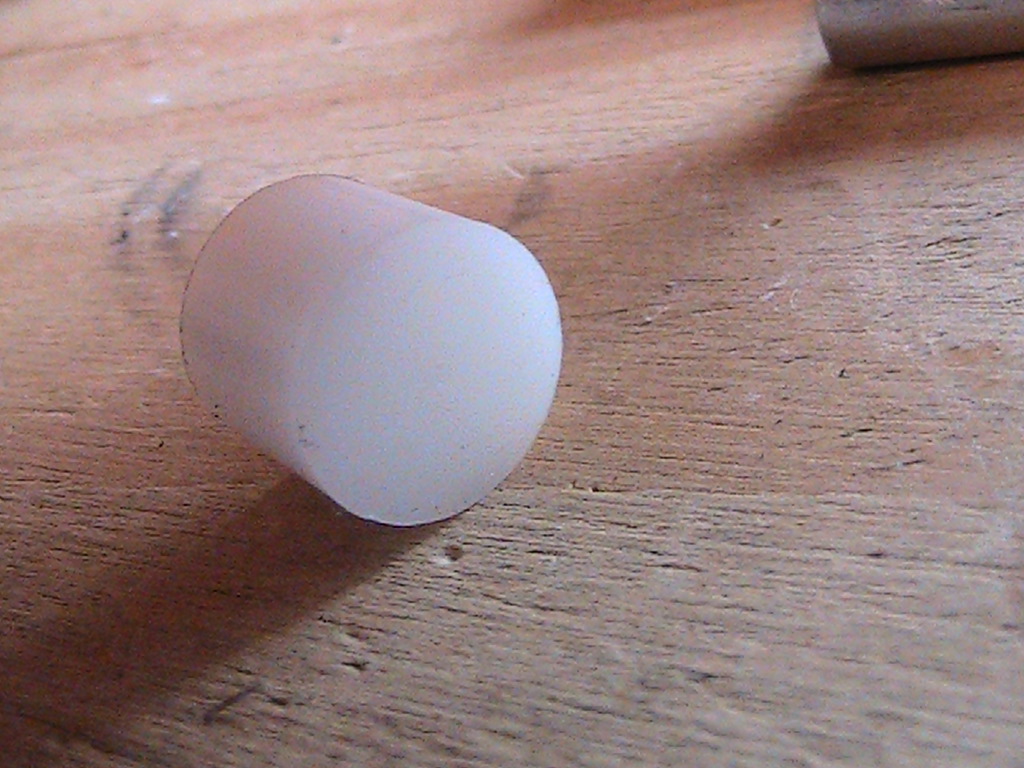

piston machined nylon
valve schrader

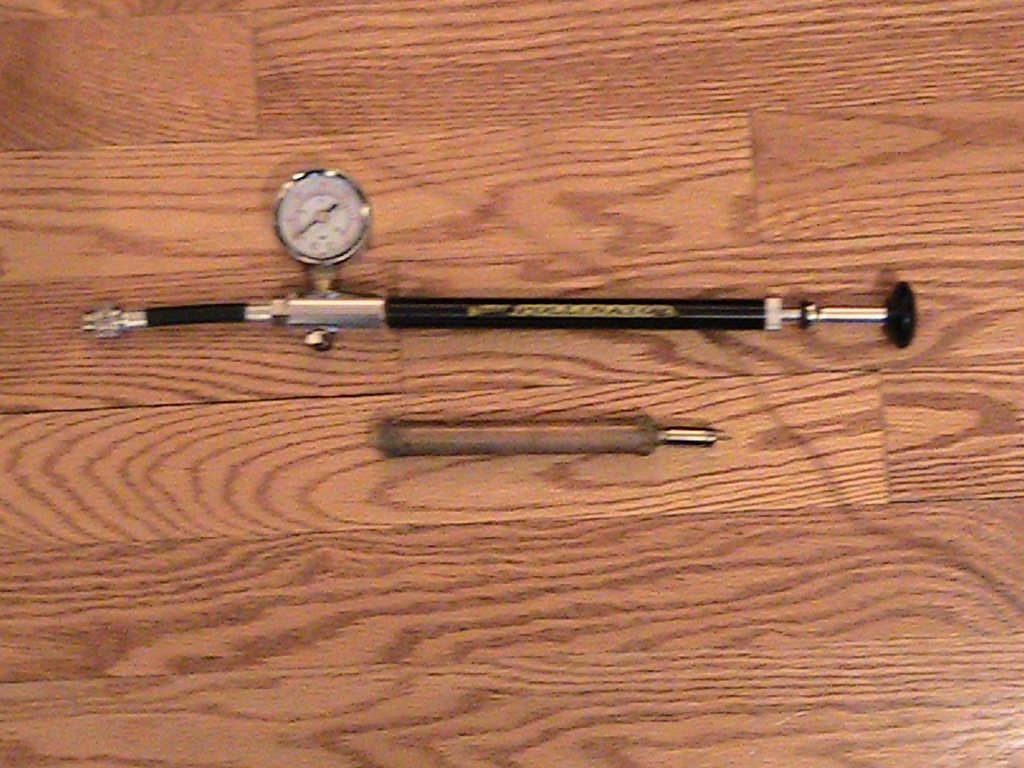

pressure 250psi

it works pretty well and sends bbs flying rather nicely. i used jsr's method of using a drill bit to keep the barrel centered while the epoxy cured. i hope to make a few brass pen guns with lighter machined nylon pistons
thanks

[Gun Freak]

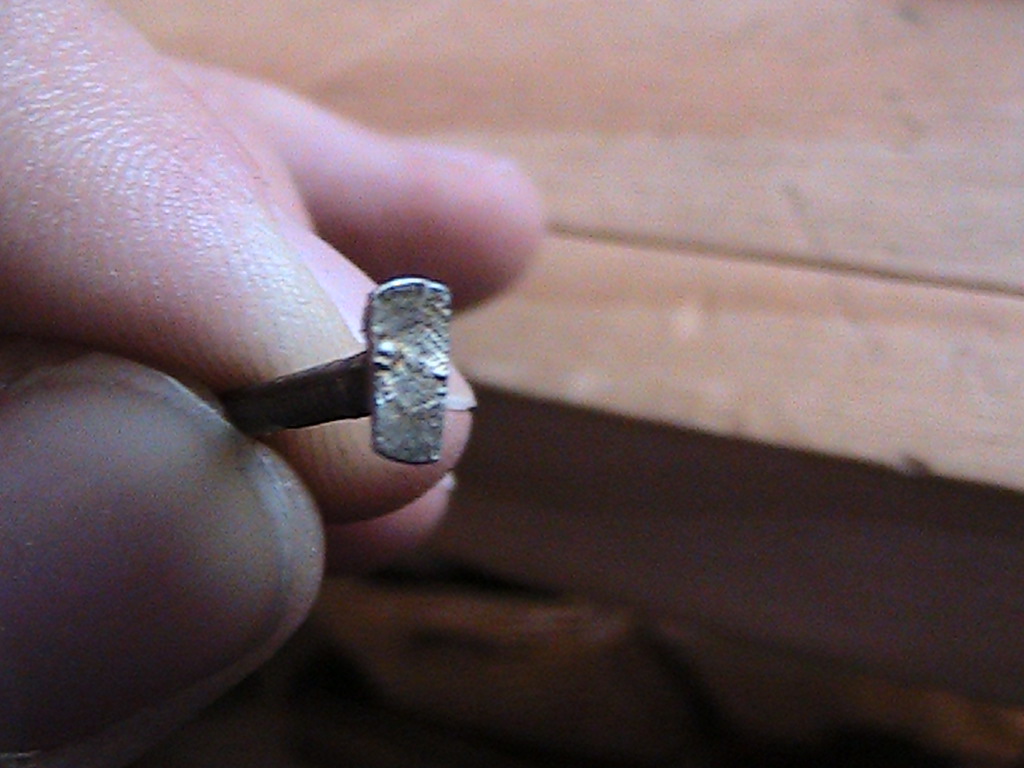

Made use of my trigger idea, I see

Looks good for a concept, I'm sure you can do a lot better.

[jackssmirkingrevenge]

Not a bad effort, did you put any rubber seals on the piston or is it just nylon against metal?

[pneumaticcannons]

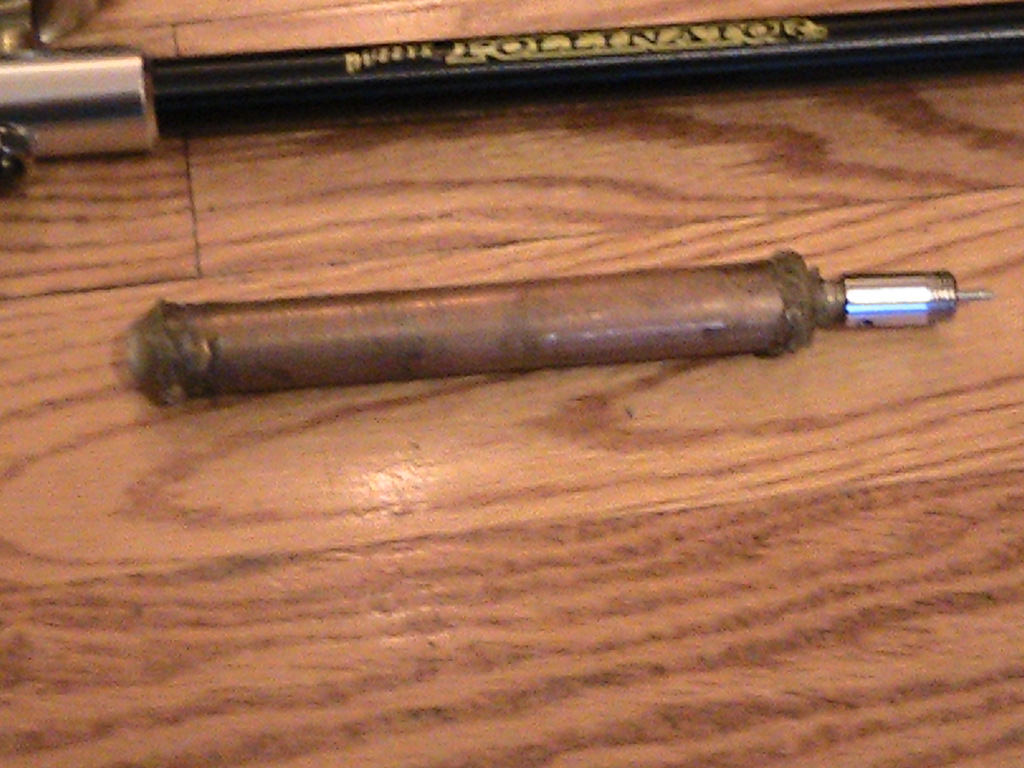

Nice effort though it looks like you could trim that excess epoxy off and the copper itself is begging to be polished. Does the nylon seal leak at all?

[urgle the danish cow]

Not a bad effort, did you put any rubber seals on the piston or is it just nylon against metal?

its just the nylon and is leak free as i smoothed out the back of the barrel for a perfect fit.

[urgle the danish cow]

Nice effort though it looks like you could trim that excess epoxy off and the copper itself is begging to be polished. Does the nylon seal leak at all?

yeah i would do that but its just a protoype for smaller penguns. btw what is the best way to polish the copper?

[Gun Freak]

You can use fine grit sandpaper...
