Machined* pengun

Miniature cannons are novelties made with materials such as bottles or pens.
Post Reply
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

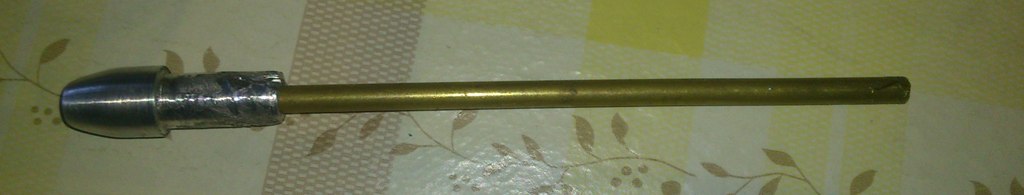

A cocky guy from my school challenged me to make a "nice looking" stuff that shoots :roll: . He wasn't serious but I decided to make something any way. Today a parting blade I have ordered arrived, so I thought I can finally turn some aluminium. My first thought is a >1000 psi pengun.
I haven't bought the lathe and mill yet so it was made on my drill press (good stuff, with some nice blade and mill bits you can do a lot).
Body made of 10 OD stainless steel, 1mm wall. Nose cone made out of a 12mm OD aluminium rod. Haven't finish it yet, not sure if nylon is a good material for the piston.
Attachments
Last edited by wyz2285 on Thu Mar 14, 2013 3:11 pm, edited 1 time in total.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

Looks a bit rough on the inside ...or is that tape?
With the outer tube on it looks good though.

How is the barrel ( going to be) sealed to the endplug?
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

wyz2285 wrote:not sure if nylon is a good material for the piston.
No reason why it shouldn't work well, delrin has similary properties and I found it great for HPA pistons.

Looking good for a drill press, you're going to love having a lathe ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

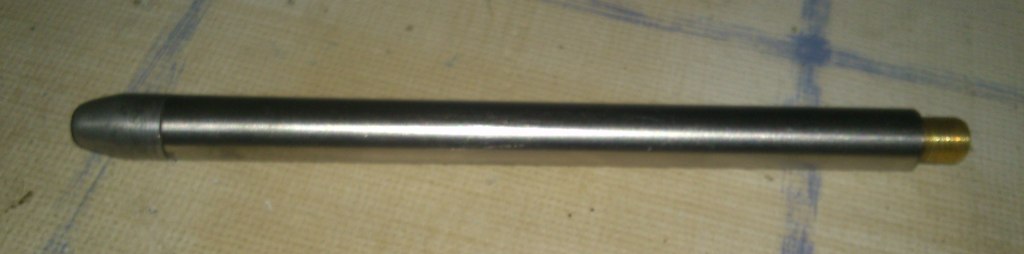

Edit, done, only need to finish the firing cap.
Looks a bit rough on the inside ...or is that tape?
That's the idea, for epoxy :wink:
How is the barrel ( going to be) sealed to the endplug?
Epoxy :D
Looking good for a drill press, you're going to love having a lathe
Thanks Jack, I know :D
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

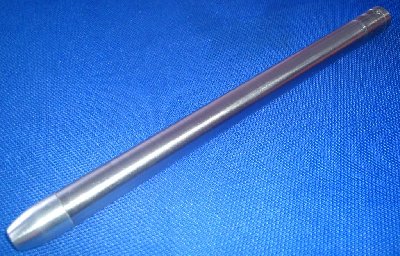

Finished the end-cap, all done :)
Attachments
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Not bad at all :) I hope you put something on the breech end of the barrel to stop it going all cookie-cutter on the piston seal...
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

I hope you put something on the breech end of the barrel to stop it going all cookie-cutter on the piston seal...
Of course, the sealing face it 2mm id and 6mm od :) also has a magnet
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

What calibre is it?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

2mm... I was going for 4.5mm pellets but didn´t have the right size tube. Now I do so when I get my lathe and mill a new one will be made :)
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

It looks awsome!

but...why U no use epoxy?
Just kidding...


What pressure will she run at?

We will see some damage pics right?
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Thanks BTB, right now only use 200psi, it will run on 1000 later :)
Of course, and a video too.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3497
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 7 times

If you could put on the clip-on thingy an actual ballpoint would have...

the cocky guy wouldn't expect it...

take a piece of paper...and the pengun..

"let me explain it to you"
he'll thing you'll draw out the plan...but you fold the paper and set it up as a target..?

:D
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

The core of a Bic pen fits perfectly inside and makes a wonderful dart :wink:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
limmitless
Recruit
Recruit
Posts: 1
Joined: Sun Jul 07, 2013 12:31 am

can we see a video of the assembly?
Top
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Hah, sweet!

Yeah, for smaller diameter things, a decent drill press can make for a ghetto lathe. :) Not as precise, but better than nothing.
Top
Post Reply

Create an account or sign in to join the discussion

You need to be a member in order to post a reply

Create an account

Not a member? register to join our community
Members can start their own topics & subscribe to topics
It’s free and only takes a minute

Register

Sign in

  • Similar Topics
    Replies
    Views
    Last post

Return to “Miniature Cannons”
