total newb, will this work? UPDATED A BIT

Building or modifying BB, Airsoft, and pellet types of guns. Target practice only!
Post Reply
shiv
Private
Private
Posts: 4
Joined: Wed Sep 03, 2014 1:35 am

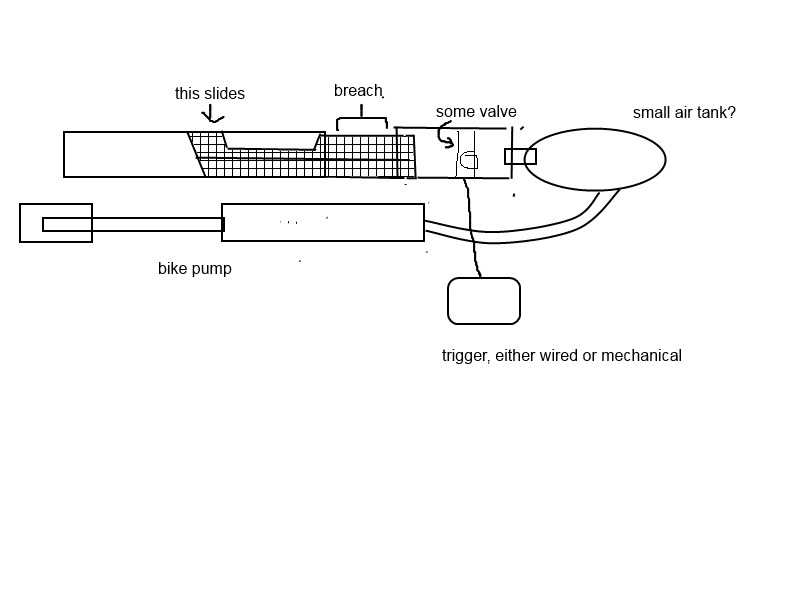

Hi! I am interested in building a simple single shot gun. I was wondering if this would work (doesn't have to be very high power, just, ya know, shoot bbs pretty fast) ? Id like the bike pump to give a 1 pump: 1 shot ratio. Is this feasible/what pump should i use? What type of valve is best? I really quite new to this, so thanks for the help/links to references and examples
Attachments
Last edited by shiv on Sun Sep 14, 2014 10:17 pm, edited 1 time in total.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Looks like a solid design and if all tolorances are tight, using a small chamber you can get a shot per pump. Study "hammer valves" , "spring loaded ball valves" would be good choices for your wants.
Top
shiv
Private
Private
Posts: 4
Joined: Wed Sep 03, 2014 1:35 am

UPDATED DESIGN: I whipped something up in Blender, kinda close to scale

meuses the same valve chanism as :

[youtube][/youtube]
Attachments

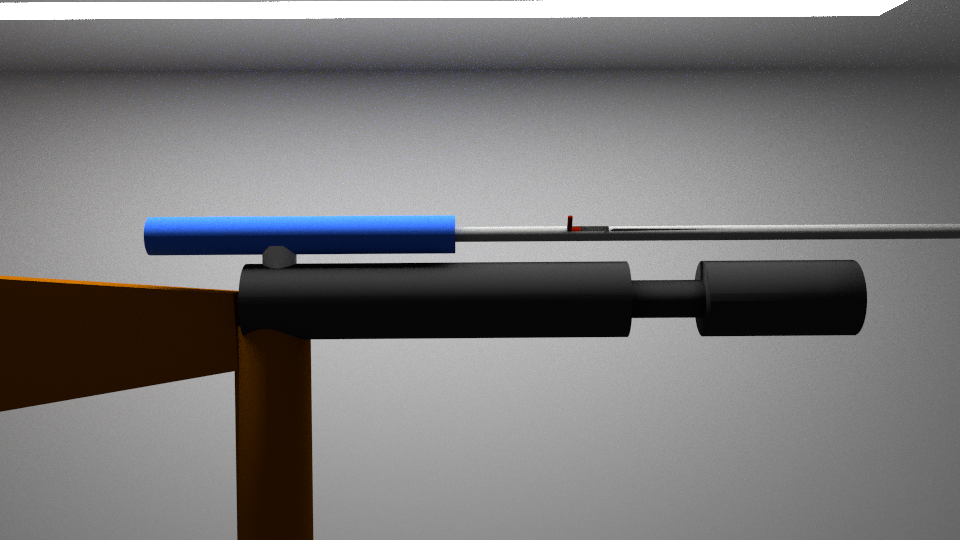

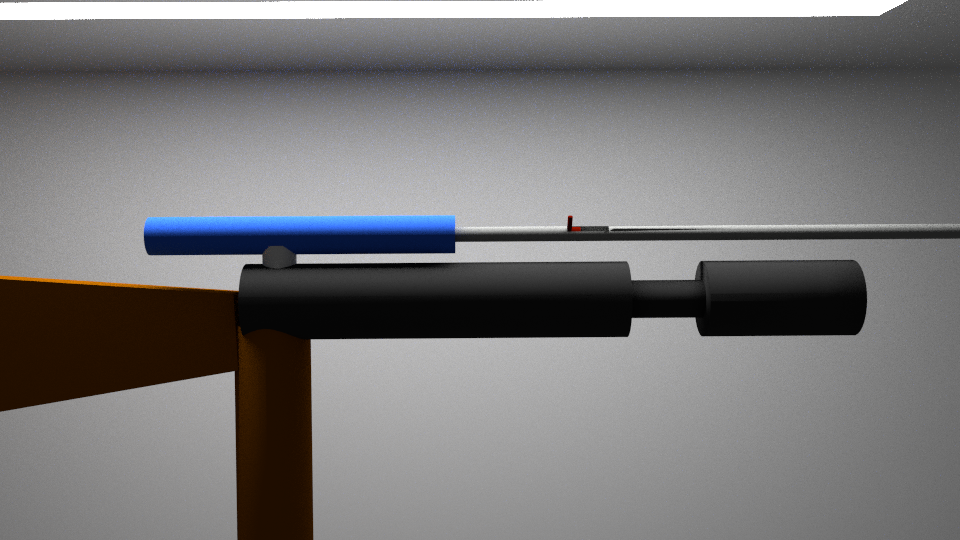

basic design: blue is a 1/2 x 4 inch schedule 80 pvc pipe nipple (with endcaps), black is bike pump, attatched to pvc through schraeder valve
basic design: blue is a 1/2 x 4 inch schedule 80 pvc pipe nipple (with endcaps), black is bike pump, attatched to pvc through schraeder valve

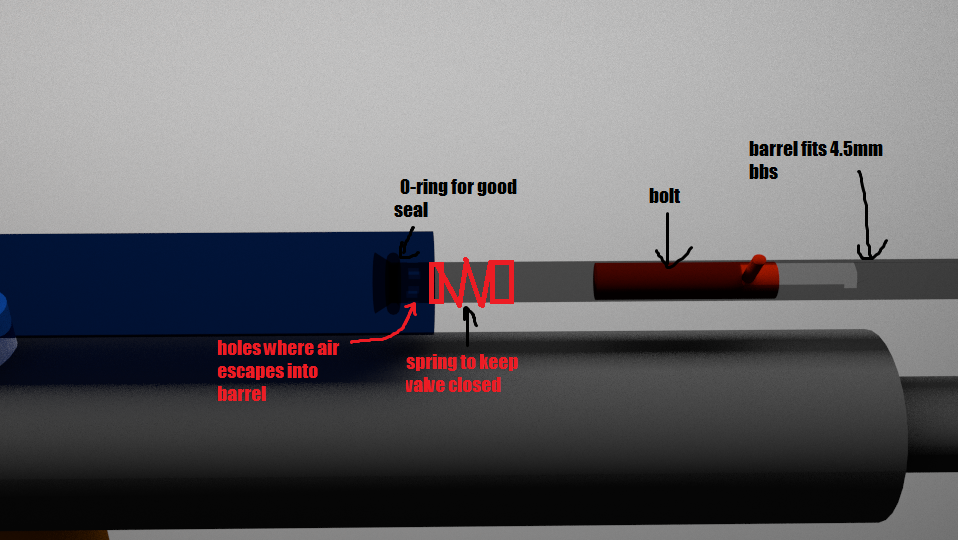

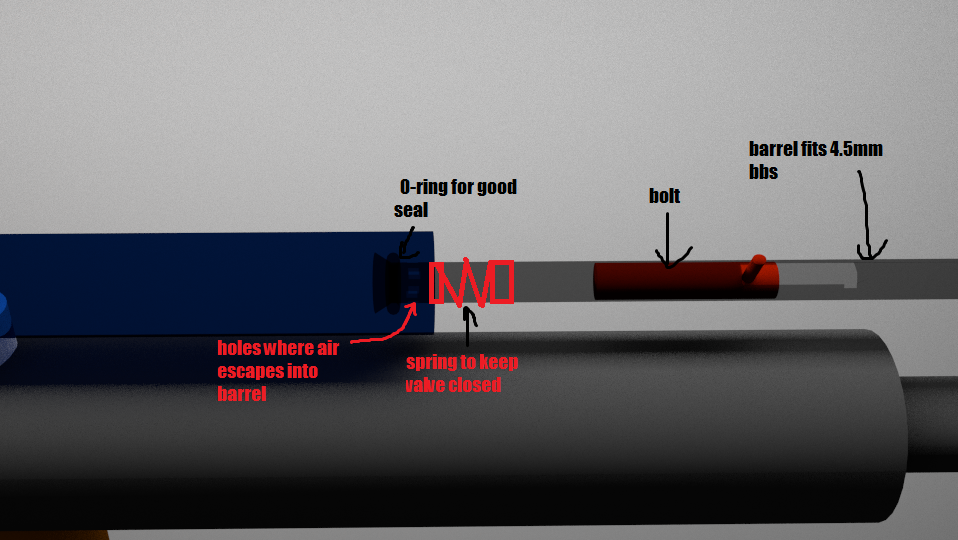

meuses the same valve chanism as : https://www.youtube.com/watch?v=sQ0q6diiJ3U
meuses the same valve chanism as : https://www.youtube.com/watch?v=sQ0q6diiJ3U
Last edited by jrrdw on Mon Sep 29, 2014 4:35 pm, edited 1 time in total.
Reason: Fixed video.
Top
User avatar
Juggernaut12121
Specialist
Specialist
Posts: 140
Joined: Wed Apr 03, 2013 12:47 pm

I like the valve design. I've seen it done before with pretty good results as well. How are you planning on triggering it? It should be fairly simple although I'm curious.
Whatever the mind can conceive and believe, it can achieve
