Flintlock style pistol with spring loaded ball valve

farcticox1 · Tue Jul 10, 2018 4:34 pm

Started to build a flintlock stylie pistol with a spring loaded ball valve.

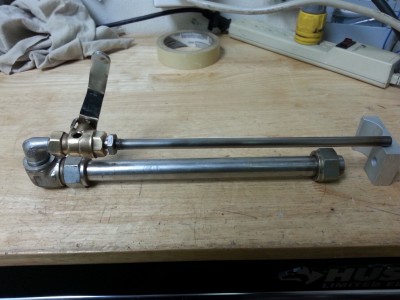

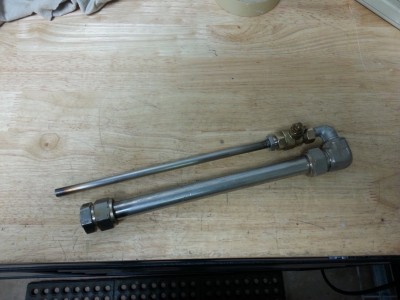

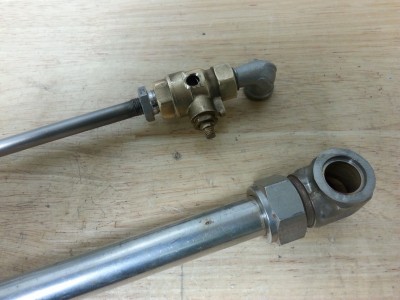

1/4" threaded ball valve with 1/4" ID barrel and 3/4" stainless tubeing for the chamber. I drilled a hole in the side of the valve as a loading point, then realised that some air would leak out as the ball rotates, was thinking the BB might shoot out the top instead of down the barrel, but it actually works. Put a spring on it and 100psi for some test shots, it was pretty impressive

Locking and release mechanism will be the fun bit

hectmarr · Tue Jul 10, 2018 5:50 pm

Looks great

How much air pressure do you think you use? How many cm3 of capacity is the air chamber? So what system is filled with air?

farcticox1 · Tue Jul 10, 2018 6:13 pm

I can take it up to 160psi with my compressor, I might try a schrader valve as I have a shock pump that goes up to 300psi. I think about 70cm3 in the 3/4" chamber, 19mmD x 250mm long. There is a 1/8"npt thread at the front of the chamber, you can't see it in the picture.

hectmarr · Tue Jul 10, 2018 6:15 pm

Go ahead with the project. I would like to see shoot that thing.

farcticox1 · Tue Jul 10, 2018 6:21 pm

Yes, this one is going to be a bit of fun. :bounce:

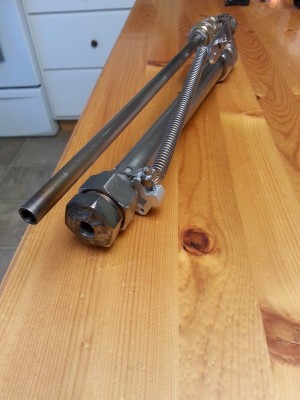

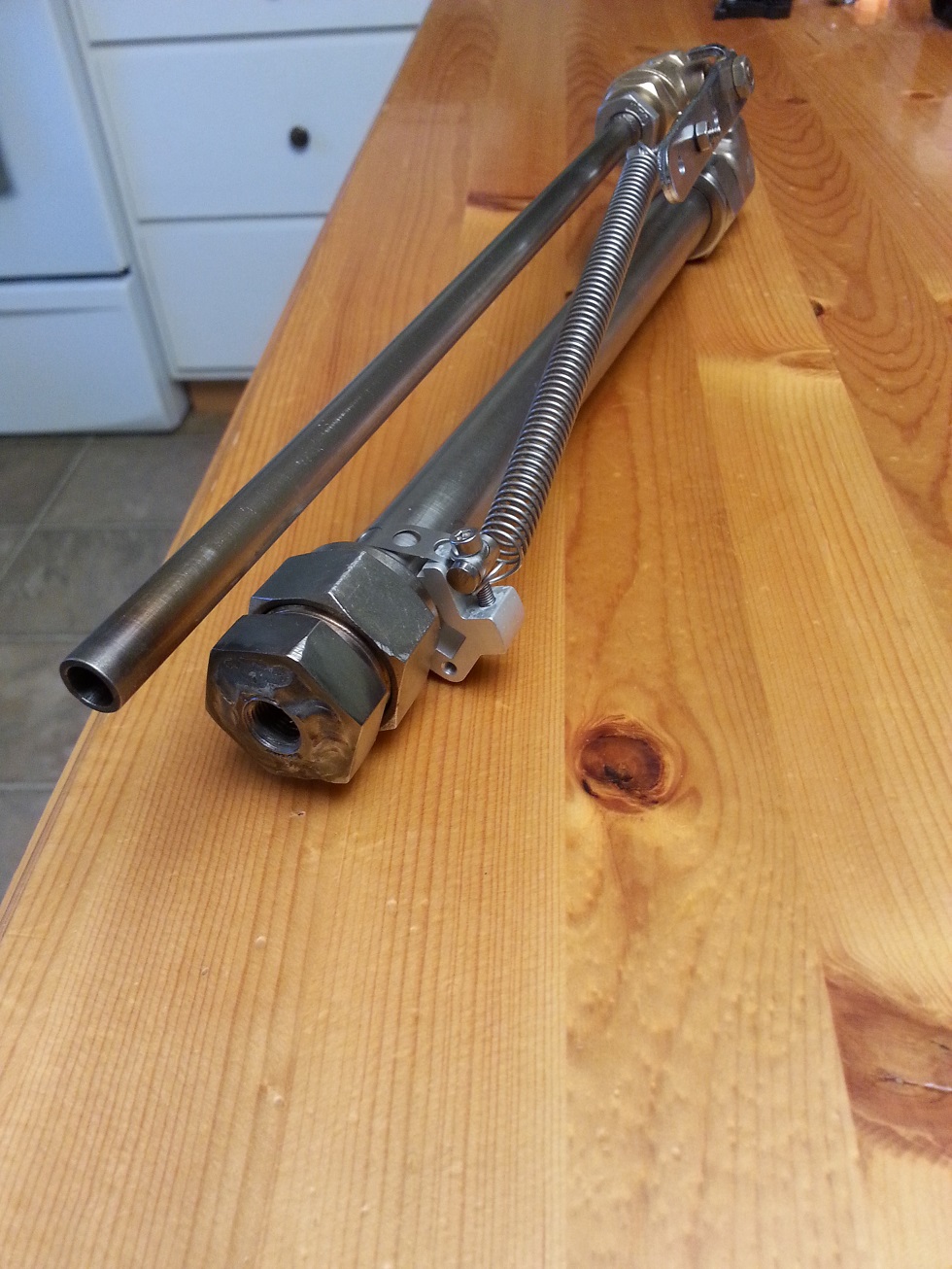

This is the fill port, and the test spring.

hectmarr · Tue Jul 10, 2018 7:56 pm

It looks good !! Your old pistol has inspired me to conclude a small, non-autonomous hybrid pistol that I had unfinished, just to test it. I already put what I built in a new post :bounce:

farcticox1 · Wed Jul 11, 2018 4:36 am

ooooh, this looks nice

jackssmirkingrevenge · Thu Jul 12, 2018 5:41 am

Looking good! Spring loaded ball valves are definitely a fast and relatively easy solution for small calibers that is often overlooked.

farcticox1 · Thu Jul 12, 2018 5:49 pm

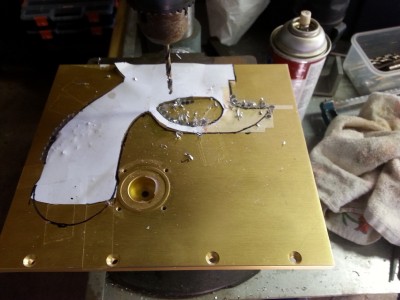

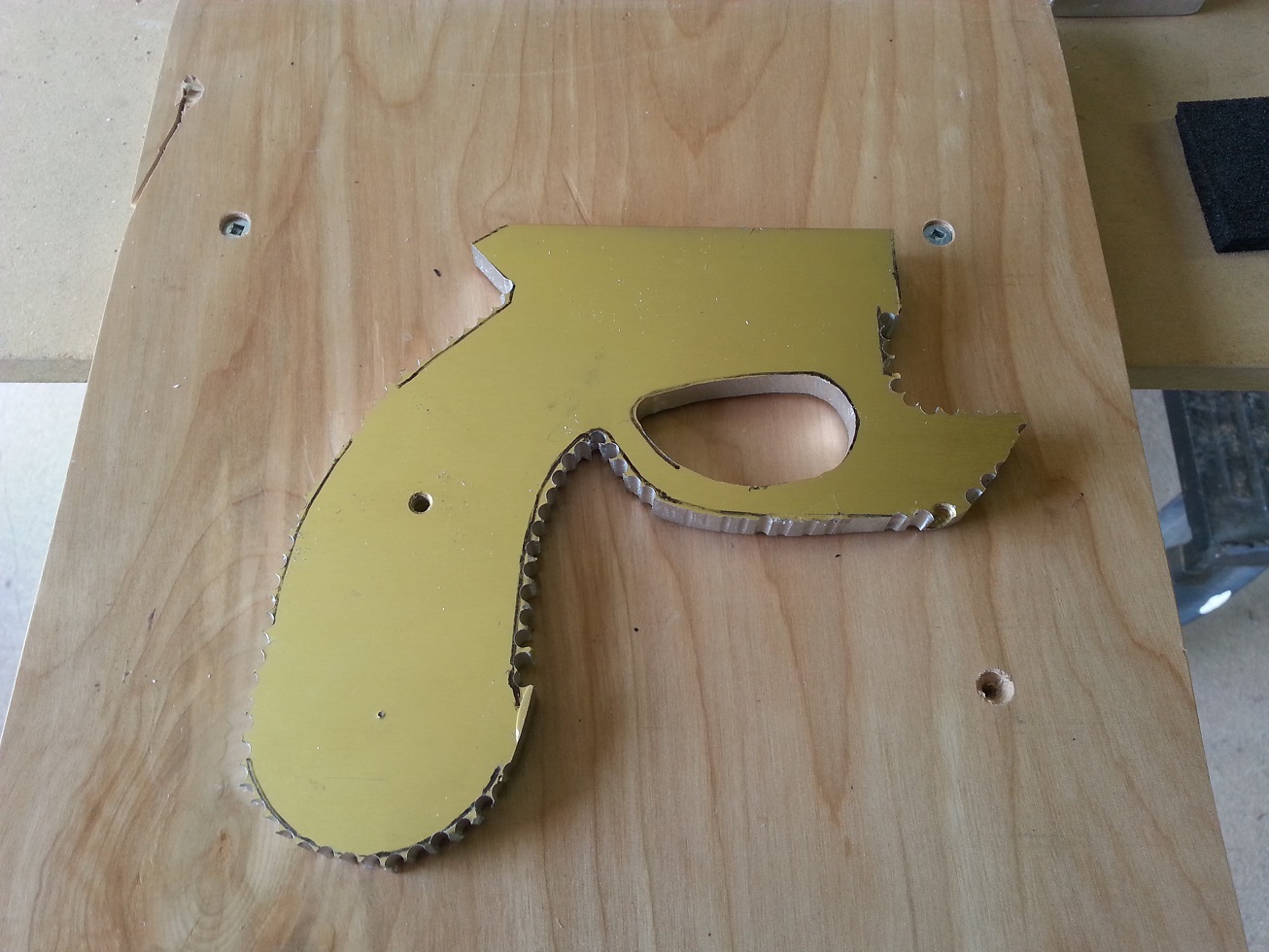

Started to shape the grip from 10mm gold anodized aluminium. That was 1 hours work

hectmarr · Thu Jul 12, 2018 7:09 pm

I see that you have come a long way with this old gun. In good time. Be careful to see the work completed.

hectmarr · Thu Jul 12, 2018 7:41 pm

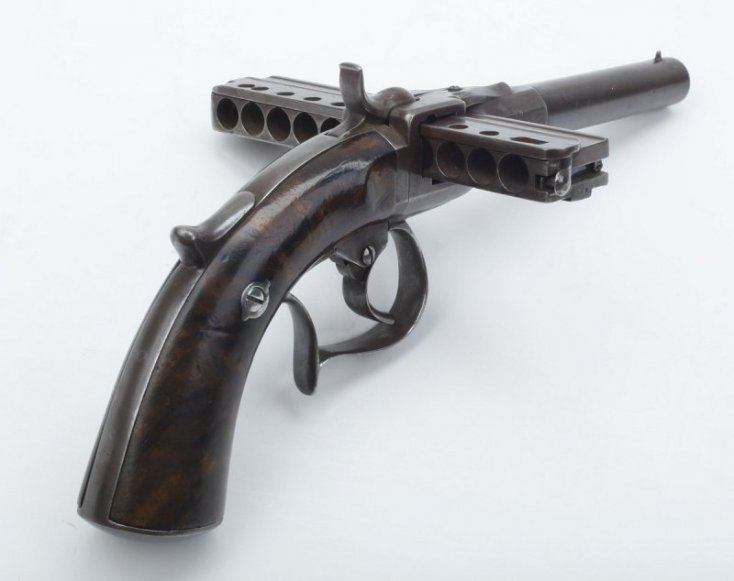

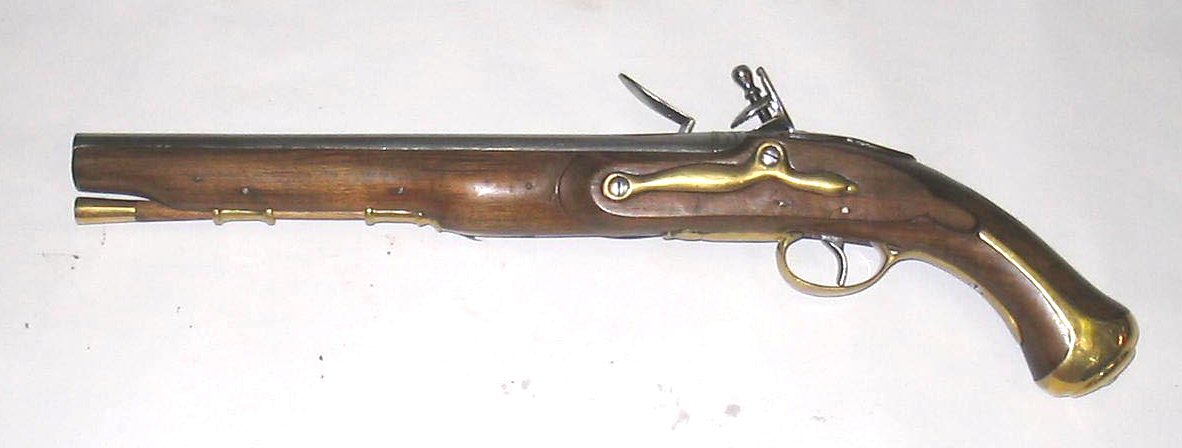

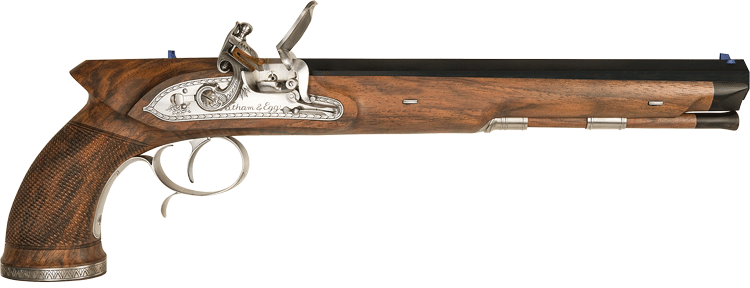

Inspiration for you

farcticox1 · Fri Jul 13, 2018 6:38 pm

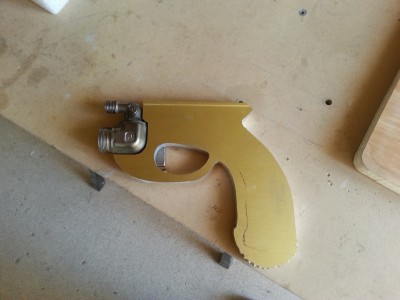

Taking shape

farcticox1 · Tue Jul 17, 2018 6:00 pm

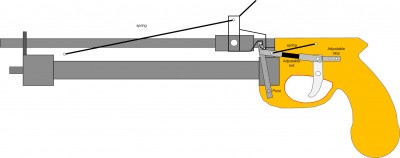

Worked out a Rube Goldberg set up to lock and release the valve.

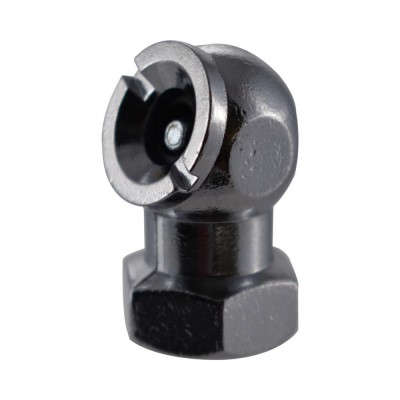

Got a schrader tire chuck to mount on the bench and charge it for each shot, if the valve doesn't leak

hectmarr · Wed Jul 18, 2018 5:51 pm

Looks good. I hope your valve does not have air leaks. Mine always loses a little air

farcticox1 · Thu Jul 19, 2018 7:03 am

Drilling a hole in one side won't help as it now only has one seal face instead of two, but if it works the reload will be pretty nice

unless I make some kind of sealed cap that covers the hole and braze it on to the valve
