.68 call pistol bike pump powered

Cannons powered by pneumatic pressure (compressed gas) using a valve or other release.
Post Reply
Surfer_wlan
Recruit
Recruit
Posts: 2
Joined: Sun Apr 28, 2019 4:52 am

So I wanted something small to shoot paintball size projectiles and to be manualy powered. I used T piece brass piston valve (common design), shortened shrader valve for trigger, and smallest bike pump i could find for power source. The rest are brass fittings, teflon tape, epoxy glue and PP pipe for barrel. Need to improve tightness and smoothness oof piston operation and will be able to shoot some 15 yards relatively straight with about 3bar pressure.
Attachments

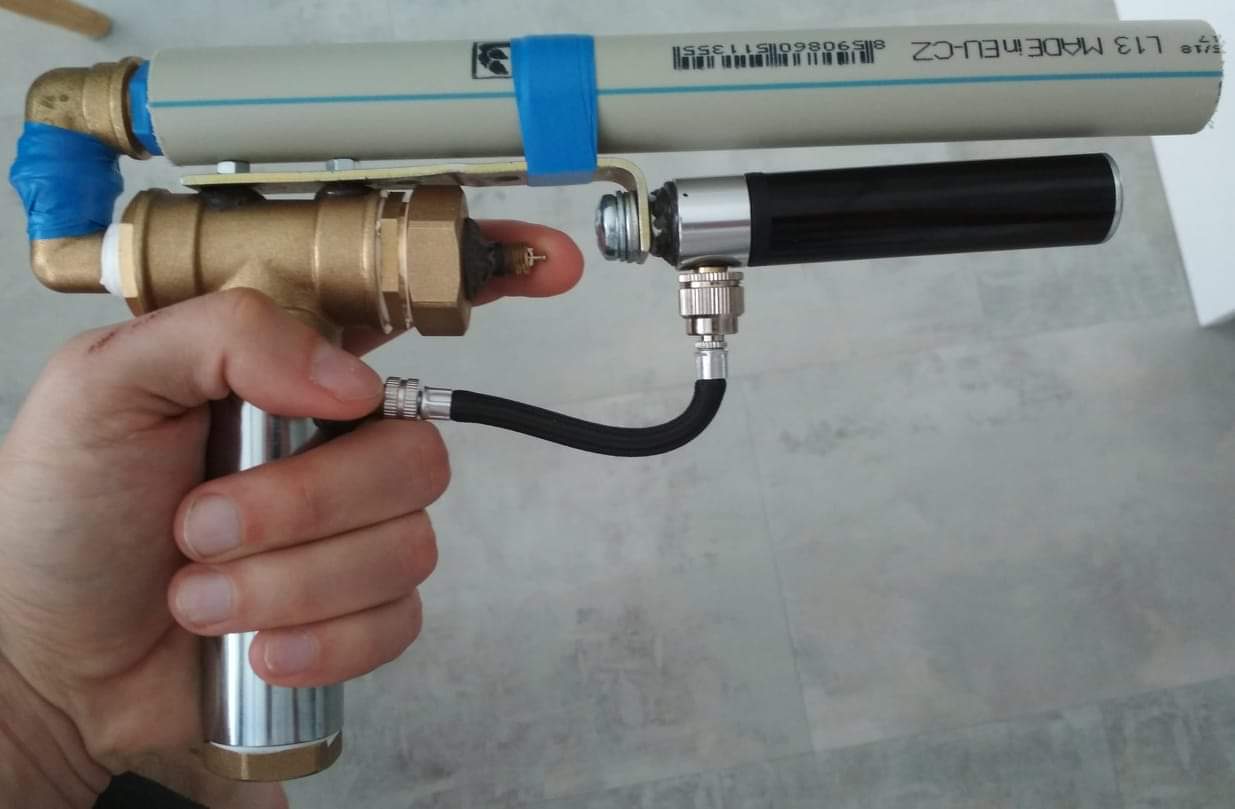

Prototype
Prototype
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26219
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 581 times
Been thanked: 347 times

Welcome to the forum and nice work! I like the way you configured the pilot valve to act directly as a trigger, quite a neat setup.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
keks2033
Private 4
Private 4
Russia
Posts: 94
Joined: Mon Feb 08, 2016 2:37 am
Has thanked: 1 time
Been thanked: 5 times

Try to connect instead of the pump cylinder with Greengas. This can be done even with cold welding and electrical tape.
Top
Mike Vity
Recruit
Recruit
Posts: 1
Joined: Wed May 08, 2019 5:12 am

Hey, can you send more photos please?
