Finished Vortex Block

Building or modifying BB, Airsoft, and pellet types of guns. Target practice only!
Post Reply
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Here's my finished vortex block. It's made out of 1/2" acrylic sheet and the shroud is 1/4" Sch 80 PVC sheet. It has a chip but that probably won't do too much. This is an inline vortex block like Neospud/Mr. Plow has on all of his BBMGs. The only bad thing about this is that it has to be mounted inside 2" pipe. I will have a vortex Uzi with a double mag quick reloading sytem (I'll be able fo fire while reloading) when this is done. The vortex is 3/4" for metal .177 caliber BBs and the barrel is .18 ID aluminum sleeved in a hunting arrow, which won't bend because it's fiberglass.

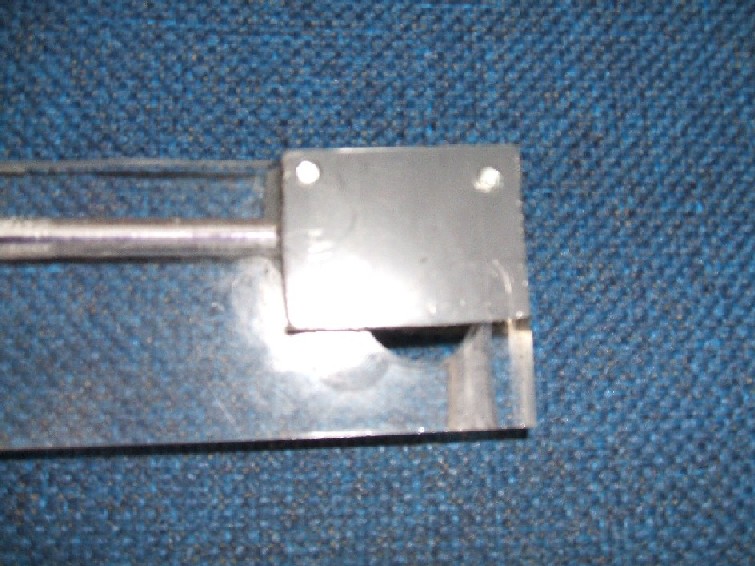

Sorry the pics are kind of blurry. In the first one it's really hard to see stuff.
Attachments
Top
User avatar
singularity
Corporal 5
Corporal 5
Posts: 982
Joined: Mon Jun 26, 2006 10:53 pm
Location: someplace
Contact:
Contact singularity

i've never seen an inline vortex block can you explain or give me a link to how they work
be sure to check out my <a href="http://www.spudfiles.com/forums/ak-styl ... 9.html">AK Styled Vortex Gun</a> and my <a href="http://www.spudfiles.com/forums/at-4-t9627.html">AT-4 Rocket</a>

upcoming projects... finalized clip fed BBMG and ball point pen sniper
Top
User avatar
Atlantis
Corporal 5
Corporal 5
Posts: 955
Joined: Sat Sep 03, 2005 10:26 pm
Location: Florida

I don't think it's inline. Good idea incororating the barrel itself into the block, the clear plexiglass adds a cool look.
"There isn't a problem in the world that can't be solved by the proper application of explosives"
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

It is inline, and it works the same only it's cleaner looking.
Top
Benny
Corporal 4
Corporal 4
Posts: 844
Joined: Wed Apr 19, 2006 8:21 pm
Location: Tasmania, Australia.

Awesome, i`d like to here more about that magazine loading system. :wink:
And where do you get that sheet?
Join the spudshot forum!!!!!

F*ck the bunny... i got a fishy ><>
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

At a plastics store near me. http://www.tapplastics.com/shop/product.php?pid=334&
Supposedly $2 for a 4"x4" square but I got 2 4x4s for only $1 total. I'll draw a diagram of loading later.

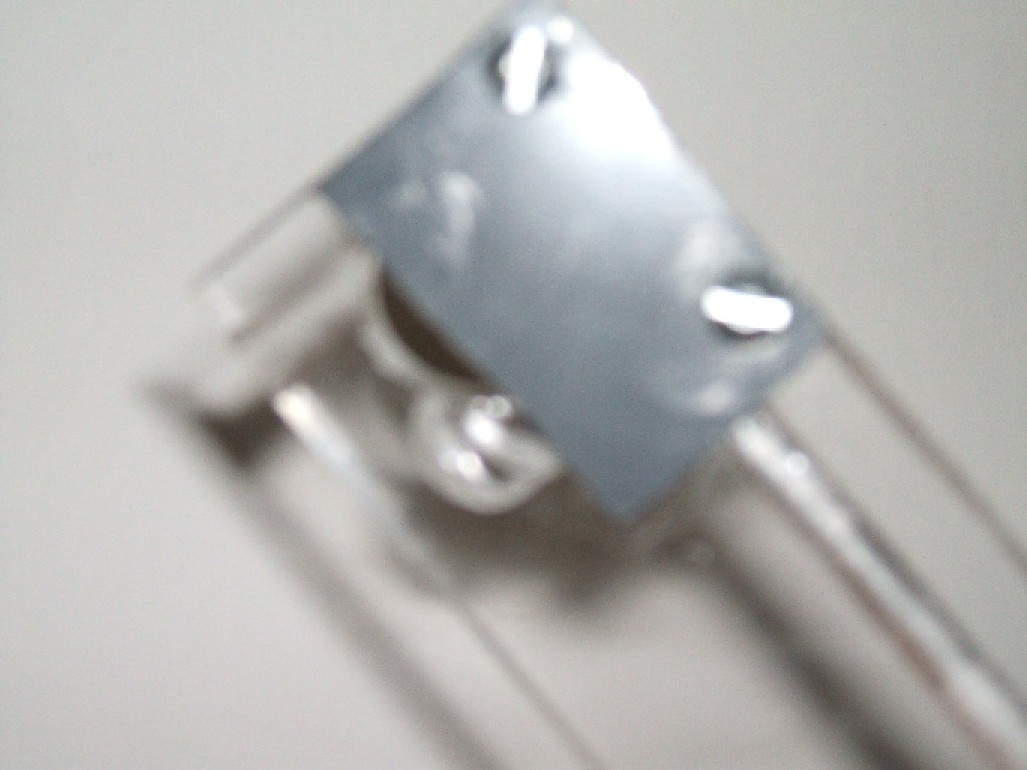

EDIT: Here we are.
Attachments
Inside BBMG.JPG
Outside BBMG.JPG
Outside BBMG.JPG (15.91 KiB) Viewed 4415 times
