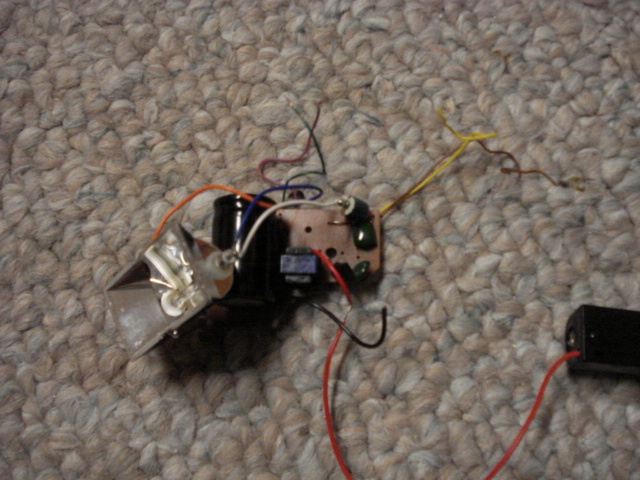

Here is a pic of a older camera flash setup that I want to use for a hybrid, but I can't get it to work, anybody that knows a lot about electronics please assist.

The purple and green wires on top are the ones that went to the shutter button, the yellow and brown off to the side are the ones that went to the switch that turned the flash on, I already shorted them out. Black and red go to the power source.
Attachments
the setup
the setup
Top
User avatar
garfield
Private
Private
Posts: 15
Joined: Thu Feb 15, 2007 4:08 pm

what kind of camera. some have a safty, and will not work.
Top
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

You have quite a mess there. I'd say keep the capacitor, it might be good for something, and dump the rest. Get a new camera and leave the circuit board attached to the camera. Then you can see where everything is and it doesn't get tangled up.
