forward ejecting bolt

[iknowmy3tables]

I remember jack once sayinng "if you really want to get complicated you can have a forward ejecting bolt" I recently saw a complicated double tilting bolt with forward ejection then I realized that since spudgun cartridges are the same size as the barrel it could be much simpler

I think I'm going to make somthing similar only its with a barrel sliding bolt and cartirdges eject backwards at a decent speed matained by the fill of the chammber cause I love how those howitzers recoil like mad then eject smoothly, should I start a new thread to disscus my specific gun ideas

[experament-u2]

how are you planing to activate the bolt?

it seams like a cool idea i would love to see it in action

[mopherman]

i dont under stand you pics
is there any way you could do a animation?

if its anything like the kel-tec RFB's forwards ejecting bold i like

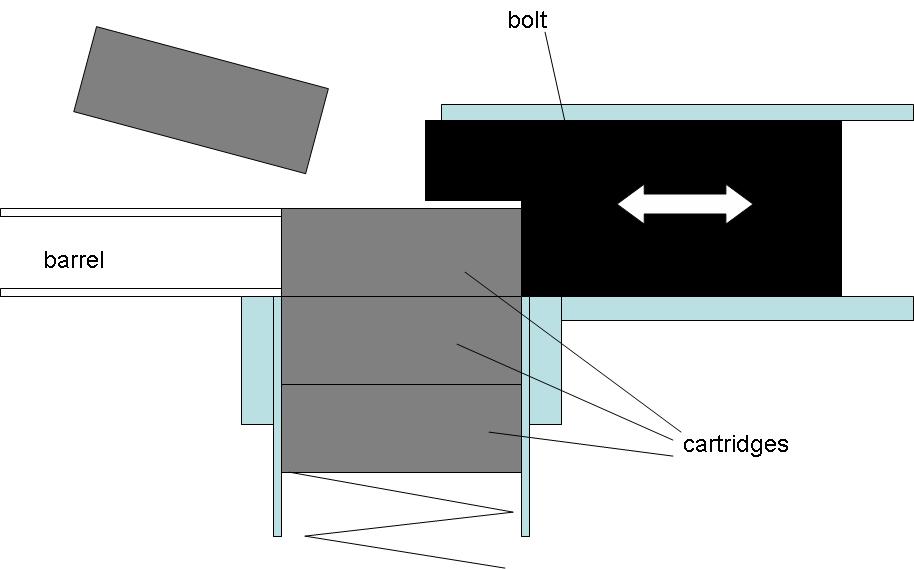

when the cartrige is fired, the huge black thing slides back and allows the the jacket to eject.

[jackssmirkingrevenge]

Is the black component driven back by the cartridge or by a separate piston? In the former case, as it is, it would jam...

[iknowmy3tables]

probebly blow forward bolt or piston sorry for not posting, i lost my computer privlages I'll have to resort to anicent powerpc mac in my basment, it makes fios look slow

[From_Hamsterdam]

I have made a gun that works kinda like the second pic but is a lot simpler. I wanted to get the firing system working in semi auto before i posted it, the loading and ejecting works.
You guys are getting too close to my design so i better post it now before some one beats me to it . I will try to get pics up in the next week or so.
