marker gun project - epic fail!

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Post Reply
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 321 times

Donating Members

Tue Jan 06, 2009 11:15 am

This section is for finished cannons, so this is appropriate :roll:

After this discussion a few months ago, I finally decided to make a prototype and it was looking pretty good, here are the parts before being epoxied together:


I tried it out at 200 psi and it was working beautifully, so I thought I'd give it a go at 400 and well, it blew up. Mea culpa for not using a pressure rated marker!
Attachments

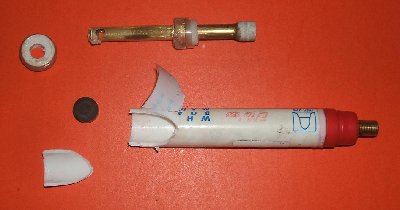

Recovered parts :-/
Recovered parts :-/

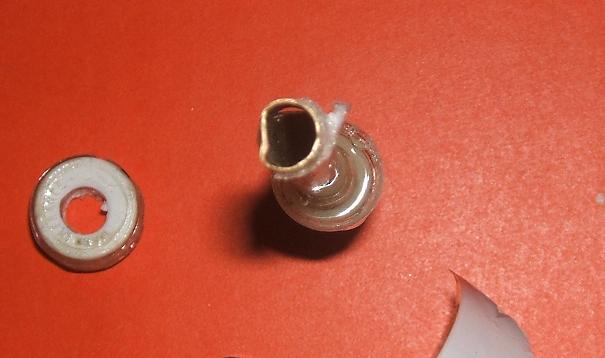

Detail of the muzzle bent out of shape after impacting with the wall at considerable velocity, luckily it wasn't pointing at me at the time!
Detail of the muzzle bent out of shape after impacting with the wall at considerable velocity, luckily it wasn't pointing at me at the time!
Top
User avatar
jitup
Specialist 2
Specialist 2
Posts: 251
Joined: Wed Nov 12, 2008 1:40 pm
Location: North east Ohio

Tue Jan 06, 2009 11:21 am

too bad! It was such a cool idea. please try again!!!
if you live in Ohio join the Ohio Spud Gun and BBMG Association at http://www.ohiosga.webs.com
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6571
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Jan 06, 2009 11:25 am

What gave you the idea that a plastic marker pen tube could handle 400 psi? It is plastic, right? Looks like it. I'm just wondering. :shock:
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 321 times

Donating Members

Tue Jan 06, 2009 11:31 am

jrrdw wrote:What gave you the idea that a plastic marker pen tube could handle 400 psi? It is plastic, right? Looks like it. I'm just wondering. :shock:
Well, I figured the fact that it was syringe tube-epoxy layer-marker body it would be enough. In fact, interesting to note that it didn't explode outwards but the barrel flew out of the front, hence the broke section of marker. I'm thinking that if I had roughened the inside of the marker body it could have held.

I might give it another go, but if I do, metal body this time :roll:
Top
User avatar
jitup
Specialist 2
Specialist 2
Posts: 251
Joined: Wed Nov 12, 2008 1:40 pm
Location: North east Ohio

Tue Jan 06, 2009 11:34 am

I would make like a metal "sleve" if you will, which contains the actual gun, yet is able to be placed in a marker forpure coolness factor.
if you live in Ohio join the Ohio Spud Gun and BBMG Association at http://www.ohiosga.webs.com
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 321 times

Donating Members

Tue Jan 06, 2009 11:41 am

jitup wrote:I would make like a metal "sleve" if you will, which contains the actual gun, yet is able to be placed in a marker forpure coolness factor.
That was the original plan, but the smallest practical tubing I had available was fractionally bigger than the marker interior so I went for this option.
Top
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

Tue Jan 06, 2009 12:13 pm

jackssmirkingrevenge wrote:
jitup wrote:I would make like a metal "sleve" if you will, which contains the actual gun, yet is able to be placed in a marker forpure coolness factor.
That was the original plan, but the smallest practical tubing I had available was fractionally bigger than the marker interior so I went for this option.
safety first :roll: :wink:
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26179
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 543 times
Been thanked: 321 times

Donating Members

Tue Jan 06, 2009 12:19 pm

ALIHISGREAT wrote:safety first :roll: :wink:
Health and Fu(king Safety :roll:

I'll admit it was a bit of a gamble, but given the tiny volume of air involved it wasn't that dangerous.
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Tue Jan 06, 2009 3:42 pm

I'm thinking that if I had roughened the inside of the marker body it could have held.
What?!
YOU forgot to roughen up the inside before casting epoxy?

That was the original plan, but the smallest practical tubing I had available was fractionally bigger than the marker interior so I went for this option.
Well, besides looking for small diameter pipe, you could also have looked for metal markers or pens. Or maybe some other kind of tube-like stuff some examples: hull of a laser pen, mini flashlight or maybe a bullet casing. Basically anything thats metal, cylindrical, hollow and on the right size should do the job better then a syringe tube.

You can also reinforce the plugs by making small holes and put bolts (or on this size, needles) through the pipe wall. Maybe denting/bulging the metal inwards would also do it.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

Tue Jan 06, 2009 3:53 pm

jackssmirkingrevenge wrote:
ALIHISGREAT wrote:safety first :roll: :wink:
Health and Fu(king Safety :roll:

I'll admit it was a bit of a gamble, but given the tiny volume of air involved it wasn't that dangerous.
just make sure the next one works so i can have so damage picz! :D
Top
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Tue Jan 06, 2009 4:55 pm

I guess I will have to try and show you up on this one! Nice gun bad fail.
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Tue Jan 06, 2009 5:03 pm

This doesn't look good on your record JSR :wink:
You're going to have a graveyard for all your failed prototypes soon enough :D

Though i'd give it another go, but using a metal tube for the chamber and sleeving it inside the marker. :)
Top
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Tue Jan 06, 2009 6:00 pm

I would say screw the marker tube and just make it the size of a marker but this is pretty cool. just make sure you roughen the surfaces.
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
Top
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2503
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Tue Jan 06, 2009 8:59 pm

This section is for finished cannons, so this is appropriate :roll:

Yup, she's done. :wink:

Have you considered a wrap or two of glass cloth around the chamber?

Perhaps cast some lugs into the ends through the tube wall to lessen the chance of their departure.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
Top
User avatar
VH_man
Staff Sergeant 4
Staff Sergeant 4
Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Been thanked: 1 time

Tue Jan 06, 2009 9:23 pm

Im currently doing this with one of those clicky sharpies..... Seems great minds think alike (hehe I can be full of myself every once and a while right!)

difference is I used brass tubing. I shall post it when I find a way to fill my gun with my shock pump........
Top
