would this work

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
tape fist
Specialist
Specialist
Posts: 104
Joined: Sun Dec 21, 2008 4:16 am

Sun Jan 25, 2009 5:24 pm

i want to make an air soft gun out of stuff i have around the house and this is my idea would it work?Image
sorry there not much detail
User avatar
jonnyboy
Corporal
Corporal
Posts: 591
Joined: Mon May 26, 2008 1:20 pm
Location: Williamston MI USA

Sun Jan 25, 2009 5:30 pm

It will work, although what kind of pvc do you plan on using? 300 psi scares me a little with pvc especially if you use c02 as your pressure source as it's very cold (pvc doesn't like cold).

Now if your using a bike pump you should be ok as long as the pipe is rated above 400 psi as a safety feature I would add a gauge to the chamber.

There is a link in my sig to a bbmg that uses airsoft magazines and would fit into your design nicely.
mobile chernobyl wrote:I can shoot a Canuter Valve off my '82 Chevy Ram F150 AT LEAST 3/4 Mile with 'ma cannon made of soup cans duct taped together, then I just squirt some bacardi 151 in the chamber and hold up my cigarrete lighta and WHOOSH! That thing flies at least 3/4 mile
User avatar
MaxuS the 2nd
Corporal 2
Corporal 2
Posts: 674
Joined: Sat Jan 19, 2008 3:59 pm

Sun Jan 25, 2009 5:30 pm

Sure, if you have all that crap just lying around your house. Where's my doubtful smiley gone?

Honestly, this is what people make them from anyway.
Badman
tape fist
Specialist
Specialist
Posts: 104
Joined: Sun Dec 21, 2008 4:16 am

Sun Jan 25, 2009 5:36 pm

ya im using two bike pumps to reach 300 psi also i have the PVC warped tightly with twine.
Sure, if you have all that crap just lying around your house. Where's my doubtful smiley gone?

Honestly, this is what people make them from anyway.
yes i have this laying around my house because i buy packs of part because its cheaper and swap meats help.
iknowmy3tables
Staff Sergeant
Staff Sergeant
Posts: 1571
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland

Sun Jan 25, 2009 5:43 pm

I doubt you have a 300psi blowgun, for a simple 100psi I recommend soda bottles especially those 3 liters, there big but there light so their good for portable pneumatic, I also doubt you have a good 5feet of 6mm ID pipe or brake line
User avatar
jonnyboy
Corporal
Corporal
Posts: 591
Joined: Mon May 26, 2008 1:20 pm
Location: Williamston MI USA

Sun Jan 25, 2009 5:45 pm

tape fist wrote:ya im using two bike pumps to reach 300 psi also i have the PVC warped tightly with twine.
Sure, if you have all that crap just lying around your house. Where's my doubtful smiley gone?

Honestly, this is what people make them from anyway.
yes i have this laying around my house because i buy packs of part because its cheaper and swap meats help.
Twine will do NOTHING to stop pvc shrapnel. Does the pvc say nsf-pw? Is there any pressure rating on it like xxx psi? The only pvc that would be rated to that would be 3/4 inch and below the pipe I have is 3/4 and rated to 370 psi.

I would just buy a stick of 2" steel pipe from home depot just to be safe.
mobile chernobyl wrote:I can shoot a Canuter Valve off my '82 Chevy Ram F150 AT LEAST 3/4 Mile with 'ma cannon made of soup cans duct taped together, then I just squirt some bacardi 151 in the chamber and hold up my cigarrete lighta and WHOOSH! That thing flies at least 3/4 mile
tape fist
Specialist
Specialist
Posts: 104
Joined: Sun Dec 21, 2008 4:16 am

Sun Jan 25, 2009 5:47 pm

like i said i go to the swap meet and buy any thing useful cause im a pack rat:) but you are right i didn't think about my blowgun valve thank you
tape fist
Specialist
Specialist
Posts: 104
Joined: Sun Dec 21, 2008 4:16 am

Sun Jan 25, 2009 5:51 pm

Twine will do NOTHING to stop pvc shrapnel. Does the pvc say nsf-pw? Is there any pressure rating on it like xxx psi? The only pvc that would be rated to that would be 3/4 inch and below the pipe I have is 3/4 and rated to 370 psi.

I would just buy a stick of 2" steel pipe from home depot just to be safe.
there goes my false sense of security.now i have to go buy something:(
iknowmy3tables
Staff Sergeant
Staff Sergeant
Posts: 1571
Joined: Fri Dec 15, 2006 3:57 pm
Location: maryland

Sun Jan 25, 2009 8:46 pm

no just use soda bottles they are safe to 100psi

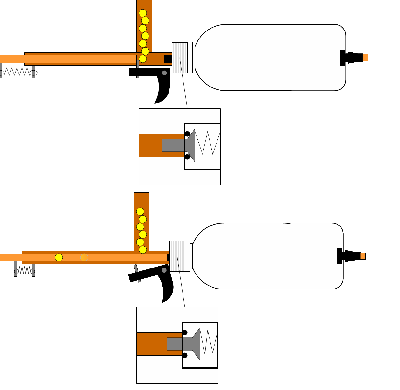

EDIT: I would recommend Antonio's old design, I think it was about last summer this design got kinda popular because it allows you to tap off a small bottle air source for multiple shots effectively
Attachments
ants cheap easy gun.PNG
User avatar
Davidvaini
Sergeant 4
Sergeant 4
Posts: 1315
Joined: Tue May 29, 2007 8:58 pm

Sun Jan 25, 2009 9:50 pm

jonnyboy wrote:
tape fist wrote:ya im using two bike pumps to reach 300 psi also i have the PVC warped tightly with twine.
Sure, if you have all that crap just lying around your house. Where's my doubtful smiley gone?

Honestly, this is what people make them from anyway.
yes i have this laying around my house because i buy packs of part because its cheaper and swap meats help.
Twine will do NOTHING to stop pvc shrapnel. Does the pvc say nsf-pw? Is there any pressure rating on it like xxx psi? The only pvc that would be rated to that would be 3/4 inch and below the pipe I have is 3/4 and rated to 370 psi.

I would just buy a stick of 2" steel pipe from home depot just to be safe.

1.25" SCH 40 NSF-PW is rated for 370psi.
Picture:


I wouldn't recommend anything larger then 1.25" though because of temperature changes.
