BFG #7
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

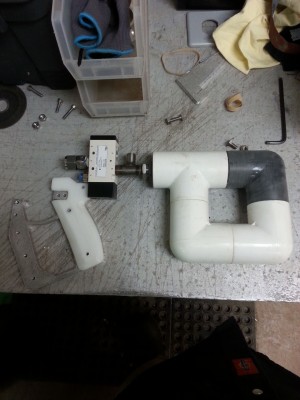

Started getting some more parts together
Last edited by farcticox1 on Sun Jan 07, 2018 2:44 pm, edited 1 time in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

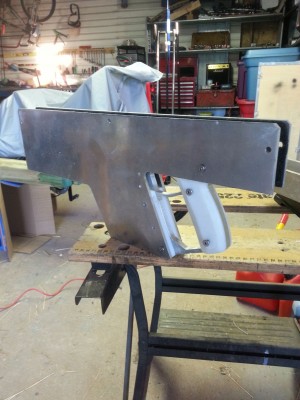

First trial assembly of the main body
Last edited by farcticox1 on Sun Jan 07, 2018 2:45 pm, edited 1 time in total.
-
jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
Looking good, love the subtle-but-not Kriss Vector influence.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times
hmmm, you noticed then
-
jackssmirkingrevenge
- Five Star General
- Posts: 26179
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 543 times
- Been thanked: 321 times
Was it meant to be a surprise?
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times
Some drilling, tapping and countersinking later.
Last edited by farcticox1 on Sun Jan 07, 2018 2:48 pm, edited 1 time in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

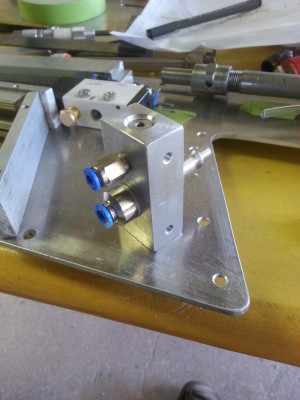

Another part made and fitted today, manifold for the air supply, 4mm for the pilot and 6mm to the chamber,
Last edited by farcticox1 on Sun Jan 07, 2018 2:51 pm, edited 1 time in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times
A few hours more work on it, it's slowly coming together
Still to do is smooth down chamber/stock and paint, fit the reload magazine and get it to work !, top rail to mount stuff like sight, sleeve over the barrel for silencer look, some plumbing.
Last edited by farcticox1 on Sun Jan 07, 2018 2:53 pm, edited 1 time in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

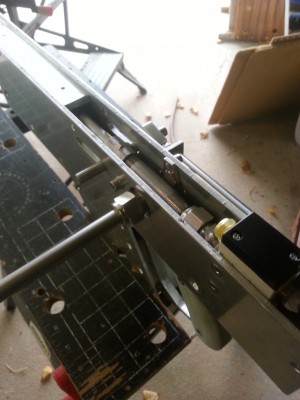

The loading system seems to work OK, just needs a bit of finishing

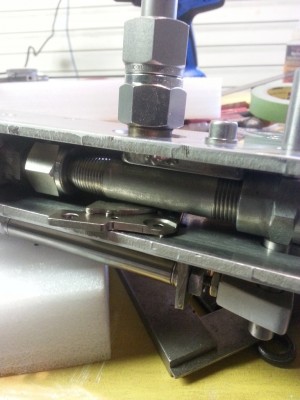

BBs in the tube, breech closed

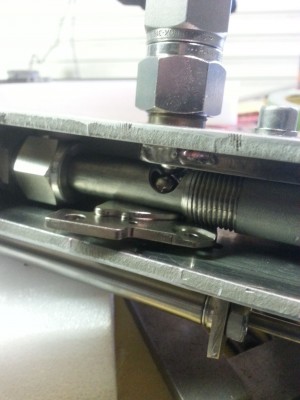

Breech opened by acuater, first ball is held by magnet (I haven't fixed it in yet)
BBs in the tube, breech closed
Last edited by farcticox1 on Sun Jan 07, 2018 2:55 pm, edited 2 times in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

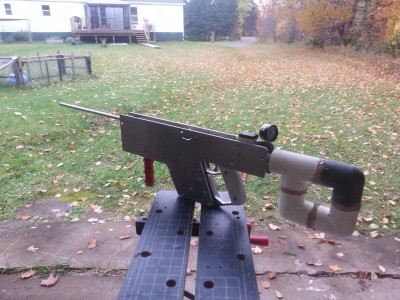

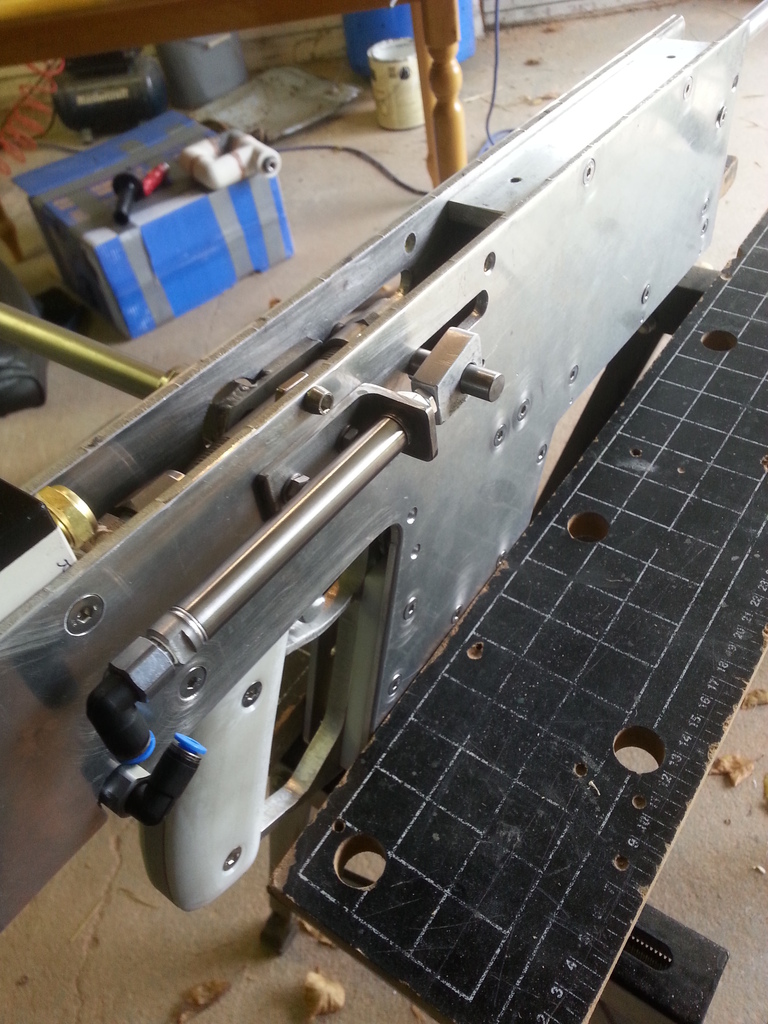

Got it all fitted in nicely
[youtube][/youtube]
[youtube][/youtube]
Last edited by farcticox1 on Sun Jan 07, 2018 3:36 pm, edited 1 time in total.
-
sharpshooter
- Private 4
- Posts: 75
- Joined: Wed Feb 08, 2006 6:49 pm
I assume the pneumatic piston on the right side will cycle the bolt automatically?
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times
Yes, that is the plan, nothing has been powered yet though.
Last edited by farcticox1 on Sun Jan 07, 2018 3:38 pm, edited 1 time in total.
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times

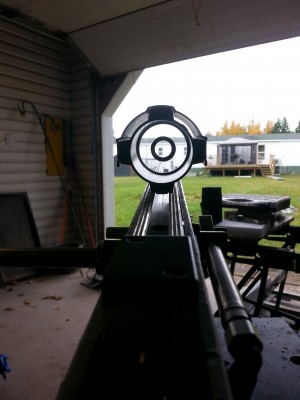

Found a cover of an old CCTV camera, it's gonna make a sweet sight, going to have a lazer pointer as well.
Last edited by farcticox1 on Sun Jan 07, 2018 2:27 pm, edited 1 time in total.
-
Labtecpower
- Sergeant 3
- Posts: 1297
- Joined: Sat Feb 20, 2010 6:38 am
- Location: Pyongyang
- Has thanked: 5 times
- Been thanked: 13 times
Nice work! I'll be keeping an eye on this
-
farcticox1
- Sergeant
- Posts: 1077
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 68 times
- Been thanked: 94 times
I have named it 'BFG No. 7' because I must have had at least 6 major design ideas before I got this far
And I have started on the next one
and parts for another
And I have started on the next one
and parts for another
