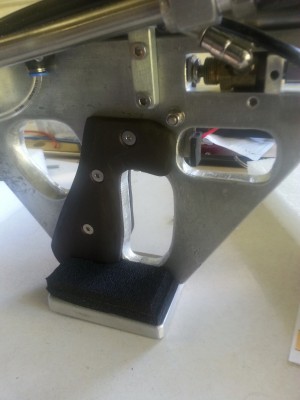

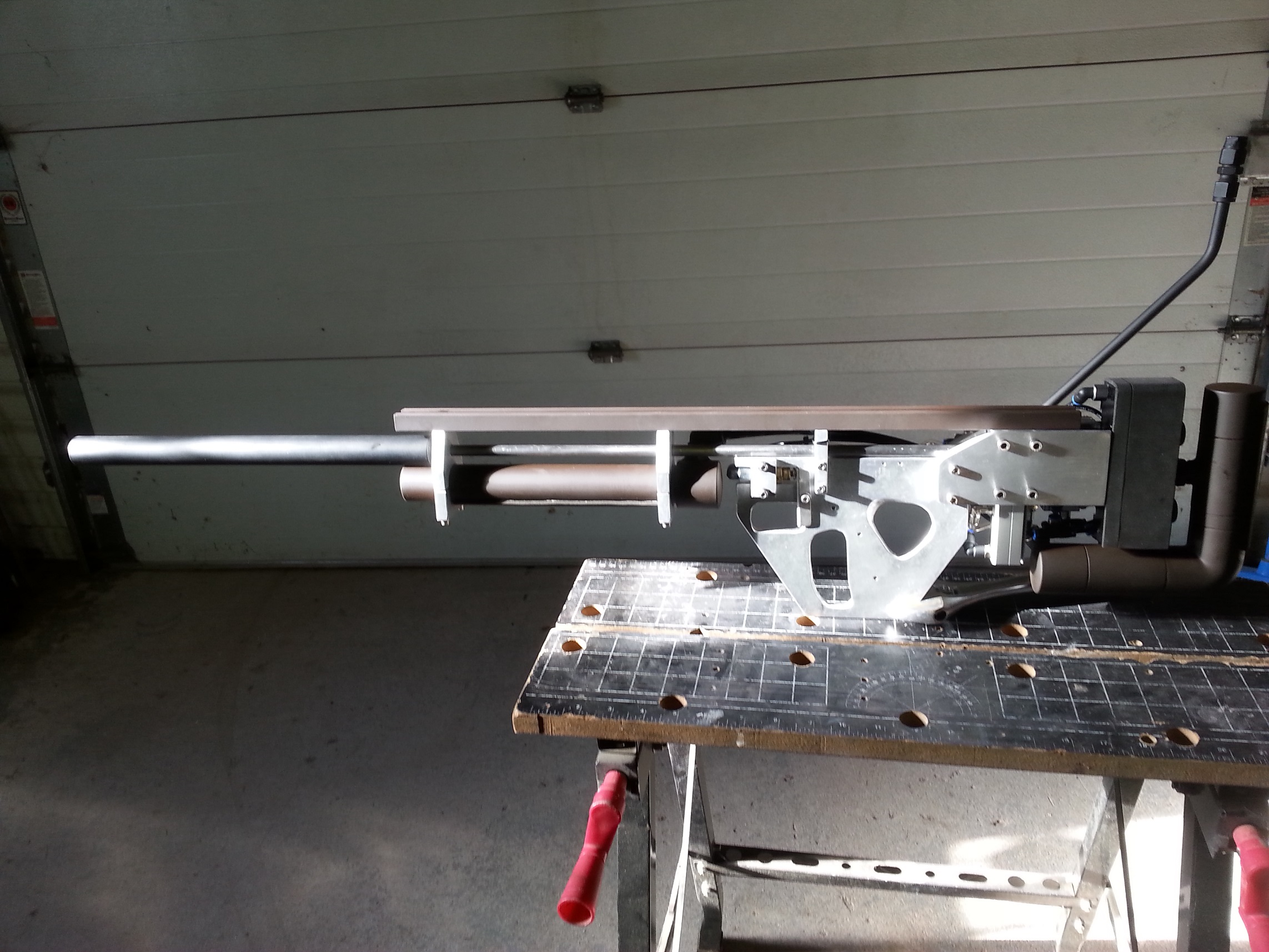

Got it finished with some work on the bipod and grip, video and full specs. to follow.

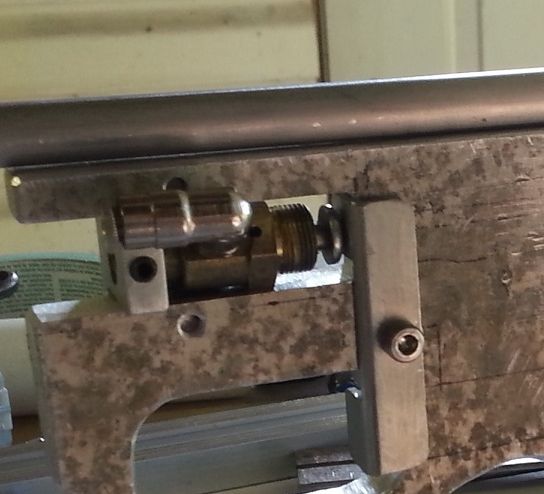

001 (1).jpg

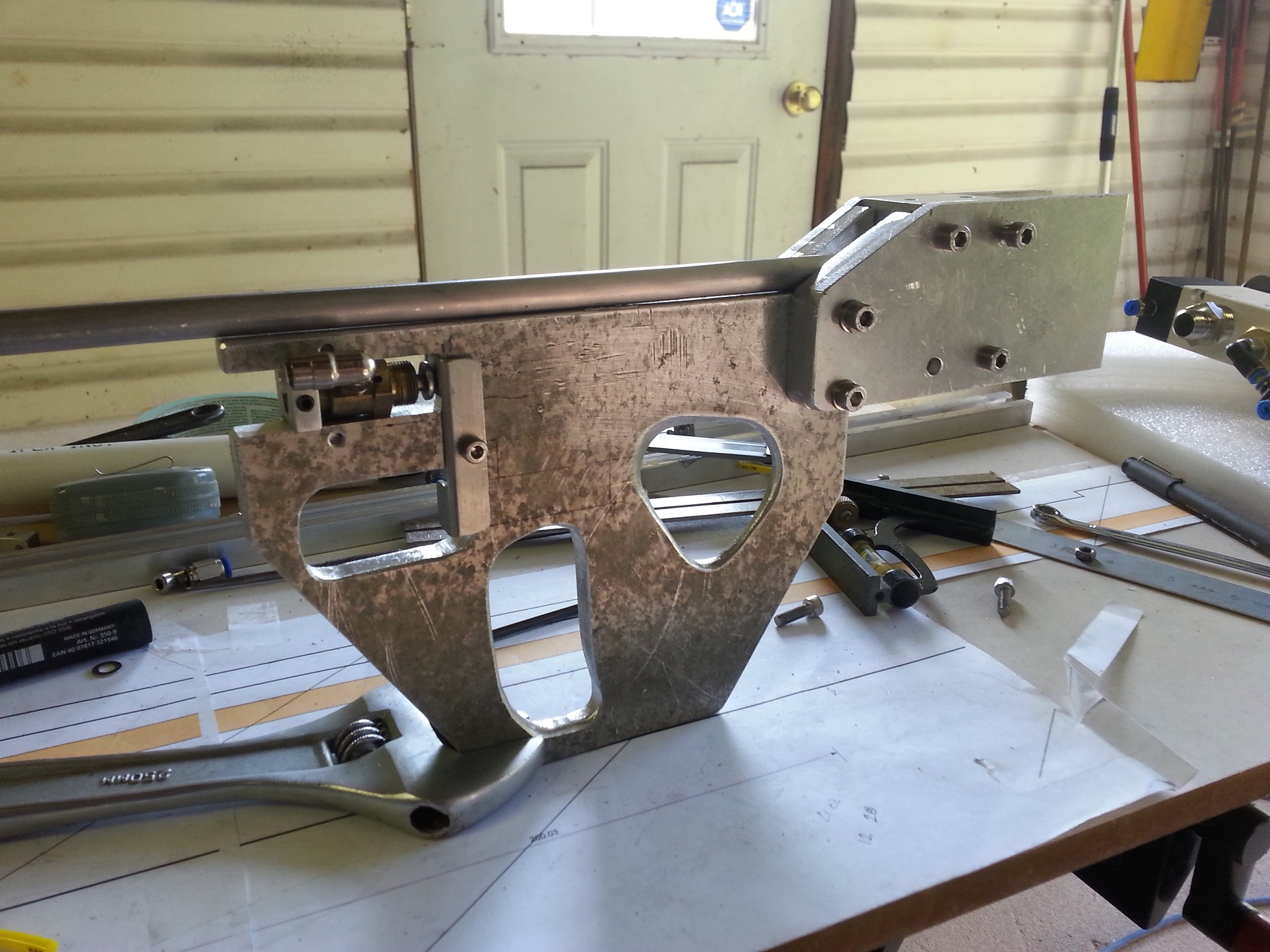

001 (2).jpg

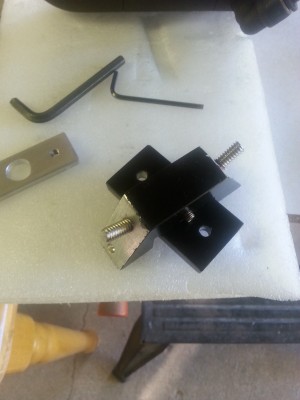

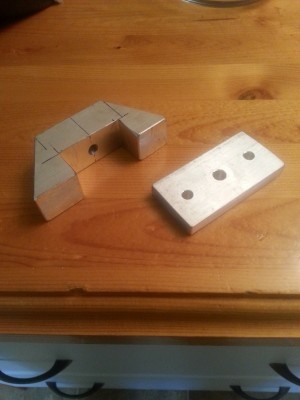

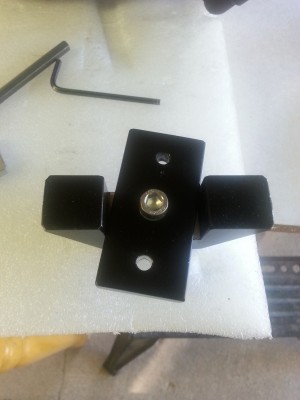

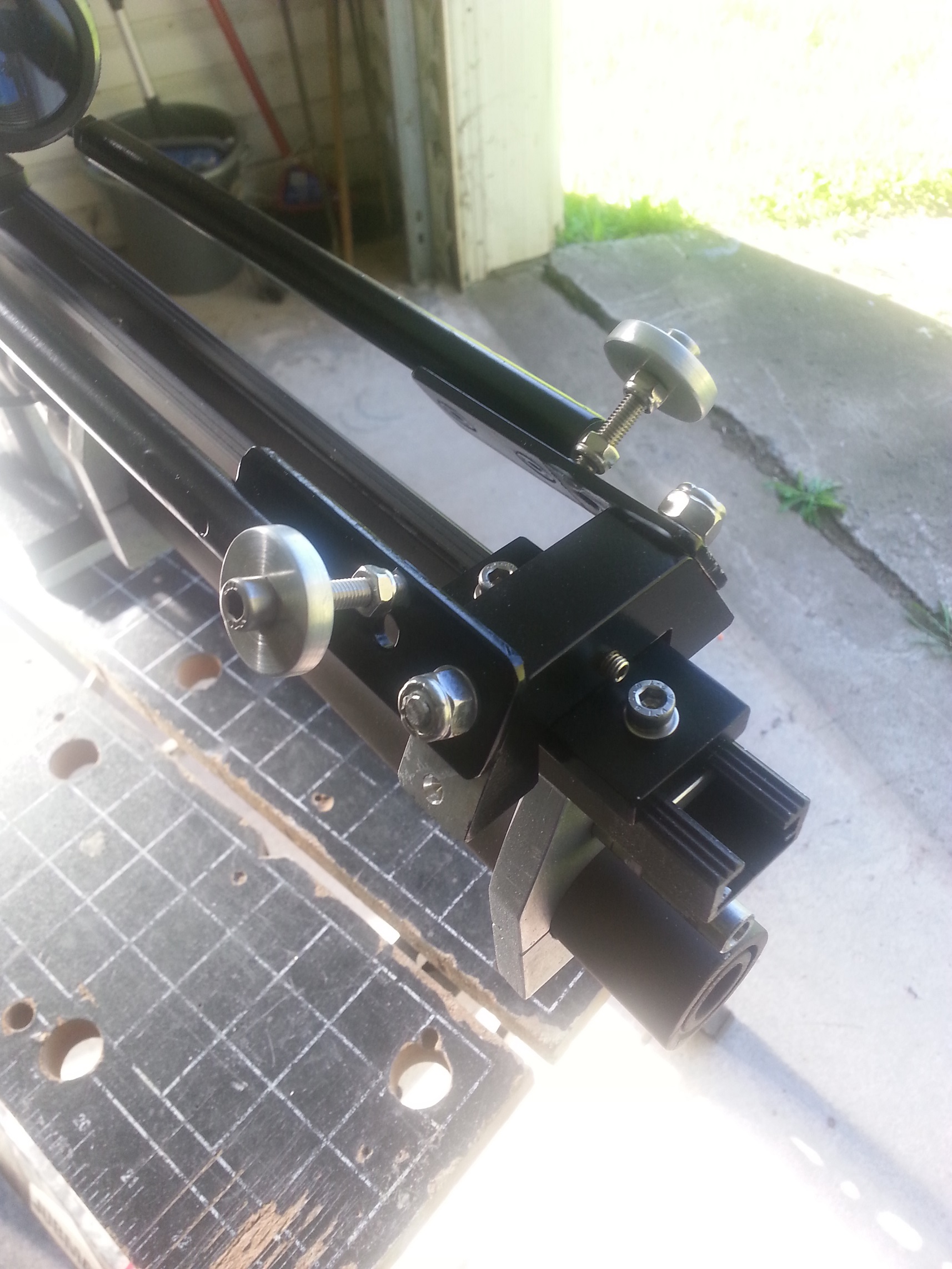

Bipod can turn slightly left and right

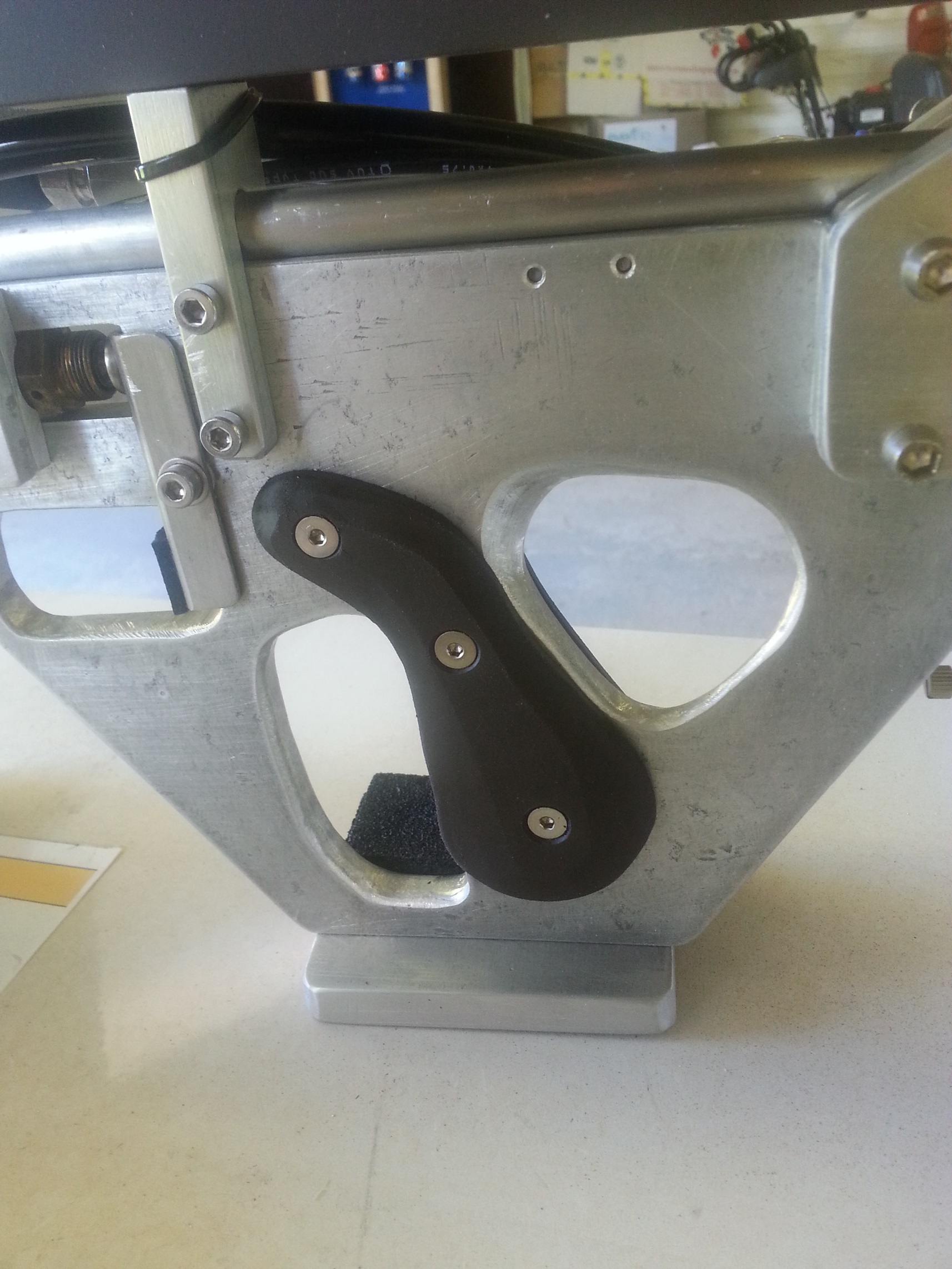

001 (3).jpg

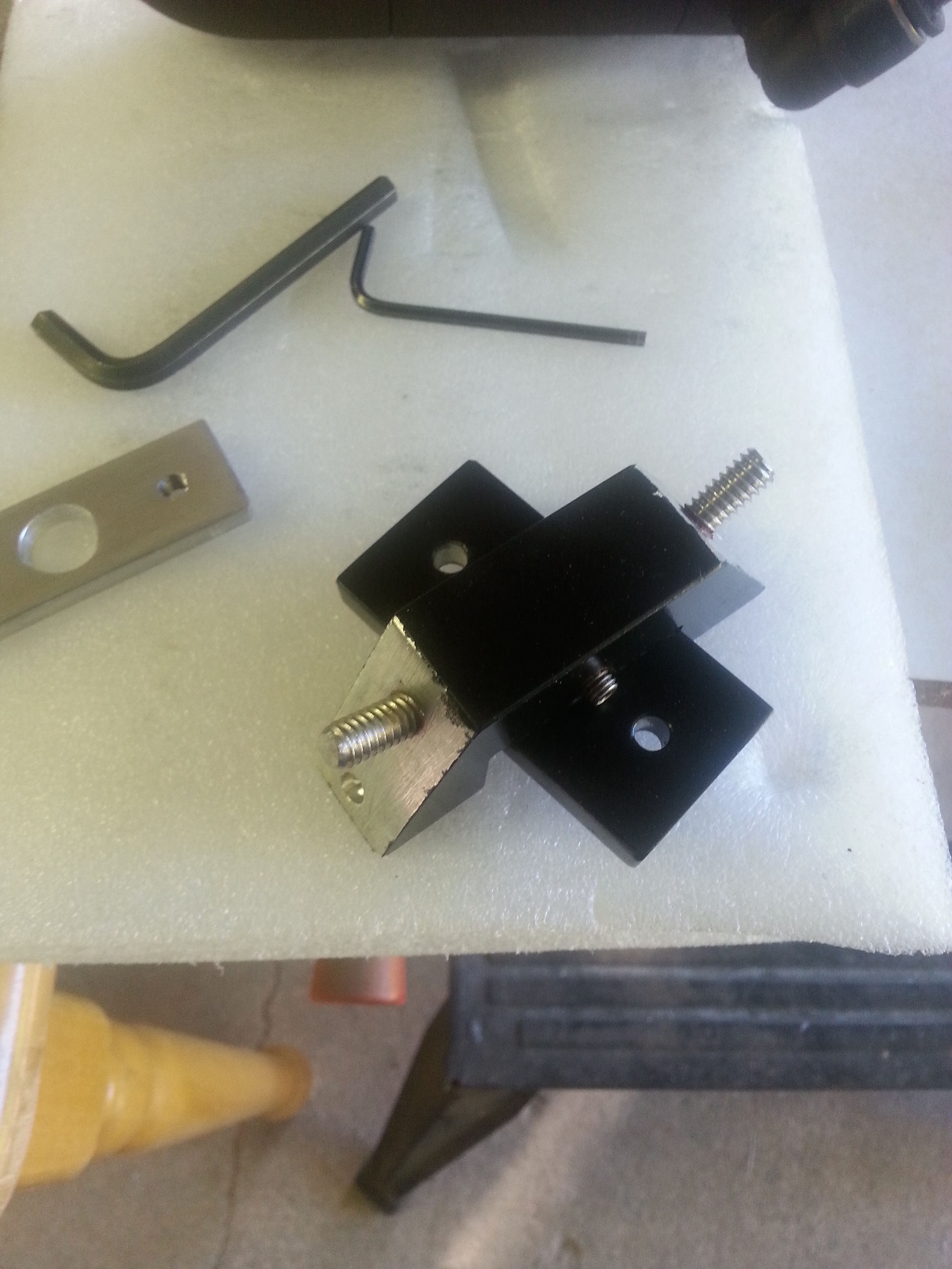

001 (4).jpg

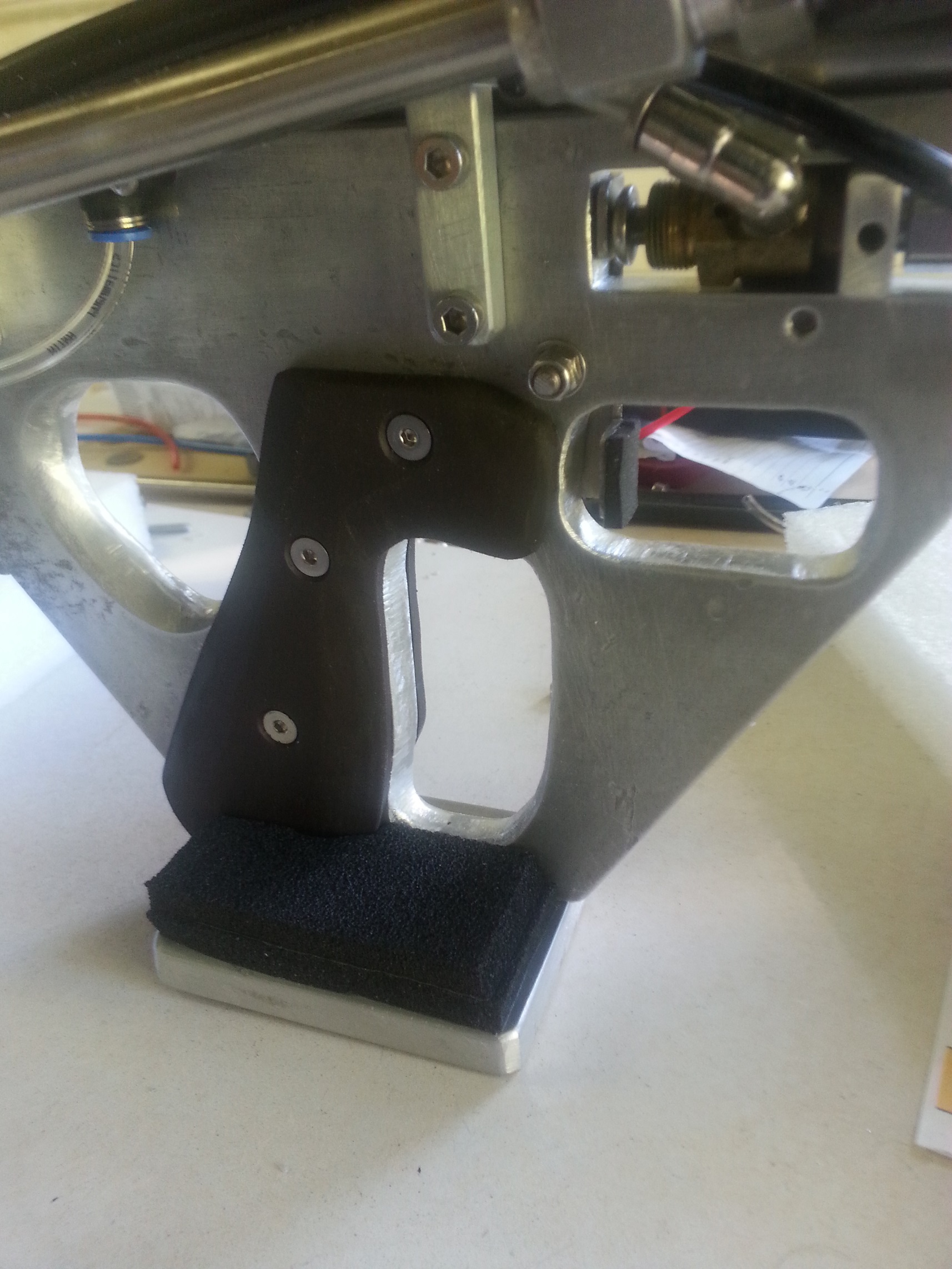

001 (5).jpg

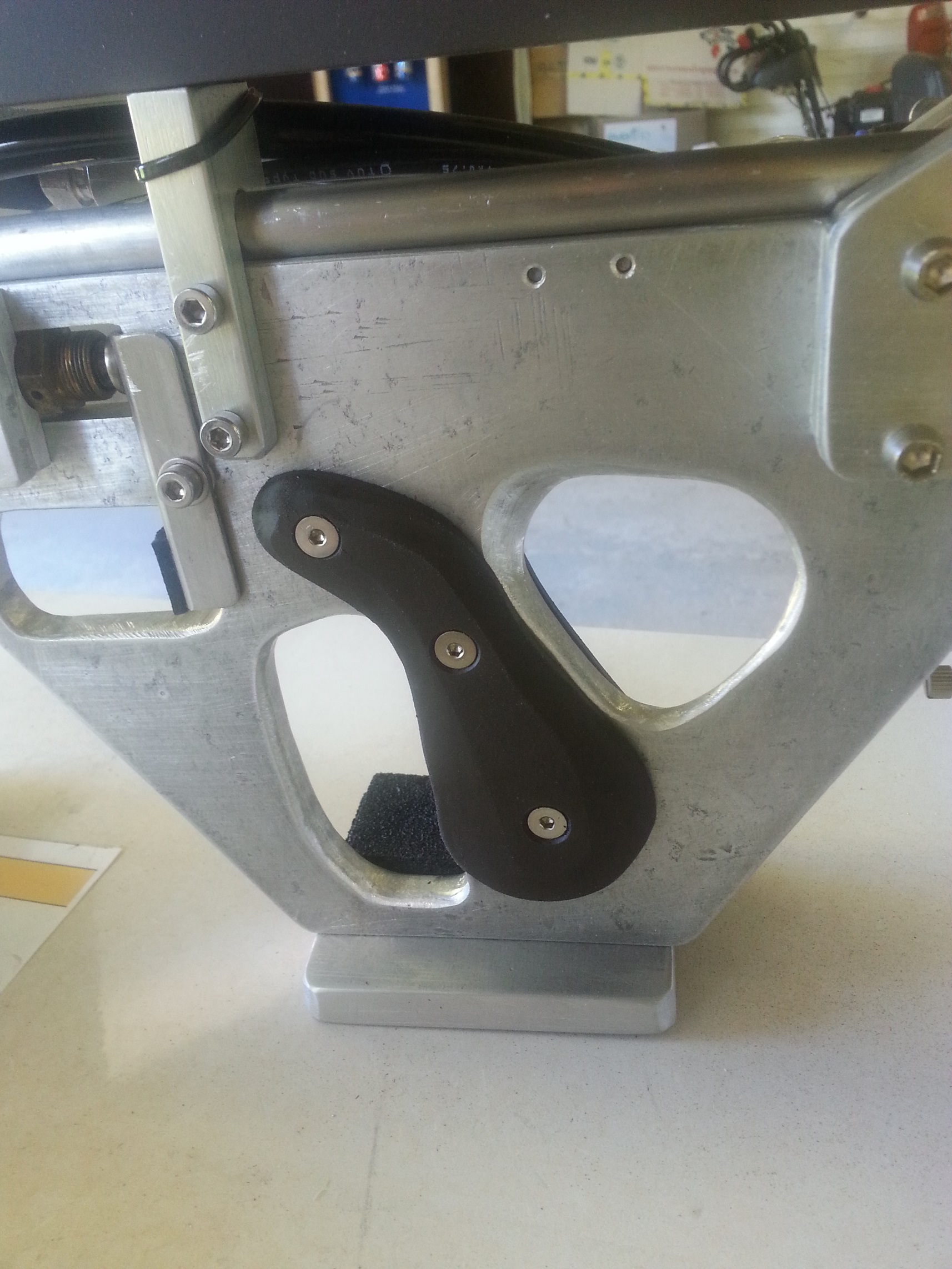

001 (6).jpg
001 (7).jpg
001 (8).jpg
001 (9).jpg
Last edited by farcticox1 on Mon Oct 02, 2017 4:43 pm, edited 2 times in total.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 25761
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 86 times
Been thanked: 52 times

Donating Members

Sun Oct 01, 2017 8:21 pm

Another great build, I love the way she wears her insides on the outside :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Mon Oct 02, 2017 4:36 pm

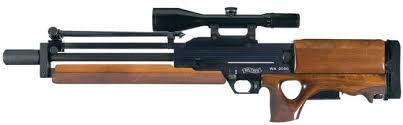

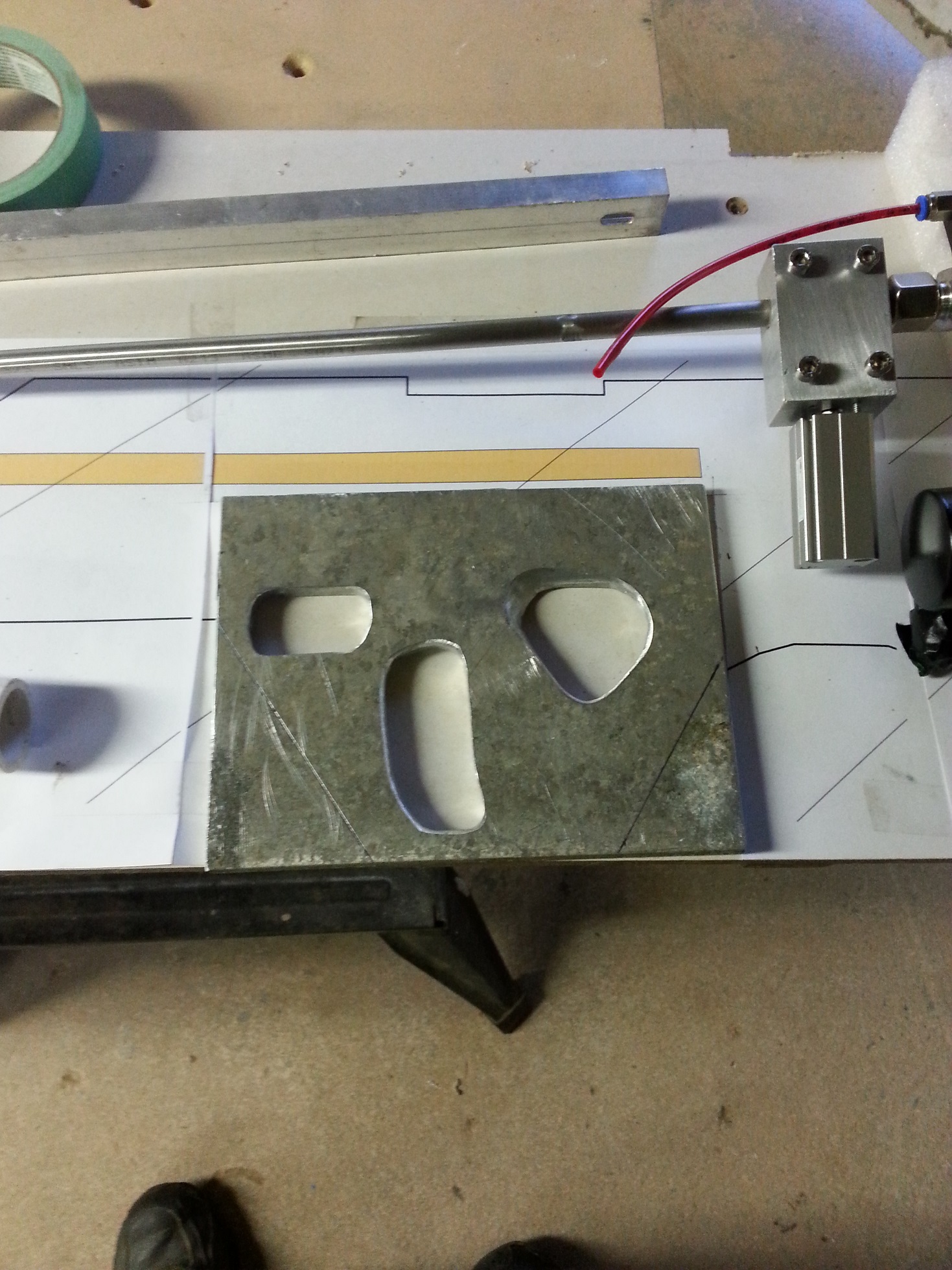

Came across this piece of 2mm thick gold anodized aluminium, and it almost looks like wood grain :shock: :idea: :idea:
User avatar
hectmarr
Corporal 4
Corporal 4
Argentina
Posts: 813
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 36 times
Been thanked: 32 times
Contact:

Wed Oct 04, 2017 3:58 pm

Very nice work, these things keep the hobby alive. Excellent.
Ideas don't make holes. The weapons yes! ;)
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Wed Oct 04, 2017 4:51 pm

This is how it all began, as with most of the others I have built.

Get some inspiration :idea:
Make a scale plan (I use Microsoft Visio)

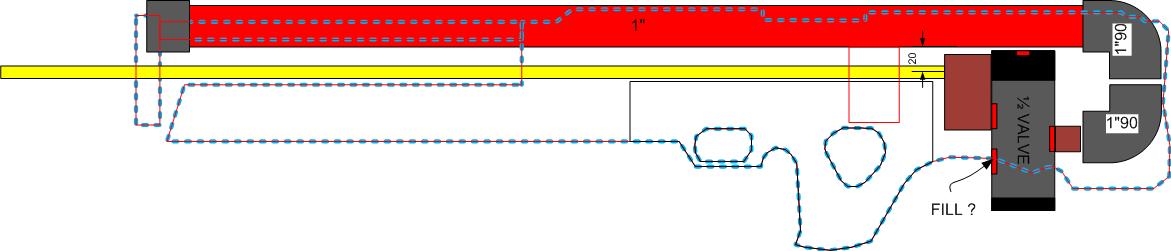

FAR2017 main - Copy.jpg
FAR2017 main - Copy.jpg (31.61 KiB) Viewed 2492 times

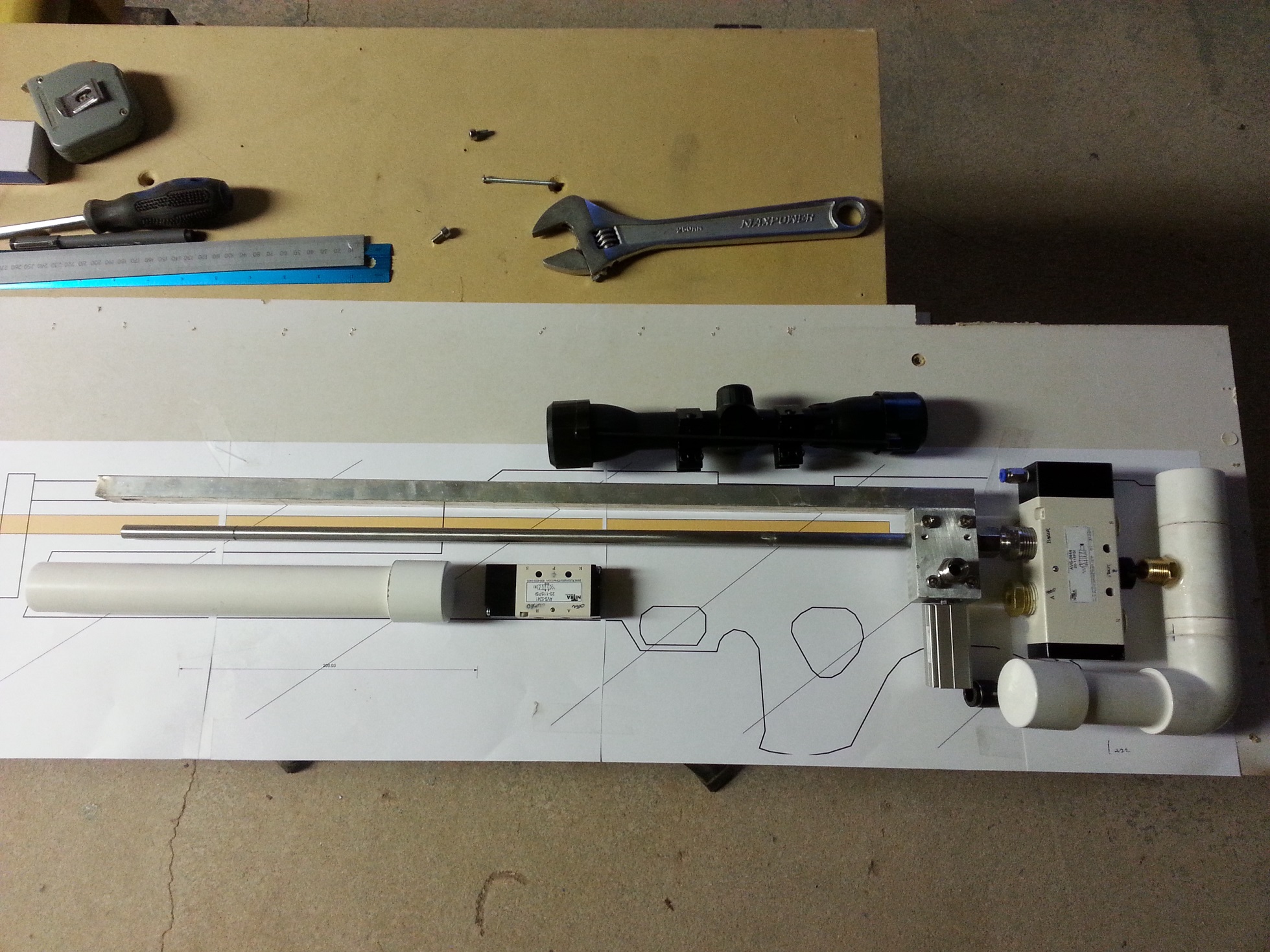

Get some parts and see how they fit

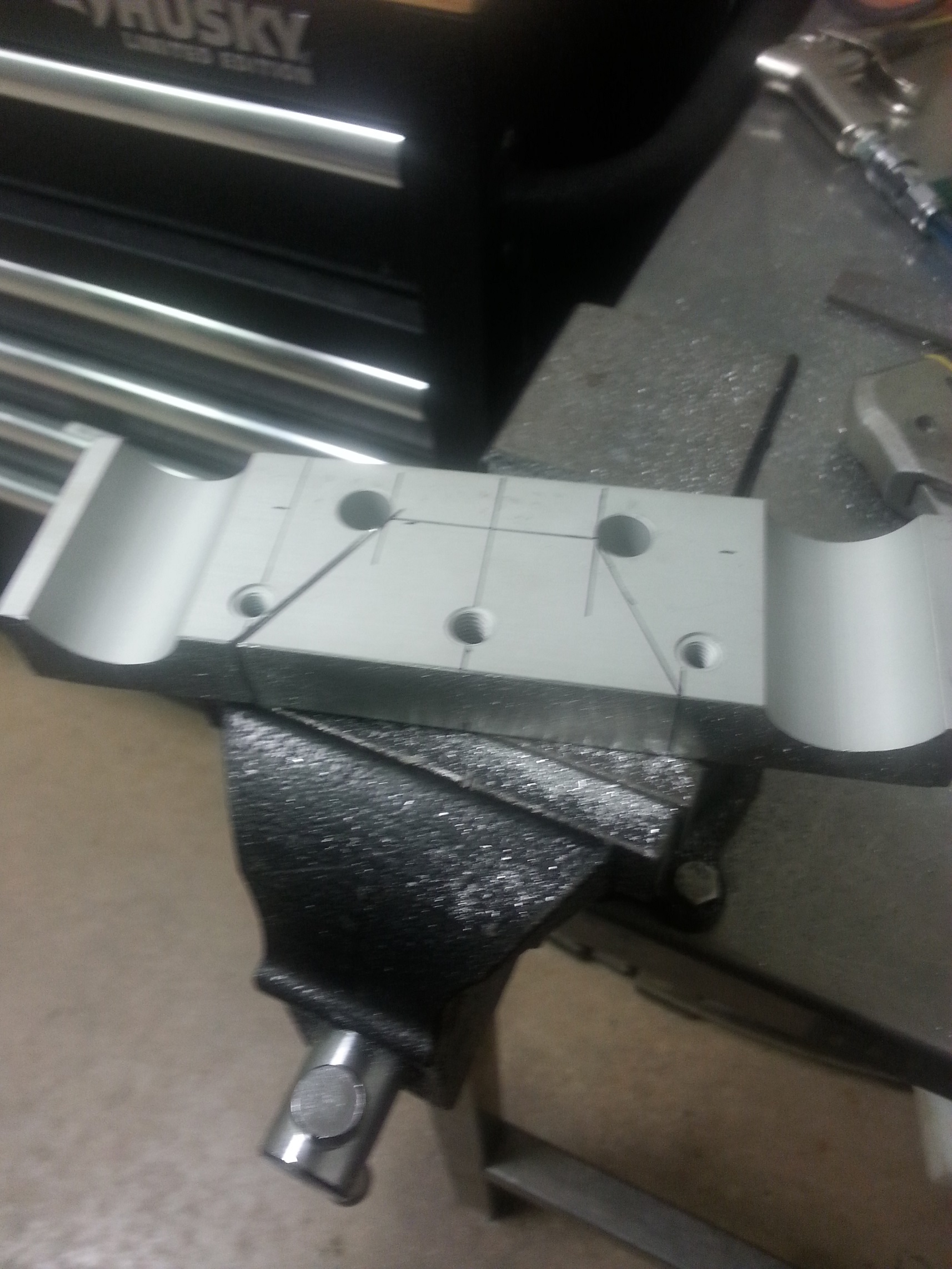

Make some more parts

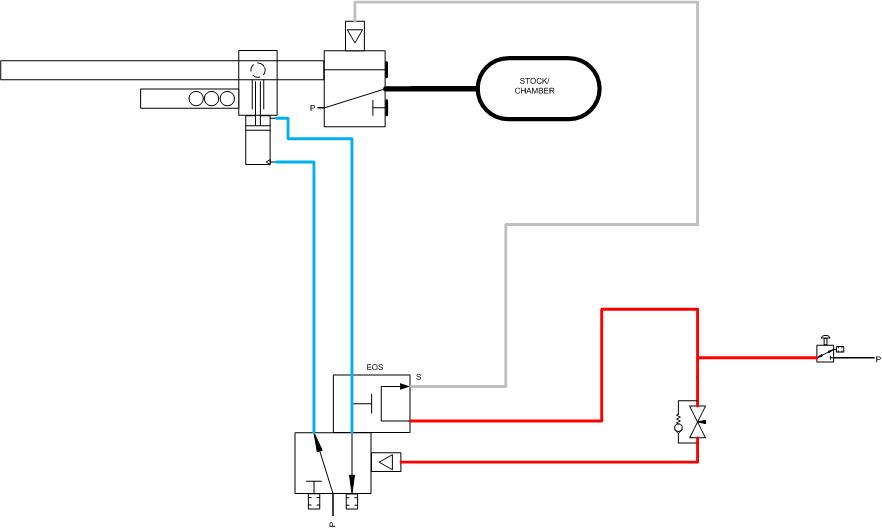

Work out pneumatic circuit
air lines 3.jpg
air lines 3.jpg (25.5 KiB) Viewed 2492 times

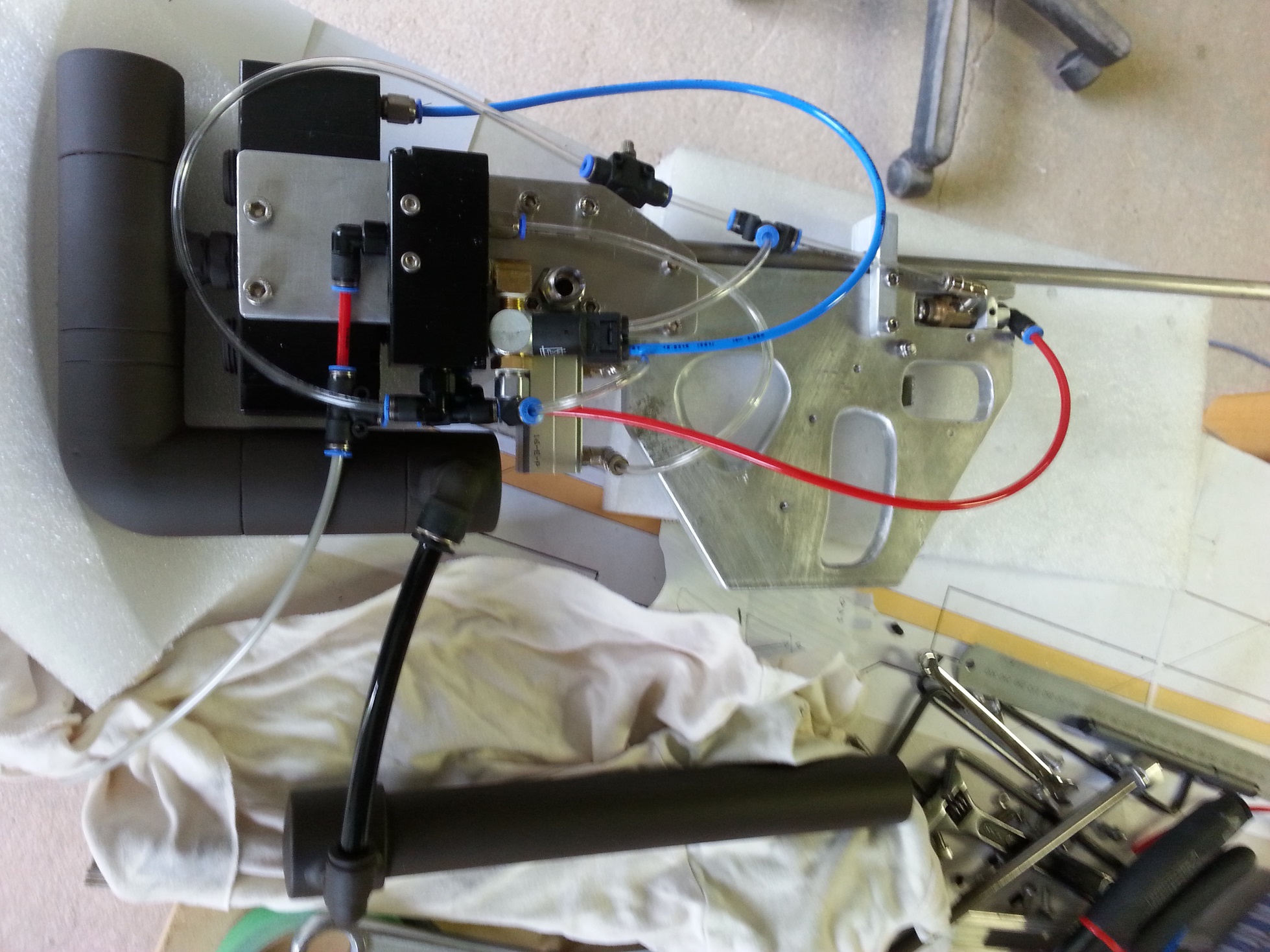

Put it all together

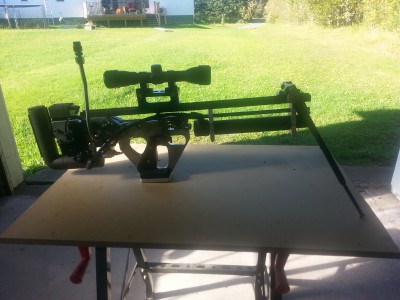

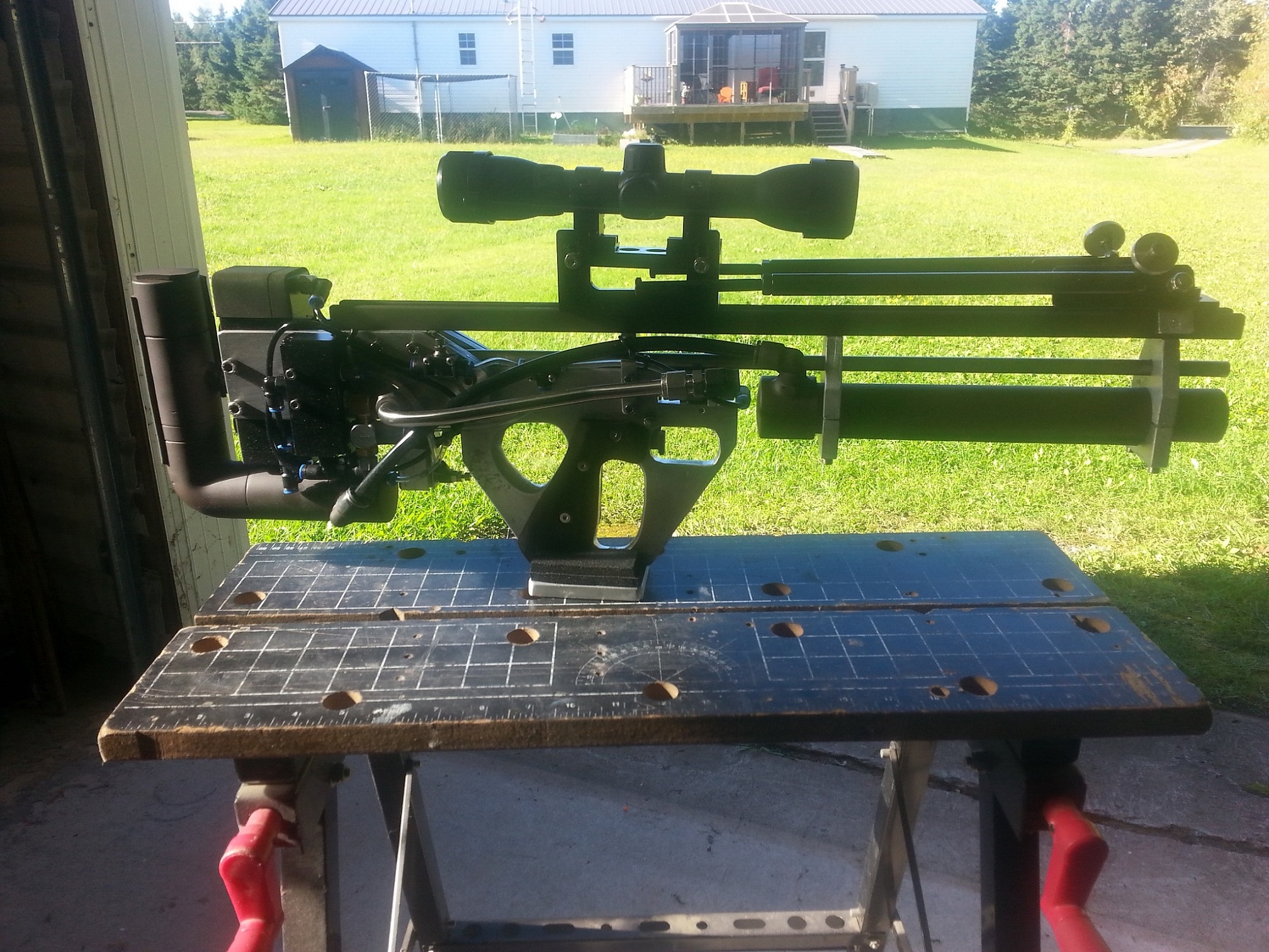

It is 700mm(27.5") long.
The barrel is 10mmOD 6mmID stainless steel, 500mm(19.5") long, 800mm (31.5")with extension.
Chamber is 1" Stainless Sch40, 250mm (10") long.
Weight is 11.2Lbs (5Kg)
Main valve is a 5/2 1/2" port air pilot, control valve is 5/2 1/8" port air pilot, trigger valve is 3/2 #10/32 push button momentary spring return.
This magazine tube holds 50 airsoft BBs, I will be trying it with steel BBs as well.
Last edited by farcticox1 on Sat Jul 14, 2018 12:58 pm, edited 1 time in total.
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Sat Oct 07, 2017 4:24 pm

Finally got the video done, not very exciting as it all happens inside. Used a 20 round short magazine, have a 40 and a 50 as well. I can see why some people like the bullpup style, with the barrel extension on it is perfectly balanced at the grip, really nice to shoot from the sholder. Pleased with how this one turned out :D

[youtube][/youtube]
User avatar
hectmarr
Corporal 4
Corporal 4
Argentina
Posts: 813
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 36 times
Been thanked: 32 times
Contact:

Sat Oct 07, 2017 7:43 pm

wow !! :shock: work finished, I really like how it shoots, and the neatness of the construction.
Ideas don't make holes. The weapons yes! ;)
Air2theBrain
Specialist 2
Specialist 2
Posts: 222
Joined: Wed Apr 12, 2017 5:30 am

Wed Nov 15, 2017 2:08 pm

I knew where your inspiration came from as soon as i saw this beast. :)

Impressed with your top mag tube, thats what i've been wanting to do also. :wink:

Shoots very well nice and accurate. 8)
Air2theBrain
Specialist 2
Specialist 2
Posts: 222
Joined: Wed Apr 12, 2017 5:30 am

Sat Nov 18, 2017 7:54 am

Hi, i've just been looking at your FAR2017 again, do you have your main and air chambers connected?
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Sat Nov 18, 2017 8:12 am

Yes, mainly to increase the volume, I use it with the air supply always connected but only through a 4mm airline, so it tops up the chamber between shots.
Air2theBrain
Specialist 2
Specialist 2
Posts: 222
Joined: Wed Apr 12, 2017 5:30 am

Sat Nov 18, 2017 8:18 am

Ah awesome...but your using a pilot valve, qev would be no difference?
Air2theBrain
Specialist 2
Specialist 2
Posts: 222
Joined: Wed Apr 12, 2017 5:30 am

Tue Nov 21, 2017 8:58 pm

Hi F1...have been reading your thread again, and noticed with your 1" chamber you said you split it into 2..?

What does that do?
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Wed Nov 22, 2017 5:48 am

Ah sorry, I thought that was what you meant before. I just wanted to get as much air onboard as I could. At least 4X barrel volume. The feed line from the compressor is 4mm OD Polyurethane which is so small you hardly know it's there, BUT it has very low flow so it is mainly there to top up the onboard chamber between shots. Originally it was going to look like this

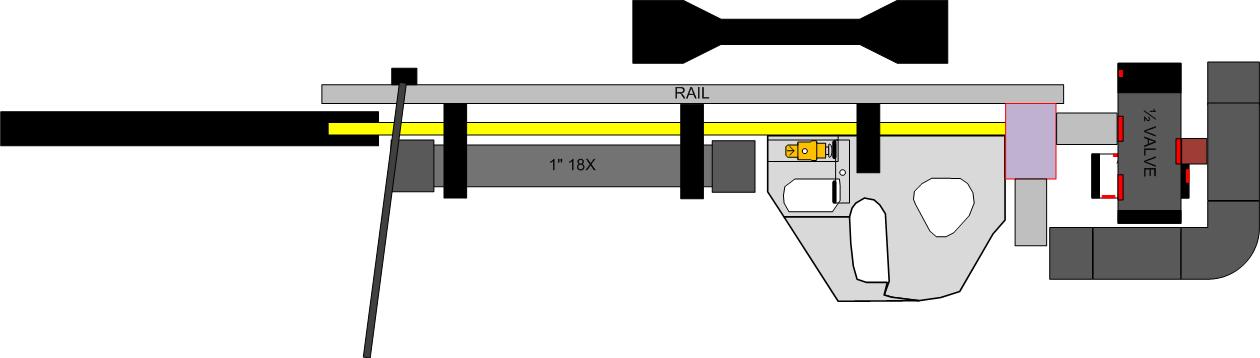

scale bullpup2.jpg
scale bullpup2.jpg (35.79 KiB) Viewed 2145 times
Air2theBrain
Specialist 2
Specialist 2
Posts: 222
Joined: Wed Apr 12, 2017 5:30 am

Wed Nov 22, 2017 6:18 am

Nice thanks.

I noticed your feed lines, do they handle the pressure ok?

Feed lines would be great to eliminate attachments between the trigger and the qev, etc.
User avatar
farcticox1
Corporal 5
Corporal 5
Posts: 982
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 17 times
Been thanked: 25 times

Wed Nov 22, 2017 5:28 pm

Everything except the PVC chambers are standard pneumatic components, valves, fittings & tubing, I think they are rated at 120psi, I'm using 135psi so I guess there is a good safety factor anyway.
